RGB COB LED Flexible Strip Light
RGB COB LED Flexible Strip Light Spotless COB linear light,seamless flexible strip 180°beam angle,more wider distribution compared to 120°in SMD. DC12/24V both available for human safety. 24VDC for longer max run 3M adhesive backing simplifies mounting Up to 6
- System
- Retail Lighting
- Product Family
- LED Strip Lights
- Product Type
- COB LED Strips
Product Gallery
Product Views
Product Details
Technical Information
RGB COB LED Flexible Strip Light
Spotless COB linear light,seamless flexible strip 180°beam angle,more wider distribution compared to 120°in SMD. DC12/24V both available for human safety. 24VDC for longer max run 3M adhesive backing simplifies mounting Up to 630 chips per meter , one chip fail do not affect other chips RGB color s3-5 years warranty
| Item No. | HM-RGB-COB-12V/24V-10mm-630 | HM-RGB-COB-12V/24V-12mm-630 |
| Voltage | DC12V/24V | DC24v |
| CRI | Ra80+/90+ | Ra80+/90+ |
| IP rating | IP20/IP67 | IP20/IP67 |

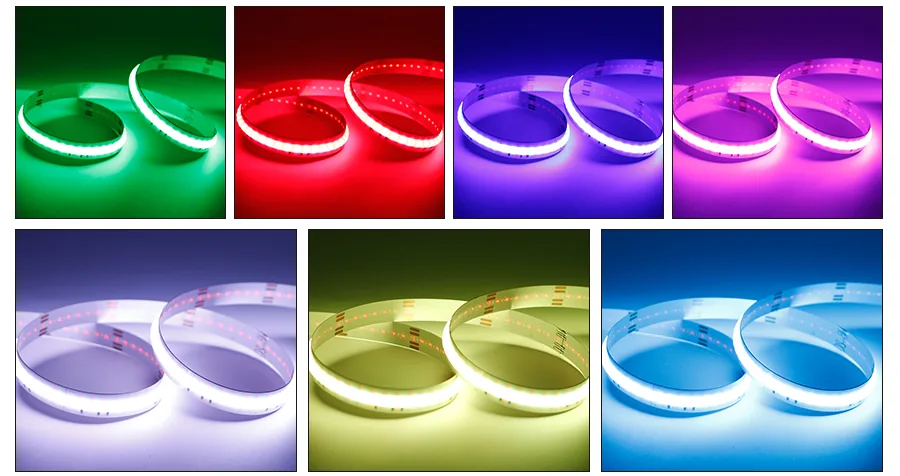

| Color | RGB | RGB |
| Watts | 16-18W | 16-18W |
| Wave band | R-620±5 G-525±5 B-470±5 | R-620±5 G-525±5 B-470±5 |
| Pitch | 12V=14.29mm; 24V=33.33mm | 7.8mm/62.5mm |
| Width | 10mm | 12mm |
| PCB Thickness | 2oz/3oz | 2oz/3oz |
| PCB Color | White | White |
