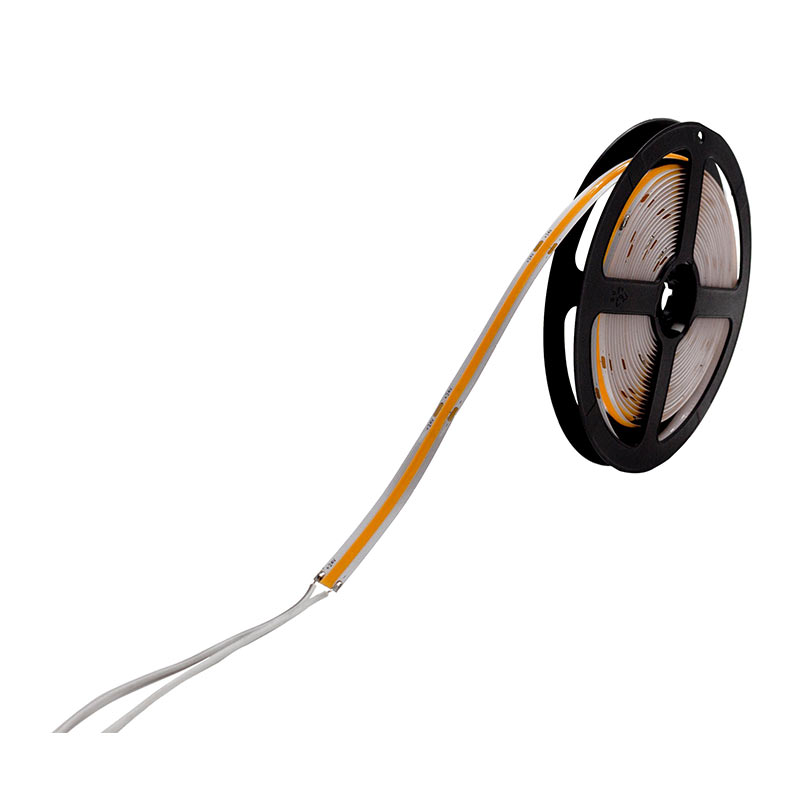

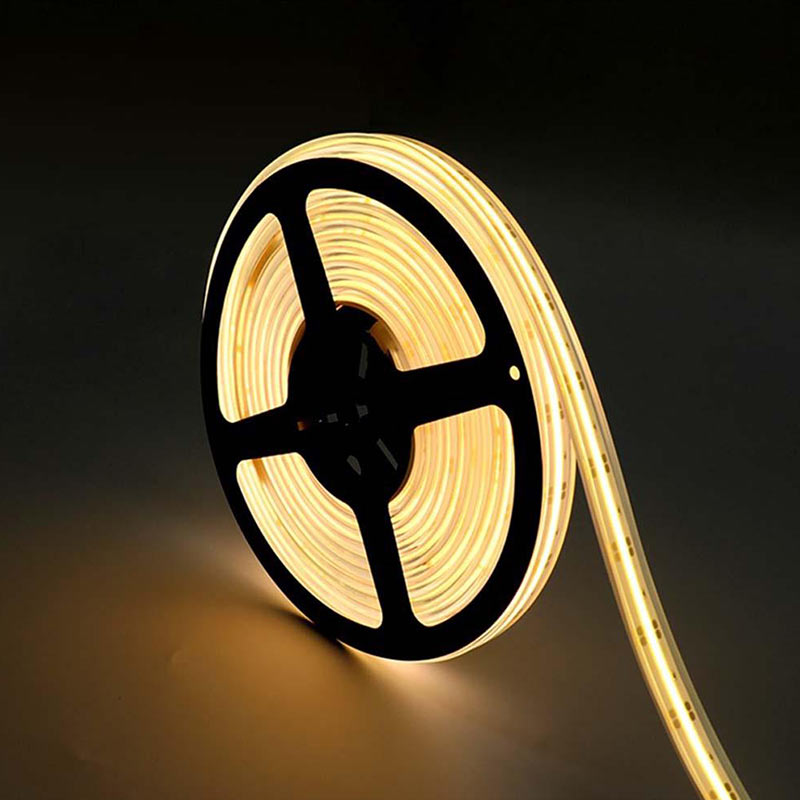

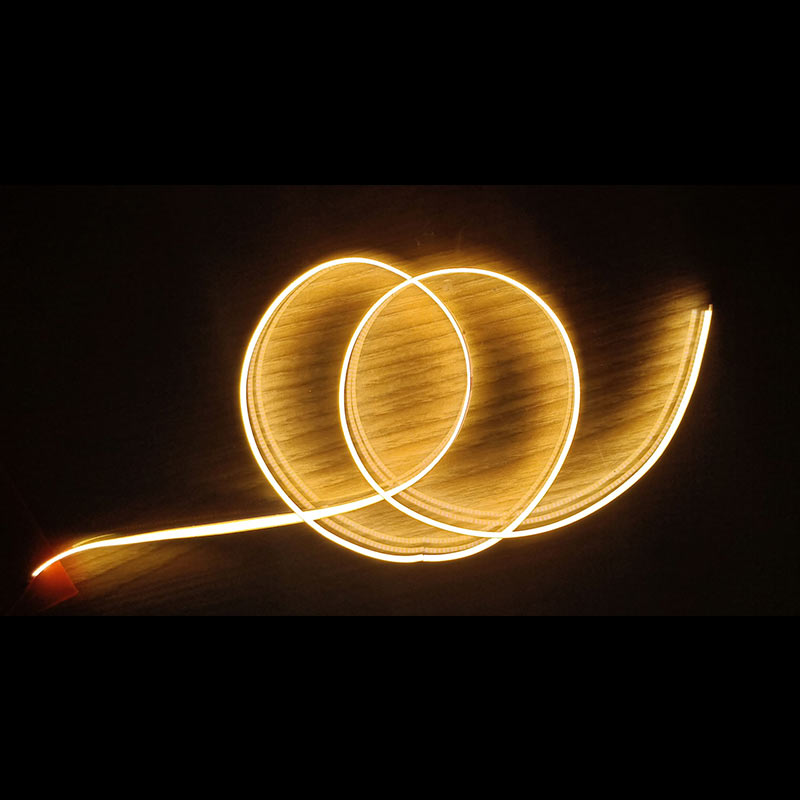

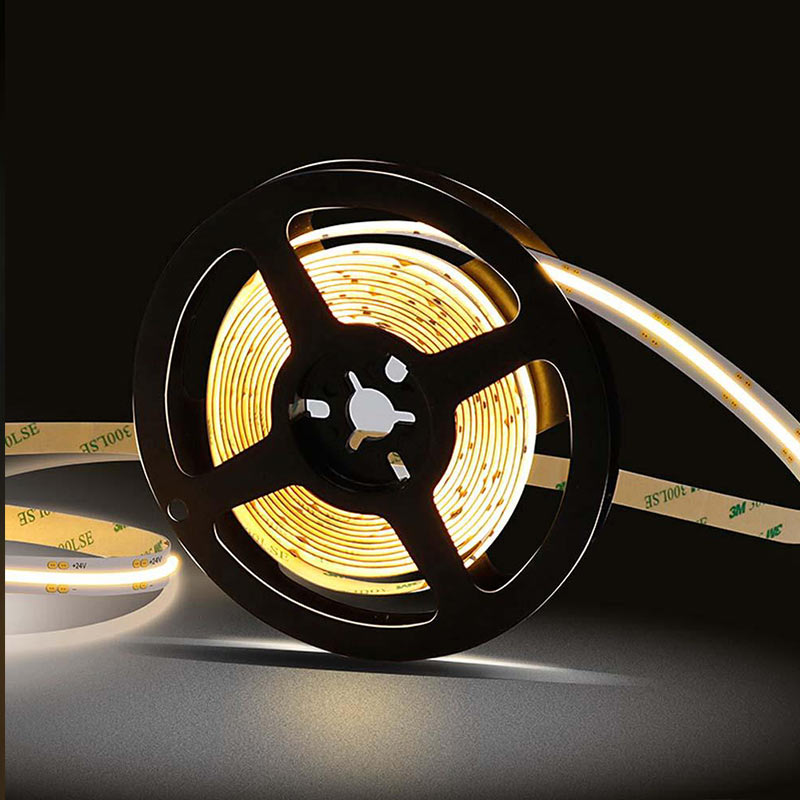

No Dark Area COB LED Flexible Strip Light
Item No. HM-COB5281 HM-COB5282 Voltage DC12v DC24v CRI Ra80+/90+ Ra80+/90+ IP rating IP20 IP20 Color 2200k-6500k 2200k-6500k Watts 15w 15w Lumen 1200-1650lm 1200-1650lm Pitch 22.73mm 45.45mm Width 10mm 10mm PCB Thickness 2oz/3oz 2oz/3oz PCB Color White/Black/G
- System
- Retail Lighting
- Product Family
- LED Strip Lights
- Product Type
- COB LED Strips

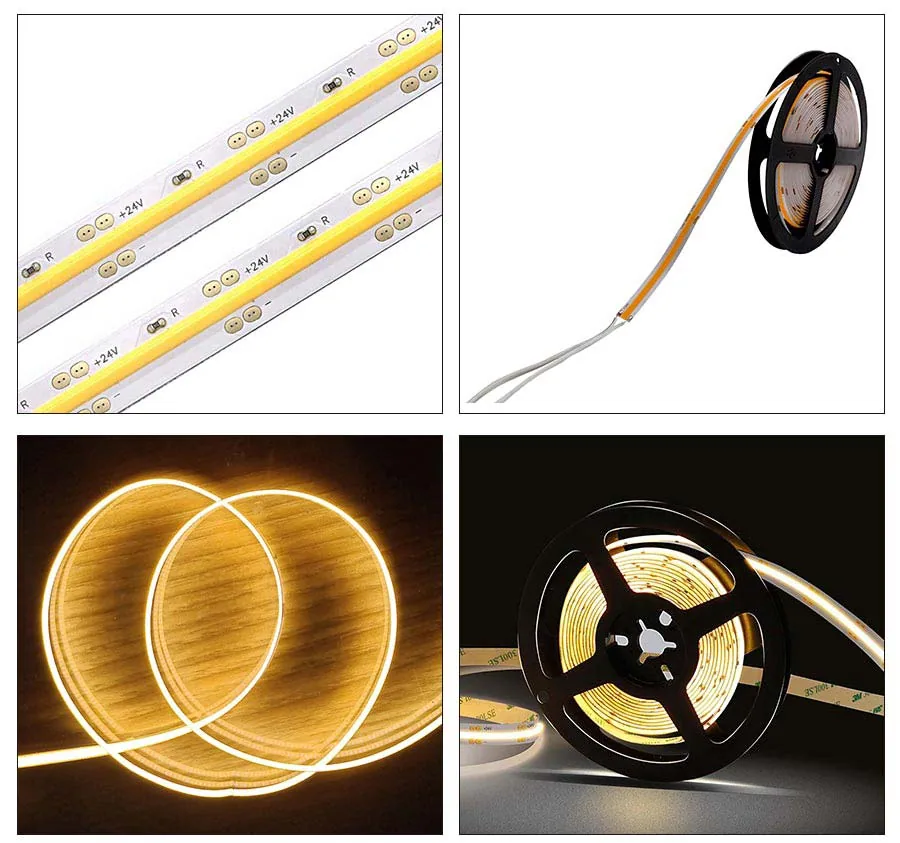

Product Gallery
Product Views
Product Video
See the product in action
Product Details
Technical Information
| Item No. | HM-COB5281 | HM-COB5282 |
| Voltage | DC12v | DC24v |
| CRI | Ra80+/90+ | Ra80+/90+ |

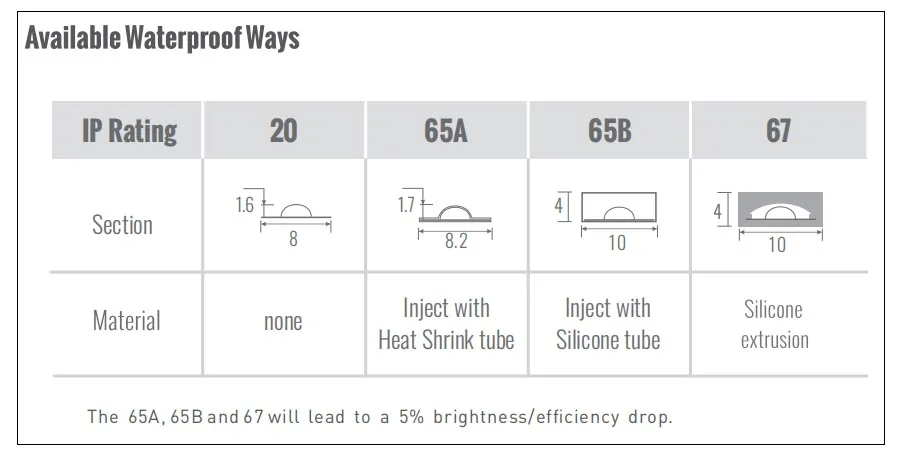

| IP rating | IP20 | IP20 |
| Color | 2200k-6500k | 2200k-6500k |
| Watts | 15w | 15w |
| Lumen | 1200-1650lm | 1200-1650lm |

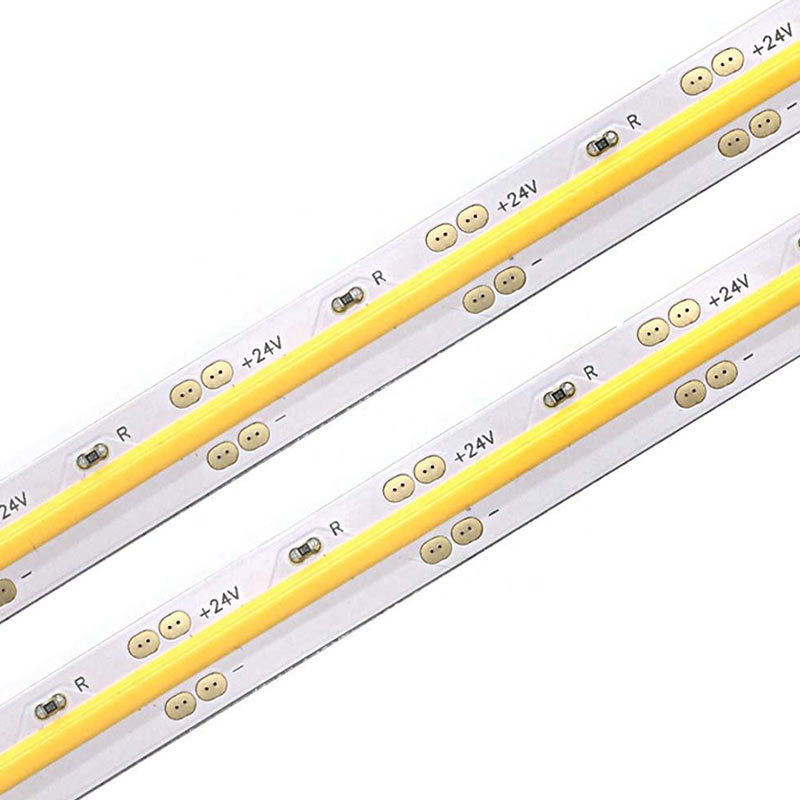

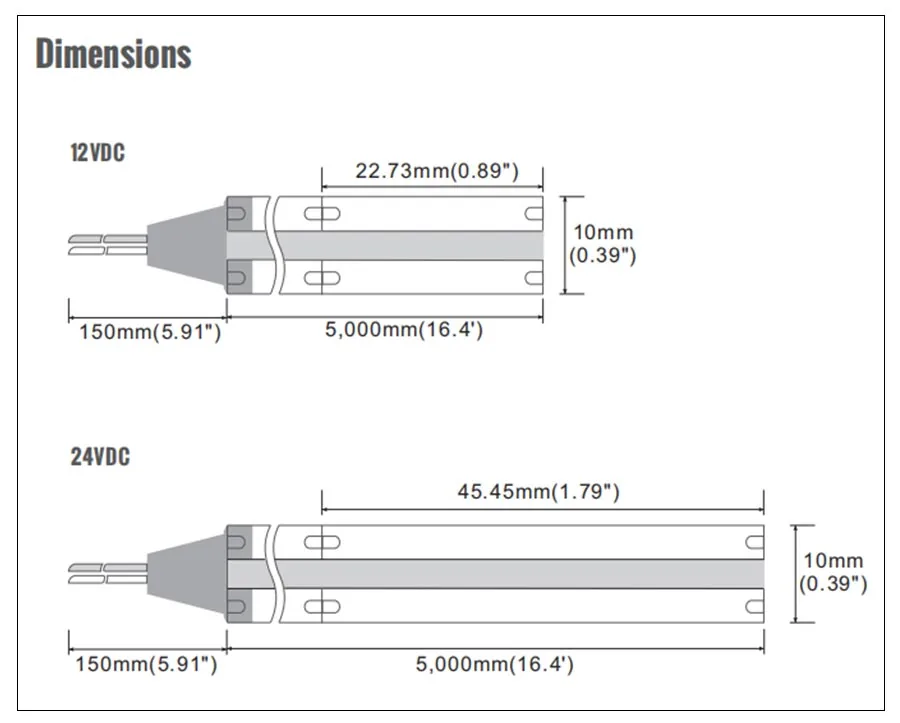

| Pitch | 22.73mm | 45.45mm |
| Width | 10mm | 10mm |
| PCB Thickness | 2oz/3oz | 2oz/3oz |
| PCB Color | White/Black/Golden | White/Black/Golden |
Ask About This Product
Have a question about this product?
Tell us the quantity, dimensions, application, or customization requirements. Our team can help with pricing, samples, MOQ, and technical questions.
Your inquiry is about
No Dark Area COB LED Flexible Strip Light
