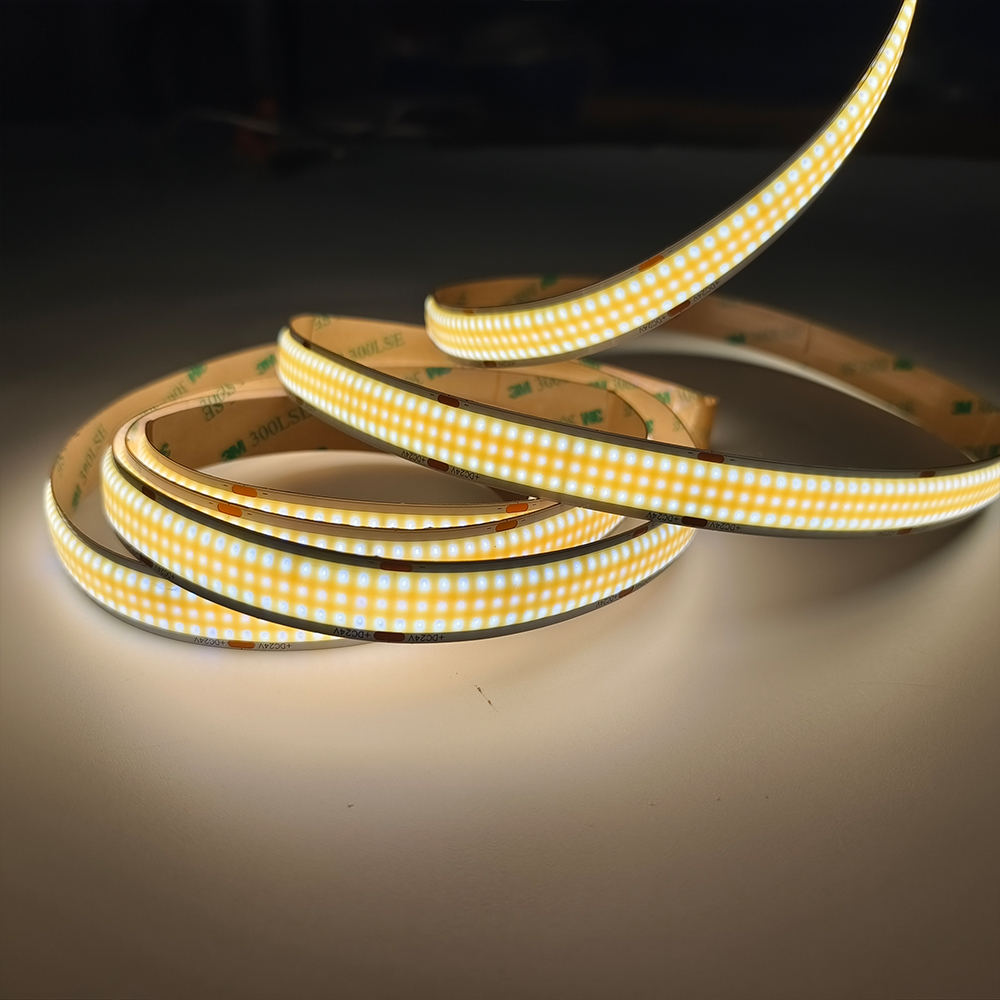

High Brightness DC24V Flexible COB LED Strip Light

LED COB strip light for indoor lighintg decoration PRDUCT FEATURES * From 8mm to 15mm width, from linear to “surface”, the new design combines flat and low-profile appearance, along with dotless COB linear lighting. * Double layer 2oz FPC, balancing Voltage drop, heat dissipation and flexibility. * DALI, 0/1-10V, PWM dimming ways all supported. * Unlimited length * New technology, high density, dot-free, Ra>90. * Efficacy Lumen upto 30lm/watt * Energy-saving and environment-friendly. * Customized service available, customized MOQ>1000M * 3 years warranty

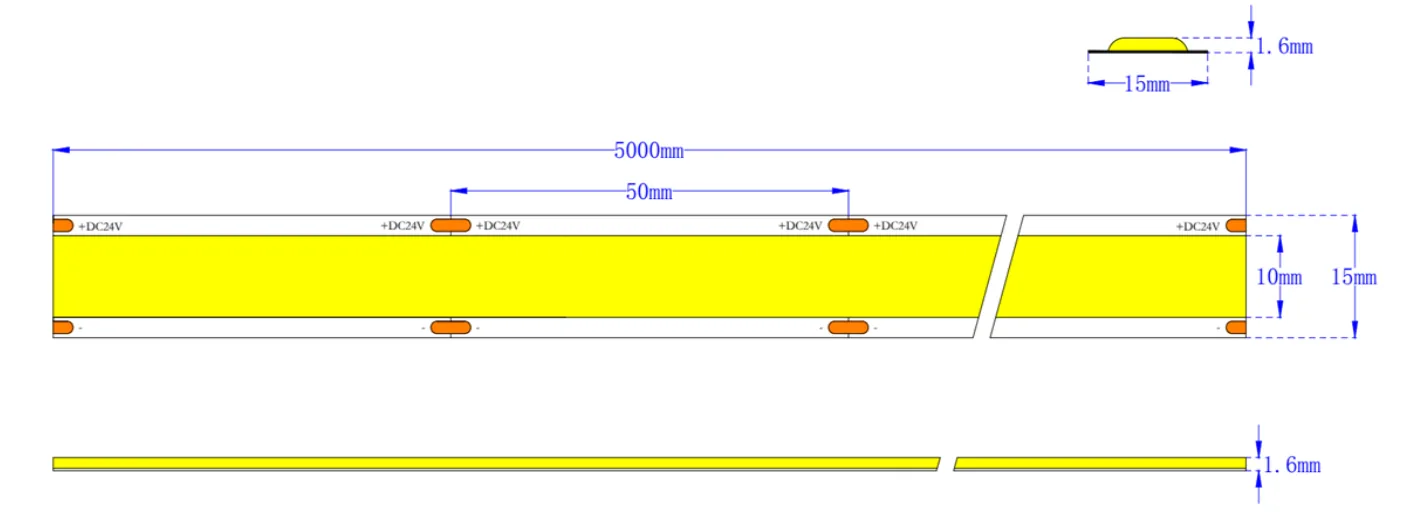

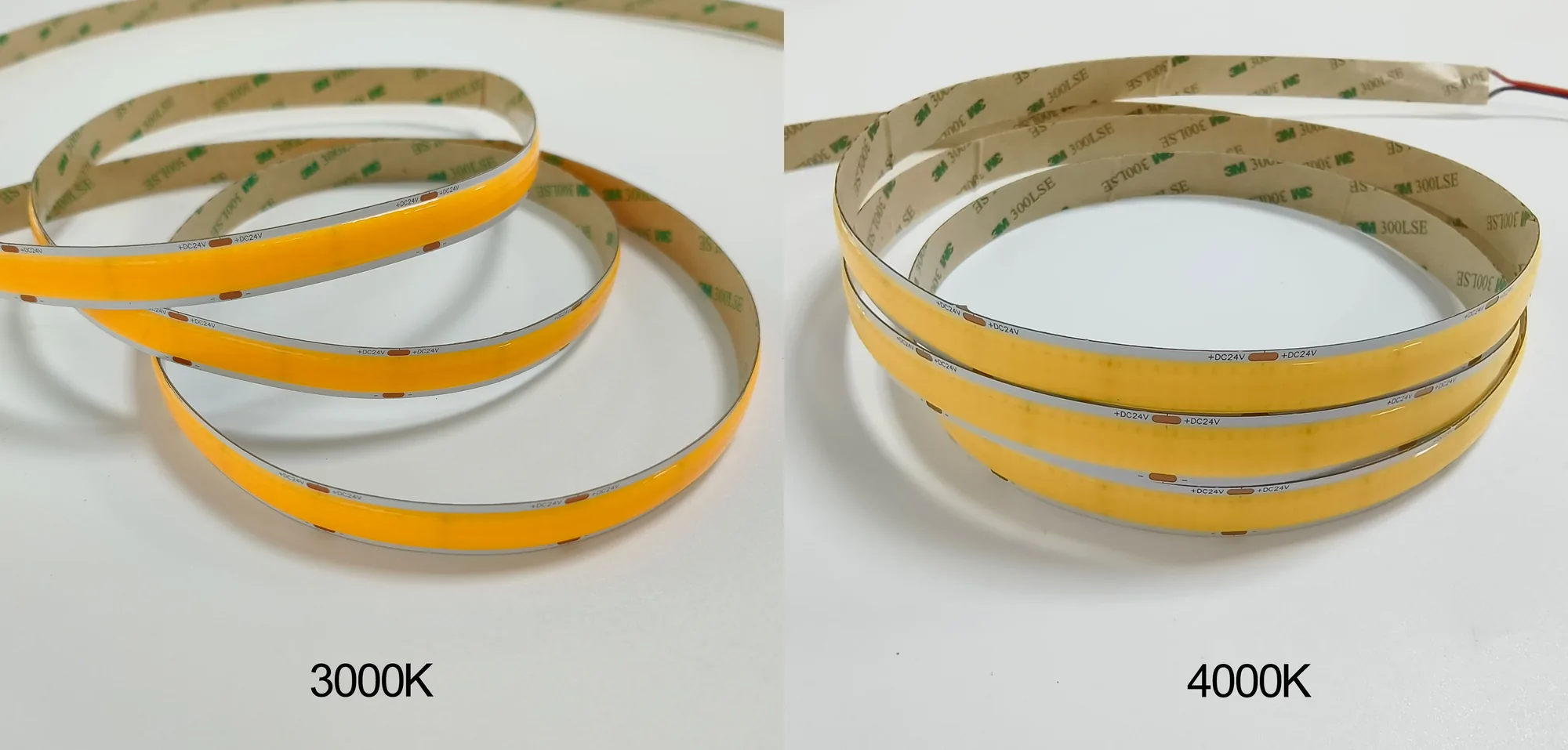

| | | | ———————– | –––––––––– | —–– | –––– | | Item | HM-SXX960F015W24-COB | | Voltage | 24Vdc | | CRI | Ra90 | | Waterproof | IP20 | | CCT | 2700K-6500K | | Power | 25W | | Lumen | 800-1100lm | | Size | W 15mm | H 1.6mm | L5,000mm | | Cutting Length | 50 mm | | Lifespan | 50,000 H | | Working Temperature | -20°C - 40°C | | Storage Temperature | -20°C - 45°C | | Warranty (year) | 3 |

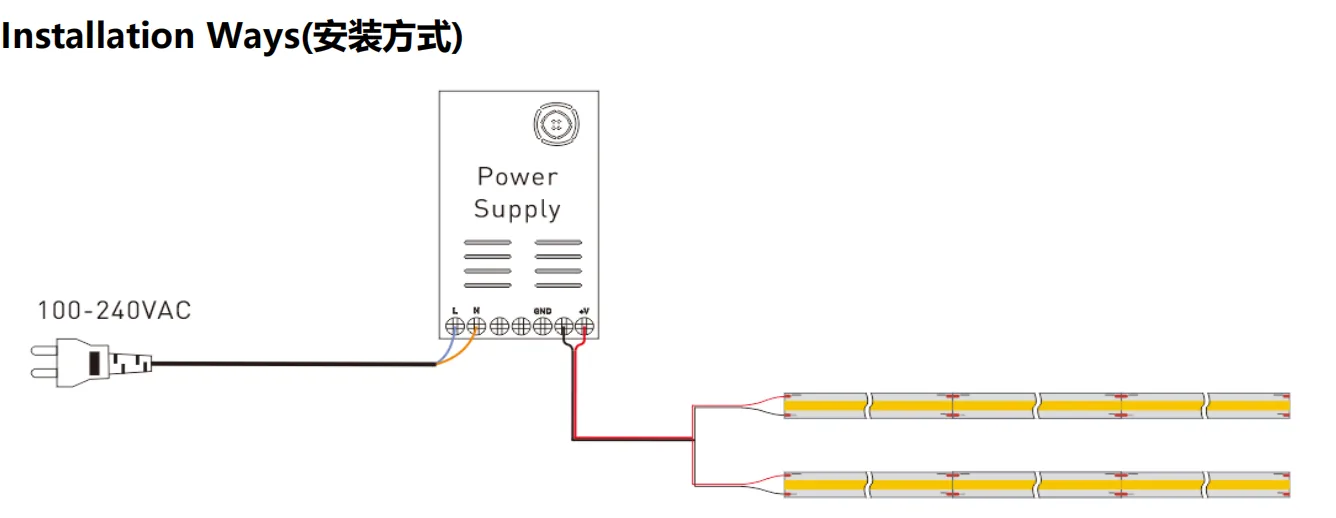

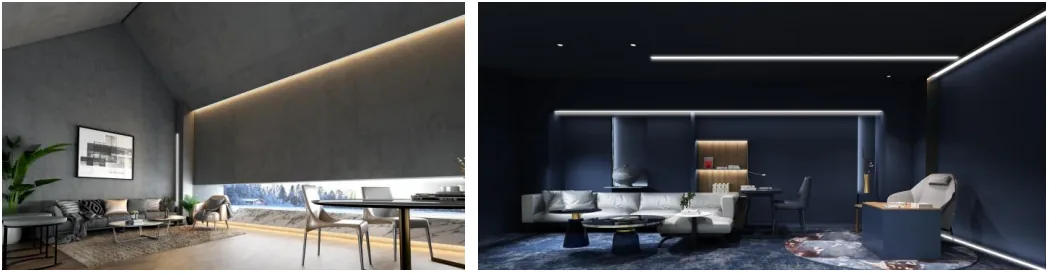

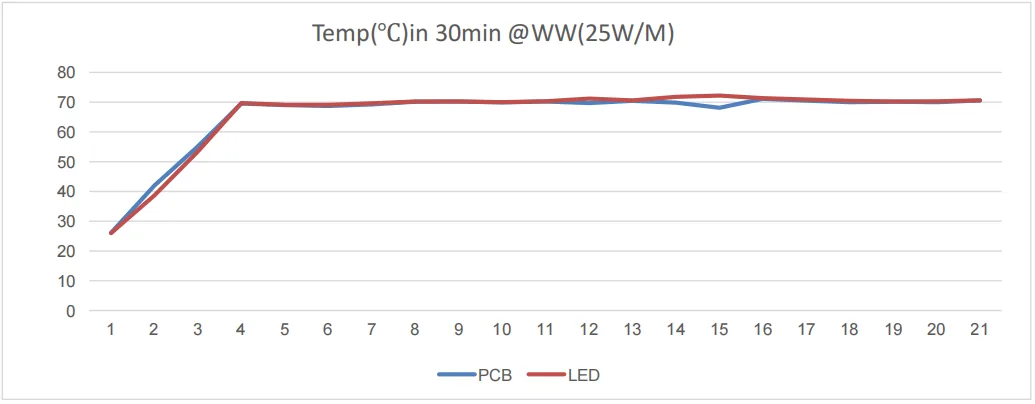

Temp(°C)in 30min @wW(25W/M) The above curves indicate the temp. changing in LED & PCB within 30 minutes after powering on, under the ambient temperature of 25 ºC. Brightness Consistency The following charts shows the parameters on each meter based on 5M length. From above chart, please connect 5M at most by one-end power to keep brightness consistency. CONECTION ​ ​1 .Signage Lighting (outdoor advertising) 2. Outdoor or indoor decorative lighting (including bars,with excellent color reproduction and high power color dynamic application.) 3 .Architectural Contour lighting(High-end hotels and waterfront parks, architecture facade lighting solution) Q1: What is your minimum order quantity? A:**Usually MOQ is 50m, but we also accept small order for trail.** Q2:Is a free sample order available? A: Of course, you can check our quality before ordering.If you have any requirements, please contact us. Q3:How long of the lead time? A: Usually,our lead time is 7-10 working days.It depends on the order quantity.But if the order is urgent, we can apply for urgent production.Bulk ordering takes 20-25 days. Q4:Can LED strip be customized? A:Sure,we can produce as your requirement such as LEDs,power,length and waterproof level.We also offer OEM&ODM. Q5:What’s your warranty? A:We have 3 years and 5 years warranty

Q6:Do you supply sea shipment? A: YES,We have our own shipping agency**FOB Guangzhou,supply FCL&LCL.**

Q7:Does your lighting equipment have CE or more certificates? A: Yes, we have CE certificate and UL, ROHS, CULUS,ETL,TUV,FCC,Energy star etc. We also have an IATF/ISO/TS 16949 certificate.

Q8:Is it possible to put our logo on your product or product packaging? A:Yes, we have 6floors factory, welcome to customize your brand, LOGO, color, product manual, packaging, etc. The minimum order quantity depends on different type of strip.
