360°illuminated LED Neon Light Dia22
Products Display of the 360°Illuminated led Neon Light Dia22 1. The 360°light emitting LED neon flex light is good flexibility, can withstand extrusion, using environmentally friendly Silicone material, can bend into a variety of text or graphics. 2.High brigh
- System
- Retail Lighting
- Product Family
- LED Neon
- Product Type
- 360° LED Neon

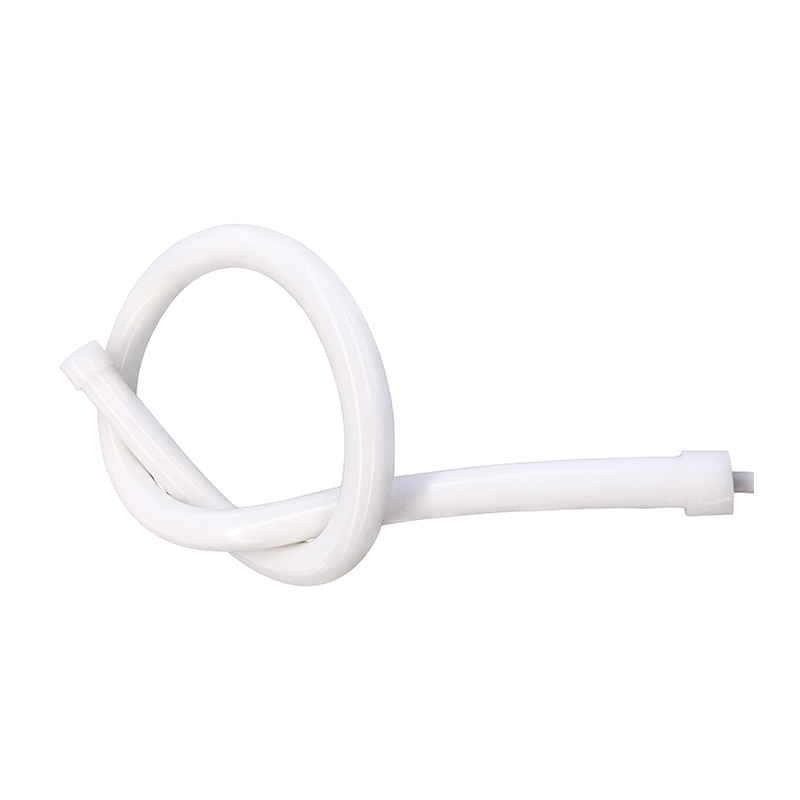

Product Gallery
Product Views
Product Video
See the product in action
Product Details
Technical Information

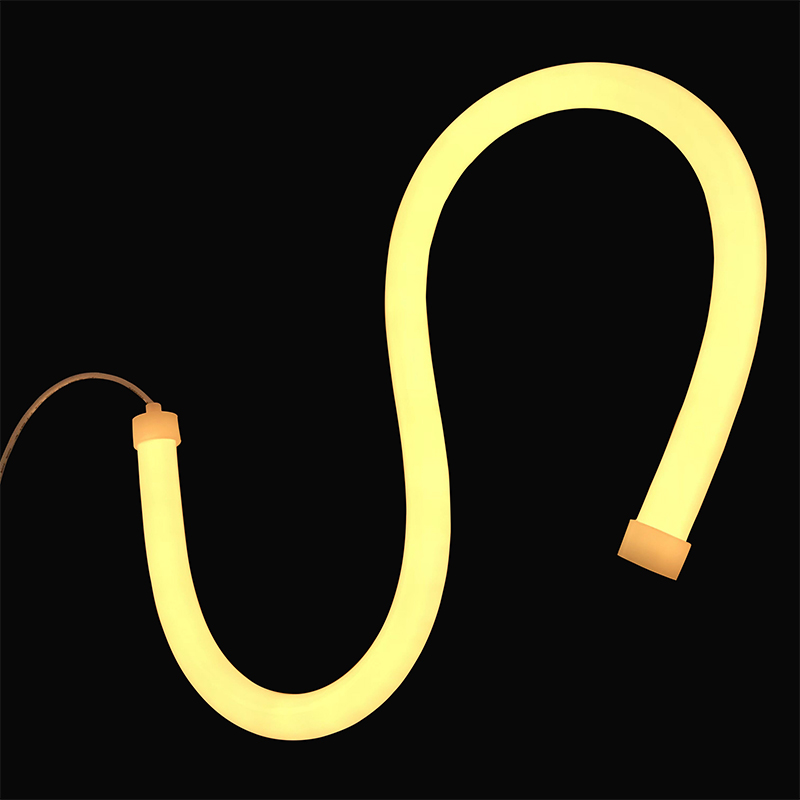

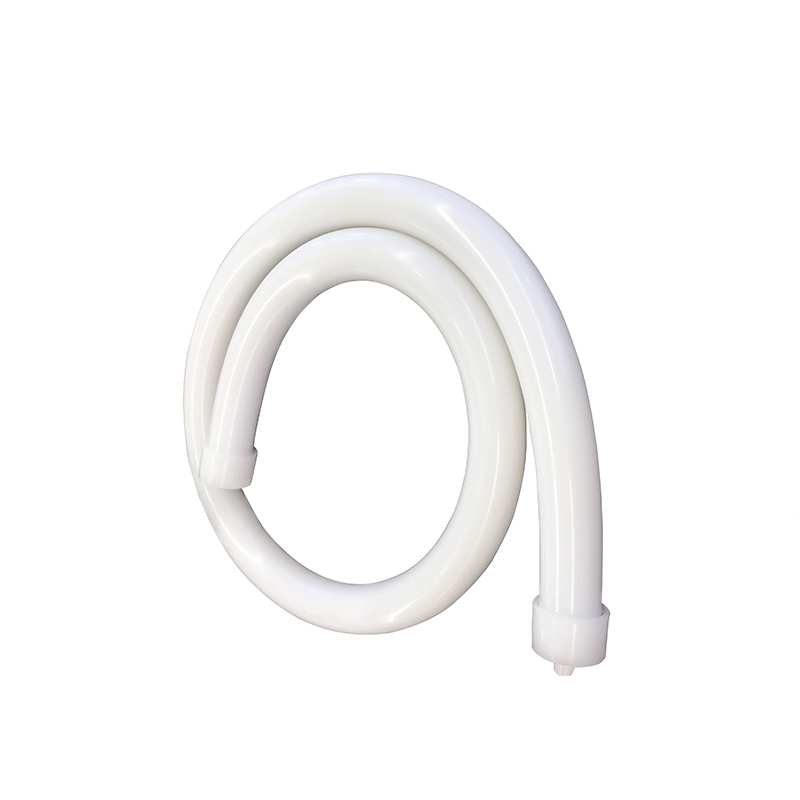

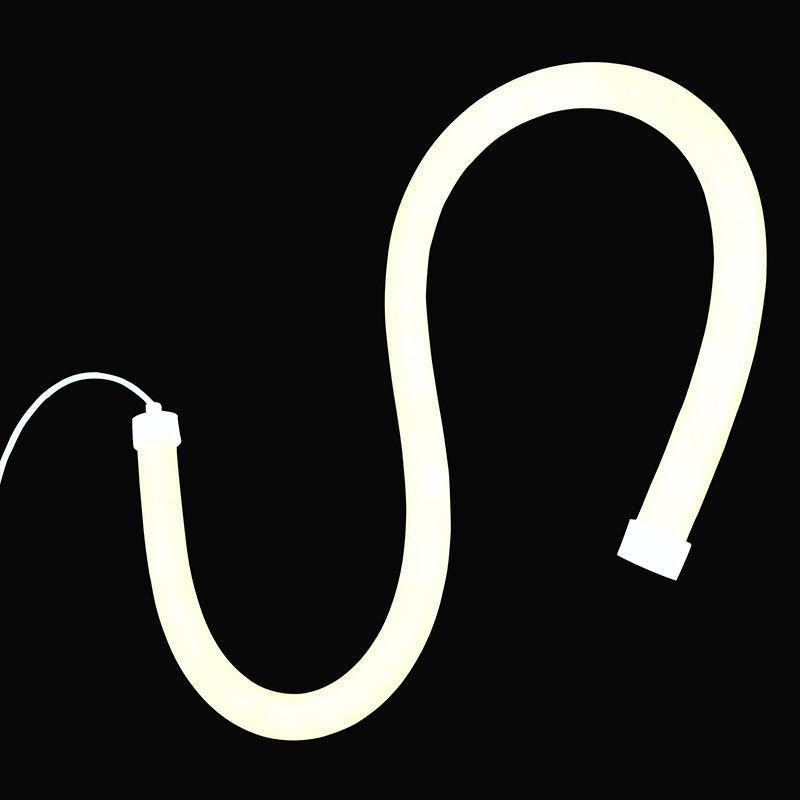

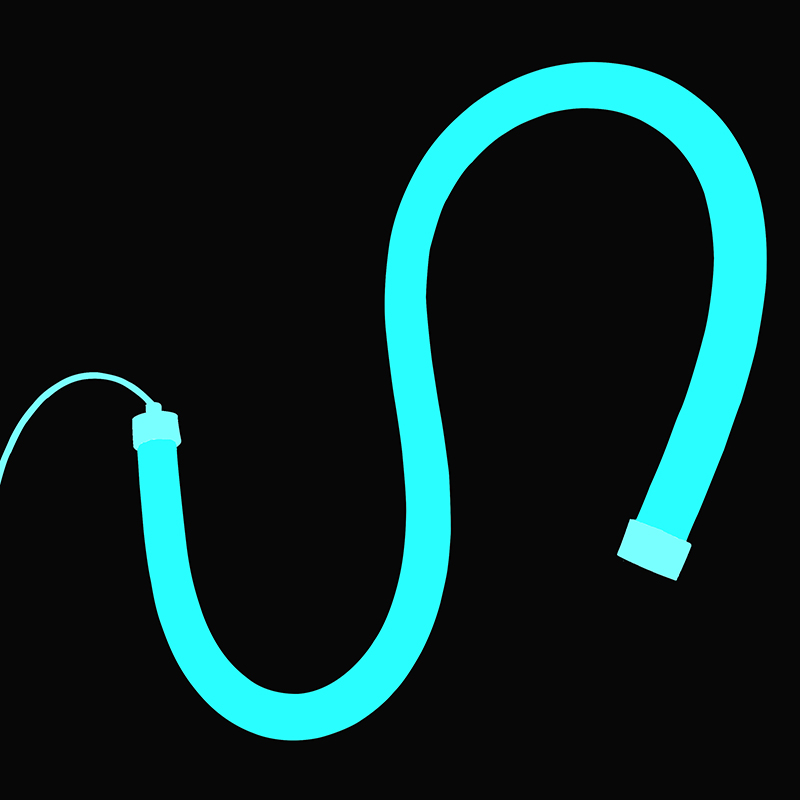

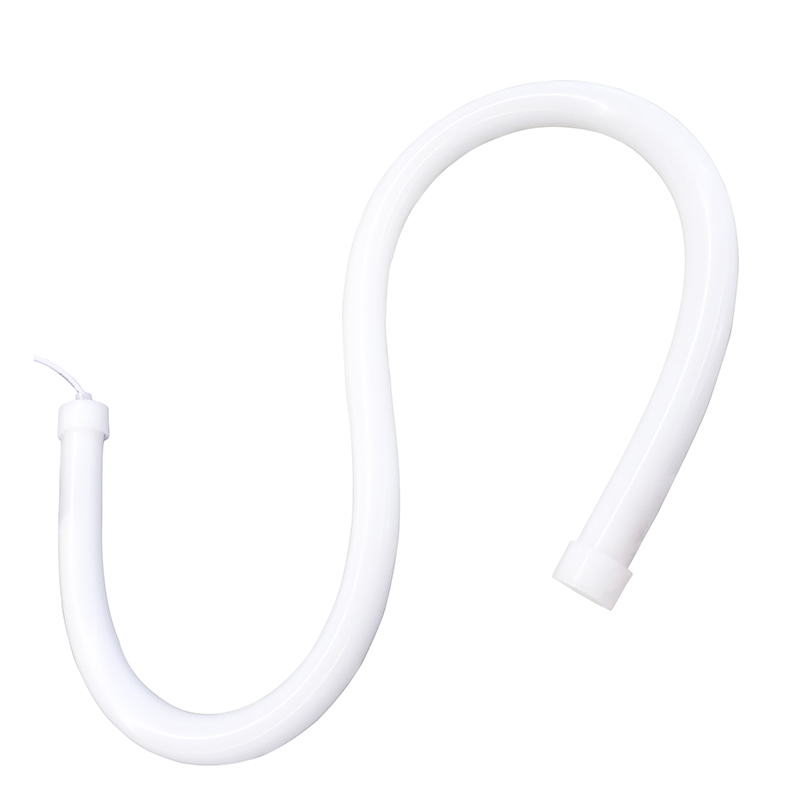

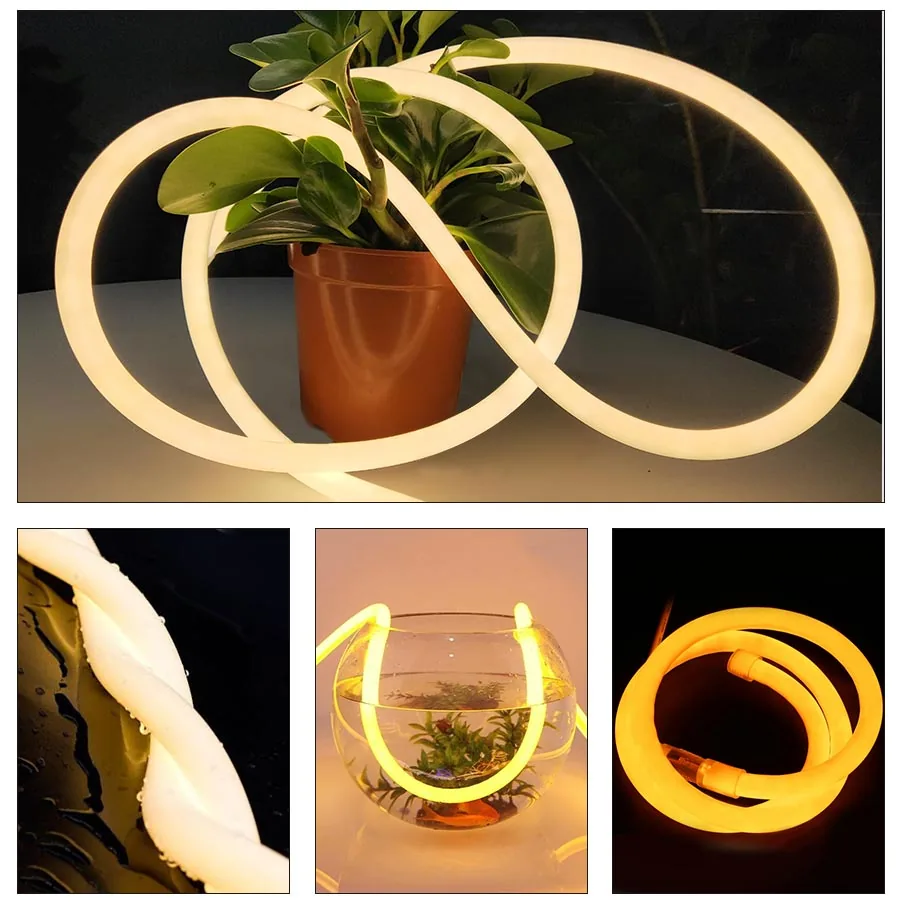

Products Display of the 360°Illuminated led Neon Light Dia22

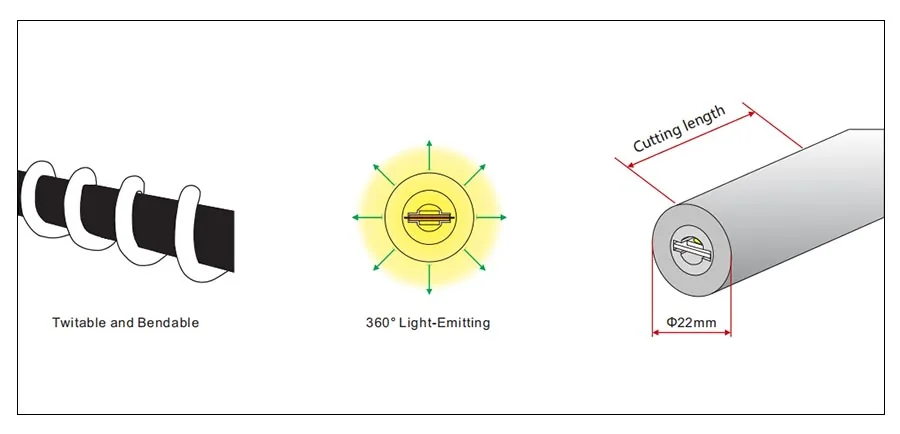

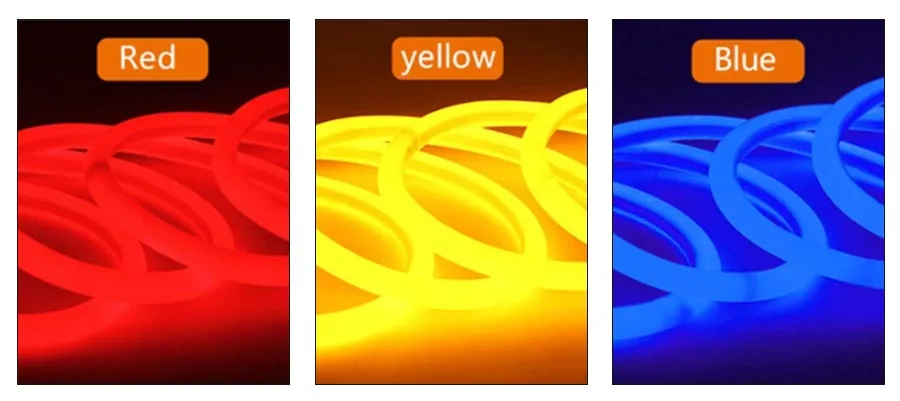

- The 360°light emitting LED neon flex light is good flexibility, can withstand extrusion, using environmentally friendly Silicone material, can bend into a variety of text or graphics. 2.High brightness, good transmittance, uniform astigmatism surface 160 degrees, excellent color effect. The neon led strip lights is not easy atomization, low power consumption, pure color, no dark area.
- Using high-quality chips, the light source has high brightness, large angle, good color consistency, and stable performance. The led neon flex light installation is fixed, convenient, flexible, and convenient. 4.Energy-saving, high brightness, low fever, low energy consumption, beauty, and so on. Use DC24V/DC12V power supply. IP67 Waterproof Grade, integral extrusion molding.
Product Parameter of the 360°Illuminated led Neon Light Dia22
| Product code | HM-N22V24 | ||
| Colour | W/WW | RGB | WW+WW |
| Working Voltage | DC24V | DC12V | DC24V |
| LED Qty/m | 240LEDs | 192LEDs | 480LEDs |
| LED Type | SMD2835 | SMD5050 | SMD2216 |
| CRI | CRI>90/80 both | ||
| Rated Power/m | 21W | ||
| Light Efficiency ±10% | 60LM/W | ||
| LED Distance | 8.33mm | 10.5mm | 8.33mm |
| Min.Cutting LED | 6LEDs | 1LED | 12LEDs |
| Min.Cutting Length | 50mm | 10.5mm | 50mm |
| Weight/m | 528g | ||
| Storage Temperature | -20~60℃ | ||
| Envir.Working Temperature | -20~45℃ | ||
| IP Rating | IP67 |

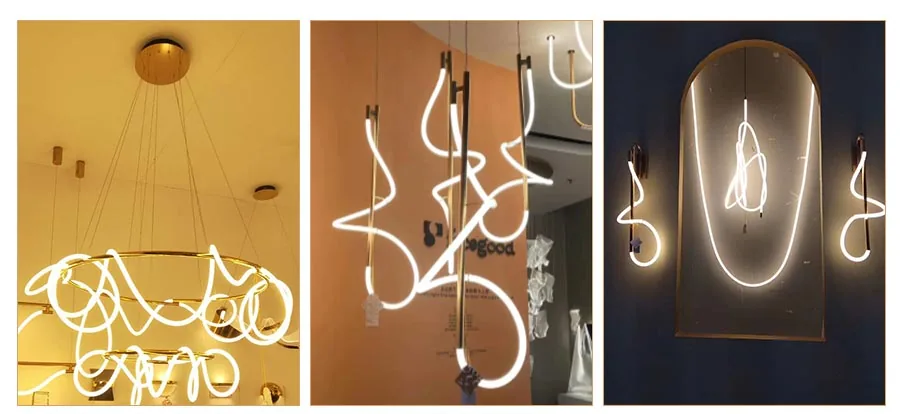

Application of the 360°Illuminated led Neon Light Dia22
- Home Furnishing light and colorful life, DIY home light corridors, stairs, trails, Windows.
- Hotel decoration, theatre, club, shopping mall, festivals, and performances.
- Building decoration lighting, arch, crown and bridge edge lighting, safety lighting, and emergency.
- Widely used in sign letter backlighting, concealed lighting, and advertising sign lighting.
- Applicable to car and aircraft model decoration, contour lighting or border.
