Retail Lighting

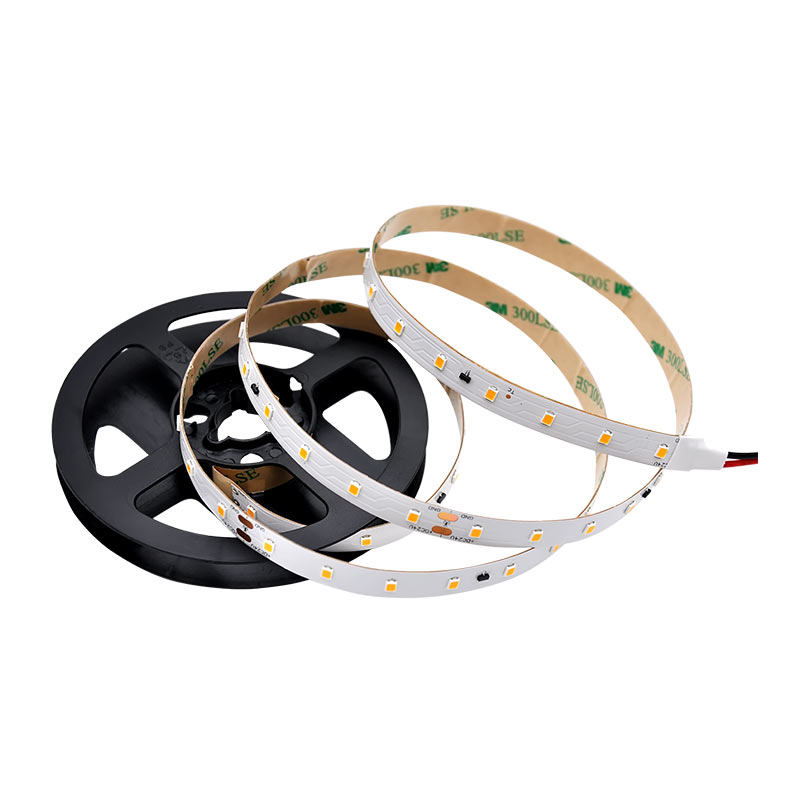

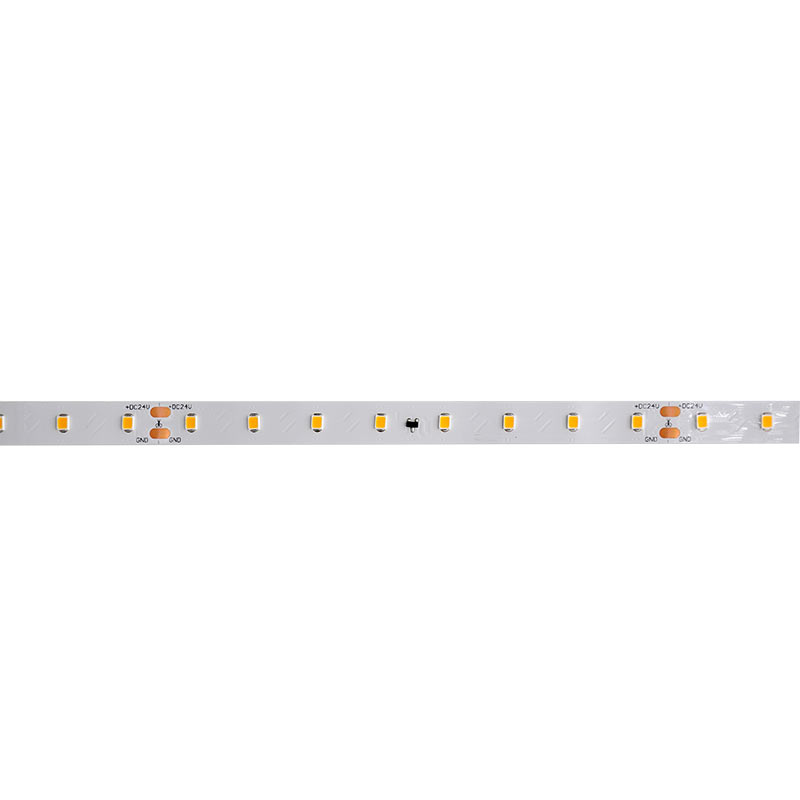

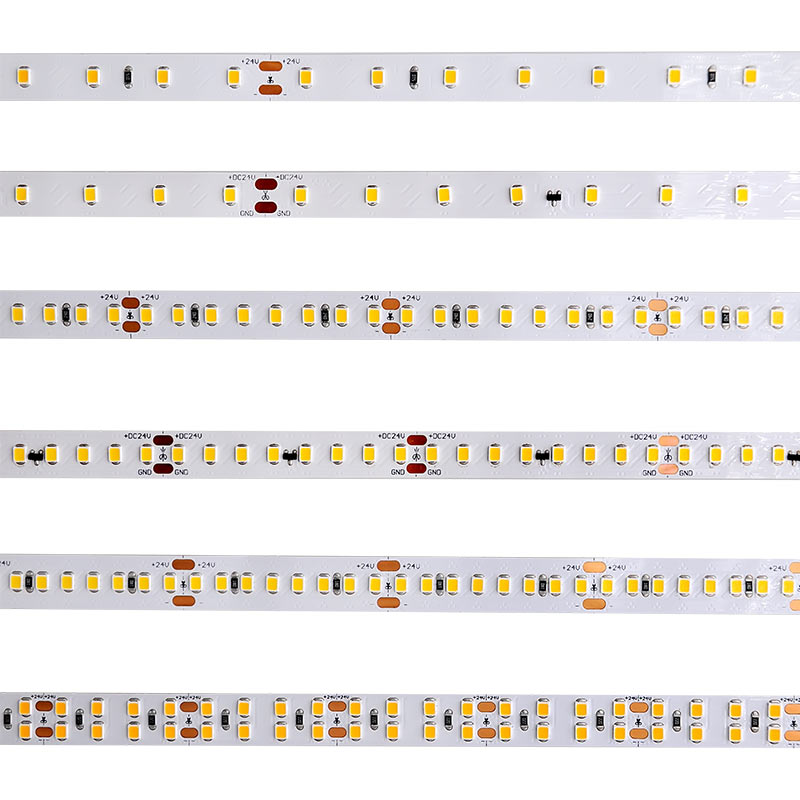

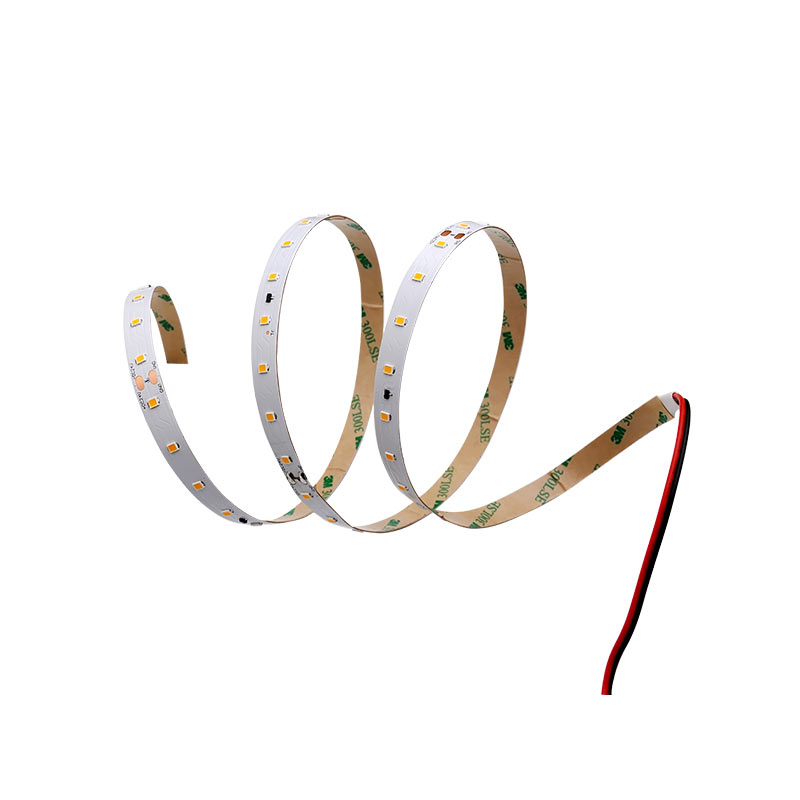

High Efficient LED Flexible Strip Light
Item No. HM-SX64F010W24-2835 Light Source SMD2835 LED Qty/M 64LEDs/m Input Voltage DC24v PCB 10mm/2oz Length 5,000mm Size Width 10mm,Height 1.2mm Cutting Length 125mm Lifespan 50,000H Working Temperature -20℃-40℃ Storage Temperature -20℃-45℃ Warranty 3 years P
- System
- Retail Lighting
- Product Family
- LED Strip Lights
- Product Type
- SMD / Standard LED Strips

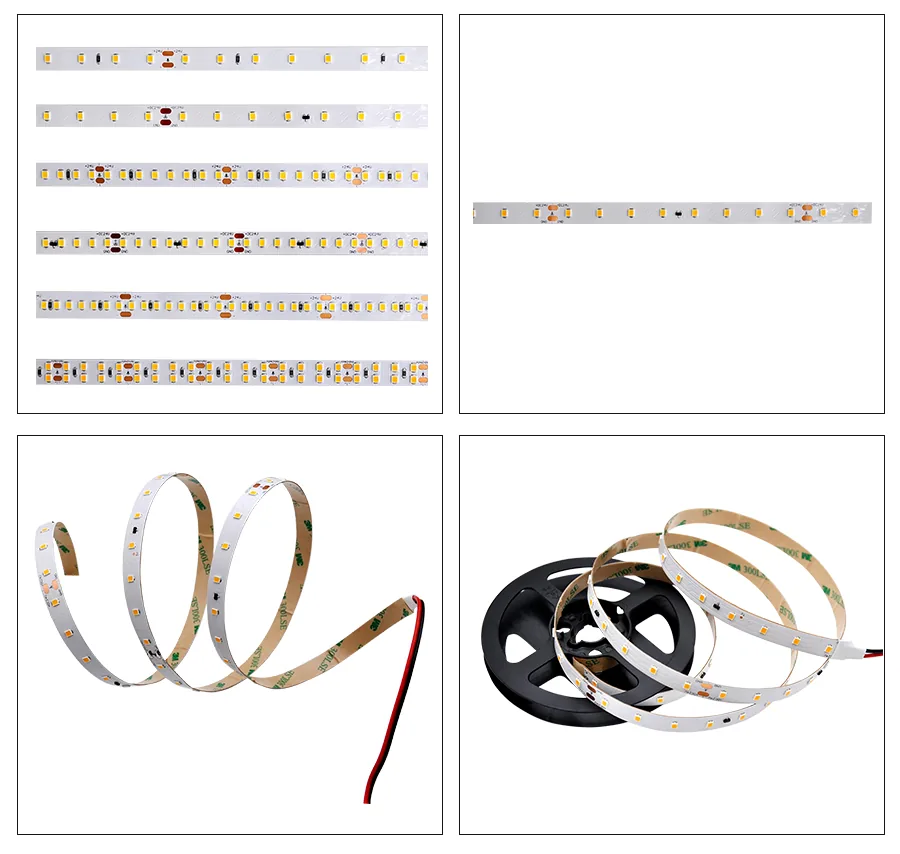

Product Gallery
Product Views
Product Video
See the product in action
Product Details
Technical Information
| Item No. | HM-SX64F010W24-2835 |
| Light Source | SMD2835 |
| LED Qty/M | 64LEDs/m |
| Input Voltage | DC24v |
| PCB | 10mm/2oz |
| Length | 5,000mm |
| Size | Width 10mm,Height 1.2mm |
| Cutting Length | 125mm |
| Lifespan | 50,000H |
| Working Temperature | -20℃-40℃ |
| Storage Temperature | -20℃-45℃ |
| Warranty | 3 years |
| Power | 4.8W/m | |||||
| Ra | 80+ | 90+ | ||||
| CCT | 2700k | 3000k | 4000-6000k | 2700k | 3000k | 4000k-6000k |
| Brightness | 648 | 672 | 768 | 600 | 624 | 648 |
| Efficiency(Lm/W) | 135 | 140 | 160 | 125 | 130 | 135 |
| Installation Length | 7m |
| Power | 9.6W/m | |||||
| Ra | 80+ | 90+ | ||||
| CCT | 2700k | 3000k | 4000-6000k | 2700k | 3000k | 4000k-6000k |
| Brightness | 1296 | 1344 | 1536 | 1200 | 1248 | 1296 |
| Efficiency(Lm/W) | 135 | 140 | 160 | 125 | 130 | 135 |
| Installation Length | 4m |
Ask About This Product
Have a question about this product?
Tell us the quantity, dimensions, application, or customization requirements. Our team can help with pricing, samples, MOQ, and technical questions.
Your inquiry is about
High Efficient LED Flexible Strip Light
LED Strip Lights · Retail Lighting
