Retail Lighting
High Voltage LED Strip Light
High Voltage LED Strip Light 1.220V High voltage no need power supply, AC LED Strip Applications, save cost 2.IP65 waterproof for outdoor working 3.MAX length 50meters in a single run and no voltage drop 4.Plug in LED Light, the plug style make these lights su
- System
- Retail Lighting
- Product Family
- LED Strip Lights
- Product Type
- SMD / Standard LED Strips
Product Gallery
Product Views
Product Video
See the product in action
Product video 1
Product video 2
Product video 3
Product Details
Technical Information

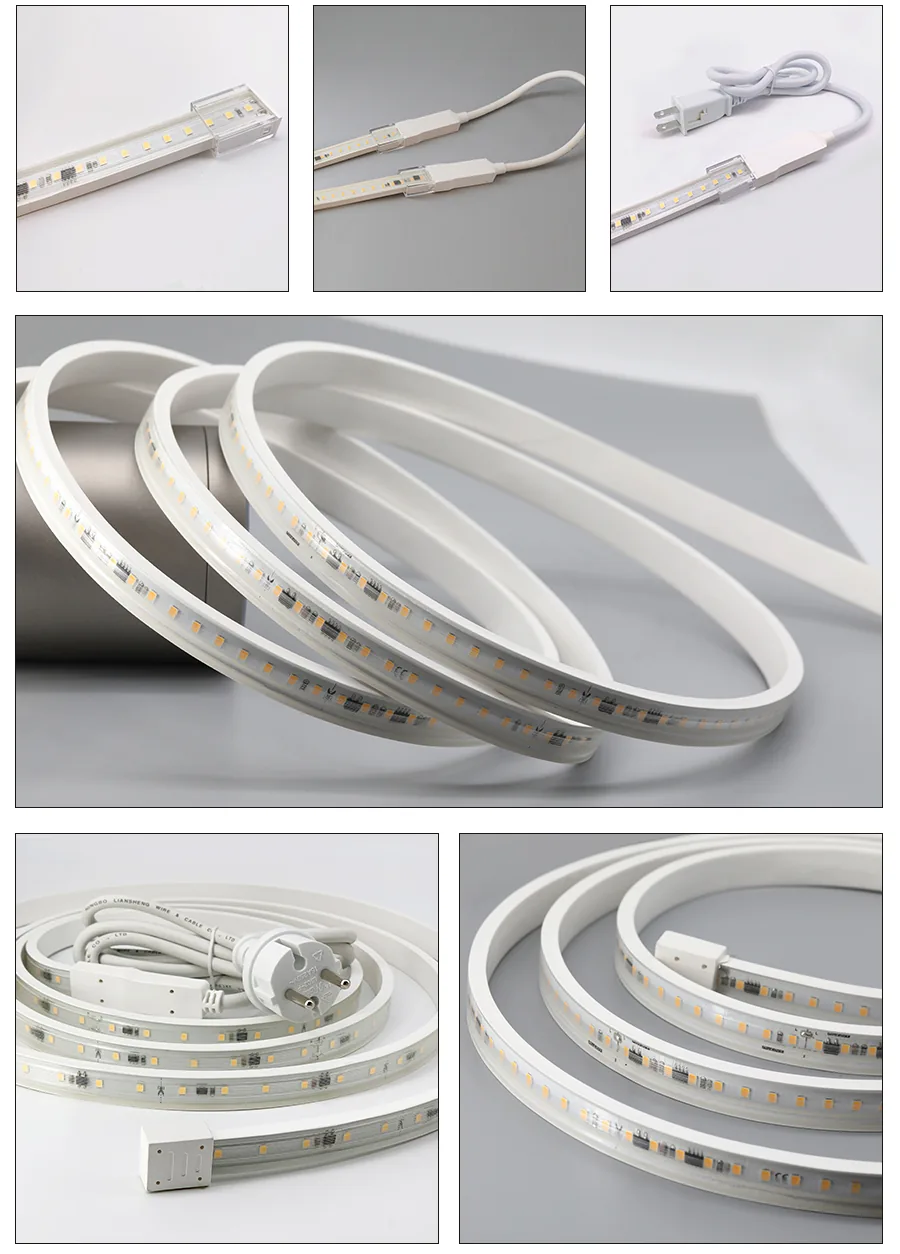

High Voltage LED Strip Light

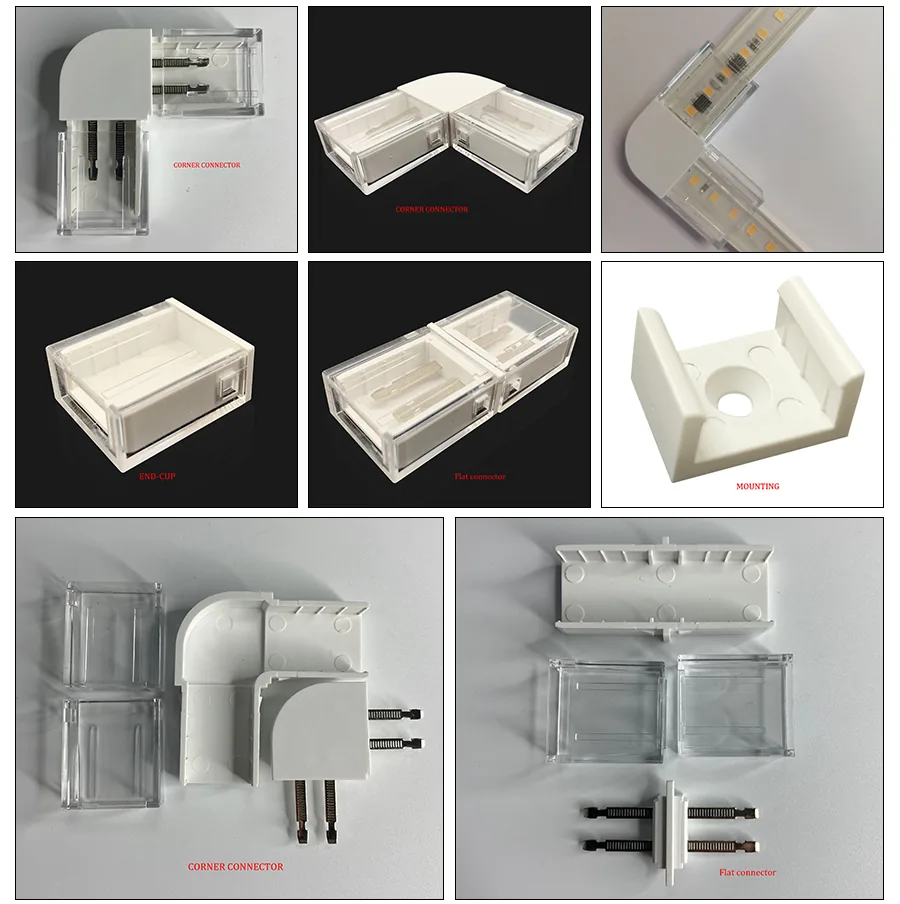

1.220V High voltage no need power supply, AC LED Strip Applications, save cost 2.IP65 waterproof for outdoor working 3.MAX length 50meters in a single run and no voltage drop 4.Plug in LED Light, the plug style make these lights super easy to set up 5. Easy to connect by the corner and T-connect connector 6. Easy to install by mounting or 3M glue
| Item No. | HM728V060A80-D030A0A101 | HM728W120A80-D030T5A12 |
| Voltage | 220-230V | 220-230V |
| CRI | Ra80+/90+ | Ra80+/90+ |
| IP rating | IP65 | IP65 |
| Color | 2700k-6500k | 2700k-6500k |
| Watts | 10w | 15w |
| Lumen | 1000-1100LM | 1500-1600LM |
| Pitch | 100mm | 100mm |
| Width | 12mm | 12mm |
| PCB Thickness | 2 Ounce | 2 Ounce |
| PCB Color | White | White |
| Length | Max 50 meters | Max 50 meters |
Ask About This Product
Have a question about this product?
Tell us the quantity, dimensions, application, or customization requirements. Our team can help with pricing, samples, MOQ, and technical questions.
Your inquiry is about
High Voltage LED Strip Light
LED Strip Lights · Retail Lighting
