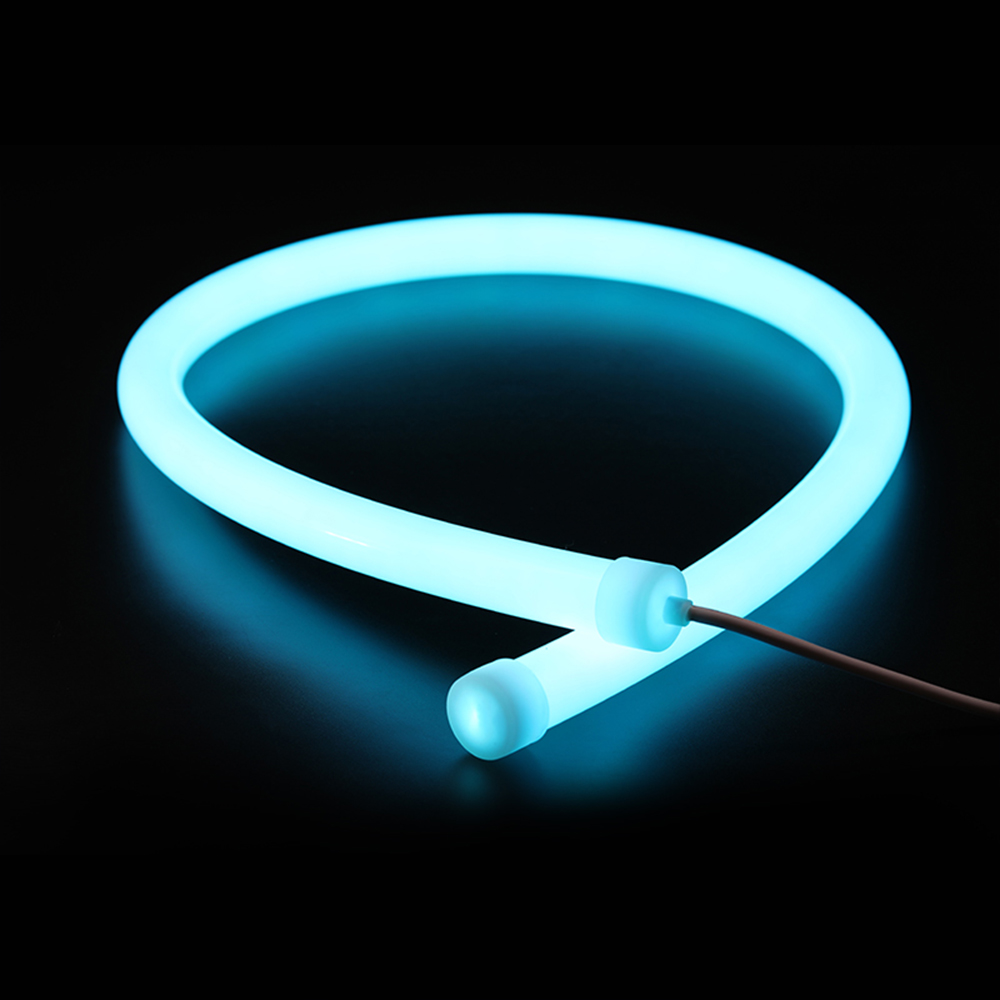

DIY Tube Flexible 360 Degree D18 LED Neon Rope LED Light RGBW

360° D18 Neon Product advantage

PRDUCT FEATURES

-Circular tube profile supports 360° circular luminous surface, uniform luminous area without dark area, suitable for   space decorative lighting;

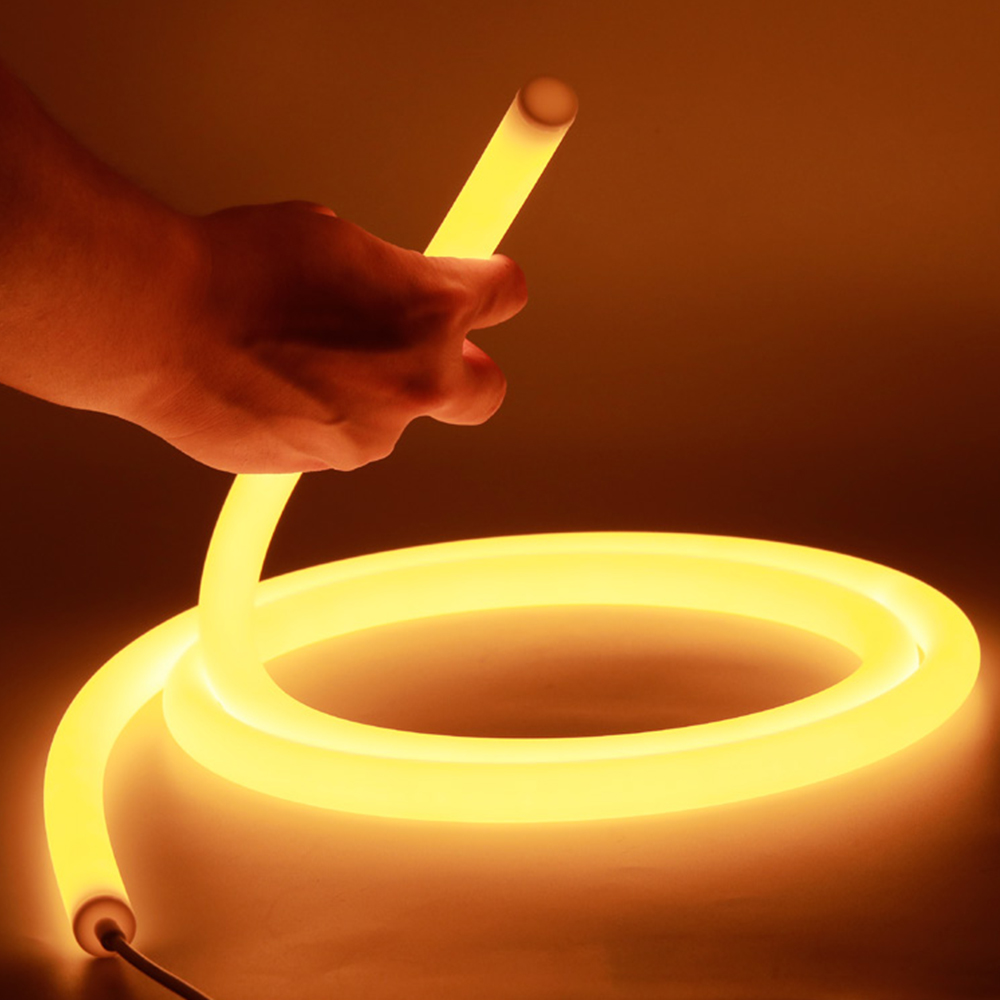

-Free to cut any length can be rigid, flexible, plasticity, bending and pliable;

-IP67 waterproof grade, can be used outdoors, the use of silica gel material, flame retardant, corrosion resistance   and UV resistance;

-50000 hours long life, 5 years warranty, UL and CE certification;

-High transmittance high purity silica gel material, protection grade IP67;

-Support multiple installation methods such as hanging and surface installation.

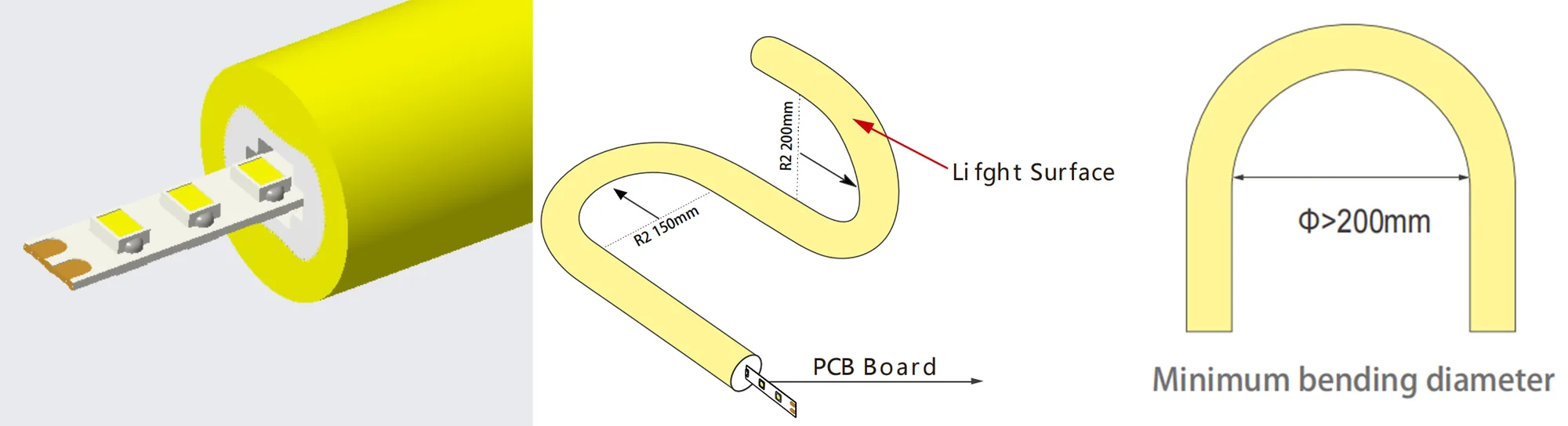

.advantage: compared to D25 Neon,D25 colloid weighs 570g,while D18 only 295g, N.W for a meter is around 315g,Colloidal product decreased by 50%,price is around 11usd. .Smaller bending diameter,D25 Min. bending diameter is 200mm, D18 vertical bend can reach 150mm.

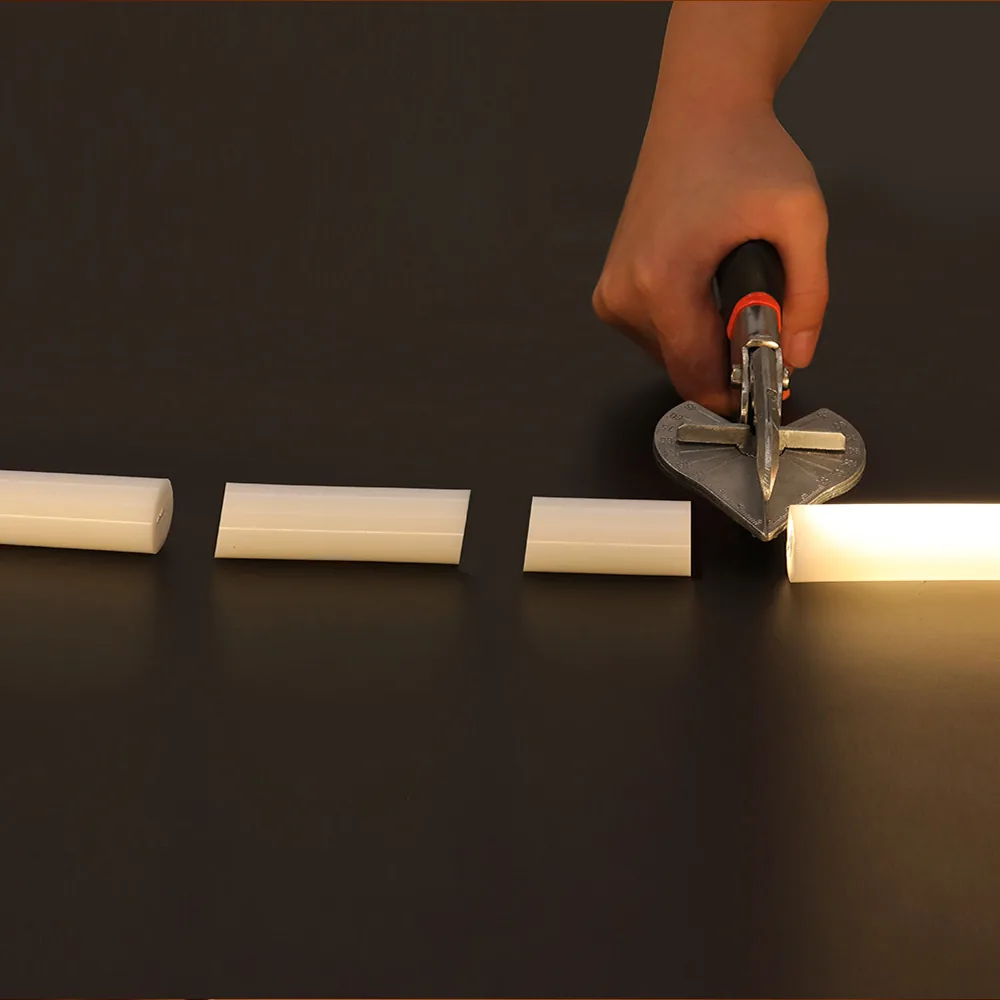

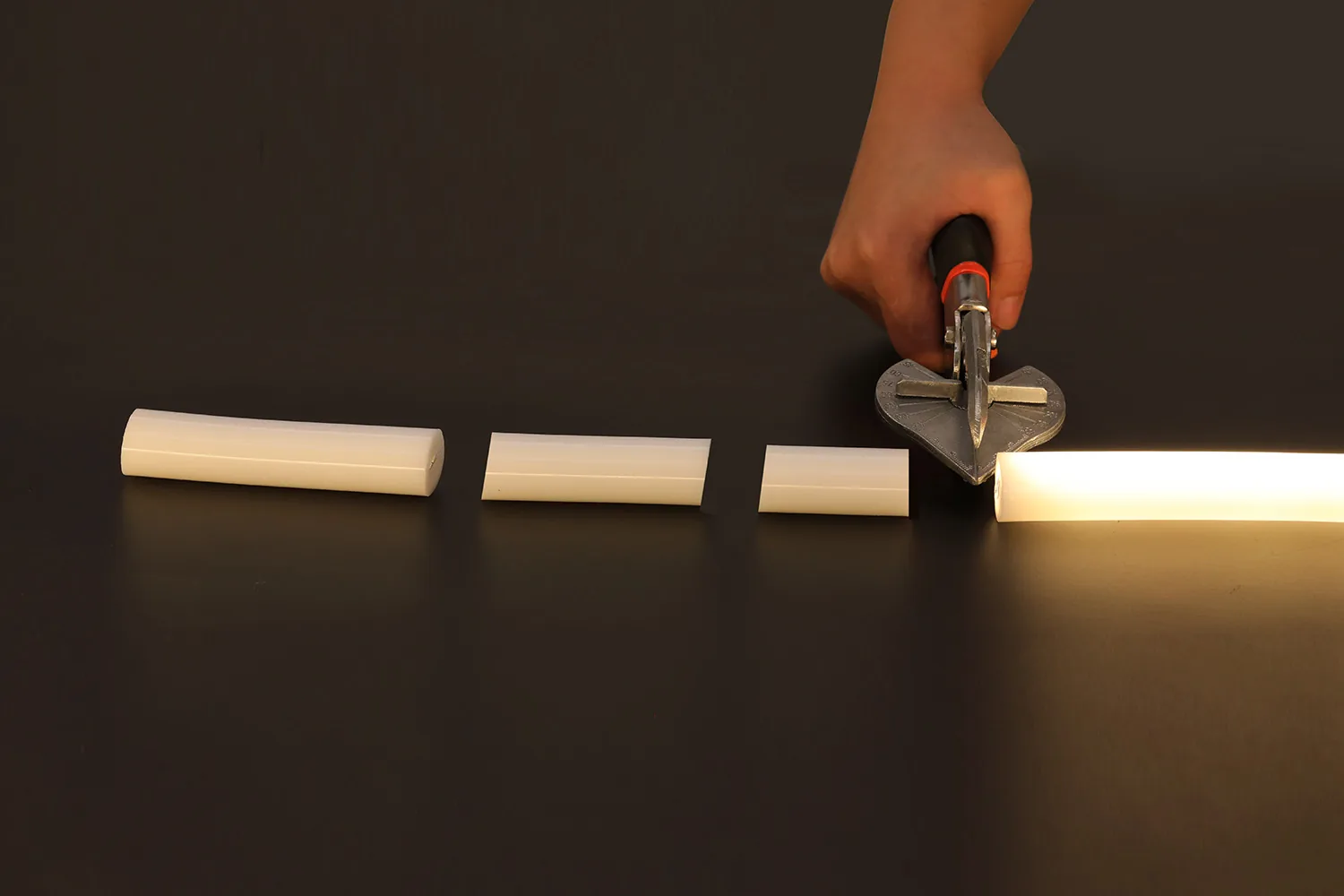

Cut as your mind

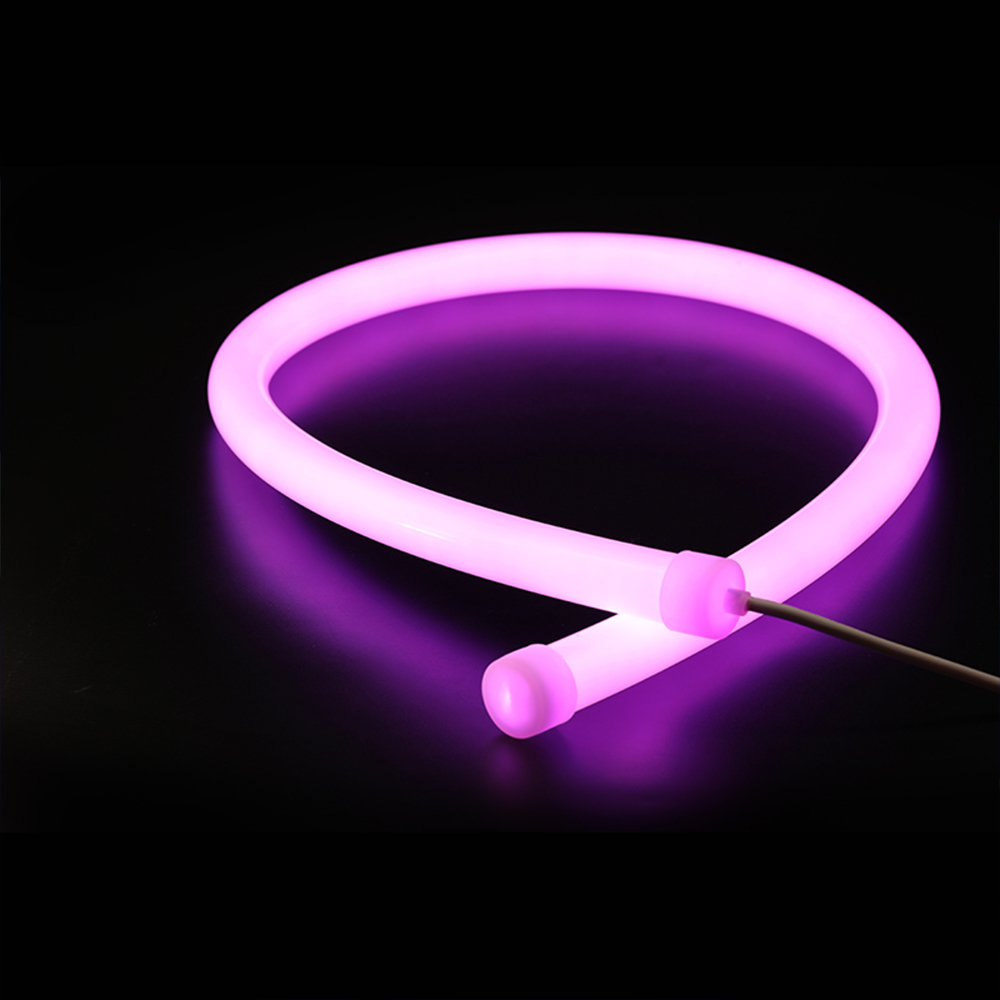

360° Light-Emitting

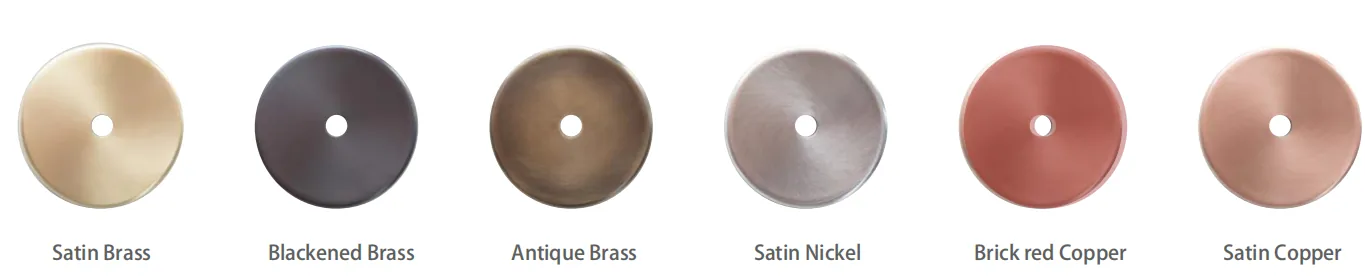

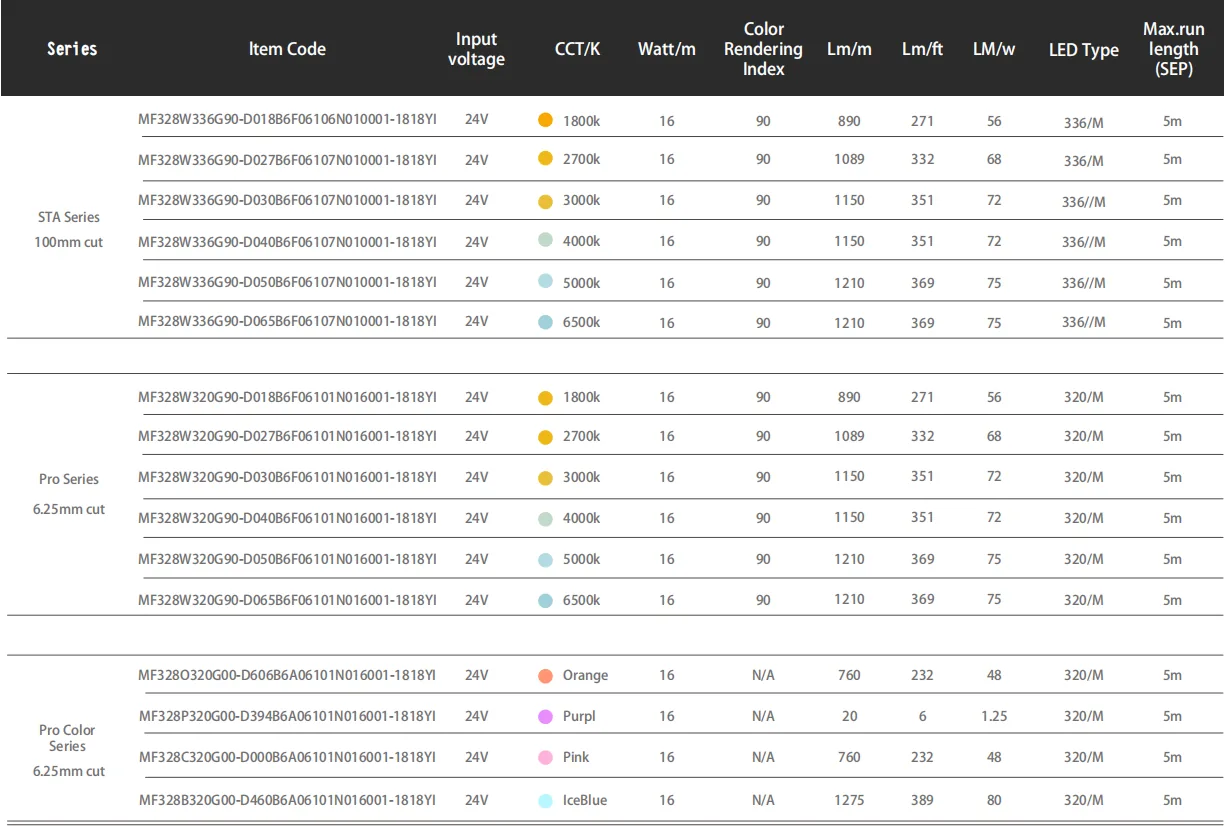

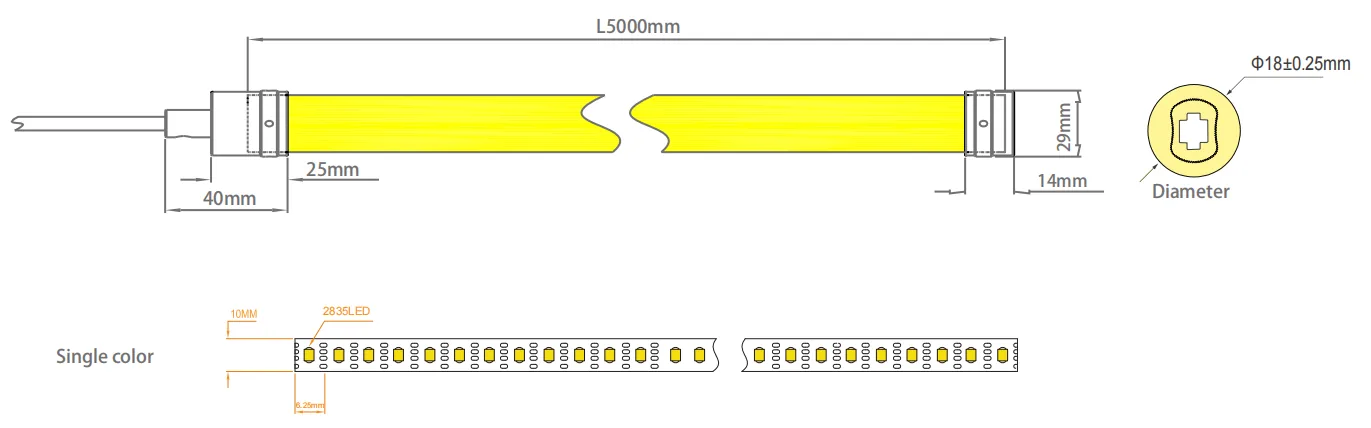

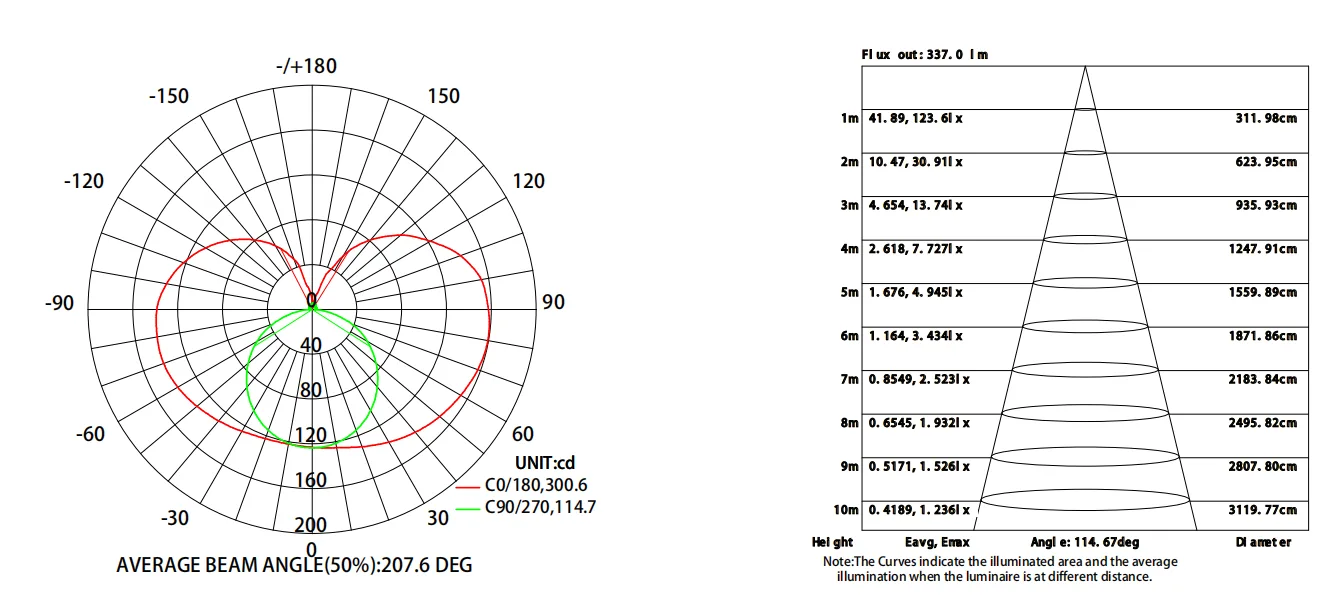

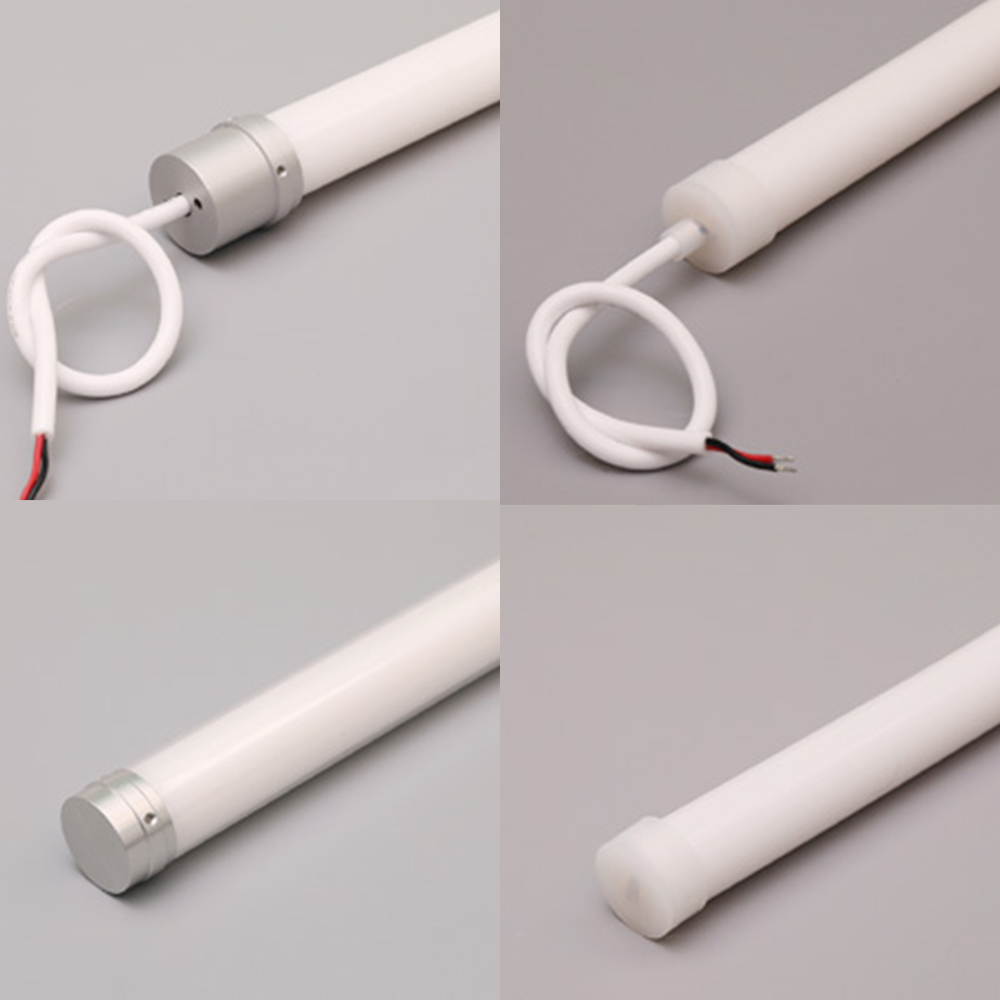

General Parameters ​​​ IES Data Drawing 1,Use D18 tube,appearance white,Spray handle oil after the product process;2,Produce size ∅18mm±0.25mm. 3,The head end uses a flat cap with front wire outlet which has same size as strip; 4,Use waterproof quick wire connector for easy splicing; Accessories color can be customized

Notice:

1. Luminous flux or CCT 2700K is 10% lower, or CCT 3000/3500K is 5% lower, for CCT 5000K/ 6500K is the same compared with 4000K.

2. Energy efficiency dass of regulation (EU)201 9/2020 is F(CRI80) for 4000K and G(CRI80) for CCT, it waries depending on CRI and CCT.

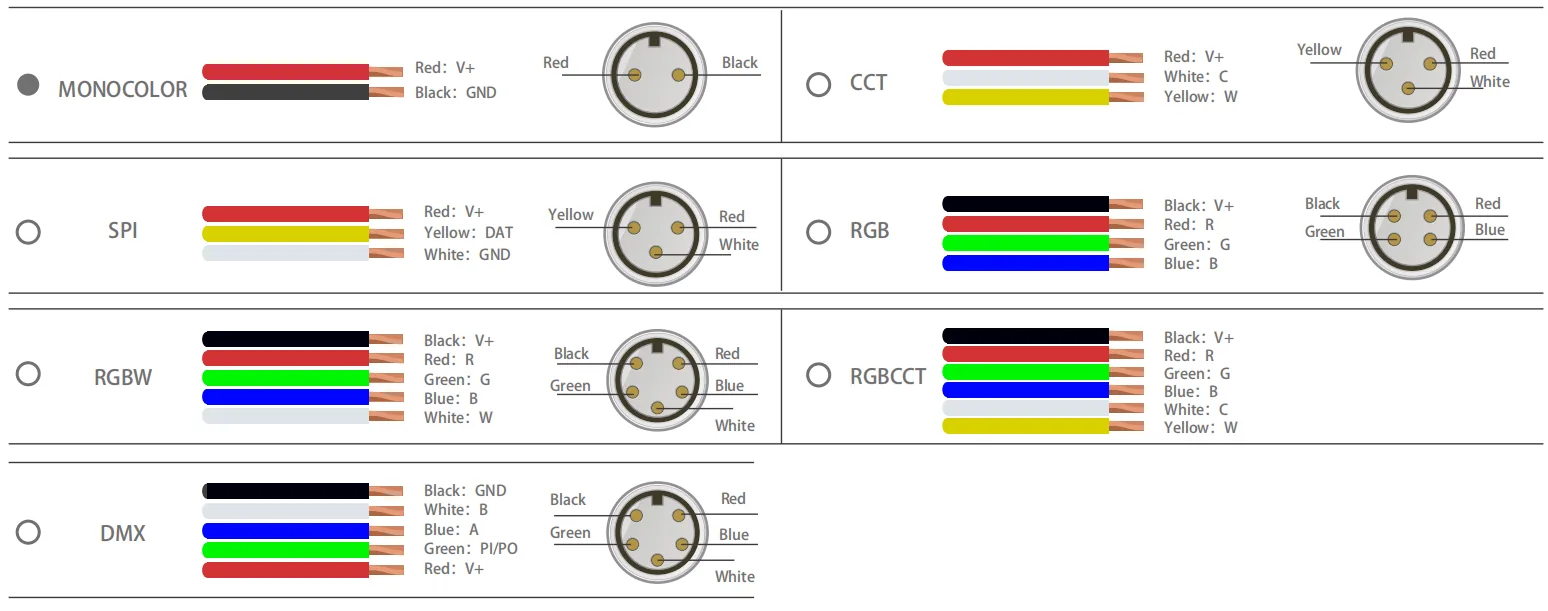

3. The transmission direction of data must be from PI to Po following the arrow printing on FPC for DMX/SPI version, and can’t be made by reverse connection, otherwise the strip will be out of control or even domaged.

INSTALLATION

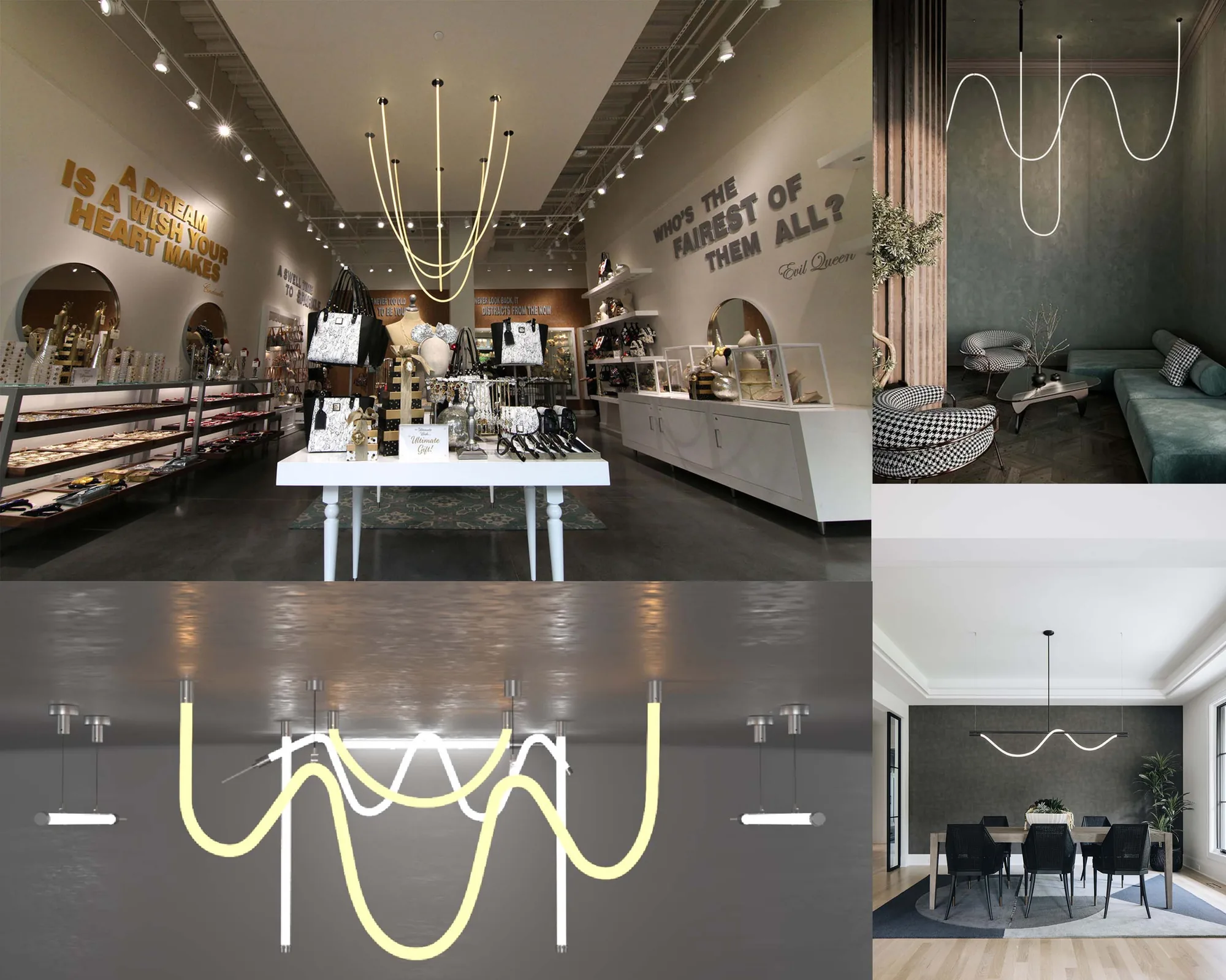

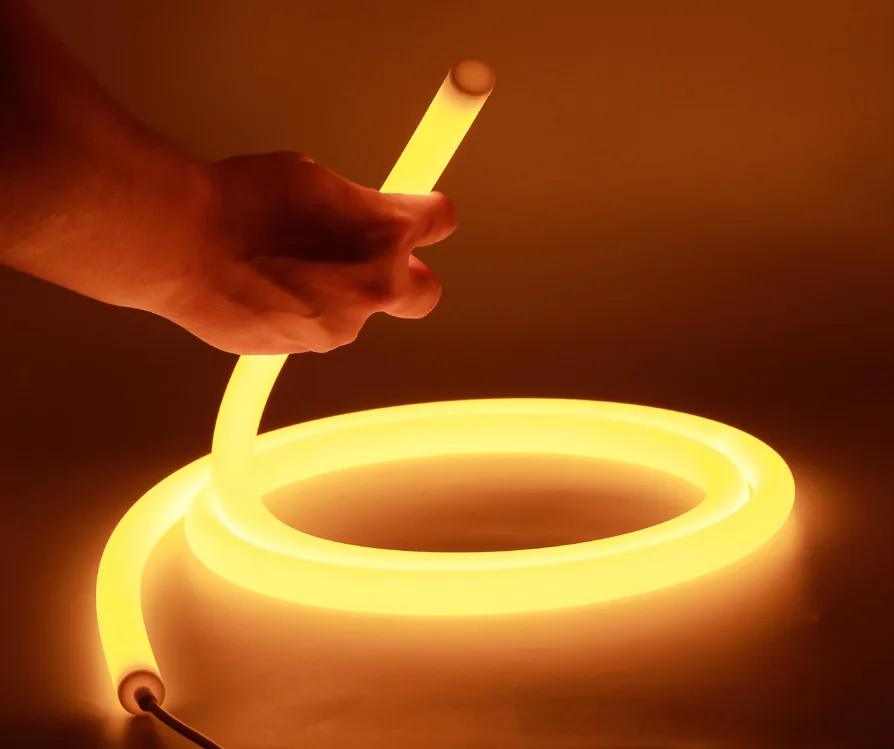

The LED neon Flex can be bendable and twistable any angle, like the following drawing; Accessory: Entry Cap, and End Cap, Mounting Clip. .You can be creative to determine the neon display effect. Ceiling mounting

Hanging mounting

Q1: What is your minimum order quantity? A:**Usually MOQ is 50m, but we also accept small order for trail.** Q2:Is a free sample order available? A: Of course, you can check our quality before ordering.If you have any requirements, please contact us. Q3:How long of the lead time? A: Usually,our lead time is 7-10 working days.It depends on the order quantity.But if the order is urgent, we can apply for urgent production.Bulk ordering takes 20-25 days. Q4:Can LED strip be customized? A:Sure,we can produce as your requirement such as LEDs,power,length and waterproof level.We also offer OEM&ODM. Q5:What’s your warranty? A:We have 3 years and 5 years warranty

Q6:Do you supply sea shipment? A: YES,We have our own shipping agency**FOB Guangzhou,supply FCL&LCL.**

Q7:Does your lighting equipment have CE or more certificates? A: Yes, we have CE certificate and UL, ROHS, CULUS,ETL,TUV,FCC,Energy star etc. We also have an IATF/ISO/TS 16949 certificate.

Q8:Is it possible to put our logo on your product or product packaging? A:Yes, we have 6floors factory, welcome to customize your brand, LOGO, color, product manual, packaging, etc. The minimum order quantity depends on different type of strip.
