Dual Color COB LED Flexible Strip Light — DC12V / DC24V
Dual Color COB LED Flexible Strip Light Spots free without cover,ideal for linear and indirect lighting. 180°beam angle,more wider distribution compared to 120°than SMD. High CRI 90+ DC12/24V both available for human safety. 24VDC for longer max run 3M adhesiv
- System
- Retail Lighting
- Product Family
- LED Strip Lights
- Product Type
- COB LED Strips
Product Gallery
Product Views
Product Details
Technical Information

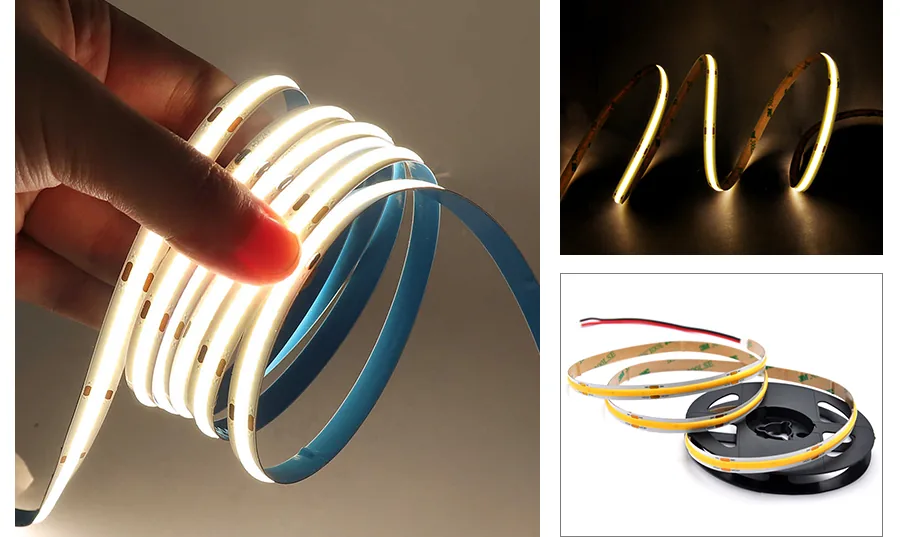

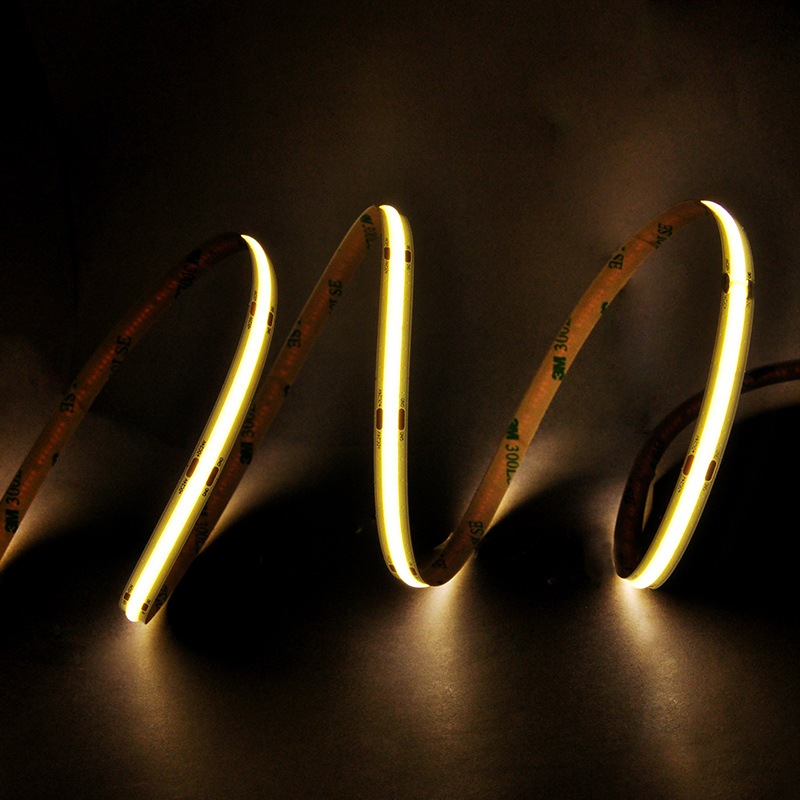

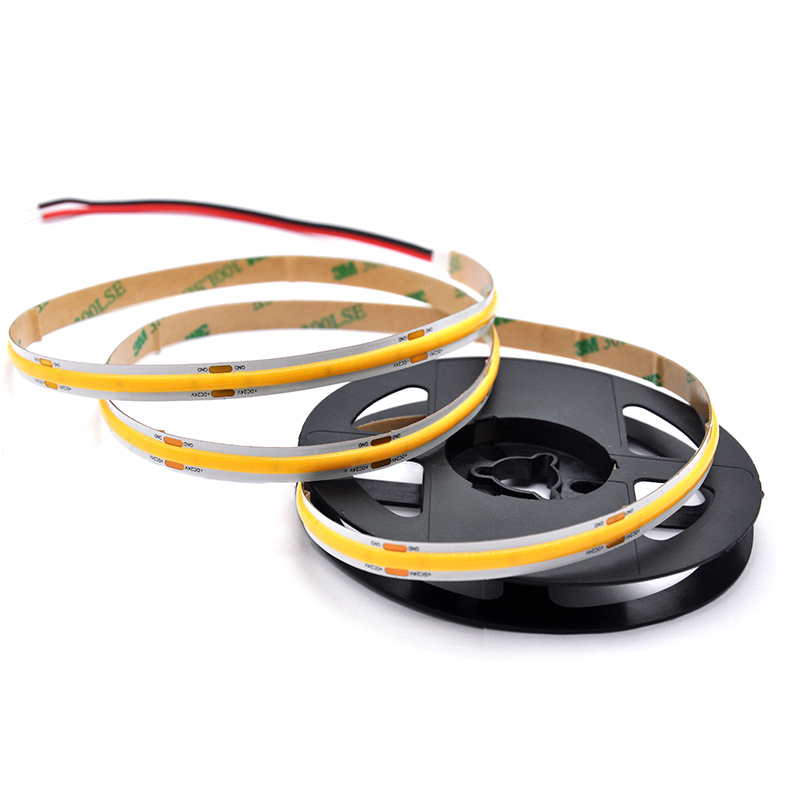

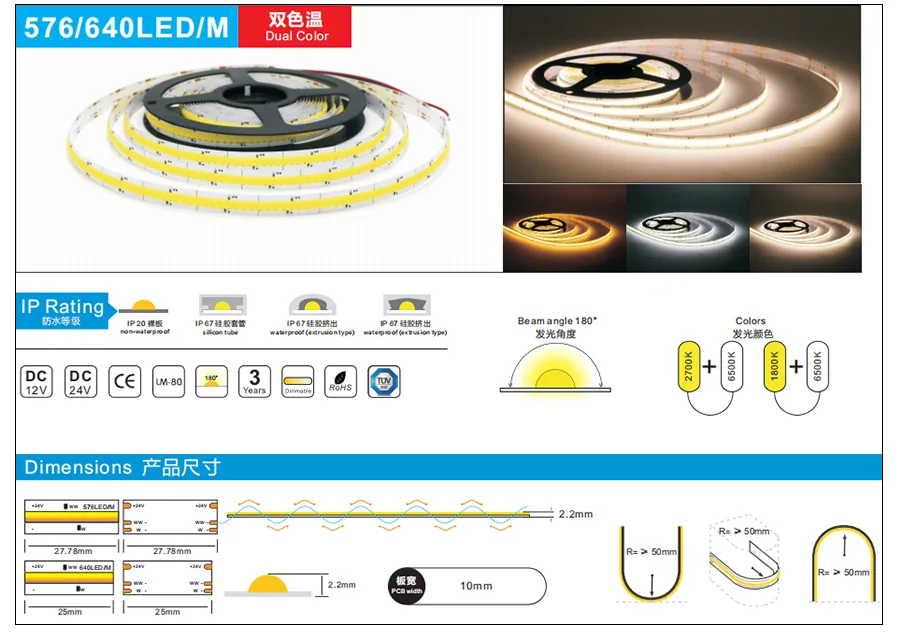

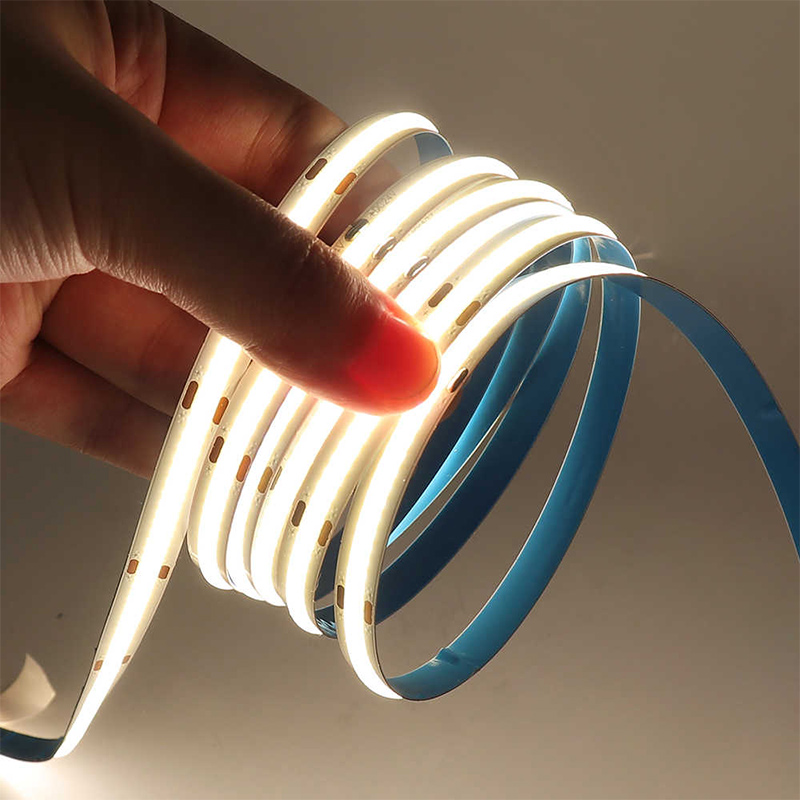

Dual Color COB LED Flexible Strip Light
Spots free without cover,ideal for linear and indirect lighting. 180°beam angle,more wider distribution compared to 120°than SMD. High CRI 90+ DC12/24V both available for human safety. 24VDC for longer max run 3M adhesive backing simplifies mounting Up to 576/640 chips per meter , one chip fail do not affect other chips Double color in 1800K+6500K or 2700K+6500K 3-5 years warranty
| Item No. | HM-DC-COB-24V-10mm-576 | HM-DC-COB-24V-10mm-640 |
| Voltage | DC24v | DC12V/24V |
| CRI | Ra80+/90+ | Ra80+/90+ |
| IP rating | IP20/IP67 | IP20/IP67 |
| Color | 2700K+6500K | 2700K+6500K |
| Watts | 10-24W | 10-24W |
| Lumen | 800-1100lm | 800-1100lm |
| Pitch | 12V=31.25mm; 24V=27.78mm | 12V=25mm; 24V=25mm |
| Width | 10mm | 10mm |
| PCB Thickness | 2oz/3oz | 2oz/3oz |
| PCB Color | White | White |
