Retail Lighting
360°Illuminated COB LED Flexible Strip Light
360°Illuminated COB LED Flexible Strip Light Seamless COB linear light,without LED hotpots 360°Illuminated 24VDC for longer max run Up to 840leds per meter, one chip fail do not affect other chips Radian diameter≧50mm Strip width 3.8mm Available in white color
- System
- Retail Lighting
- Product Family
- LED Strip Lights
- Product Type
- COB LED Strips
Product Gallery
Product Views
Product Details
Technical Information

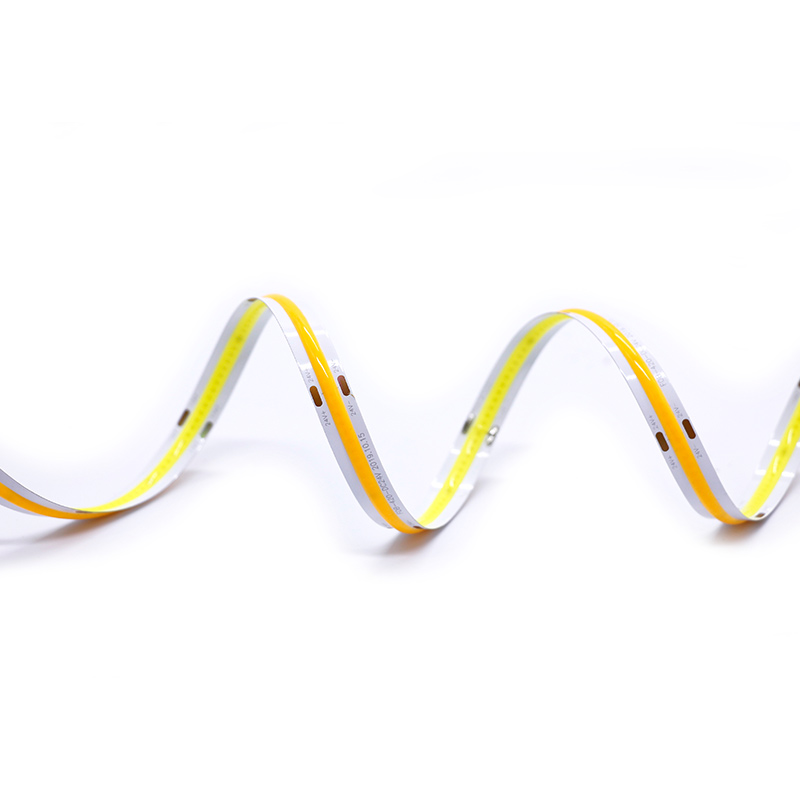

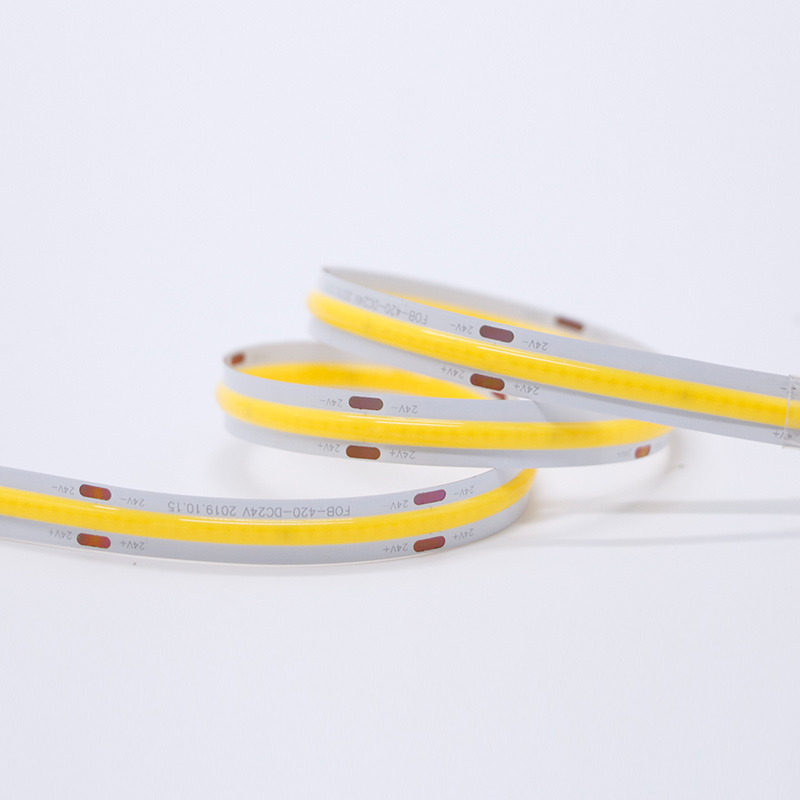

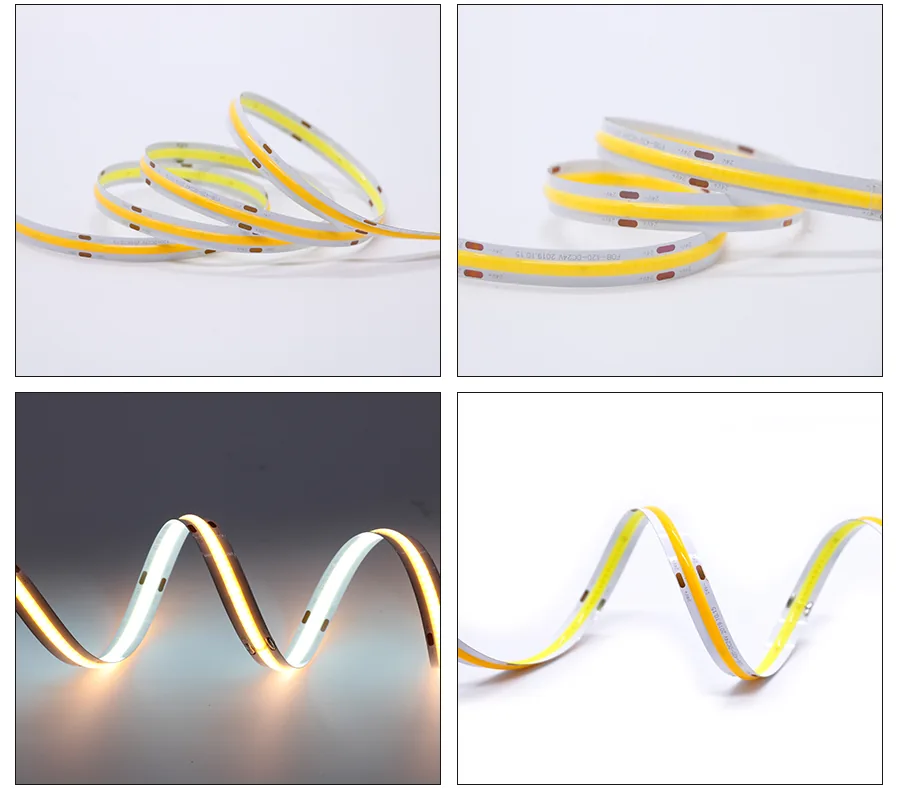

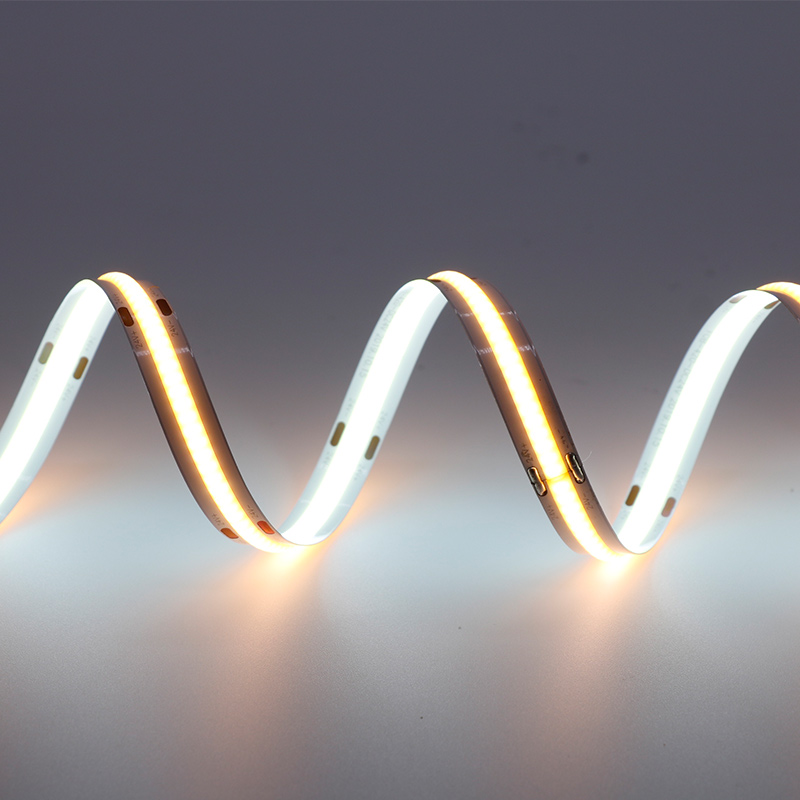

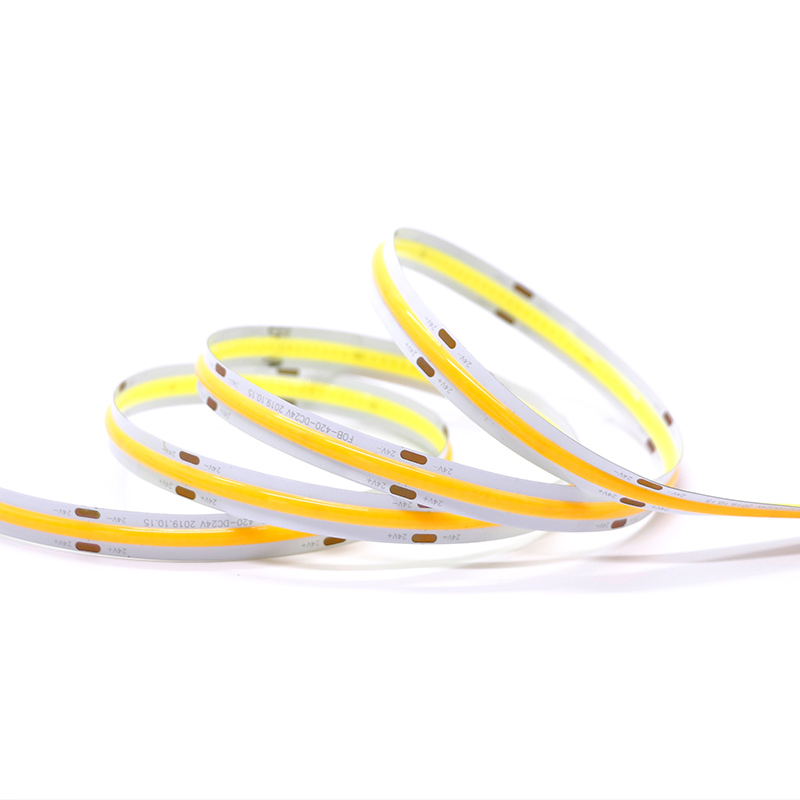

360°Illuminated COB LED Flexible Strip Light
Seamless COB linear light,without LED hotpots 360°Illuminated 24VDC for longer max run Up to 840leds per meter, one chip fail do not affect other chips Radian diameter≧50mm Strip width 3.8mm Available in white color(2800-6500K), Red,Green,Blue color. 3-5 years warranty
| Item No. | HM-DS-COB-24V-10mm-420 |
| Voltage | DC24V |
| CRI | Ra80+/90+ |
| IP rating | IP20 |
| Color | NW/WW/CW/W/R/G/B |
| Watts | 10w |
| Lumen | 800-1100lm |
| Pitch | 50mm |
| Width | 10mm |
| PCB Thickness | 2oz/3oz |
| PCB Color | White |
Ask About This Product
Have a question about this product?
Tell us the quantity, dimensions, application, or customization requirements. Our team can help with pricing, samples, MOQ, and technical questions.
Your inquiry is about
360°Illuminated COB LED Flexible Strip Light
LED Strip Lights · Retail Lighting
