Slim Size Magnetic LED Rigid Bar

Ultra-slim profile. Magnetic mount. DC24V dimmable. Built for retail shelves where every millimeter counts.

Why Retailers Choose This Magnetic LED Bar

Most shelf lighting forces a compromise: either the fixture is too bulky and blocks product visibility, or the installation requires drilling, wiring, and downtime. This rigid bar solves both.

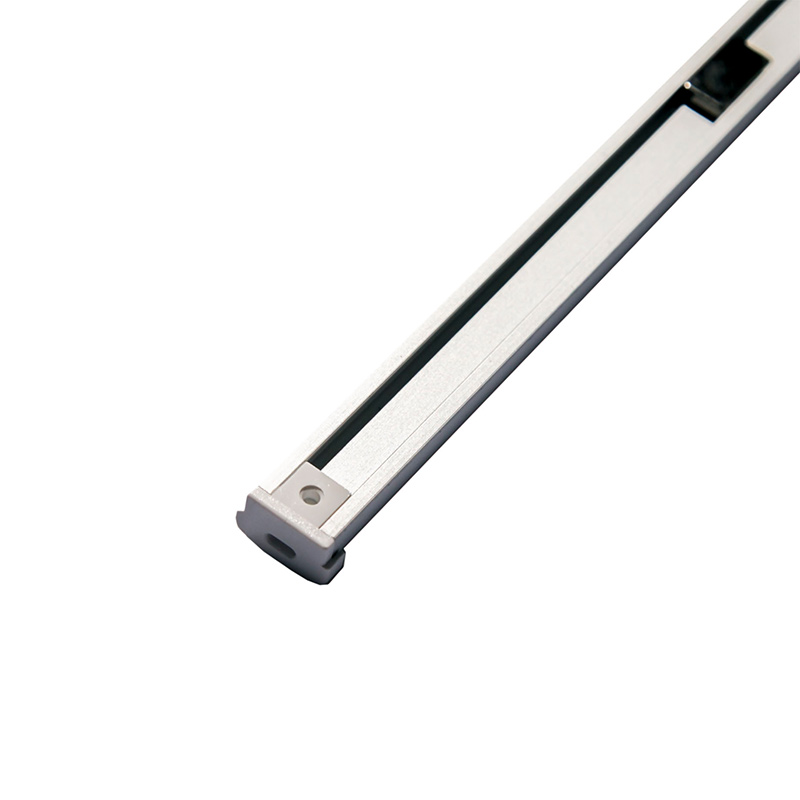

At 14 mm wide and 10 mm high, it tucks into tight shelf gaps without crowding displays. The magnetic base snaps onto steel shelving in seconds — no tools, no screws, no disruption to store operations. For non-metal shelves, clip mounts are included.

The bar runs on DC24V constant voltage, which means stable brightness across long runs and safe low-voltage handling during installation. Dimmable drivers are available for environments where light levels need adjustment — think cosmetics counters that shift from bright daytime display to softer evening ambiance.

Custom lengths are available to match exact shelf dimensions. No more cutting strips on-site or leaving exposed ends.

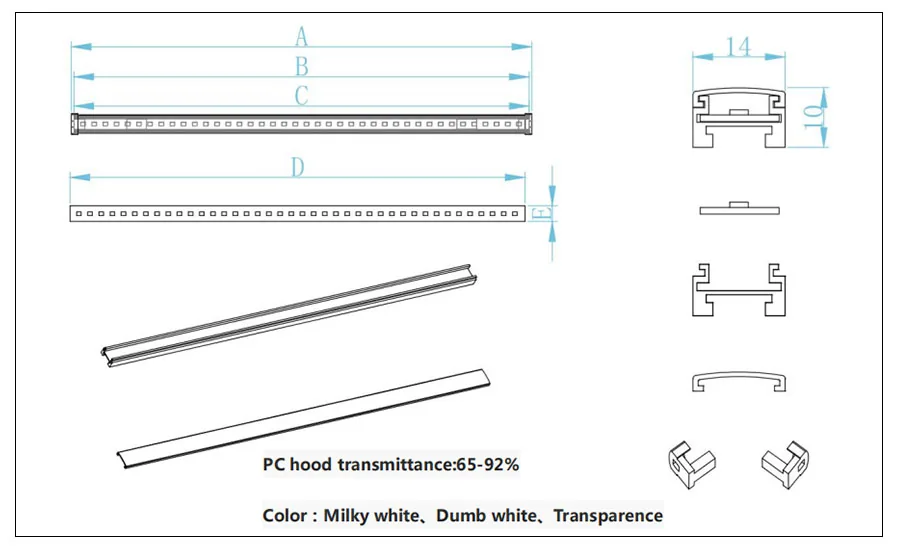

Super slim with wide 14mm x height 10mm,easy installation with magnetic or mounting with clips,different lengths and customized length are available. To be use with constant voltage DC24v driver ,dimmable available .

Key Specifications at a Glance

Custom Lengths for Any Shelf

Standard lengths ship fast. Custom cuts are available for projects with non-standard shelving or continuous runs across multiple bays.

To request a custom length, provide:

• Shelf depth or run length
• Mounting surface type (steel, wood, aluminum, glass)
• Required color temperature (if specified)
• Quantity per store and number of locations

The Slim led rigid bar used in the shelf display,like the shoes shelf,fresh shelf,brand store shelf ect.

DC24V Dimmable Driver Compatibility

This bar requires a DC24V constant voltage driver. ARMOR supplies matching dimmable drivers with 0-10V, DALI, or PWM control options.

Running at 24V instead of 12V reduces current draw and voltage drop over long runs — important for stores with 5-meter+ continuous shelving. Lower current also means thinner gauge wiring and easier concealment.
