Retail Lighting
High Lumen LED Rigid Bar
1.The led rigid bar shelf lighting using super bright SMD2835 chip as light source.High brightness,low-light decay and long life span 2.Formed by printed circuit board,on the back with magnetic easy install 3.Cover with transparent high lumen output 4.Color te
- System
- Retail Lighting
- Product Family
- Shelf & Cabinet Lighting
- Product Type
- LED Rigid Bars

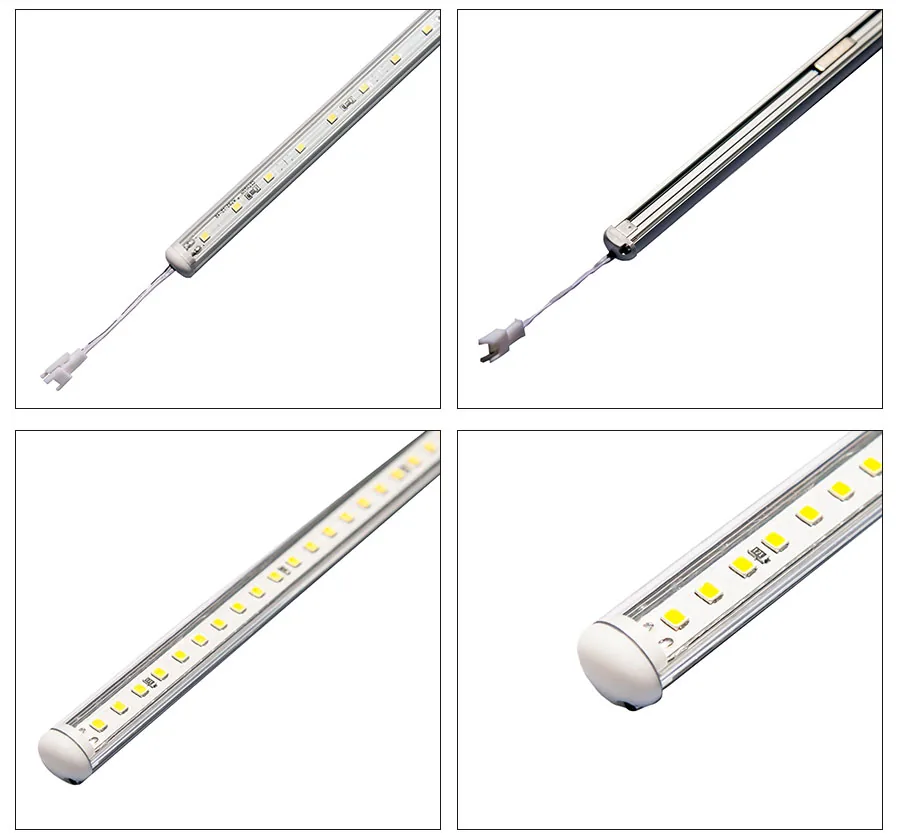

Product Gallery
Product Views
Product Video
See the product in action
Product Details
Technical Information

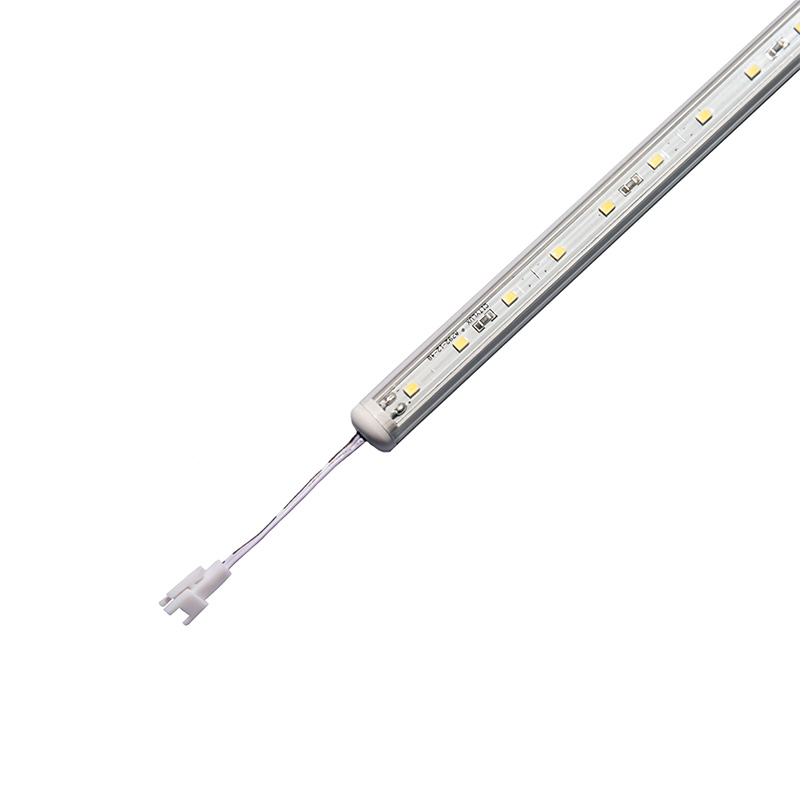

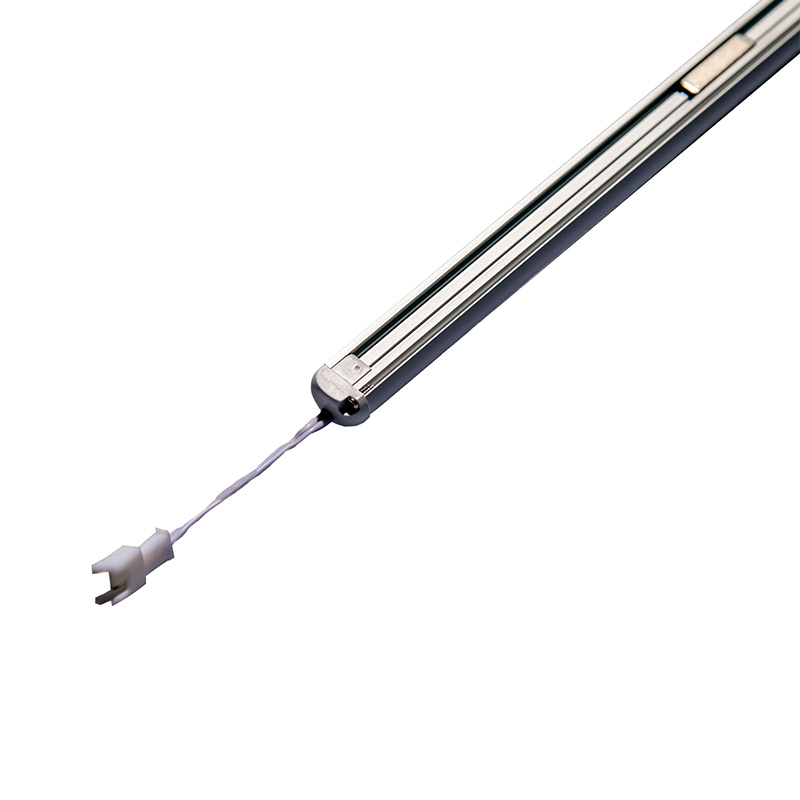

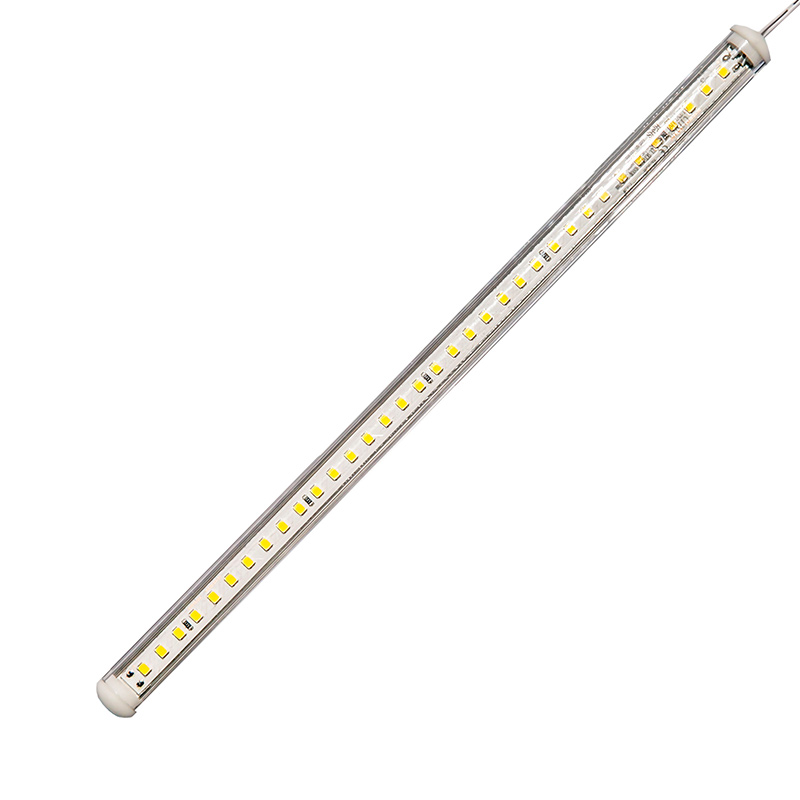

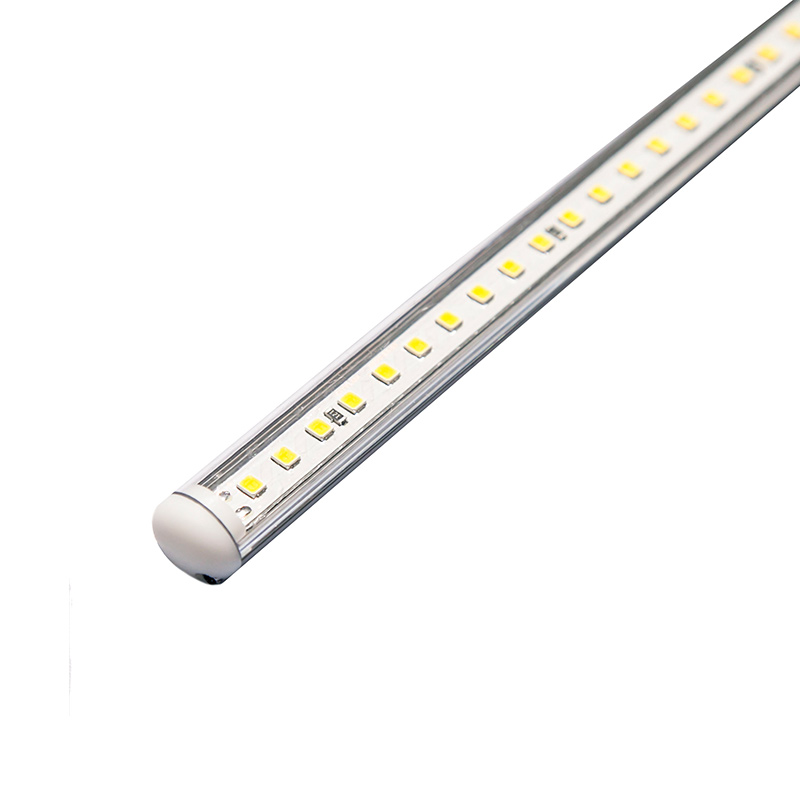

1.The led rigid bar shelf lighting using super bright SMD2835 chip as light source.High brightness,low-light decay and long life span 2.Formed by printed circuit board,on the back with magnetic easy install 3.Cover with transparent high lumen output 4.Color temperature available from 1800k~7500k 5.Warranty 3 years for led shelf cabinet lights
| Item no. | HM-S2-04A01 | HM-S2-08A01 | HM-S2-12A01 | HM-S2-14A01 |
| Length | 2700mm | 570mm | 870mm | 1170mm |
| Power | 3.5w | 7.7w | 12w | 16w |
| Lumen | 450lm | 924lm | 1440lm | 1680lm |
| LED Qty | 35leds | 77leds | 119leds | 161leds |
| LED type | SMD2865,7led/group | |||
| CRI | ≥80 | |||
| Voltage | DC24v | |||
| Certificate | CE&Rohs | |||
| CCT | 3000k-6500k | |||
| Warranty | 3 years |

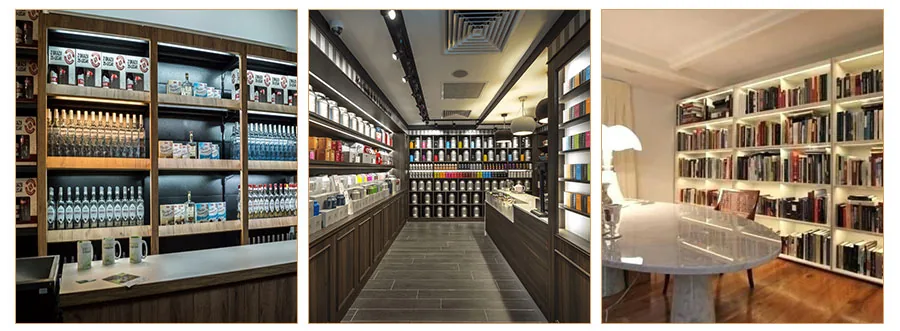

Widely used in shelf display,jewelry, star hotel, high-end clubs, museum, professional windows ect.
