Retail Lighting
Spotless LED Rigid Bar

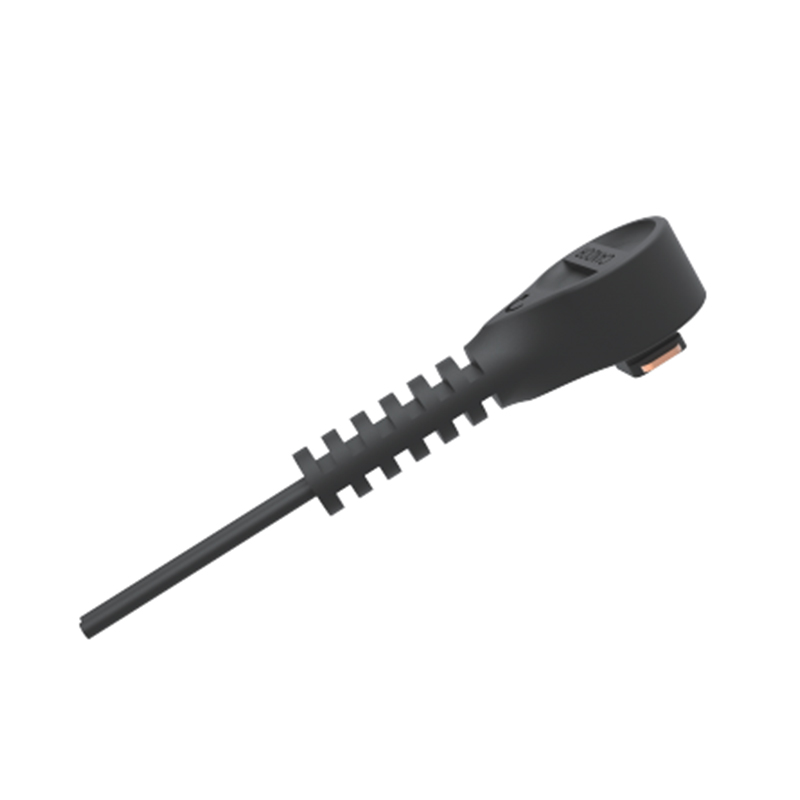

The spotless led rigid bar magnetic strip strong magnets at the back , accessory 180°rotatable clips to change angles Power track with black or white color,connector cable with magnets,can use 180°rotatable metal clip.Different length for optional ,customized
- System
- Retail Lighting
- Product Family
- Shelf & Cabinet Lighting
- Product Type
- LED Rigid Bars
Product Gallery
Product Views
Product Video
See the product in action
Product Details
Technical Information

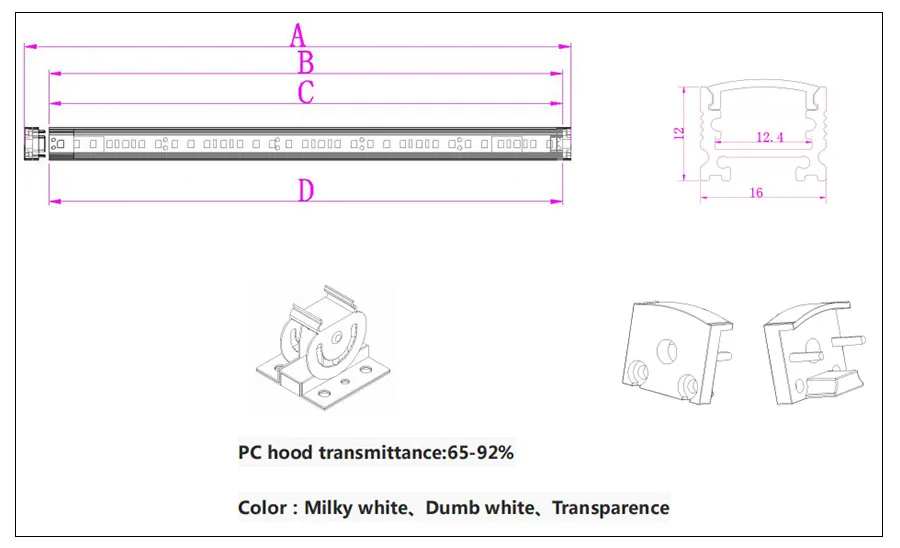

The spotless led rigid bar magnetic strip strong magnets at the back , accessory 180°rotatable clips to change angles Power track with black or white color,connector cable with magnets,can use 180°rotatable metal clip.Different length for optional ,customized available. Dimension wide 16mm x height 12mm .
| Item no. | HM-S1-03A01 | HM-S1-07A01 | HM-S1-09A01 | HM-S1-10A01 | HM-S1-14A01 | HM-S1-18A01 |
| Length | 260mm | 560mm | 760mm | 860mm | 1160mm | 1460mm |
| Power | 3w | 7w | 9w | 10w | 14w | 18w |
| Lumen | 240lm | 560lm | 720lm | 800lm | 1120lm | 1440lm |
| LED Qty | 120leds/m | 120leds/m | 120leds/m | 120leds/m | 120leds/m | 120leds/m |
| LED Type | SMD2835 | |||||
| Voltage | DC12v/DC24v | |||||
| Certificate | CE&Rohs | |||||
| CCT | 3000k-6500k | |||||
| Warranty | 3 years |
