Outdoor High Quality LED Strip Wall Washer Lighting

Vertical bend 30° wall washer W20*H16mm

PRDUCT FEATURES

SMD2835 silicone extrusion

.Compare to standard strip,it’s concentrated lighting and longer irradiation distance with higher utilization efficiency and higher center illumination under the same

luminous flux.

.Optimize the structure design and improve the optical efficiency. The material is resistant to flame retardant and UV;

.5M/roll, can also cut as required length;

.Can reach IP65/IP67 protection level,used indoors and outdoors.

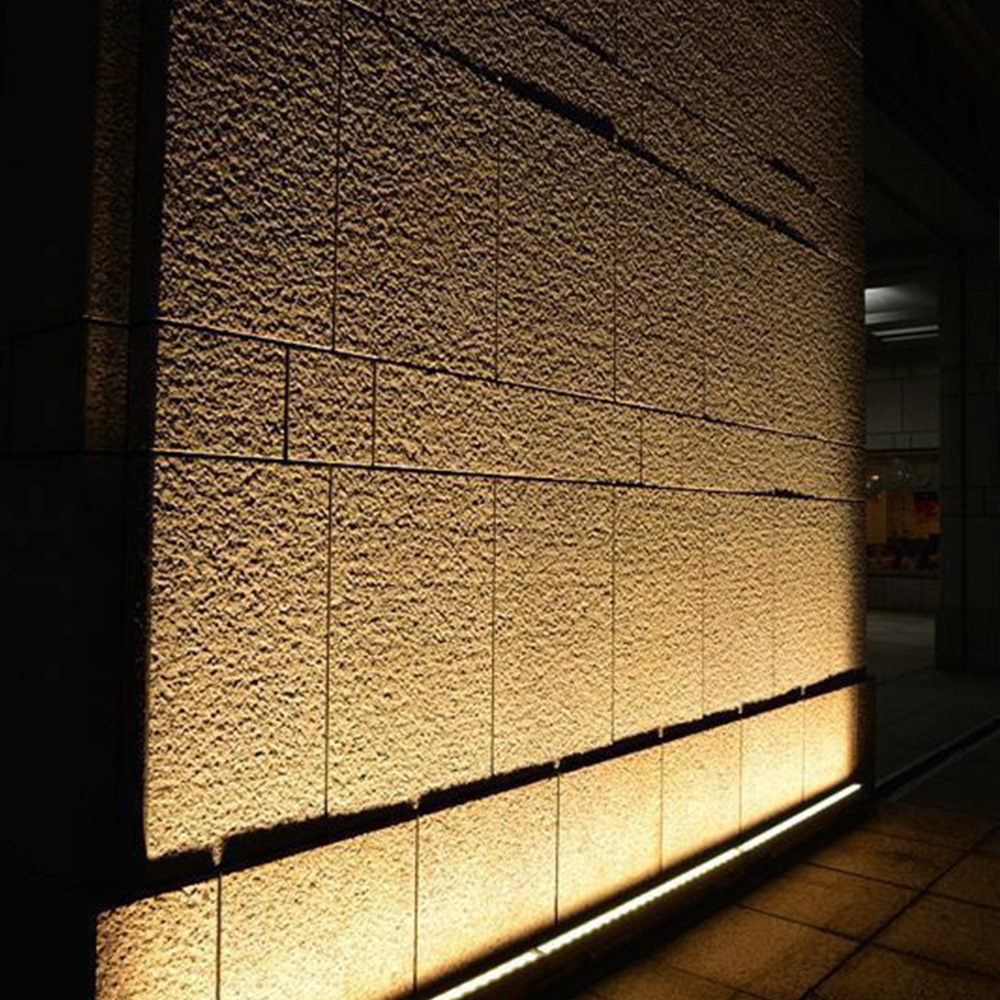

Market target: .Indoor and outdoor linear wall washing lighting, indoor, outdoor, semi-outdoor lighting, etc. Product advantage: .The structure is unique compared with that of regular neon strips.No lens required, one extrusion optical molding, light Angle up to 30°.Effectively improve the illumination value. Longer irradiation distance, the output light utilization efficiency of the product under the same luminous flux is higher, and the center illuminance is higher. Up to 110Lm/W,can be achieved with high light efficiency LM80 test certified 2835 lamp beads,Injection molded cap,IP67 waterproof,has IP67 fast wire connector.Use silicone materials,Anti-Flame,UV resistance with 5 years warranty. Usage scenario: .Indoor and outdoor lighting include villa,historical building group exterior wall lighting,it can vertical bend,the minimum bending diameter is 200 mm.

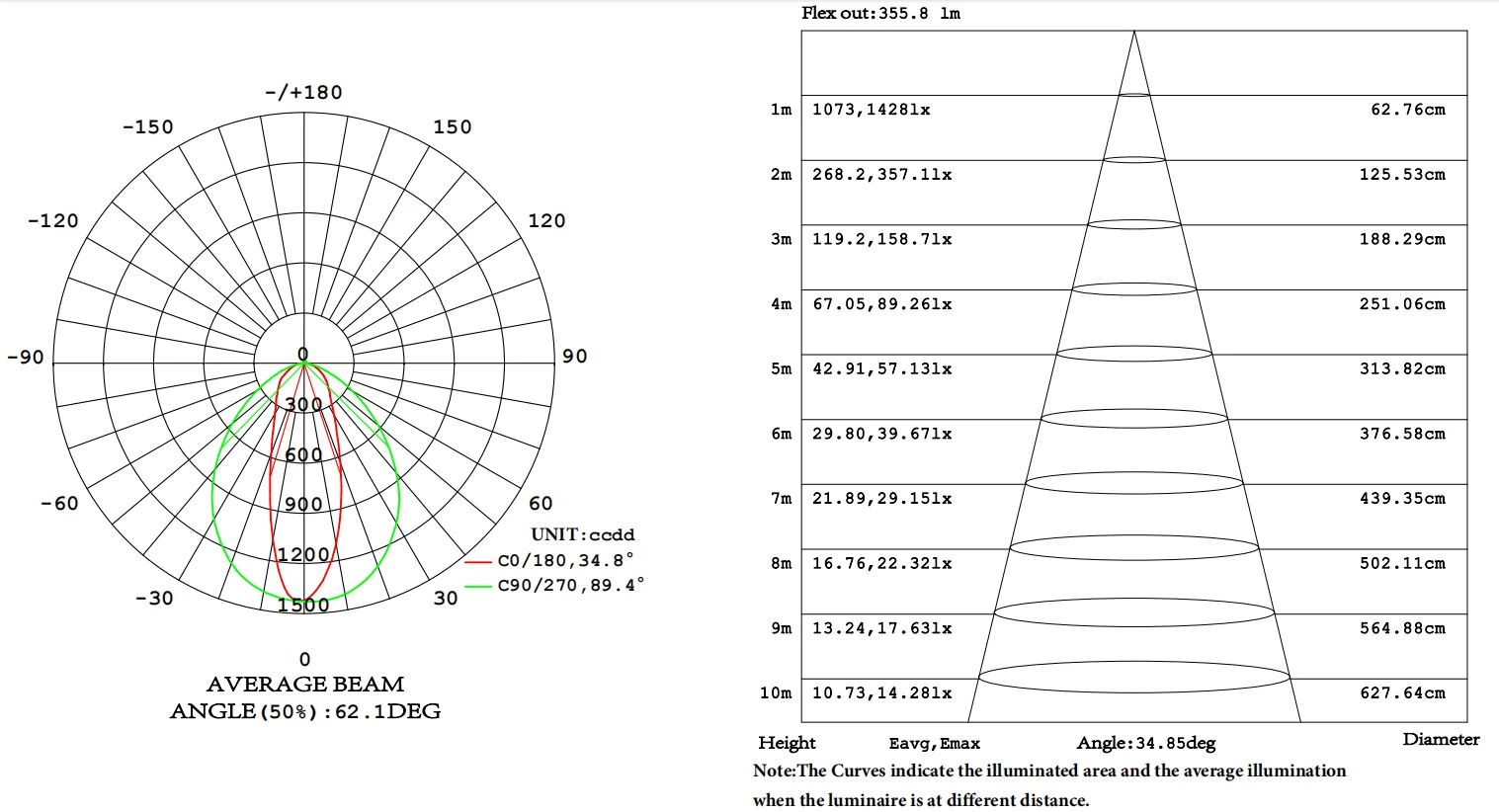

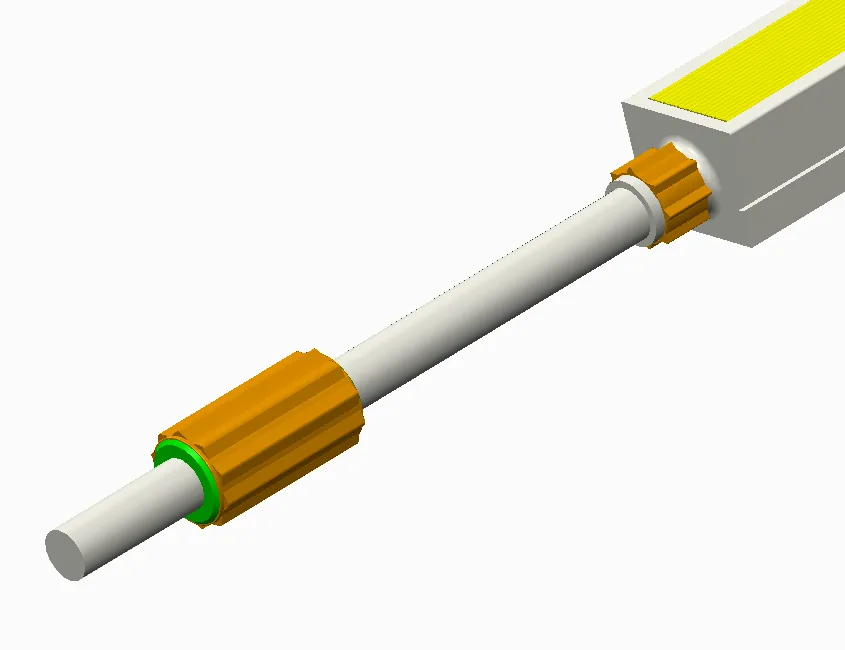

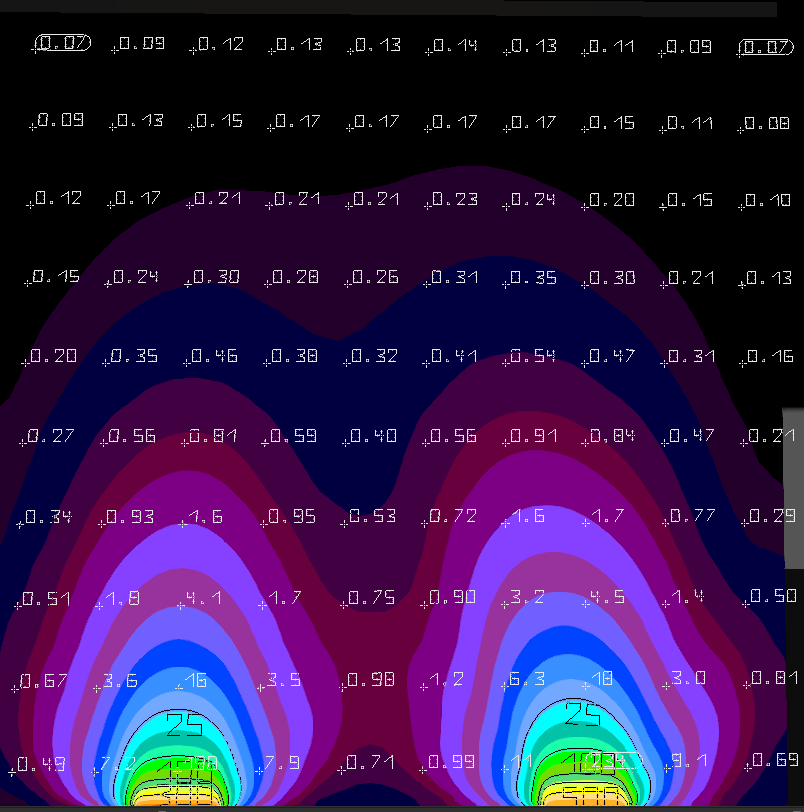

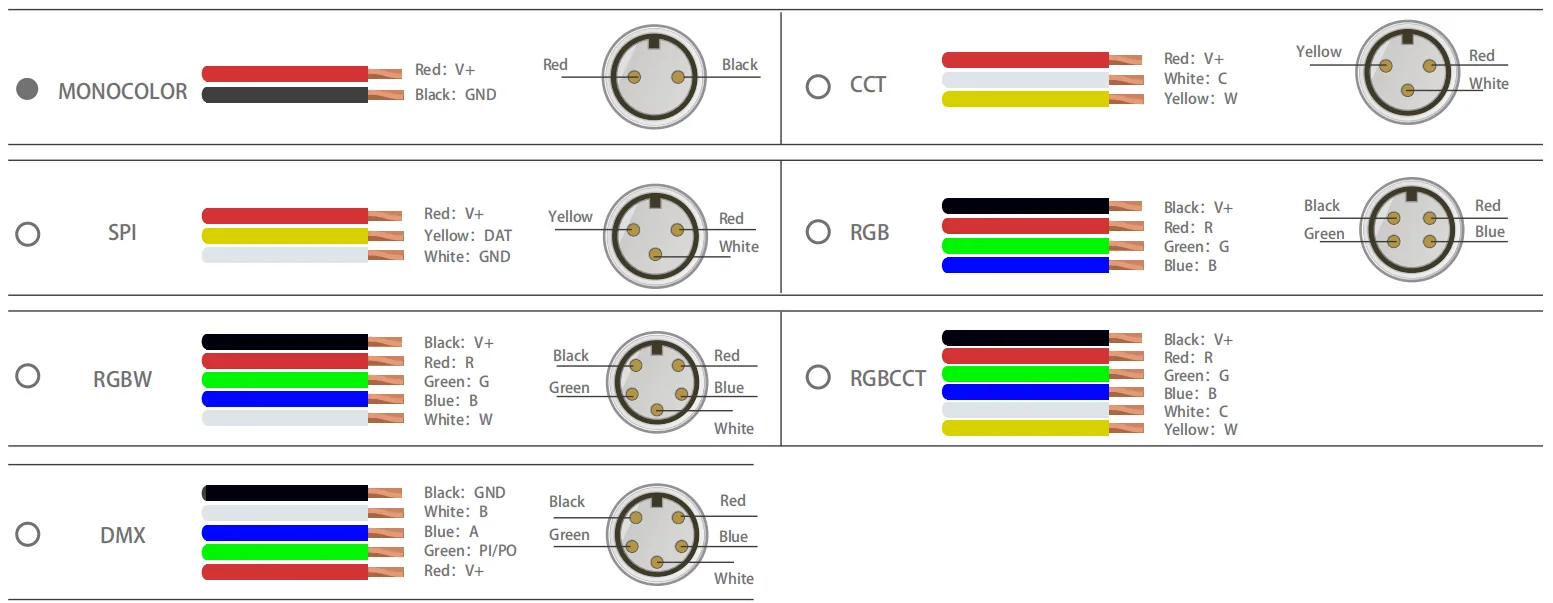

CABLE ENTRY METHOD IES DATA INSTALLATION

Indoor use IP20 wire,  Add ring:Ensure the pulling force between the plug and the wire.

Outdoor use IP20 wire, Add wire ring and waterproof blocking:In order to ensure the pull of the plug and the wire, while preventing the wire water. (Outdoor standard)

Outdoor use Waterproof male and female joint,add wire ring and waterproof blocking:It is easy to install on site when the tension is guaranteed. (Optional outdoors)

Notice:

1. Luminous flux or CCT 2700K is 10% lower, or CCT 3000/3500K is 5% lower, for CCT 5000K/ 6500K is the some, compared with 4000K.

2. Energy efficiency dass of regulation (EU)201 9/2020 is E(CRI80) for 4000K and F(CRI80) for CCT, it waries depending on CRI and CCT.

3. Applying with extra heat sink is not necessary with sel-cooing capacity.

4. The transmission direction of data must be from PI to Po following the arrow printing on FPC for DMX version, and can’t be made by

reverse connection, otherwise the strip will be out of control or even domaged.

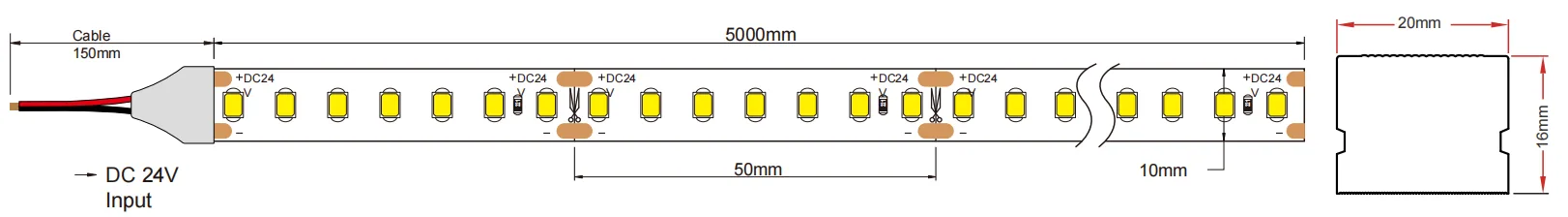

Strip Code

Optical

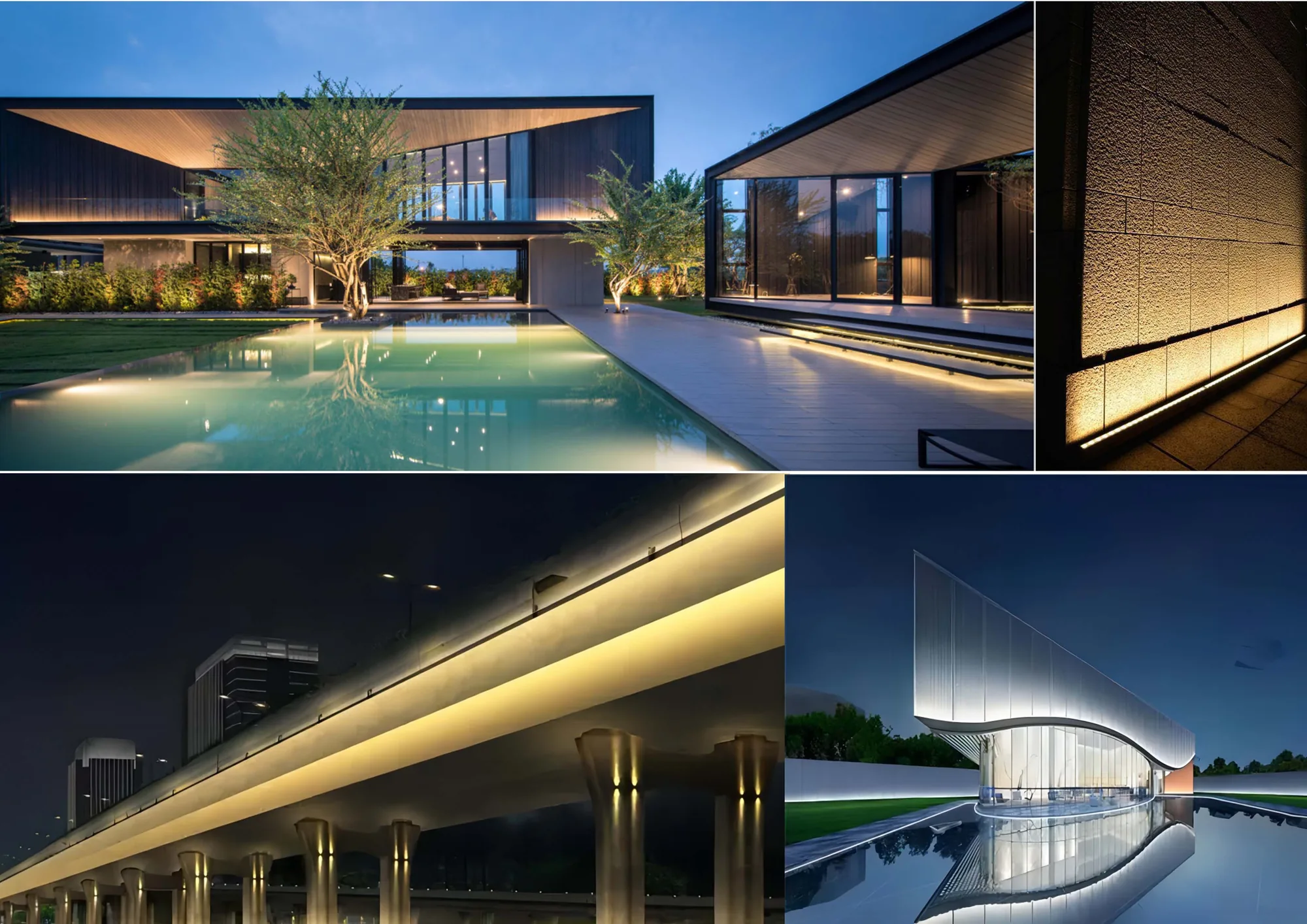

1 .Signage Lighting (outdoor advertising) 2. Outdoor or indoor decorative lighting (including bars,with excellent color reproduction and high power color dynamic application.) 3 .Architectural Contour lighting(High-end hotels and waterfront parks, architecture facade lighting solution) 4. Waterproof lighting (Swimming pools,underwater applications and resorts, and luxury yachts,decorations, amusement parks and aquarium)

Q1: What is your minimum order quantity? A:**Usually MOQ is 50m, but we also accept small order for trail.** Q2:Is a free sample order available? A: Of course, you can check our quality before ordering.If you have any requirements, please contact us. Q3:How long of the lead time? A: Usually,our lead time is 7-10 working days.It depends on the order quantity.But if the order is urgent, we can apply for urgent production.Bulk ordering takes 20-25 days. Q4:Can LED strip be customized? A:Sure,we can produce as your requirement such as LEDs,power,length and waterproof level.We also offer OEM&ODM. Q5:What’s your warranty? A:We have 3 years and 5 years warranty

Q6:Do you supply sea shipment? A: YES,We have our own shipping agency**FOB Guangzhou,supply FCL&LCL.**

Q7:Does your lighting equipment have CE or more certificates? A: Yes, we have CE certificate and UL, ROHS, CULUS,ETL,TUV,FCC,Energy star etc. We also have an IATF/ISO/TS 16949 certificate.

Q8:Is it possible to put our logo on your product or product packaging? A:Yes, we have 6floors factory, welcome to customize your brand, LOGO, color, product manual, packaging, etc. The minimum order quantity depends on different type of strip.
