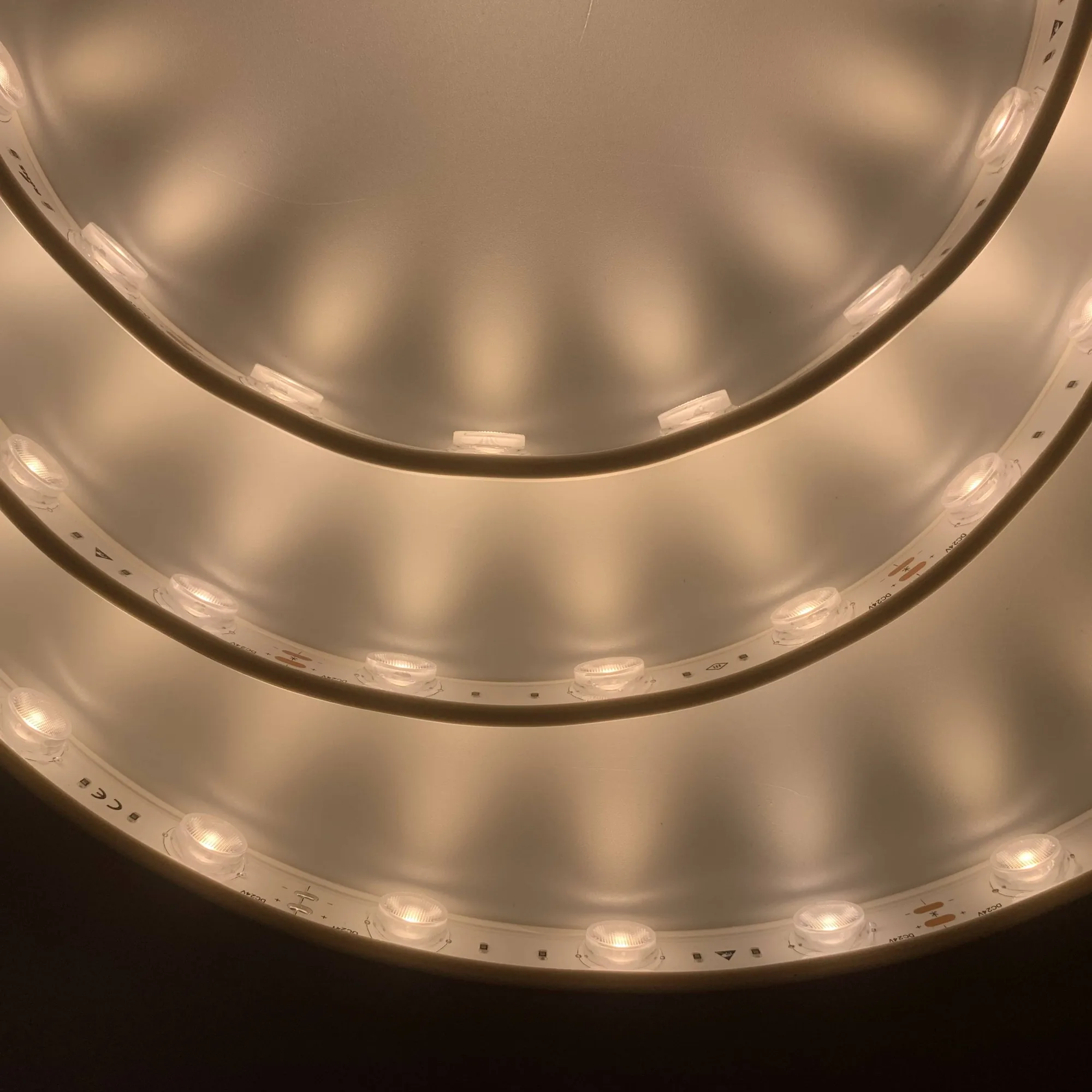

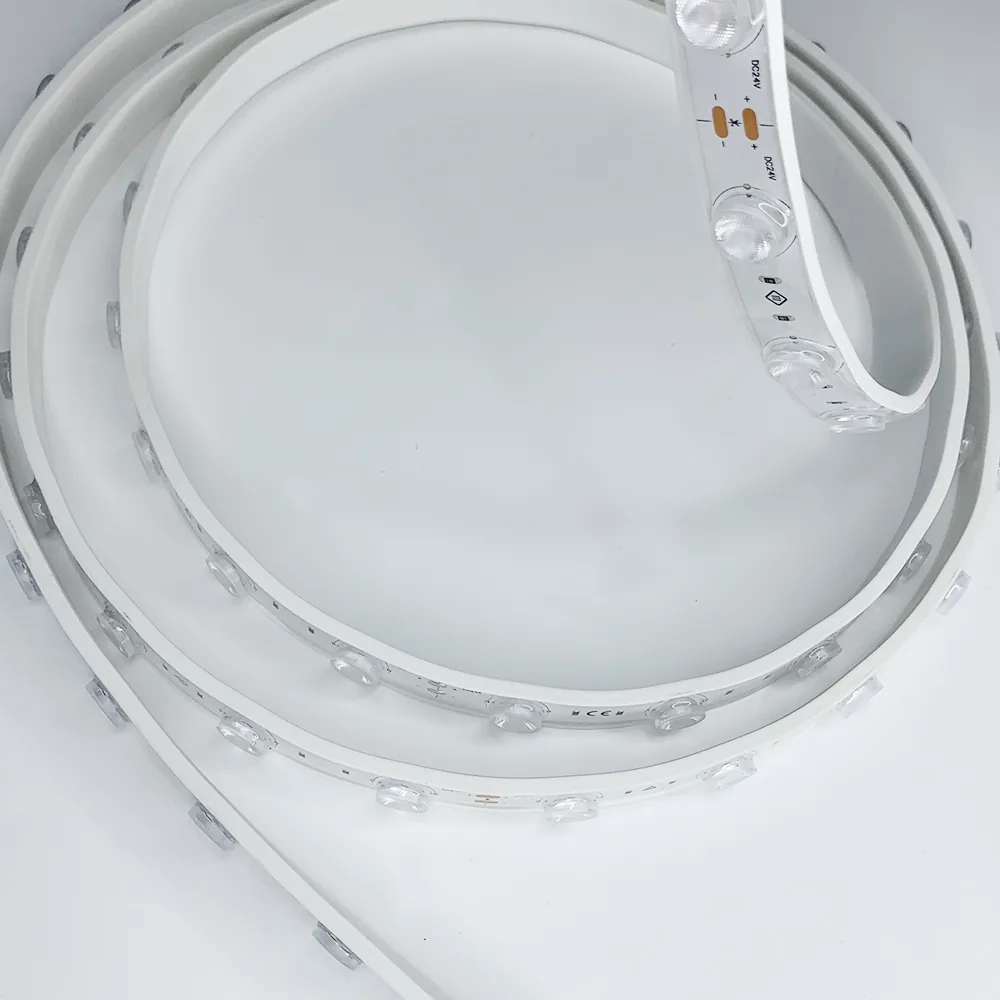

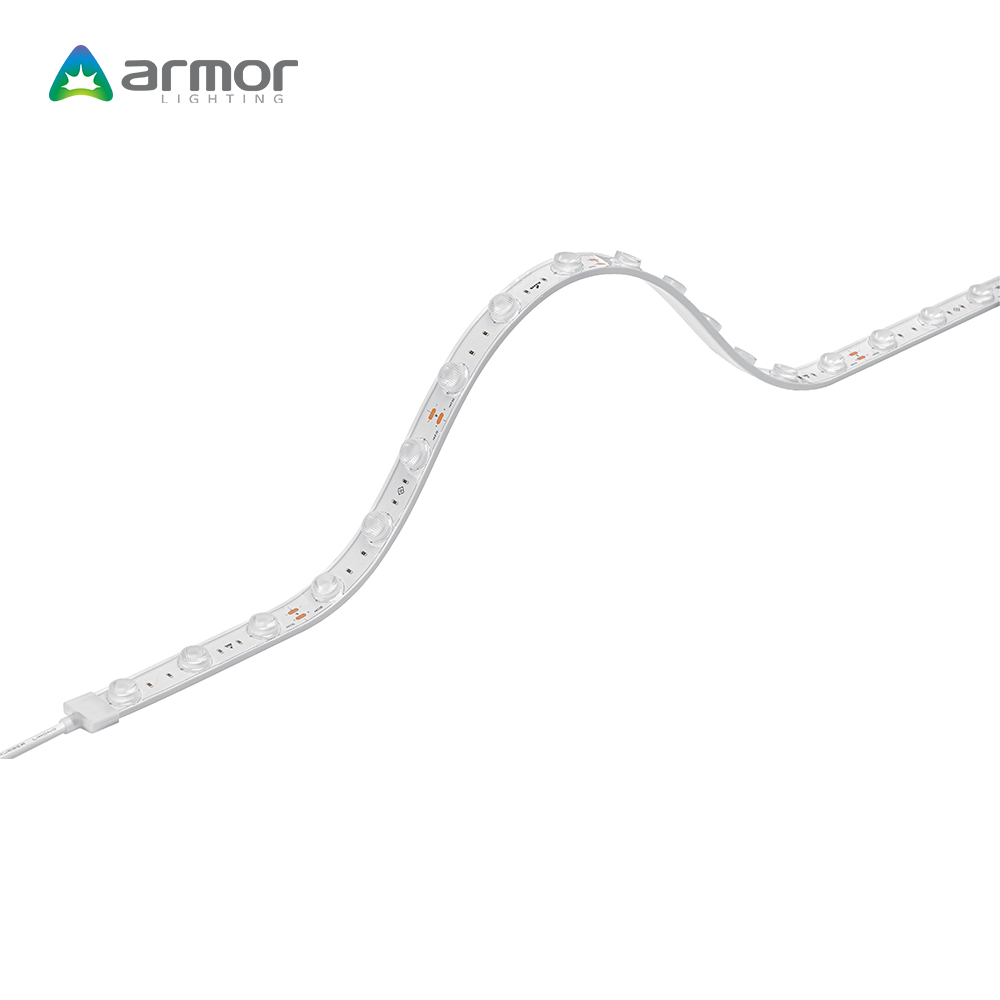

Product Views
Product Video
See the product in action
Product Details
Technical Information
2012 LED Wall Washer Strip
PRDUCT FEATURES
- LED with high light 3030 custom light Type
- Support external dimmer DALI, 0-10V, thyristor
- Power supply: double end 10 meters
- Various specifications, support customization
- IP Grade：IP65
- Warranty：3years
| Specifications | Standard Length | Cutting length | LED QTY | Voltage (V) | CCT | Beam Angle | Working Temperature | Protection Technology | Color |
| 3030 | 5m | 3 L 125mm ights/cut | 24led/m | 24V | 3000K±150 4000K±200 5000K±250 6000K±300 | 30°60° 20°45° | -25+60 ℃ | IP65 | Single/Double /RGB/RGB+W/512 |
Luminance Distribution
Light color can be selected

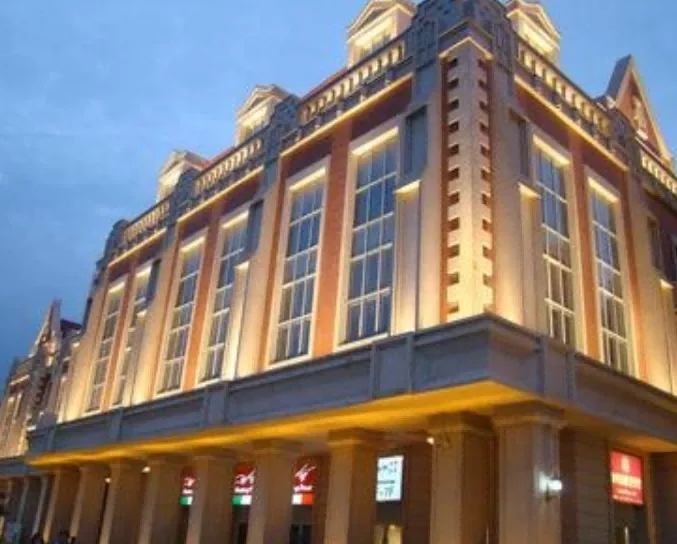

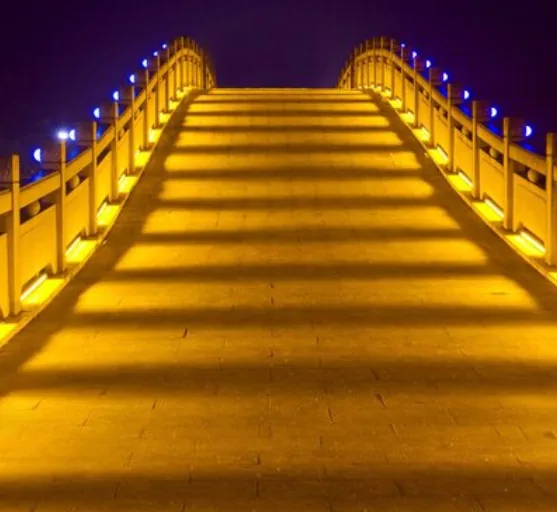

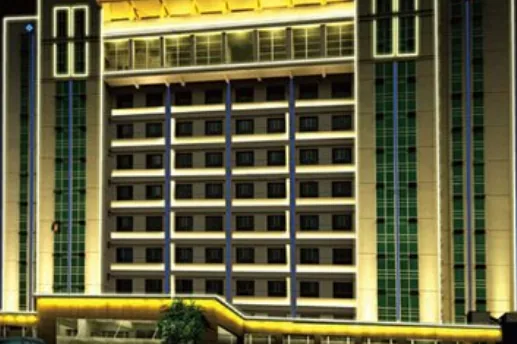

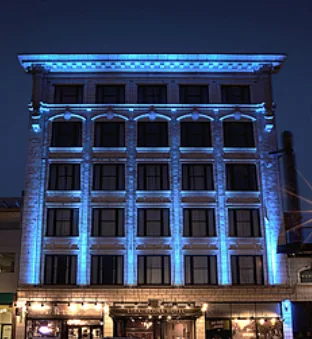

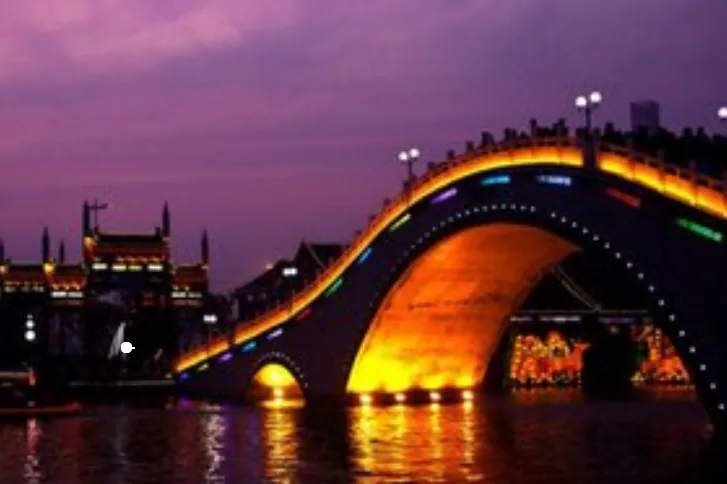

Practical Scenario

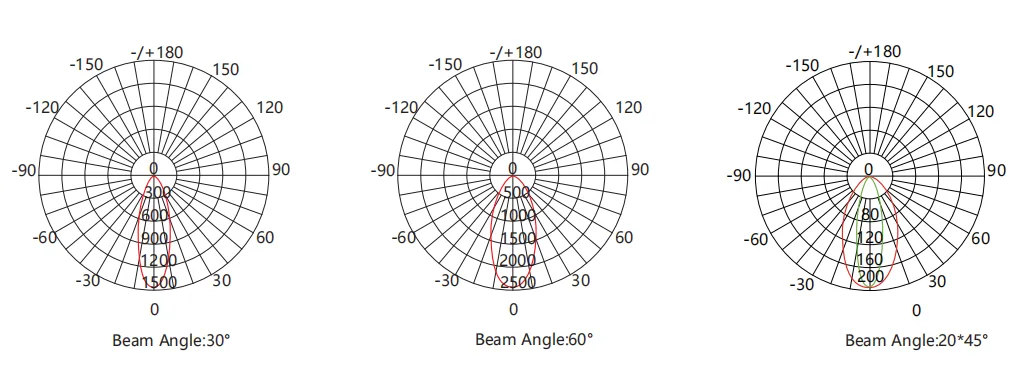

Light Output Diagram
Bending Mode
 | 1. Correct bending mode, minimum bending radius R150mm |
 | 2. Wrong bending mode |
 | 3. Minimum bending radius: ≥R100mm |

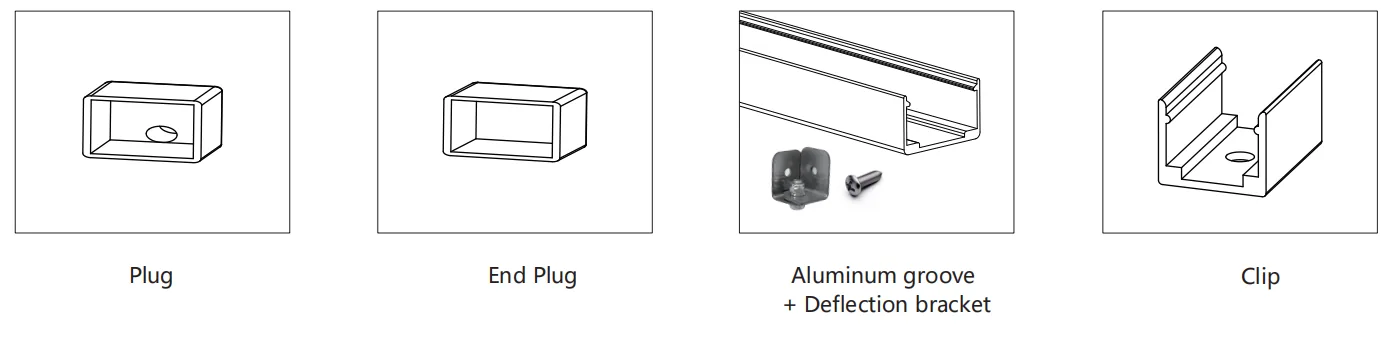

Install Fittings

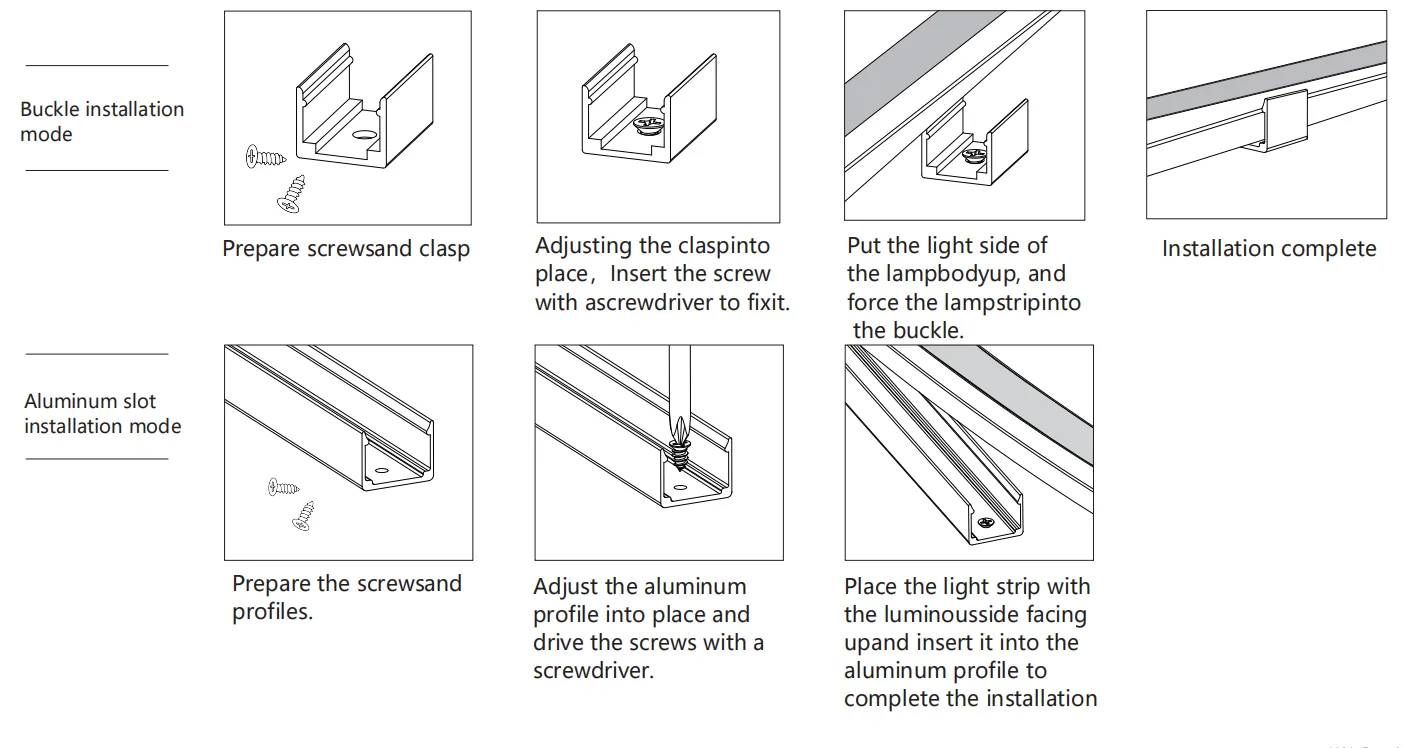

Installation

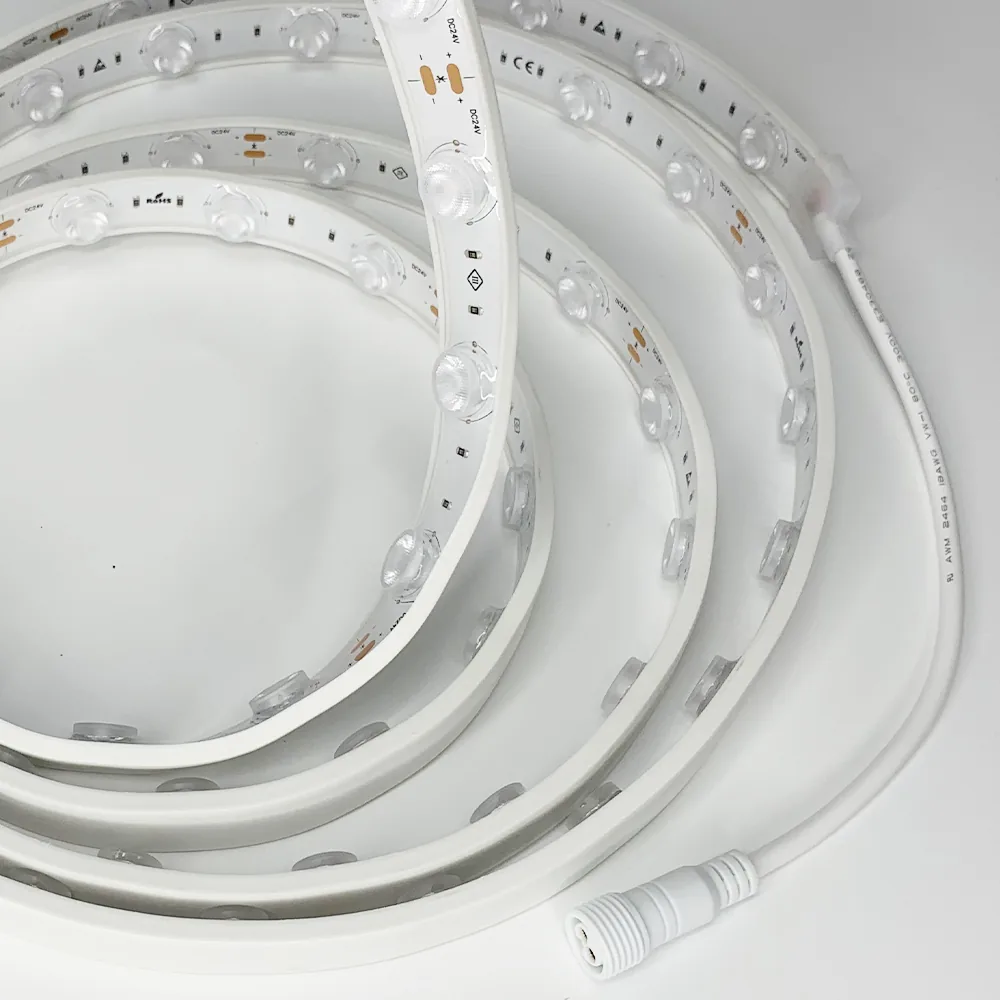

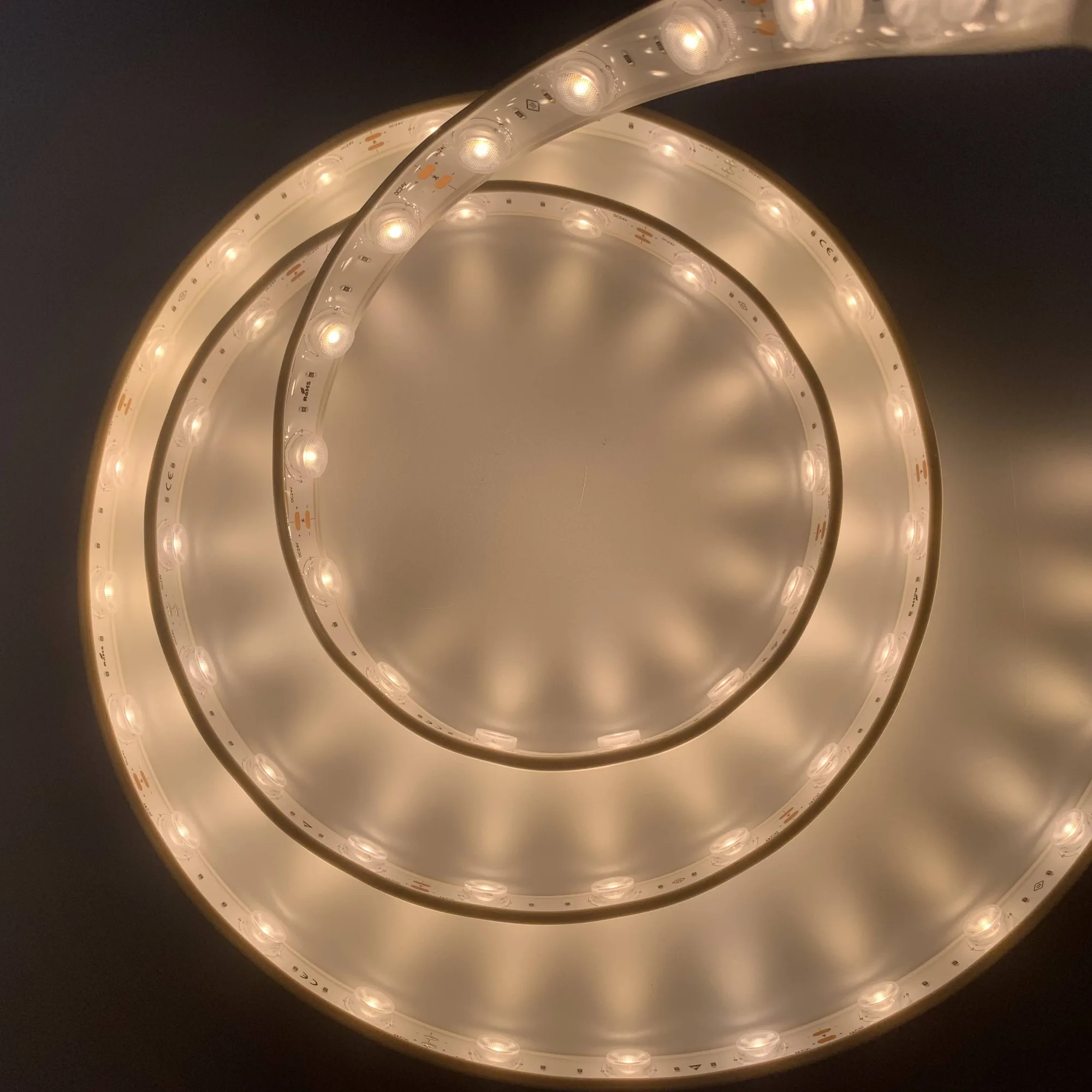

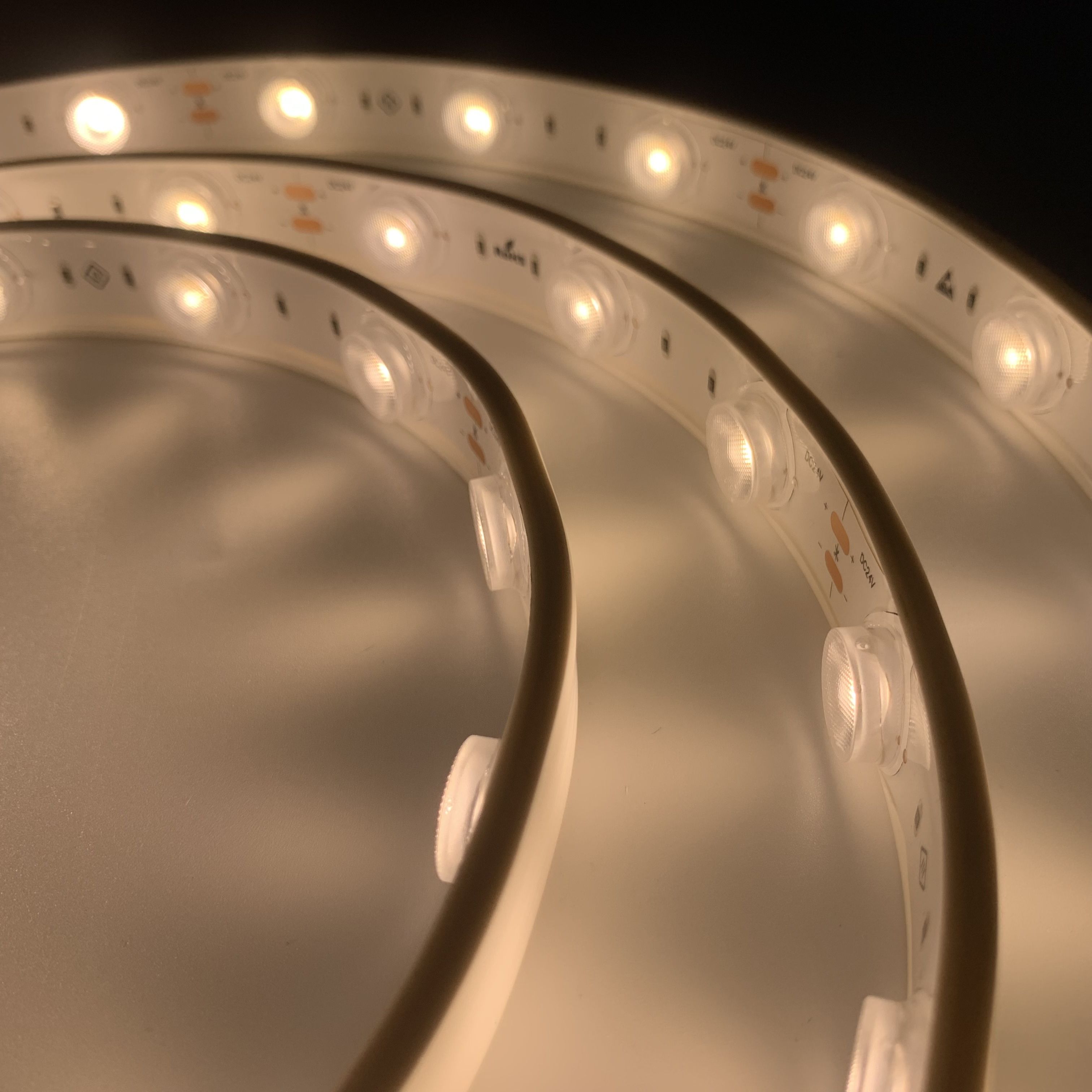

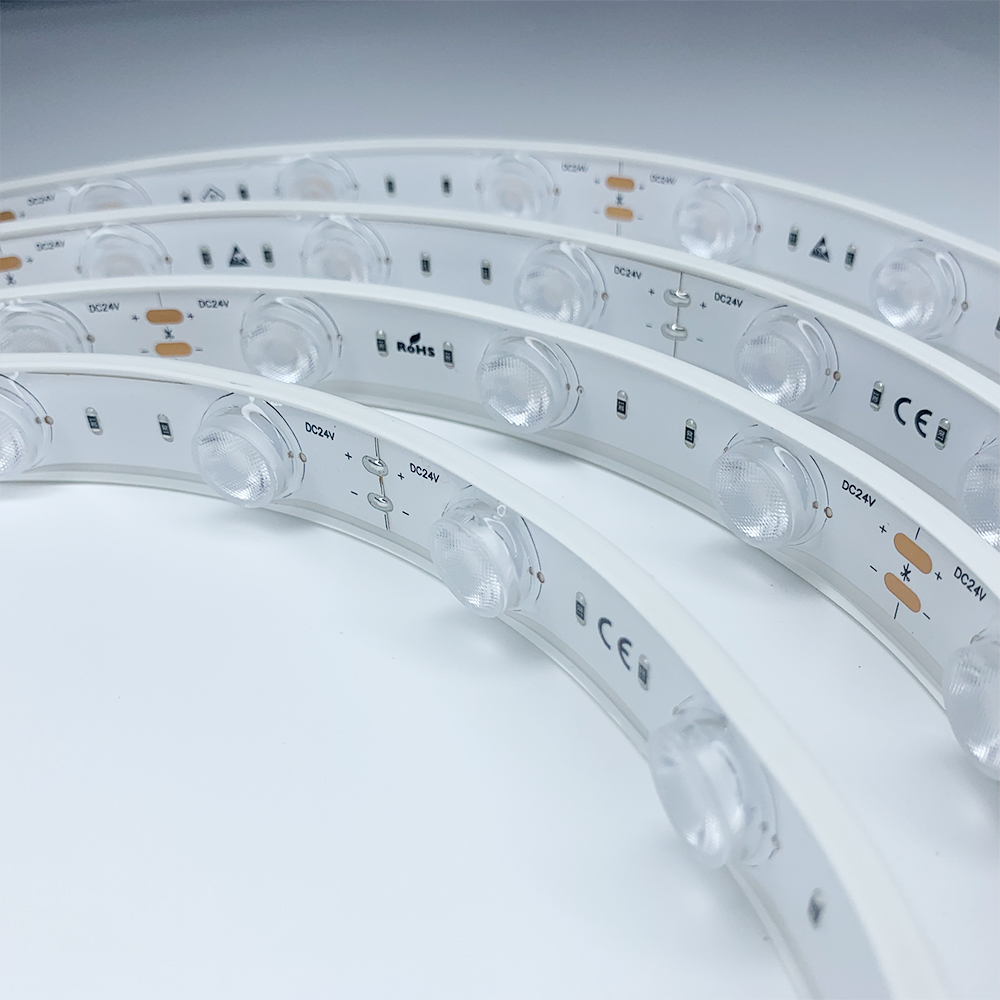

Product Detail
 | |
| |
 |  |
 |   |
Packing
| Product Model | Packaging Type | Case Specification | Electrostatic Bag Packing | Inner Box Packing | Net Weight | Gross Weight |
| 2012 | Electrostatic bag+carton | 410*410*320mm | 5 meters/1 bag | 16 bags/1 case | 10kg | 11kg |
| The above packaging quantityand weight are onlyfor the packaging method shown in the figure. When otherpackaging methodsare used,there will be differencesin packaging quantityand weight. The specific object shall prevail. |
Q1: What is your minimum order quantity? A:**Usually MOQ is 50m, but we also accept small order for trail.** Q2:Is a free sample order available? A: Of course, you can check our quality before ordering.If you have any requirements, please contact us. Q3:How long of the lead time? A: Usually,our lead time is 7-10 working days.It depends on the order quantity.But if the order is urgent, we can apply for urgent production.Bulk ordering takes 20-25 days. Q4:Can LED strip be customized? A:Sure,we can produce as your requirement such as LEDs,power,length and waterproof level.We also offer OEM&ODM. Q5:What’s your warranty? A:We have 3 years and 5 years warranty
Q6:Do you supply sea shipment? A: YES,We have our own shipping agency**FOB Guangzhou,supply FCL&LCL.**
Q7:Does your lighting equipment have CE or more certificates? A: Yes, we have CE certificate and UL, ROHS, CULUS,ETL,TUV,FCC,Energy star etc. We also have an IATF/ISO/TS 16949 certificate.
Q8:Is it possible to put our logo on your product or product packaging? A:Yes, we have 6floors factory, welcome to customize your brand, LOGO, color, product manual, packaging, etc. The minimum order quantity depends on different type of strip.
