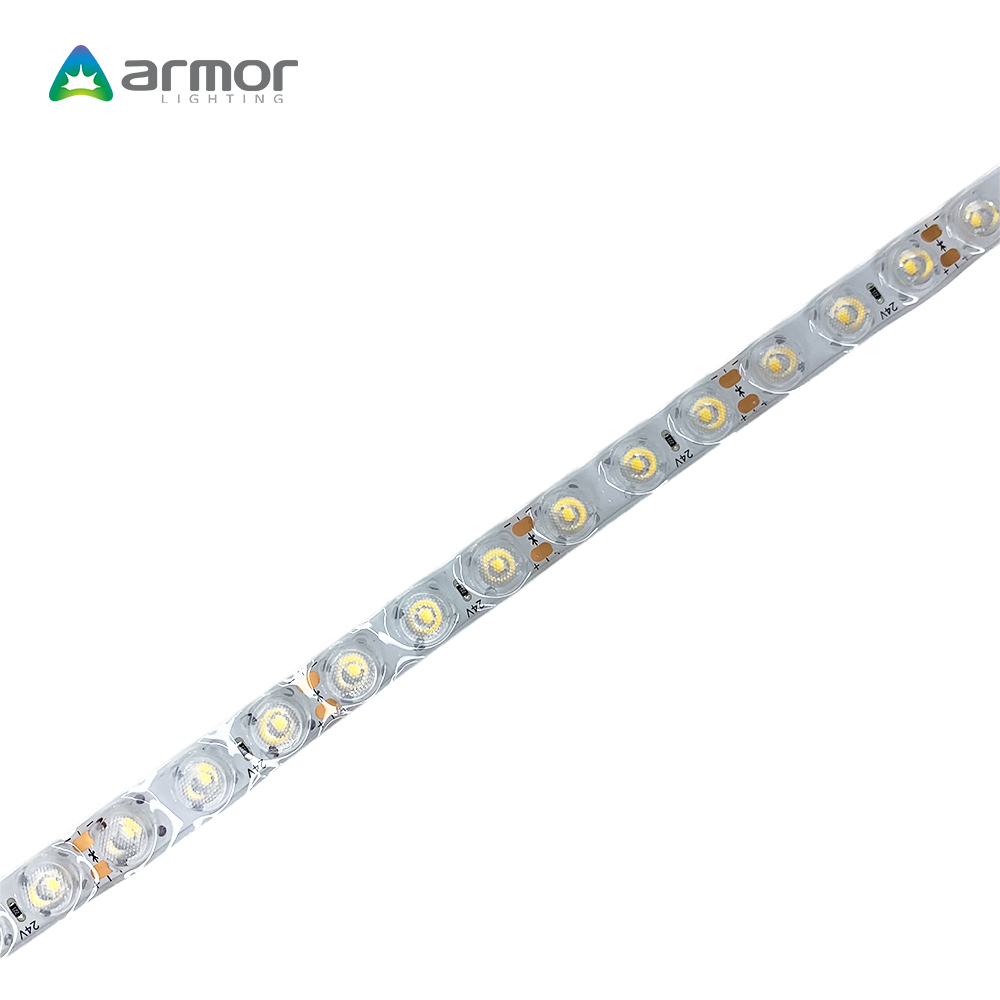

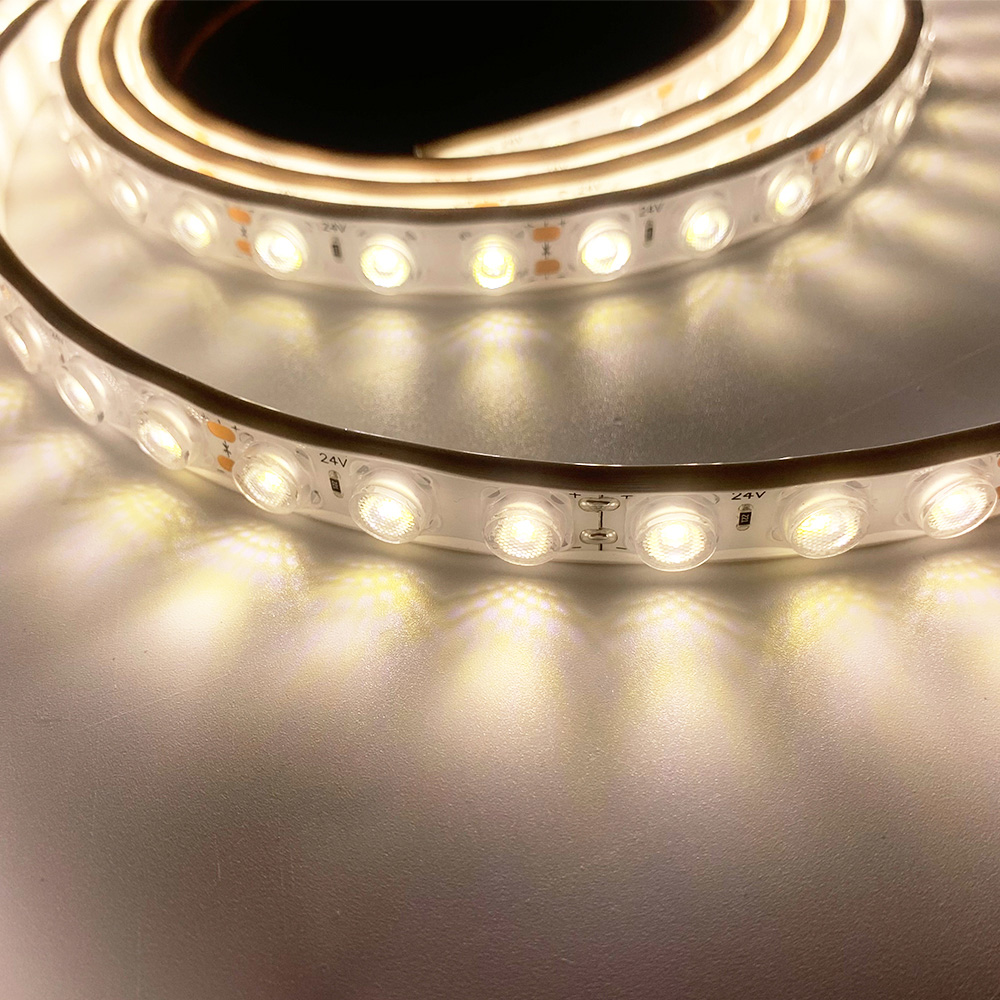

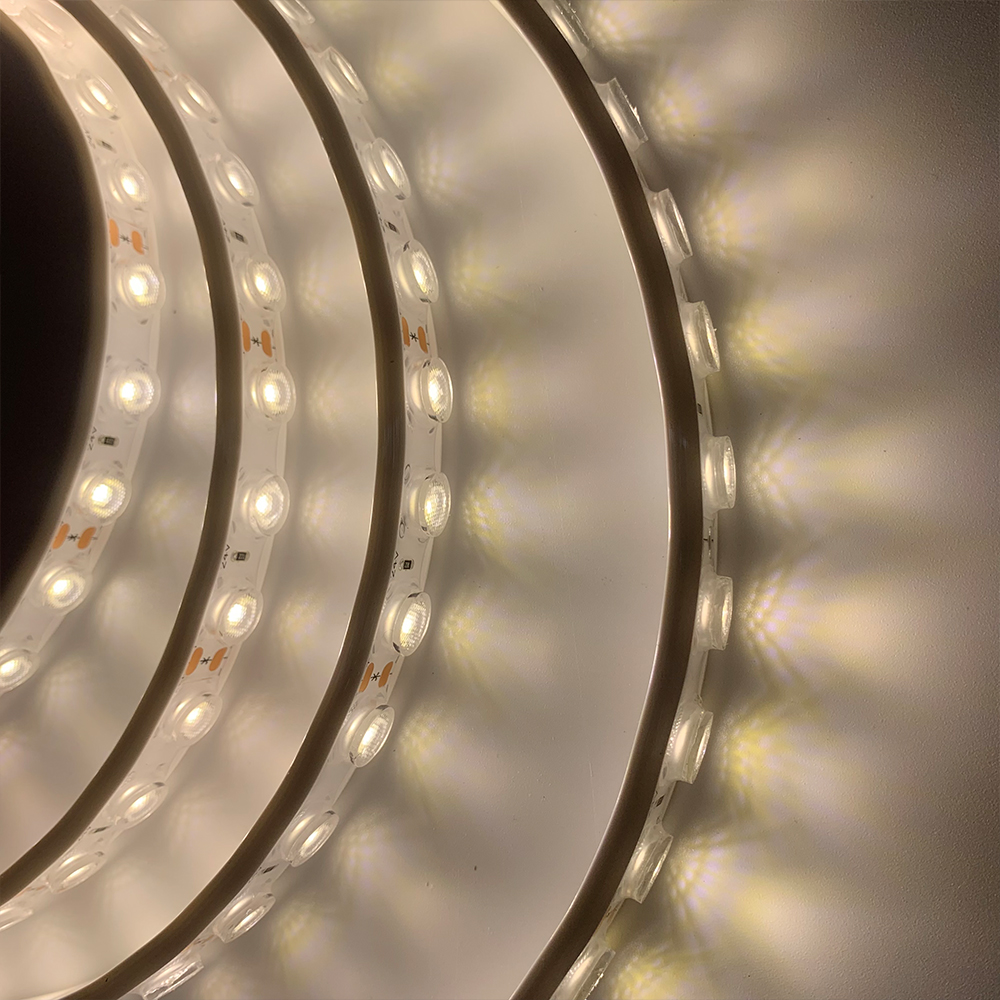

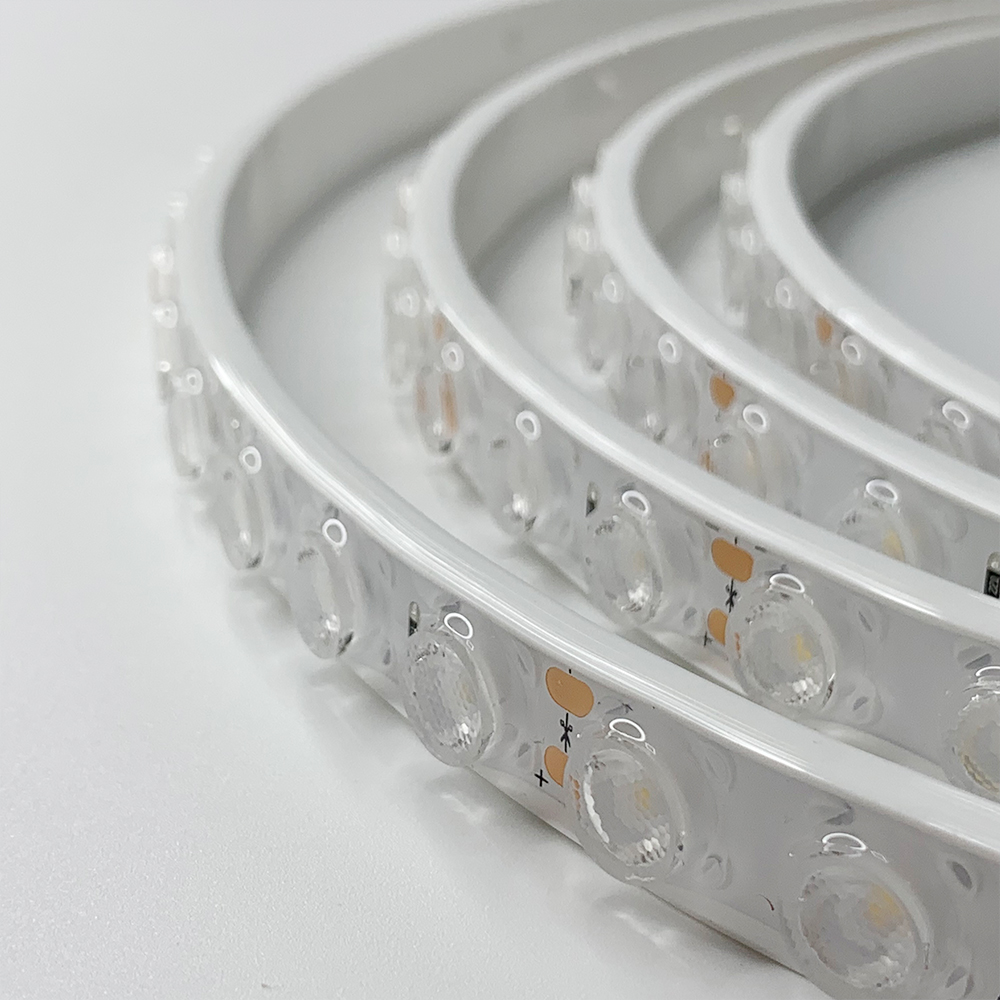

Product Gallery
Product Views
Product Video
See the product in action
Product Details
Technical Information
1407/1409 LED Wall Washer Strip
【Features】
- LED with high light 2835 custom light Type
- Support external dimmer DALI, 0-10V, thyristor
- Power supply: double end 10 meters
- Various specifications, support customization
- IP Grade：IP65
- Warranty：3years

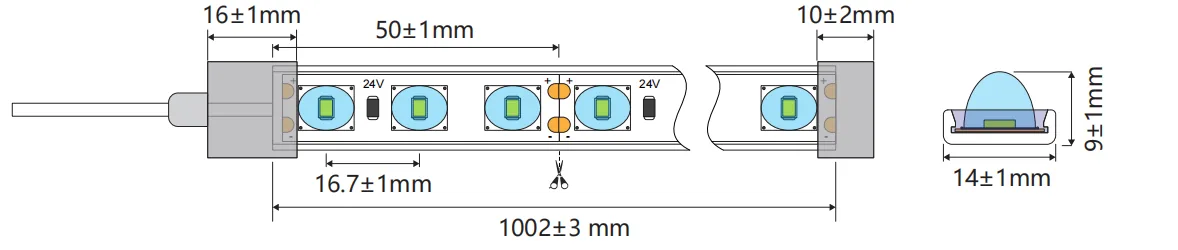

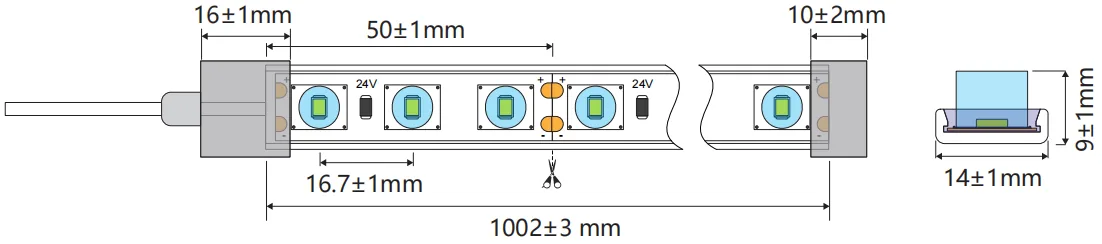

| LED TYPE | Standard Length | LED QTY | LED Spacing | Cutting Length | Color | Working Temperature | Protection Technology | CCT | Beam Angle |
| 2835 | 5m | 60 led/m | 16.7 mm | 50mm 3 Lights/cut | Single /Double | -25～+60℃ | IP65 | 2700K-6500K | 30° 60° 30*45° |
1409-T
1409-P
| Specifications | Beam Angle | LED Type | Voltage(V) | Power(W) | Luminous Flux | Light effect (Lm/w) | CRI(Ra) | CCT |
| 1409-T | 30° 60° 30*45° | 3030 | 24V | 15W | 1380lm | 85(lm/w) | 90 | 2700K-6500K |
| 1409-P | 3030 | 24V | 15W | 1200lm | 90(lm/w) | 90 | 2700K-6500K |

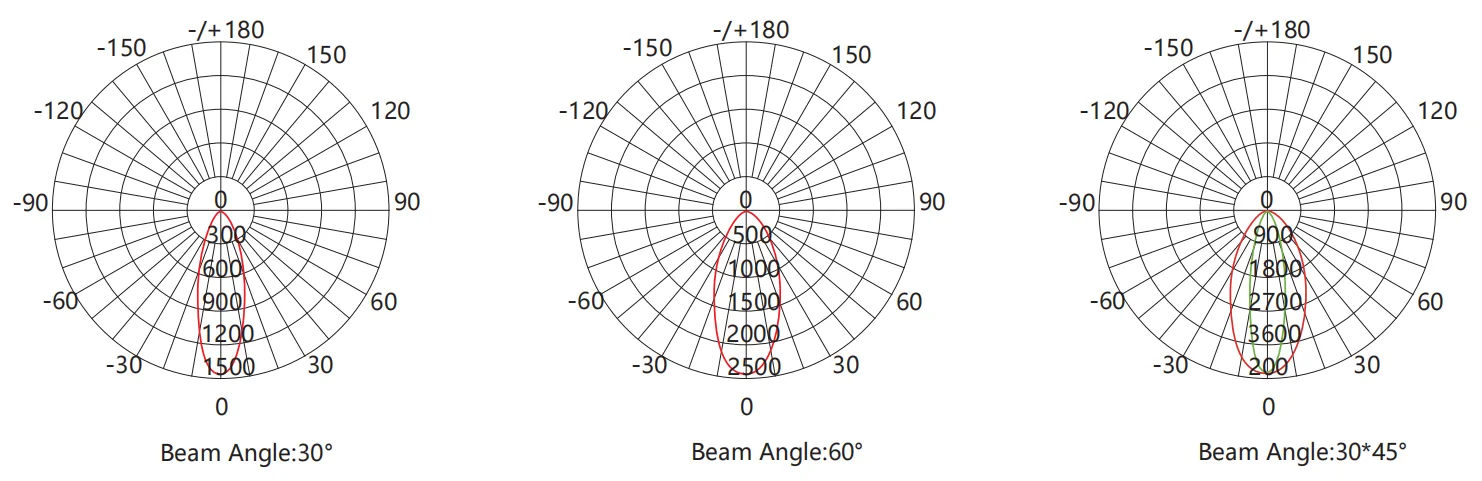

Luminance Distribution

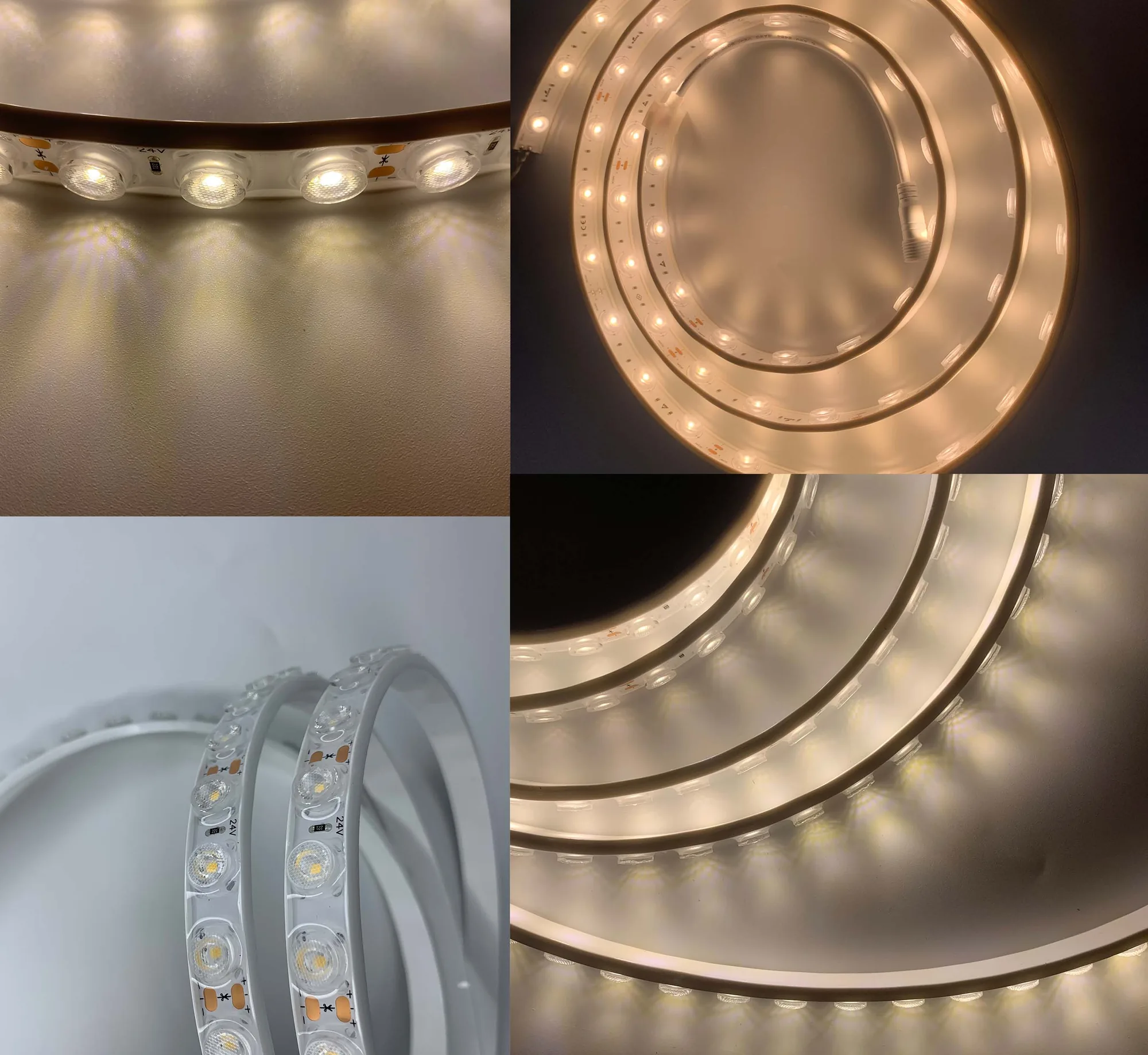

Light Color can be Selected

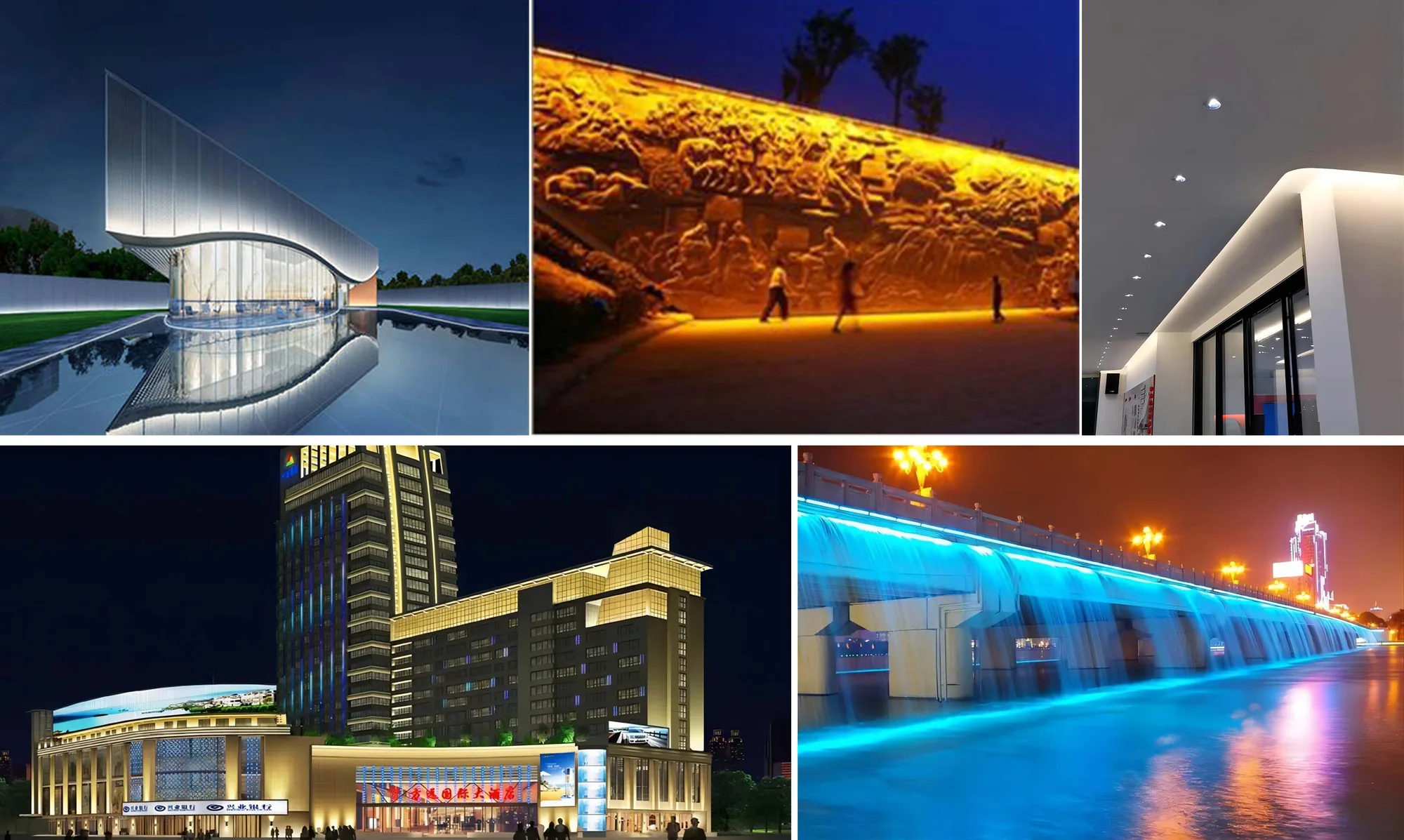

Practical Scenario
Light Output Diagram
Bending Mode
 | 1. Correct bending mode, minimum bending radius R150mm |
 | 2. Wrong bending mode |
 | 3. Minimum bending radius: ≥R100mm |
Install Fittings
Packing
| Product Model | Packaging Type | Case Specification | Electrostatic Bag Packing | Inner Box Packing | Net Weight | Gross Weight |
| 1409-T 1409-T | Electrostatic bag+carton | 410*410*320mm | 5 meters/1 bag | 30 bags/1 case | 17kg | 18kg |
| The above packaging quantityand weight are onlyfor the packaging method shown in the figure. When otherpackaging methodsare used,there will be differencesin packaging quantityand weight. The specific object shall prevail. |
Q1: What is your minimum order quantity? A:**Usually MOQ is 50m, but we also accept small order for trail.** Q2:Is a free sample order available? A: Of course, you can check our quality before ordering.If you have any requirements, please contact us. Q3:How long of the lead time? A: Usually,our lead time is 7-10 working days.It depends on the order quantity.But if the order is urgent, we can apply for urgent production.Bulk ordering takes 20-25 days. Q4:Can LED strip be customized? A:Sure,we can produce as your requirement such as LEDs,power,length and waterproof level.We also offer OEM&ODM. Q5:What’s your warranty? A:We have 3 years and 5 years warranty
Q6:Do you supply sea shipment? A: YES,We have our own shipping agency**FOB Guangzhou,supply FCL&LCL.**
Q7:Does your lighting equipment have CE or more certificates? A: Yes, we have CE certificate and UL, ROHS, CULUS,ETL,TUV,FCC,Energy star etc. We also have an IATF/ISO/TS 16949 certificate.
Q8:Is it possible to put our logo on your product or product packaging? A:Yes, we have 6floors factory, welcome to customize your brand, LOGO, color, product manual, packaging, etc. The minimum order quantity depends on different type of strip.
