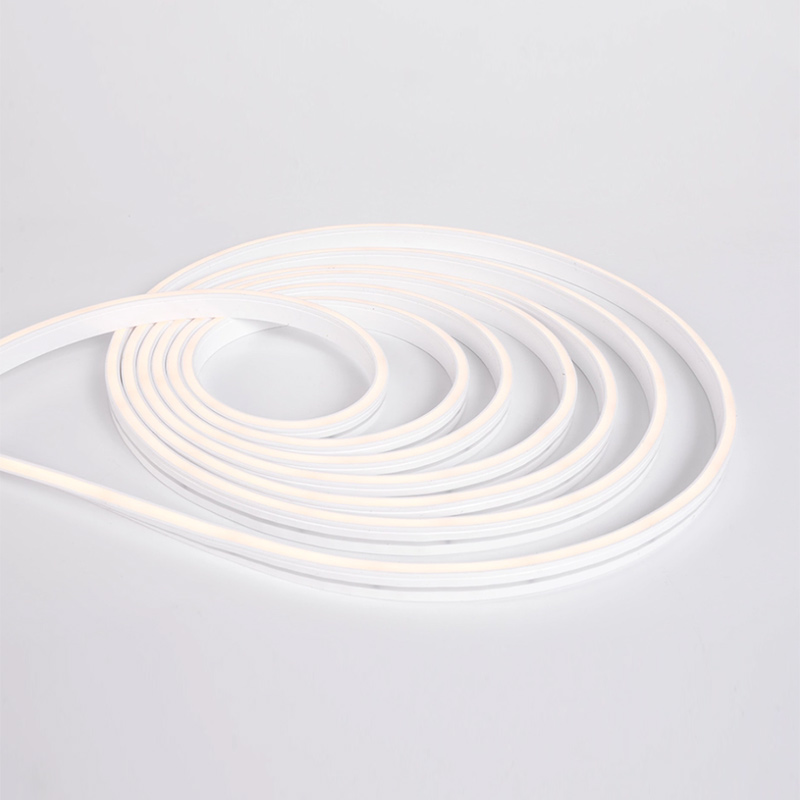

LED Neon Flex 8x16mm Waterproof IP67 With DC or AC220v
1.The LED neon flex Professional structure design, uniform light, no spot, soft light, good consistency of color temperature 2.It use food grade silicone material, resistant to yellowing, high and low temperature, can be used in harsh indoor and outdoor enviro
- System
- Retail Lighting
- Product Family
- LED Neon
- Product Type
- Flexible LED Neon
Product Gallery
Product Views
Product Video
See the product in action
Product Details
Technical Information

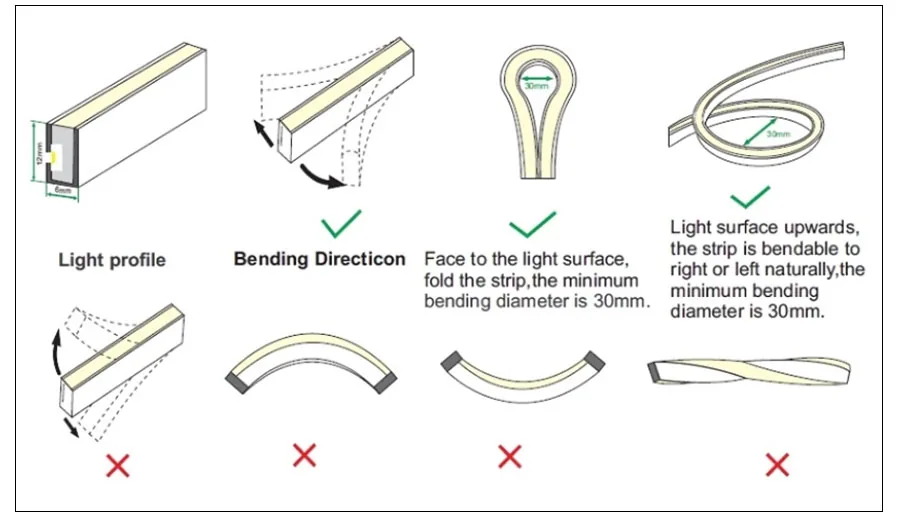

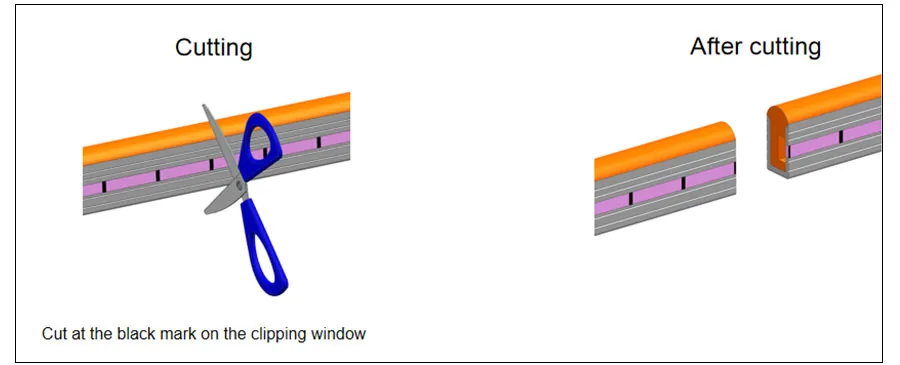

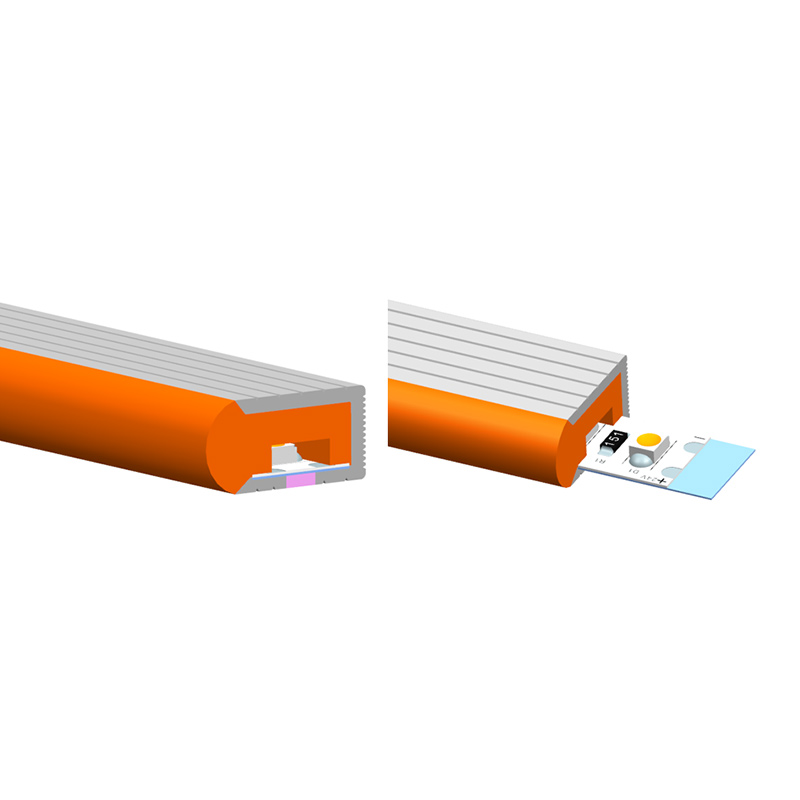

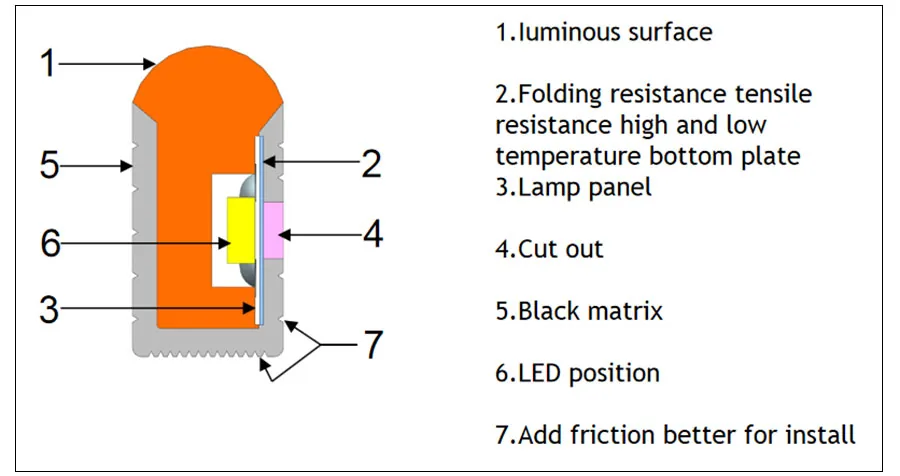

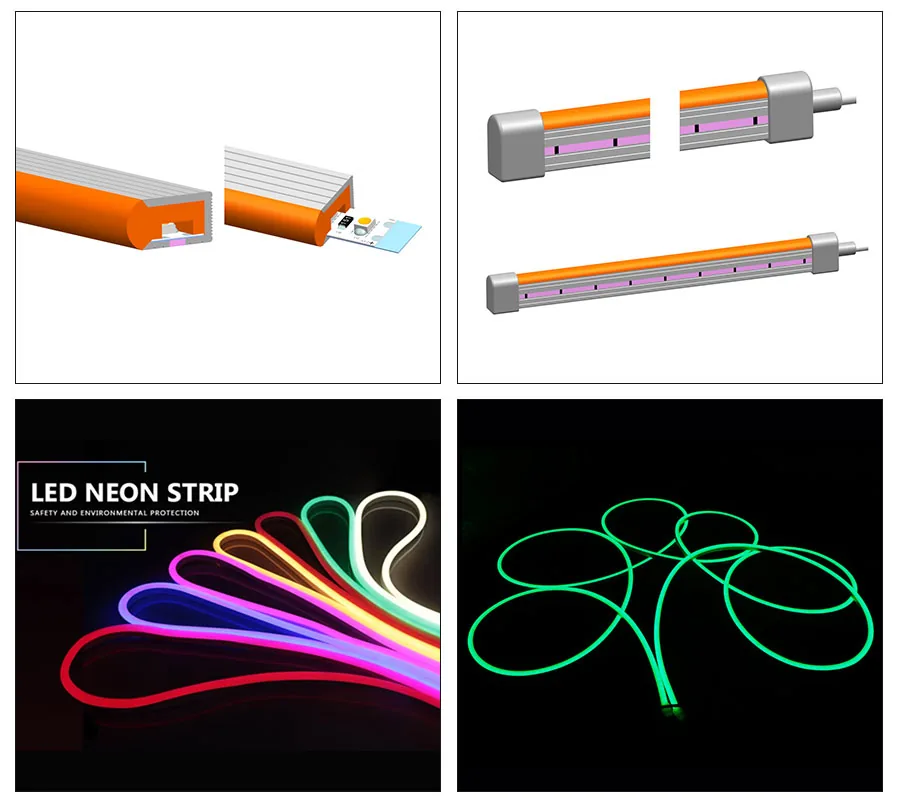

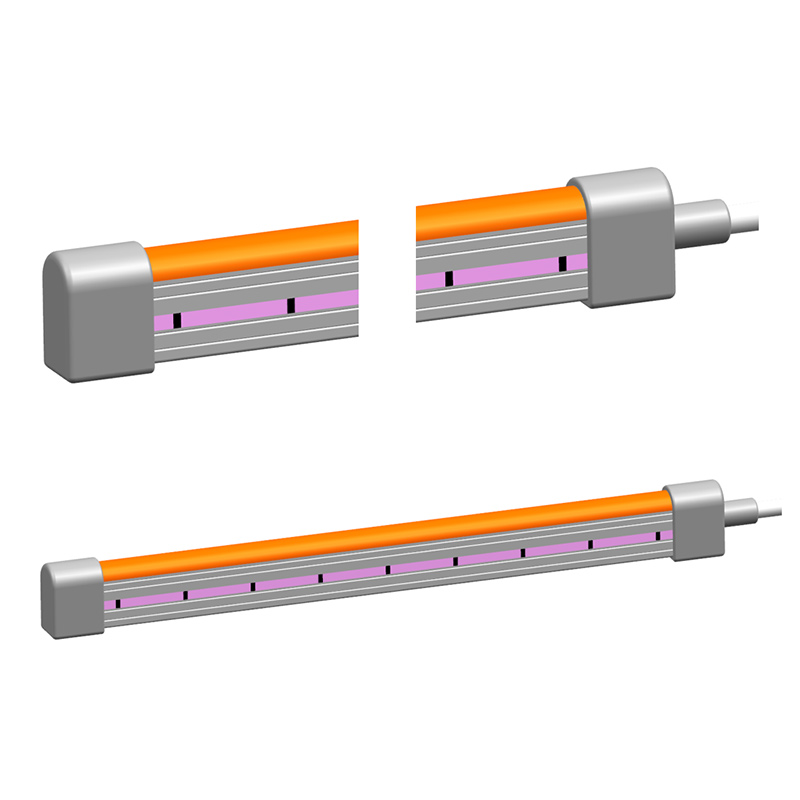

1.The LED neon flex Professional structure design, uniform light, no spot, soft light, good consistency of color temperature 2.It use food grade silicone material, resistant to yellowing, high and low temperature, can be used in harsh indoor and outdoor environment 3.Corrosion resistant weak acid base salt can be used in extremely harsh environment 4.The LED neon strip light with good waterproof performance, waterproof grade IP67 5.Good softness, product resistance to folding and tension, easy modeling, convenient delivery 6.Add folding and tensile soleplate for good folding and tensile properties 7.Clipping bit, convenient and accurate clipping arbitrary length 8.The lamp belt and the bottom plate are extruded together, forming at one time, the product is solid and reliable
| Item no. | Width | Voltage | CCT | LEDs | Dimension | Working Temperature | IP Rating | Fire Rating | Impact Rating |

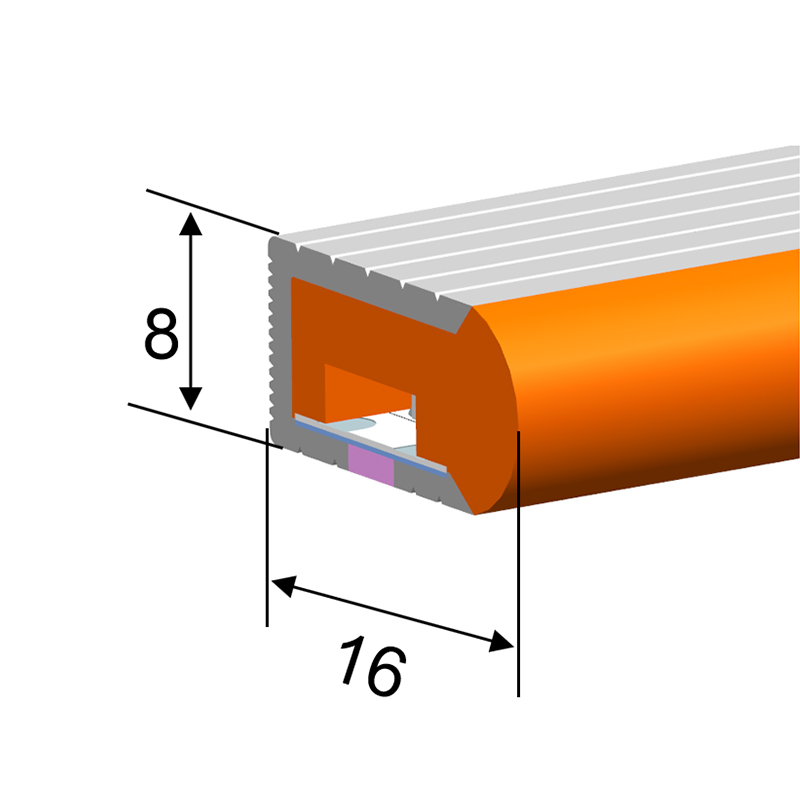

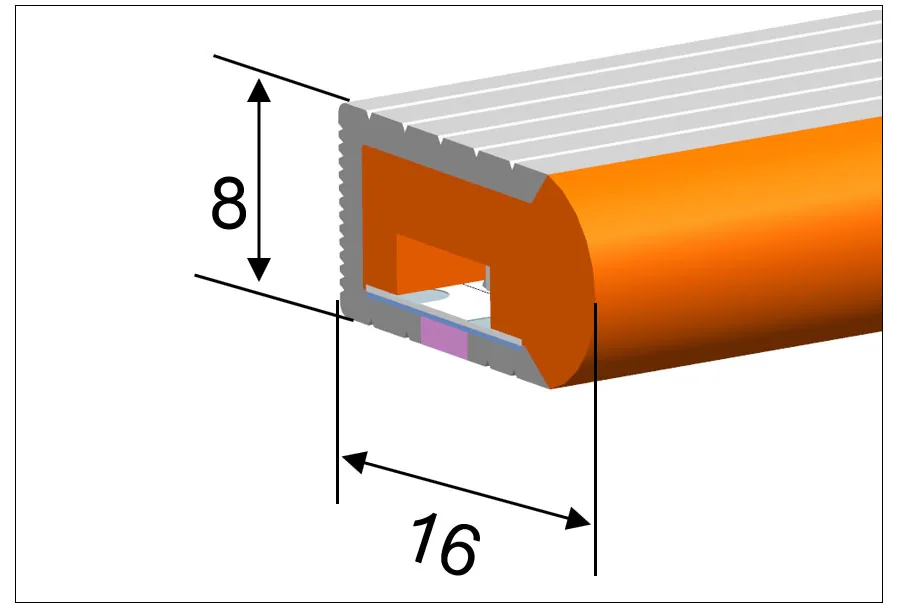

| HM0816 | 10mm | 220v/120v/48v/36v/24v/12v/5v | 3000k 4000k 6000k RGB | 60Leds | 8x16mm | -20~50℃ | IP67 | V1 | IK04 |
