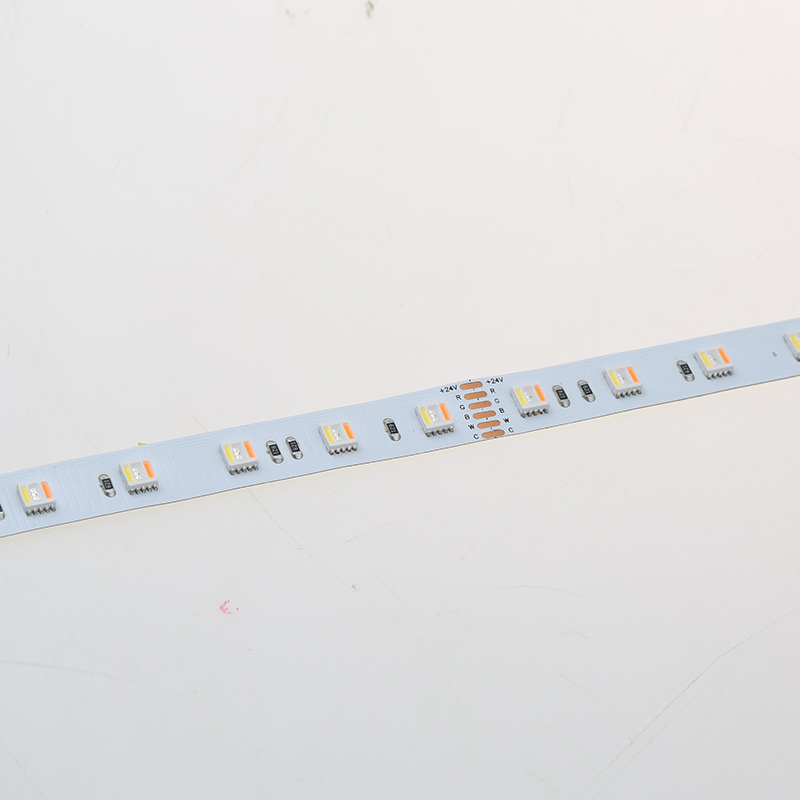

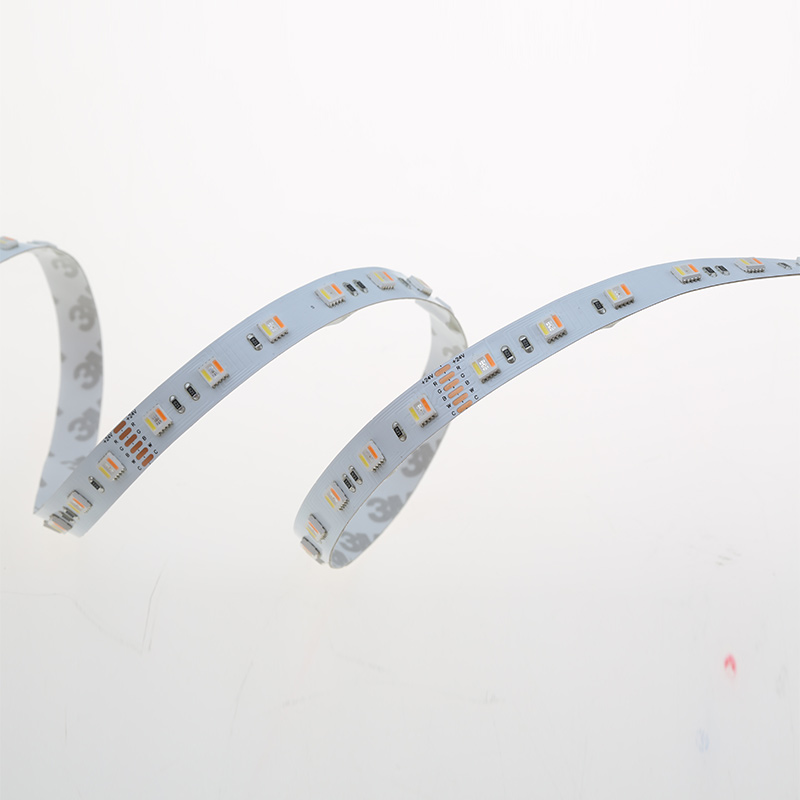

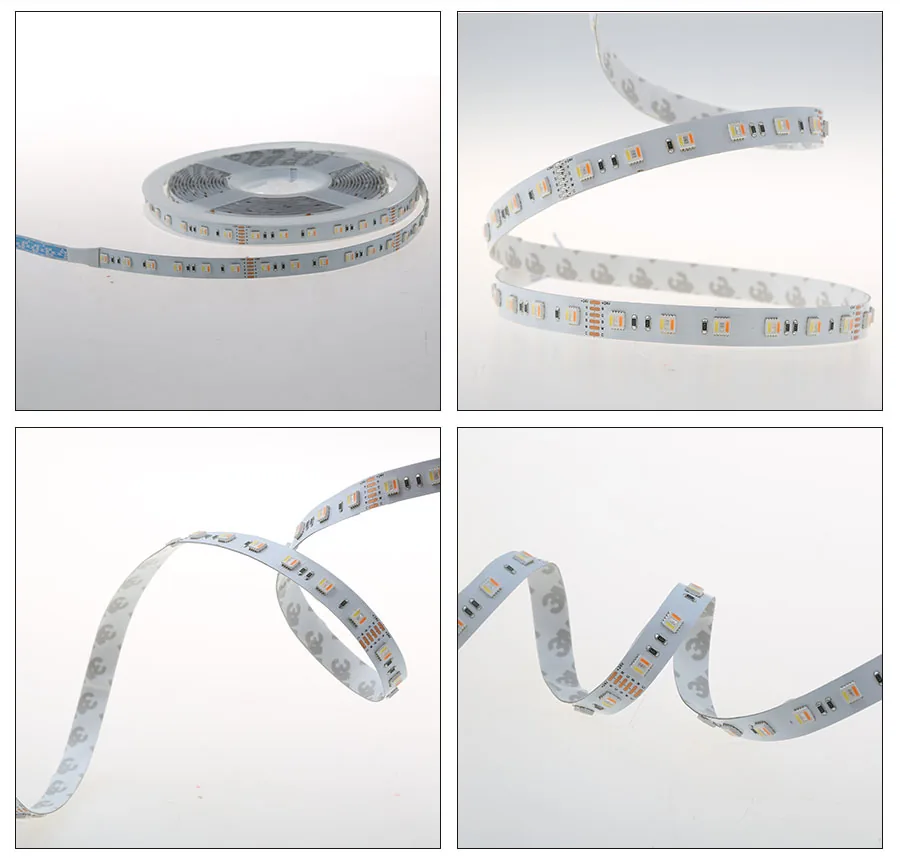

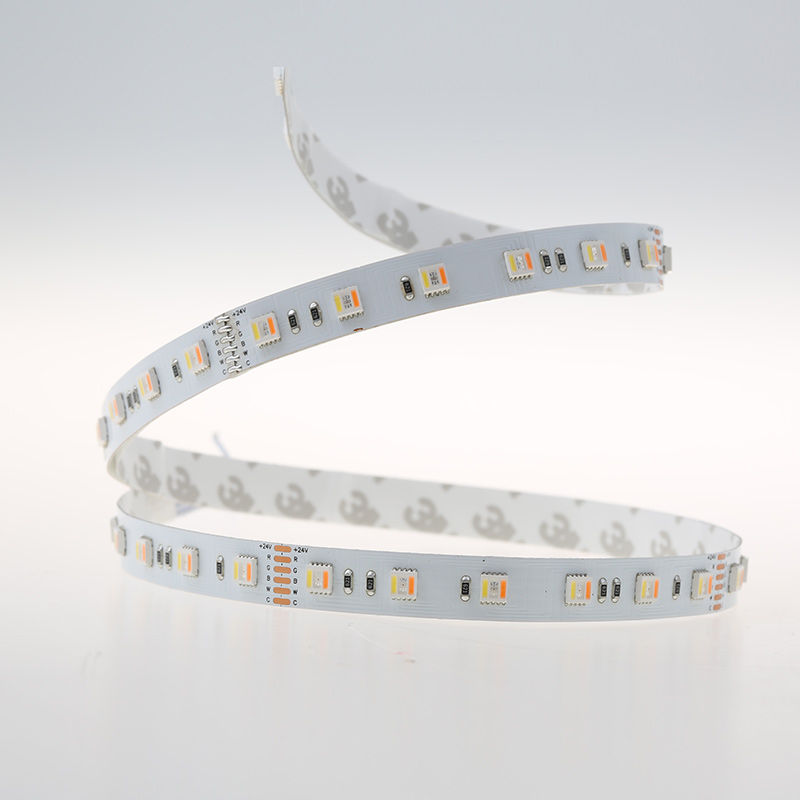

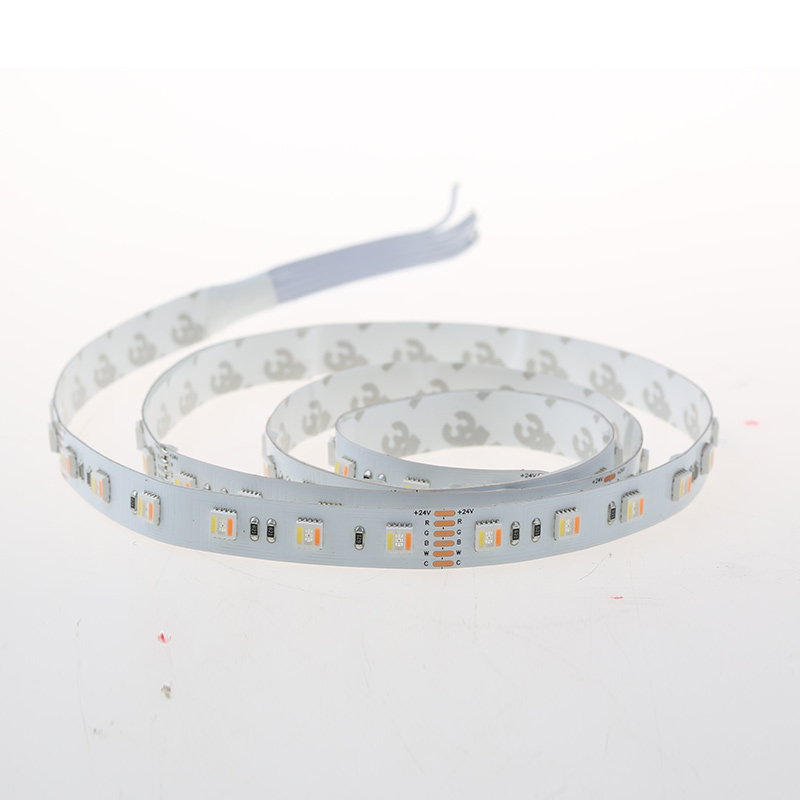

High Quality CRI SMD5050 RGBW LED Strip Lighting
Product Code Series LED type/qty Watt/Meter Voltage(vdc) FPC width(mm) Cutting Length(mm) PFC white FPC cooper CRI(Ra) HM350Z060A00 RGB+CCT SMD5050/60 14w/m 12v/24v 12mm 50/100 3 Ounce 35+70Um Copper ≥80 HM350Z096A00 RGB+CCT SMD5050/96 19.2w/m 12v 12mm 62.5 3
- System
- Retail Lighting
- Product Family
- LED Strip Lights
- Product Type
- SMD / Standard LED Strips
Product Gallery
Product Views
Product Video
See the product in action
Product Details
Technical Information
| Product Code | Series | LED type/qty | Watt/Meter | Voltage(vdc) | FPC width(mm) | Cutting Length(mm) | PFC white FPC cooper | CRI(Ra) |
| HM350Z060A00 | RGB+CCT | SMD5050/60 | 14w/m | 12v/24v | 12mm | 50/100 | 3 Ounce 35+70Um Copper | ≥80 |
| HM350Z096A00 | RGB+CCT | SMD5050/96 | 19.2w/m | 12v | 12mm | 62.5 | 3 Ounce 35+70Um Copper | ≥80 |
| HM350Z060A00 | RGB+W | SMD5050/60 | 14w/m | 12v/24v | 12mm | 50/100 | 3 Ounce 35+70Um Copper | ≥80 |
| HM350Z096A00 | RGB+W | SMD5050/96 | 19.2w/m | 24v | 12mm | 71.43 | 3 Ounce 35+70Um Copper | ≥80 |
| HM350A090C00 | RGB+WW+W | SMD5050 30leds+ SMD2835 48leds | 15w/m | 24v | 12mm | 200 | 3 Ounce 35+70Um Copper | ≥80 |
