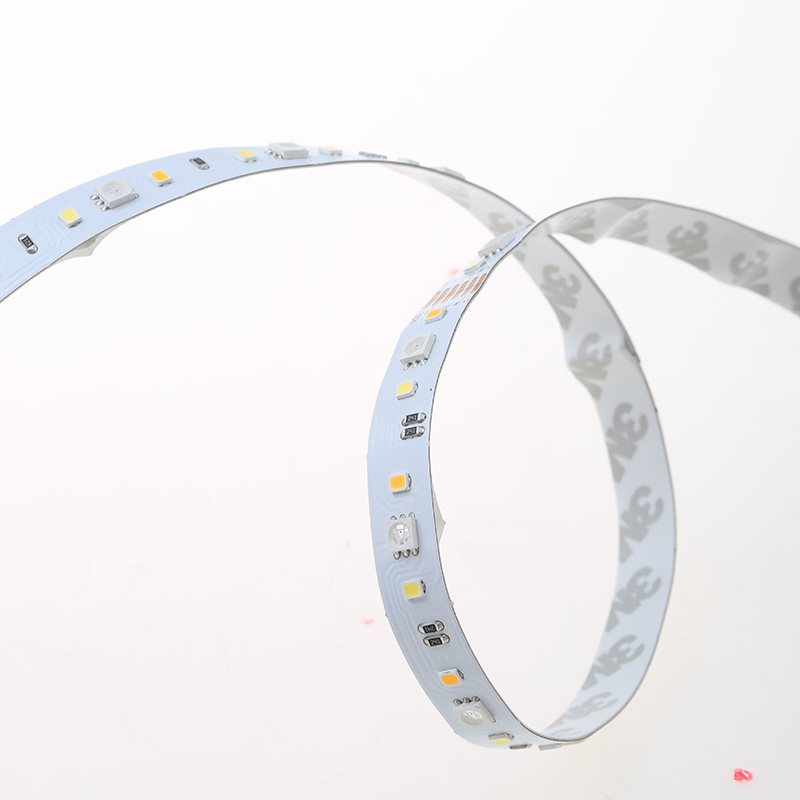

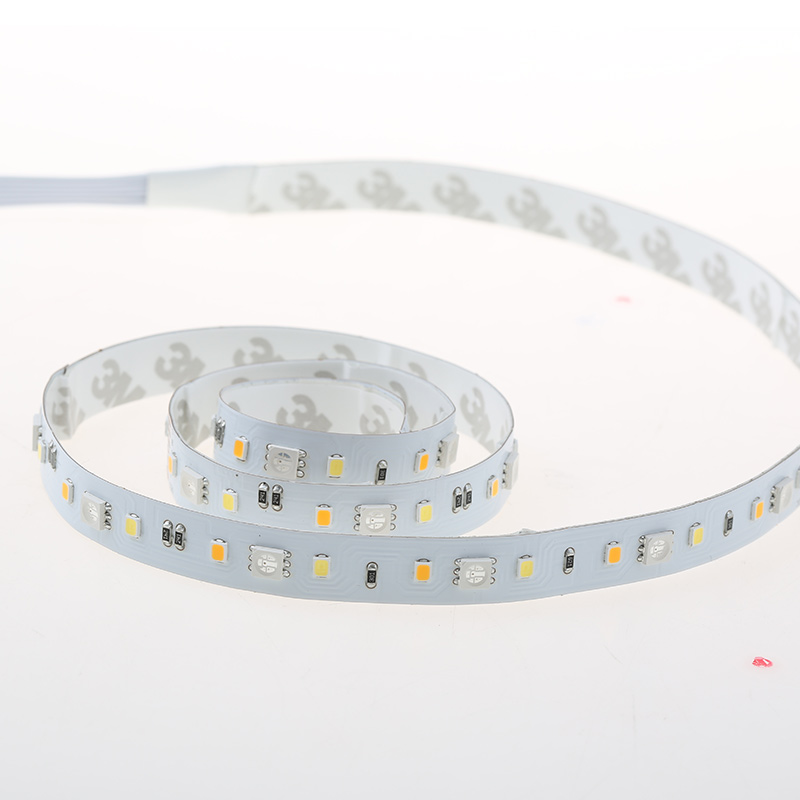

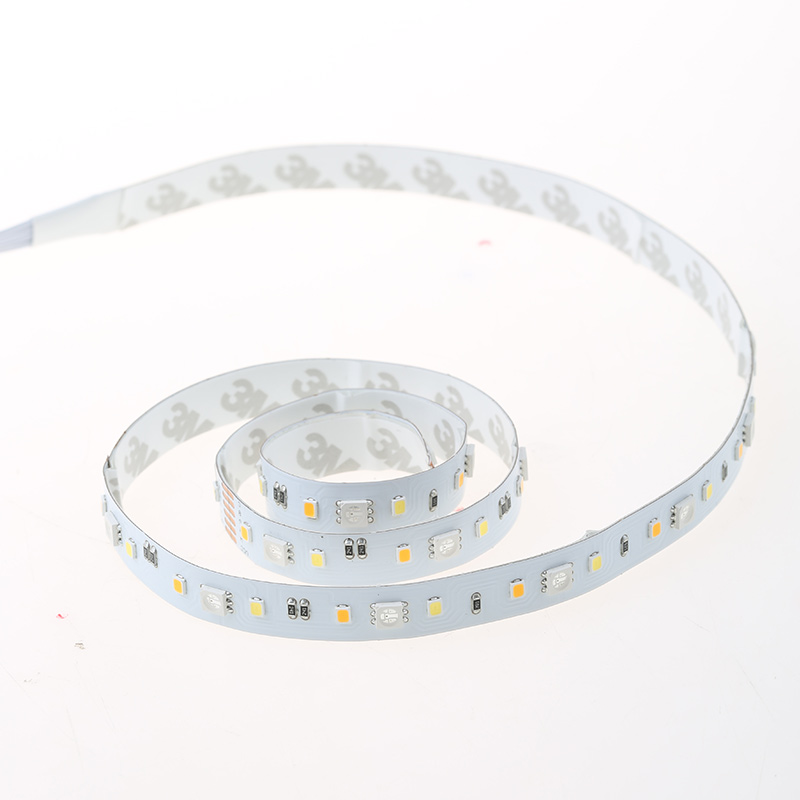

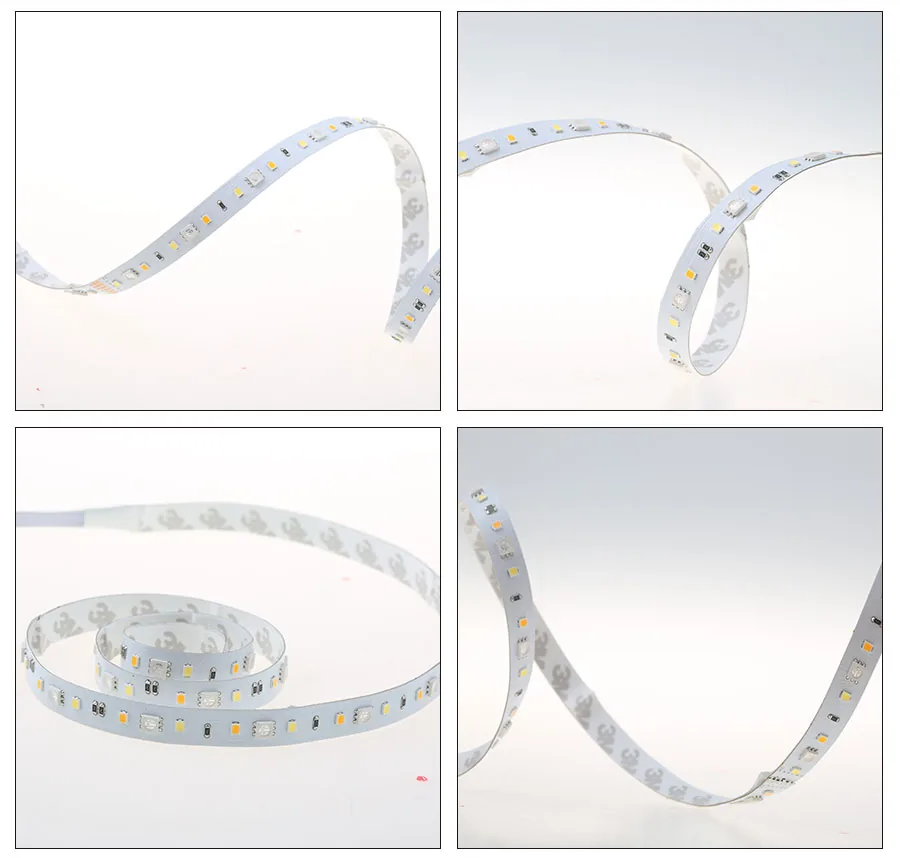

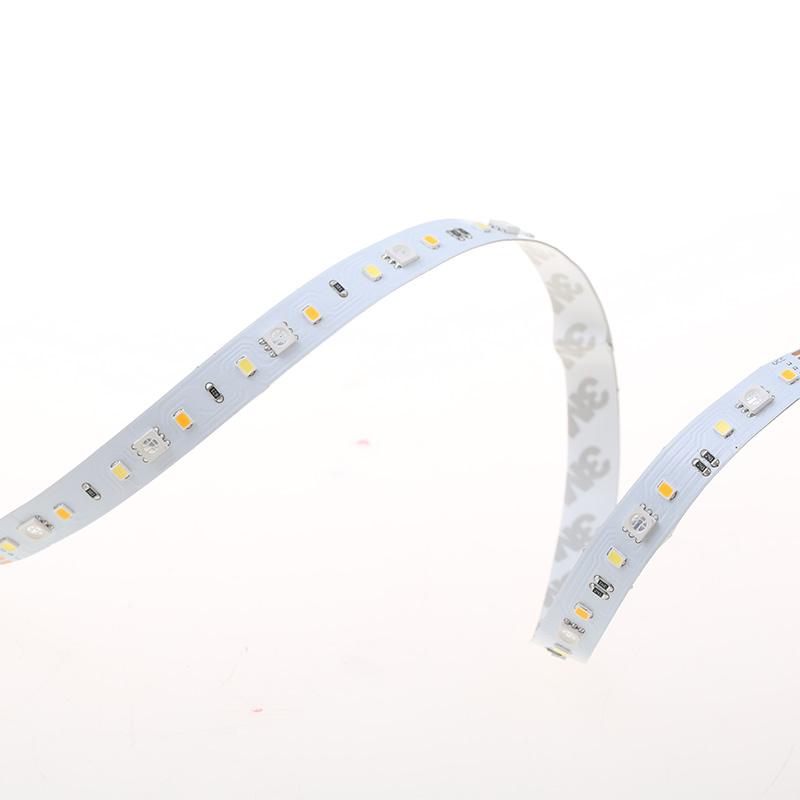

24V SMD5050 RGB Plus 2835 LED Flexible Strip Light
Product Code Series LED type/qty Watt/Meter Voltage(vdc) FPC width(mm) Cutting Length(mm) PFC white FPC cooper CRI(Ra) HM350Z060A00 RGB+CCT SMD5050/60 14w/m 12v/24v 12mm 50/100 3 Ounce 35+70Um Copper ≥80 HM350Z096A00 RGB+CCT SMD5050/96 19.2w/m 12v 12mm 62.5 3
- System
- Retail Lighting
- Product Family
- LED Strip Lights
- Product Type
- SMD / Standard LED Strips
Product Gallery
Product Views
Product Video
See the product in action
Product Details
Technical Information
| Product Code | Series | LED type/qty | Watt/Meter | Voltage(vdc) | FPC width(mm) | Cutting Length(mm) | PFC white FPC cooper | CRI(Ra) |
| HM350Z060A00 | RGB+CCT | SMD5050/60 | 14w/m | 12v/24v | 12mm | 50/100 | 3 Ounce 35+70Um Copper | ≥80 |
| HM350Z096A00 | RGB+CCT | SMD5050/96 | 19.2w/m | 12v | 12mm | 62.5 | 3 Ounce 35+70Um Copper | ≥80 |
| HM350Z060A00 | RGB+W | SMD5050/60 | 14w/m | 12v/24v | 12mm | 50/100 | 3 Ounce 35+70Um Copper | ≥80 |
| HM350Z096A00 | RGB+W | SMD5050/96 | 19.2w/m | 24v | 12mm | 71.43 | 3 Ounce 35+70Um Copper | ≥80 |
| HM350A090C00 | RGB+WW+W | SMD5050 30leds+ SMD2835 48leds | 15w/m | 24v | 12mm | 200 | 3 Ounce 35+70Um Copper | ≥80 |
Ask About This Product
Have a question about this product?
Tell us the quantity, dimensions, application, or customization requirements. Our team can help with pricing, samples, MOQ, and technical questions.
Your inquiry is about
24V SMD5050 RGB Plus 2835 LED Flexible Strip Light
LED Strip Lights · Retail Lighting
