ARMOR (华芒光电), a Guangzhou-based B2B LED manufacturer, today announced the upgraded 10×10mm slim magnetic LED shelf light — a rigid bar designed for tight retail shelf gaps where conventional LED fixtures cannot fit. The new model reduces width by 29% compared to ARMOR’s previous 14mm generation while maintaining the same 120-LED luminous output at 26 lumens per chip. It ships with CE, RoHS, and DEKRA certifications and is available for order at FOB $6.50–$6.80 per piece (MOQ 100 units).

Retail display lighting — the practice of illuminating merchandise to increase visibility and drive sales — accounts for a measurable revenue difference. Research across retail environments found that LED lighting can increase retail sales by up to 30%. A separate meta-analysis of 50 studies confirmed that lighting significantly impacts shopper behavior and emotional responses. The 10×10mm bar targets fixture makers, supermarket procurement teams, and store-fitout contractors who need a light source that disappears into the shelf yet delivers measurable brightness.

Key takeaways:

• 29% slimmer than ARMOR’s previous generation (10mm vs 14mm width)
• 6063 aviation-grade anodized aluminum housing for thermal management and corrosion resistance
• 120 SMD2835 LEDs per 1200mm bar, delivering 26 lumens each
• Three built-in 30mm magnets per meter for tool-free snap-on installation
• Triple-certified: CE, RoHS, and DEKRA — DEKRA holds no equivalent among competing LED shelf light brands in the current SERP

What changed: the new 10×10mm slim magnetic LED shelf light

An LED rigid bar is a linear lighting fixture with LEDs mounted on a rigid aluminum PCB — built for straight-line illumination in retail shelving, cabinets, and display cases. ARMOR’s new 10×10mm model takes this form factor and makes it narrower than a standard pencil.

Building on ARMOR’s existing Slim LED Rigid Bar product page (previously 14mm wide), the new 10×10mm model reduces the profile by 29% in width while maintaining the same luminous output. Each bar packs 120 SMD2835 LED chips — an industry-standard surface-mount diode known for high efficacy and consistent color output — delivering 26 lumens per LED. The bar operates on either DC12V or DC24V low-voltage power, consuming 12 watts per 1200mm bar.

The difference between this bar and its predecessor comes down to fit. The previous 14mm housing was narrow by industry standards, but European fixture makers — particularly in Germany, France, and the UK — requested something even slimmer for recessed shelf profiles where 14mm caused visible overhang. The 10×10mm cross-section sits flush inside a standard shelf channel, virtually invisible from the shopper’s viewpoint. This aligns with the principle of invisible retail lighting that enhances customer experience: the best shelf light is one the customer never notices, only the product it illuminates.

Why 10×10mm matters: ultra-slim engineering for tight shelf gaps

Most LED shelf bars on the market measure 12–15mm in at least one dimension. The 10×10mm profile addresses a specific gap: fixture channels under 11mm where standard bars physically cannot slide in.

Gondola shelving — the freestanding, double-sided fixtures standard in supermarkets and convenience stores — presents one key use case. Many gondola shelf extrusions ship with a shallow channel underneath, typically 10–12mm deep. A 14mm bar protrudes below the shelf lip, creating a visual distraction and a snagging risk in high-traffic aisles. The 10mm width and height eliminate that issue entirely.

For cabinet makers, the benefit is different. Jewelry showcases, wine cabinets, and cosmetics displays often use glass shelves with minimal clearance between panels. The 10×10mm bar fits inside gaps that leave no room for anything larger. CRI (Color Rendering Index) — a score that measures how accurately colors appear under a light source — matters in these environments. The ARMOR bar achieves CRI >80, sufficient for general retail display. For jewelry and fresh-food applications where color accuracy directly influences purchase decisions, ARMOR offers CRI >90 alternatives on request.

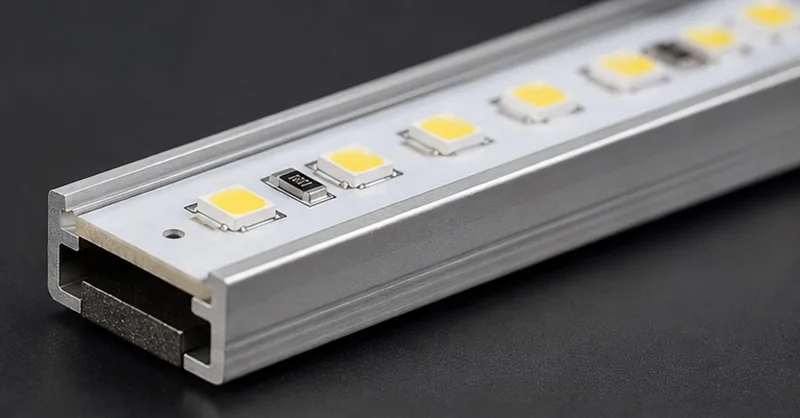

Built to last: 6063 aviation-grade aluminum and thermal management

The housing uses 6063 aviation-grade anodized aluminum — the same alloy specified in aircraft interior panels — chosen for its superior thermal conductivity and corrosion resistance compared to standard 6061 aluminum. Why does the grade matter? Because LED lifespan depends on junction temperature: the cooler the chip runs, the longer it lasts.

The thermal path in this bar works as follows. Heat generated by the SMD2835 diodes transfers through an aluminum PCB plate bonded with thermal-conductive silicone — a material layer that draws heat away from the diodes and into the aluminum body. The 6063 housing then dissipates that heat into the surrounding air. This three-step chain (LED → aluminum PCB → thermal-conductive silicone → housing) keeps the diode junction temperature low enough to support the rated 50,000-hour lifespan.

Compared to plastic-housed competitors that rely on ambient cooling, the aluminum body acts as a built-in heat sink. In our Guangzhou manufacturing facility, we test every batch of 6063 aluminum for thermal conductivity before assembly. The anodized finish adds corrosion resistance, important for kitchen cabinets and refrigerated display cases where humidity fluctuates.

Tool-free magnetic installation: 3 magnets per meter

Three 30mm neodymium magnets per meter are embedded directly into the bar housing, enabling a true tool-free snap-on installation onto any ferromagnetic shelf surface. No drills, no screws, no adhesive tape — the bar clamps magnetically like a set of strong fridge magnets and holds position under its own weight.

This installation method solves two problems common in retail fitouts. First, it eliminates the labor cost of drilling and screwing each bar into place — a time-consuming step when fitting out dozens or hundreds of shelves. Second, it allows repositioning. When a store resets its shelf layout (typically every 6–8 weeks for promotional rotations), staff can slide the magnetic bar to a new shelf tier in seconds.

The three magnets per meter density was chosen after testing with 1.2-meter bar spans. Fewer magnets caused slight sagging in the middle of the span under vibration from adjacent foot traffic. At three per meter, the bar stays rigid on metal shelves, even in high-traffic supermarket aisles. For stores considering a full lighting migration, ARMOR’s guide to retrofitting wired to wireless track lighting covers the broader transition from older fluorescent and wired LED systems.

For buyers whose fixtures lack ferromagnetic surfaces, ARMOR also offers the ARMOR wireless shelf lighting system, which uses a different mounting approach for non-metal shelves.

Technical specifications at a glance

CCT (Correlated Color Temperature) describes the warmth or coolness of white light, measured in Kelvin. The 2700K warm white option suits jewelry and wine displays where a warm glow flatters merchandise. The 6500K cool white option maximizes shelf visibility for supermarket gondola and pharmacy shelving where crisp, daylight-like clarity is preferred.

The bar draws just 12 watts per 1200mm bar — significantly less than equivalent fluorescent tubes, with meaningful energy savings at scale. For a breakdown of energy cost reductions across retail environments, see ARMOR’s analysis of retail shelf lighting energy cost savings. The IP44 rating means the bar is protected against splashing water and objects larger than 1mm, making it suitable for indoor retail, kitchen cabinets, and refrigerated displays — though not for direct outdoor or washdown environments.

→ Request a sample or quote for the upgraded 10×10mm slim magnetic LED shelf light

Where it shines: retail, cabinet, and display applications

The 10×10mm bar fits wherever a narrow, unobtrusive light source is needed under a shelf, inside a cabinet, or along a display case edge. Here are the primary applications:

Retail shelf lighting. Mounted under each shelf tier in supermarkets, convenience stores, and pharmacies, the bar casts a uniform, glare-free wash onto products below. Research shows that proper shelf lighting drives customer selection — customers select up to twice as many items from shelving with integrated lighting versus unlit shelves. ARMOR’s experience with fresh food retail lighting solutions extends this principle to produce, bakery, and deli counters where CRI and CCT choices affect how food looks.

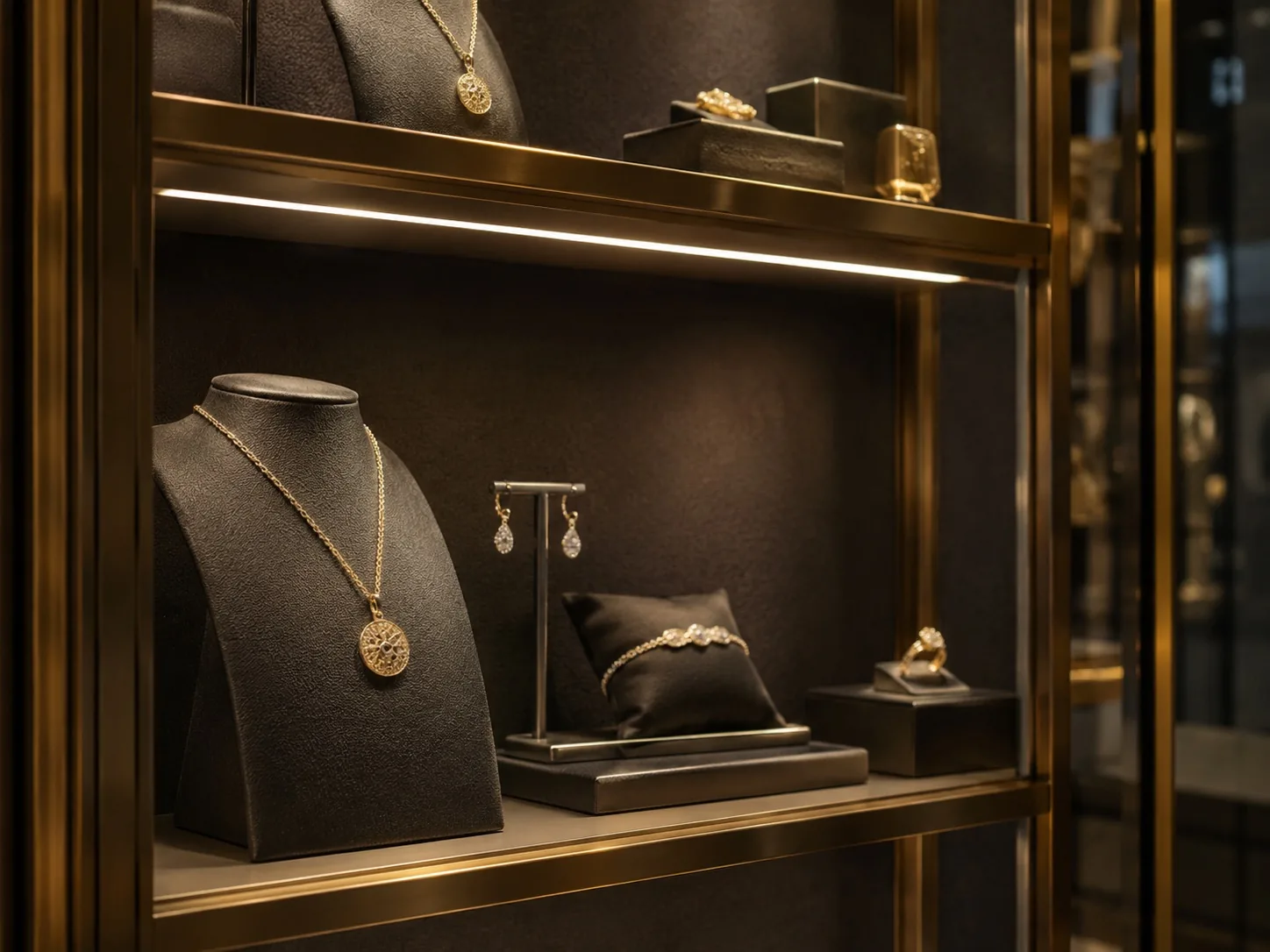

Jewelry display cases. The 2700K warm white option with CRI >80 flatters gold, silver, and gemstone colors. At 10mm, the bar hides inside the narrow glass-to-glass gap of most jewelry showcase frames without casting visible light sources into the customer’s eye line.

Wine cabinets. Dark wood and glass enclosures benefit from a warm 2700K wash that creates atmosphere without generating heat near the bottles. The aluminum housing draws heat away from the cabinet interior rather than radiating it.

Kitchen cabinets. Under-cabinet task lighting in residential and commercial kitchens. IP44 handles steam and splashes. The magnetic install means the bar can be removed for cleaning.

Showcase and cosmetics displays. The cool 6500K option renders skin-tone and packaging colors accurately under bright retail lighting conditions. The slim profile sits behind the display lip, directing light onto the product surface rather than into the shopper’s eyes.

Why ARMOR upgraded this shelf light

ARMOR (华芒光电) designs and manufactures retail display LED lighting from its facility in Guangzhou, China — one of the world’s largest LED manufacturing clusters. With shipments to over 50 countries, the company supplies supermarket chains, jewelry retailers, fixture distributors, and store-fitout contractors across Europe, Southeast Asia, the Middle East, Latin America, and North America.

The decision to shrink from 14mm to 10mm came directly from customer feedback. European fixture makers in Germany and France reported that their shelf channel extrusions had moved to narrower profiles, and the 14mm bar no longer fit without modification. ARMOR’s response was to redesign the cross-section — not by cutting LEDs or reducing output, but by re-engineering the aluminum housing and PCB layout to deliver the same 120-LED performance in a smaller footprint.

Lisa Lee, ARMOR’s Technical Director, led the redesign:

“Our customers told us they needed a shelf light that disappears into the fixture yet outperforms everything on the market. The new 10×10mm profile with three magnets per meter gives installers a true tool-free experience while the 6063 aluminum body keeps LEDs cool enough to deliver their full 50,000-hour rated life.”

ARMOR’s manufacturing facility operates under ISO 9001 quality management — an internationally recognized standard for consistent production processes. The company holds OEM and ODM capability, meaning custom lengths (up to 2700mm), custom CCT blends, and private-label packaging are available for volume orders. The 10×10mm bar is triple-certified: CE marking confirms compliance with EU health, safety, and environmental directives; RoHS compliance ensures restricted-substance limits are met; and DEKRA certification — one of the world’s largest independent testing organizations, headquartered in Germany — verifies safety and performance standards beyond basic CE requirements.

ARMOR’s work in retail lighting extends beyond rigid bars. The company also explores wireless conductive shelf lighting technology and tracks the future of wireless track lighting in retail as fixture designs evolve. For buyers evaluating the full range, the ARMOR Slim LED Rigid Bar product page lists available models and ordering details.

To request samples, discuss OEM specifications, or place an order for the upgraded 10×10mm slim magnetic LED shelf light, contact ARMOR at lisa@armorlighting.com.

Frequently Asked Questions

What is the thinnest magnetic LED shelf light available?

ARMOR’s 10×10mm slim magnetic LED shelf light is one of the thinnest rigid bar models on the market. At 10mm in both width and height — roughly the diameter of a standard pencil — it fits inside shelf channel extrusions where 12–15mm competitors cannot. The bar maintains full 120-LED output at 26 lumens per LED despite the reduced cross-section.

How does the magnetic mounting system install on metal shelves?

The bar contains three built-in 30mm neodymium magnets per meter, embedded directly into the aluminum housing. To install, you simply place the bar against any ferromagnetic (steel or iron) shelf surface and the magnets hold it in position. No drills, screws, or adhesive are needed. The magnets are strong enough to keep a 1.2-meter bar rigid under normal vibration.

What color temperature should I choose for retail shelf lighting — 2700K or 6500K?

CCT (Correlated Color Temperature) describes the warmth or coolness of white light. Choose 2700K warm white for jewelry, wine cabinets, and cosmetics displays where a warm glow flatters merchandise. Choose 6500K cool white for supermarkets, pharmacies, and general retail where crisp, daylight-like visibility is the priority. ARMOR offers both CCT options on the 10×10mm bar.

How long does the ARMOR 10×10mm LED shelf light last?

The rated lifespan is 50,000 hours. This figure is supported by the thermal management chain: SMD2835 LEDs transfer heat through an aluminum PCB plate and thermal-conductive silicone into the 6063 aviation-grade aluminum housing, keeping the LED junction temperature low enough to sustain the rated life. At 12 hours of daily operation, that equals roughly 11.4 years of service.

Can the slim magnetic LED shelf light be cut to custom lengths?

ARMOR offers custom lengths up to 2700mm on order. The bars are not designed for field cutting — the aluminum housing and magnet placement are factory-precise. For projects requiring non-standard lengths, contact ARMOR with your exact measurements at lisa@armorlighting.com and the production team will quote accordingly.

What voltage does the LED rigid bar require — DC12V or DC24V?

The bar accepts both DC12V and DC24V input. Both voltages are low-voltage standards commonly used in retail LED installations. A constant-voltage LED driver (power supply) is required — the same type used for LED strip lighting. The 12W-per-bar power draw keeps transformer sizing manageable even across multi-shelf runs.

Is the 10mm LED shelf light suitable for jewelry display cases?

Yes. The 10×10mm profile fits inside the narrow glass-to-glass gaps of standard jewelry showcase frames. The 2700K warm white CCT flatters gold, silver, and gemstone colors, and the CRI >80 rating renders colors accurately for general retail jewelry display. For high-end jewelry applications requiring CRI >90, ARMOR offers custom LED configurations on request.

What certifications does the ARMOR LED shelf light hold?

The 10×10mm bar holds three certifications: CE marking (EU health, safety, and environmental compliance), RoHS compliance (restricted hazardous substances), and DEKRA certification (independent German testing organization verifying safety and performance beyond basic CE requirements). DEKRA certification is not commonly held by competing LED shelf light brands.
