LED Flexible Strip Light HM-COB-480LED
LED Flexible Strip Light HM-COB-480LED ltem Code LEDs/meter Input voltage Watt/m CCT/K Color Rendering Index Lm/m Lm/ft LM/w PCB width HM-COB-480-24V-90-27 480 24V 12 2700K 90 1080 329 90 10MM HM-COB-480-24V-90-30 480 24V 12 3000K 90 1080 329 90 10MM HM-COB-48
- System
- Retail Lighting
- Product Family
- LED Strip Lights
- Product Type
- COB LED Strips
Product Gallery
Product Views
Product Details
Technical Information
LED Flexible Strip Light HM-COB-480LED
| ltem Code | LEDs/meter | Input voltage | Watt/m | CCT/K | Color Rendering Index | Lm/m | Lm/ft | LM/w | PCB width |
| HM-COB-480-24V-90-27 | 480 | 24V | 12 | 2700K | 90 | 1080 | 329 | 90 | 10MM |
| HM-COB-480-24V-90-30 | 480 | 24V | 12 | 3000K | 90 | 1080 | 329 | 90 | 10MM |
| HM-COB-480-24V-90-40 | 480 | 24V | 12 | 4000K | 90 | 1200 | 365 | 100 | 10MM |
| HM-COB-480-24V-90-50 | 480 | 24V | 12 | 5000K | 90 | 1200 | 365 | 100 | 10MM |
| HM-COB-480-24V-90-60 | 480 | 24V | 12 | 6000K | 90 | 1200 | 365 | 100 | 10MM |

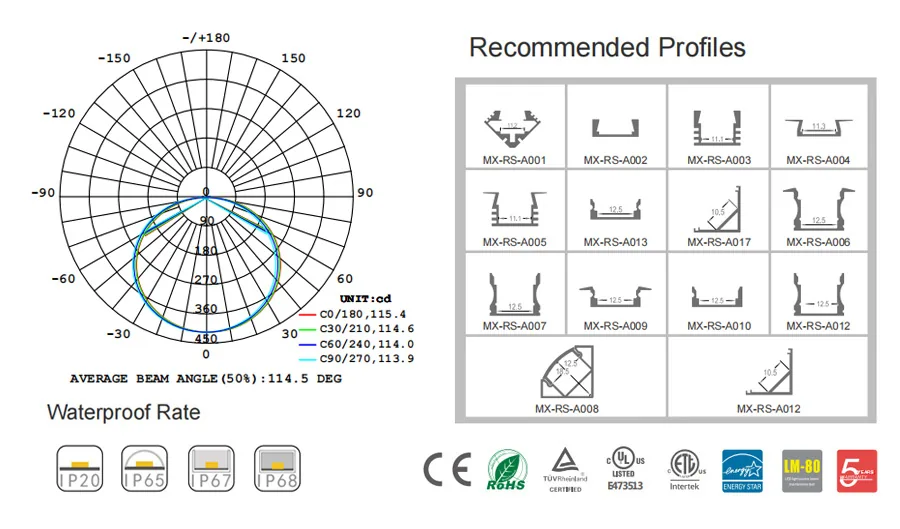

Optical paramet
| LED Type: | COB 480LED |
| Color Rendering Index: | Ra > 90 |
| CCT Range: | 2700K/3000K/4000K/5000K/6000K |
| Irritation Angle: | 180° |
| Irritation Angle: | 90~100Lm/w |
| Lumen Output/meter: | 1080 |
Recommended Profiles
| Input Current/m: | 0.50A/m (0.15A/ft) |
| Input Voltage: | DC24V |
| Power/M: | 12W/m (3.7W/ft) |
| Static Electricity: | 1000V (ESD) |
| LEDs/Meter: | 480LEDs/m |
| Size of Section: | 50mm(1.97”) |
| Size of Section: | 24 LEDs |
