Retail Lighting
LED Flexible Strip Light HM-CSP 480LED
LED Flexible Strip Light HM-CSP 480LED ltem Code LEDs/meter Input voltage Watt/m CCT/K Color Rendering Index Lm/m Lm/ft LM/w IP Rate PCB width HM-CSP-480-24V-80-27 480 24V 10 2700k 80 950 289 95 IP20 8mm HM-CSP-480-24V-80-30 480 24V 10 3000k 80 950 289 95 IP20
- System
- Retail Lighting
- Product Family
- LED Strip Lights
- Product Type
- CSP LED Strips
Product Gallery
Product Views
Product Details
Technical Information

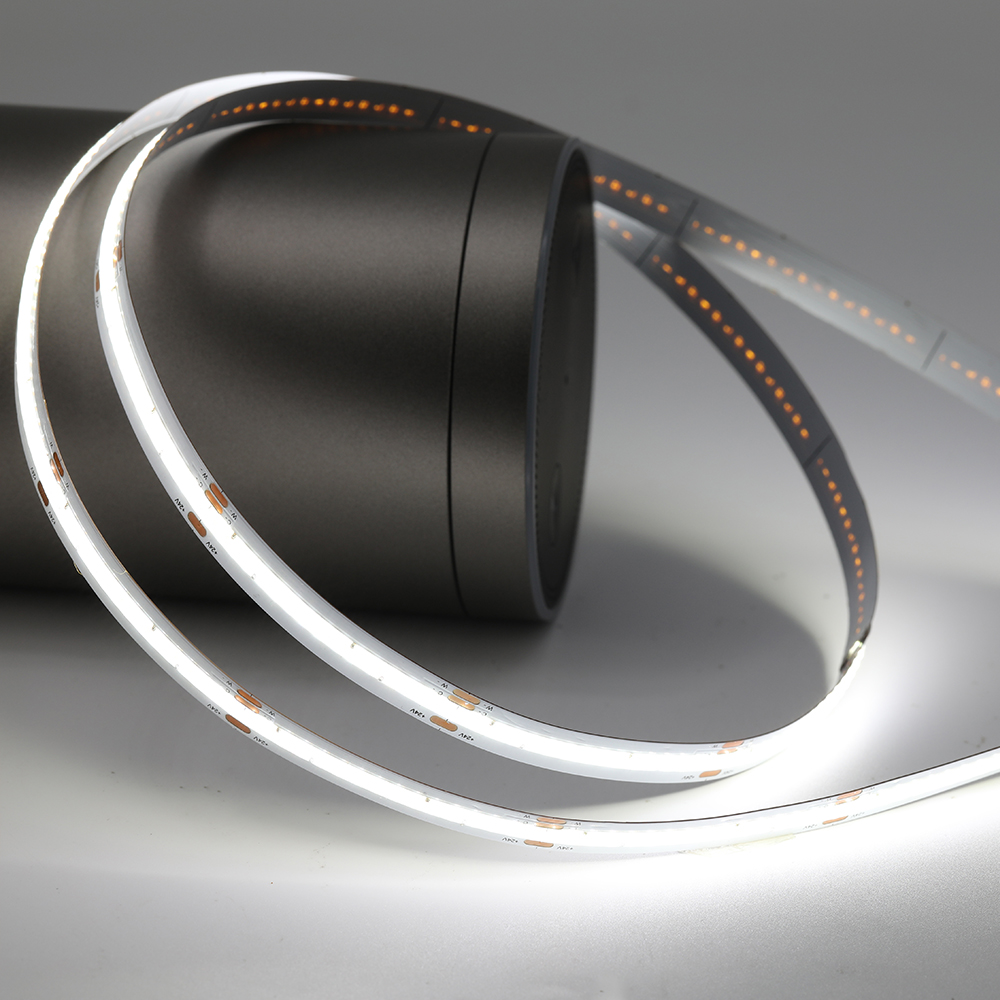

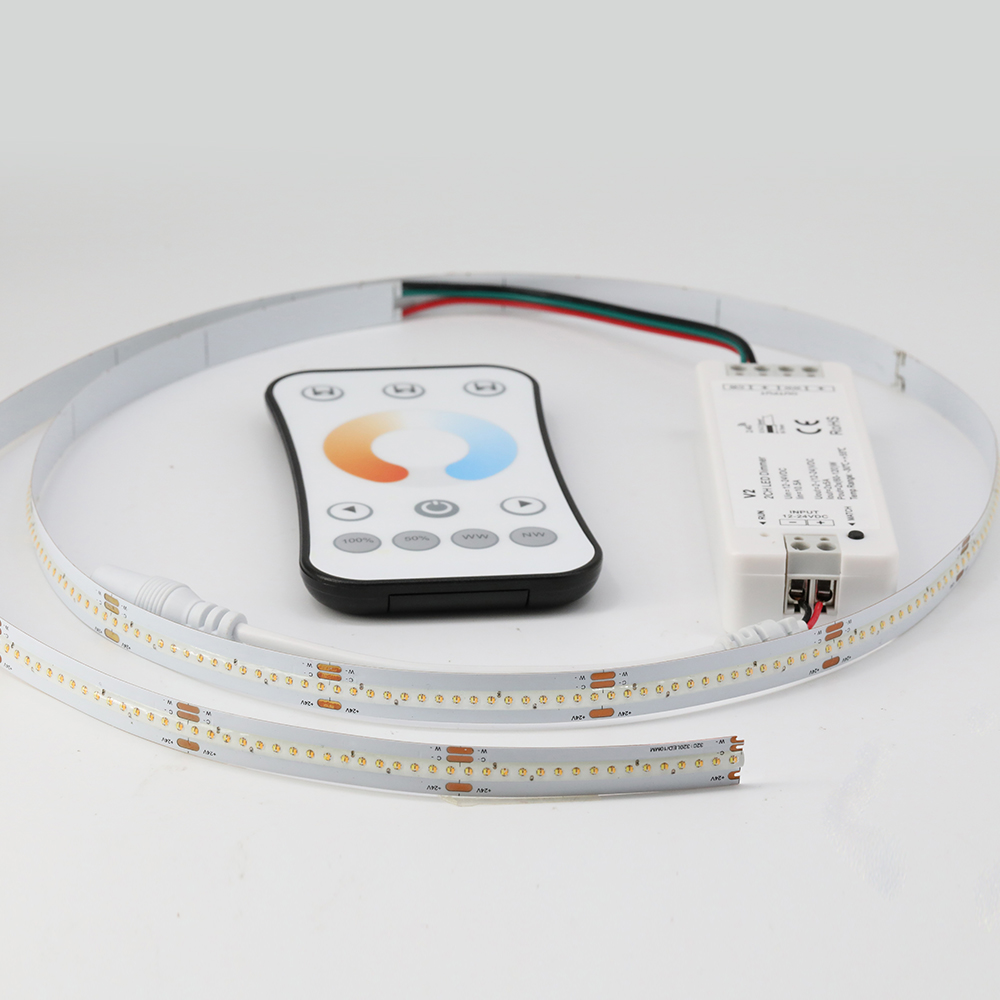

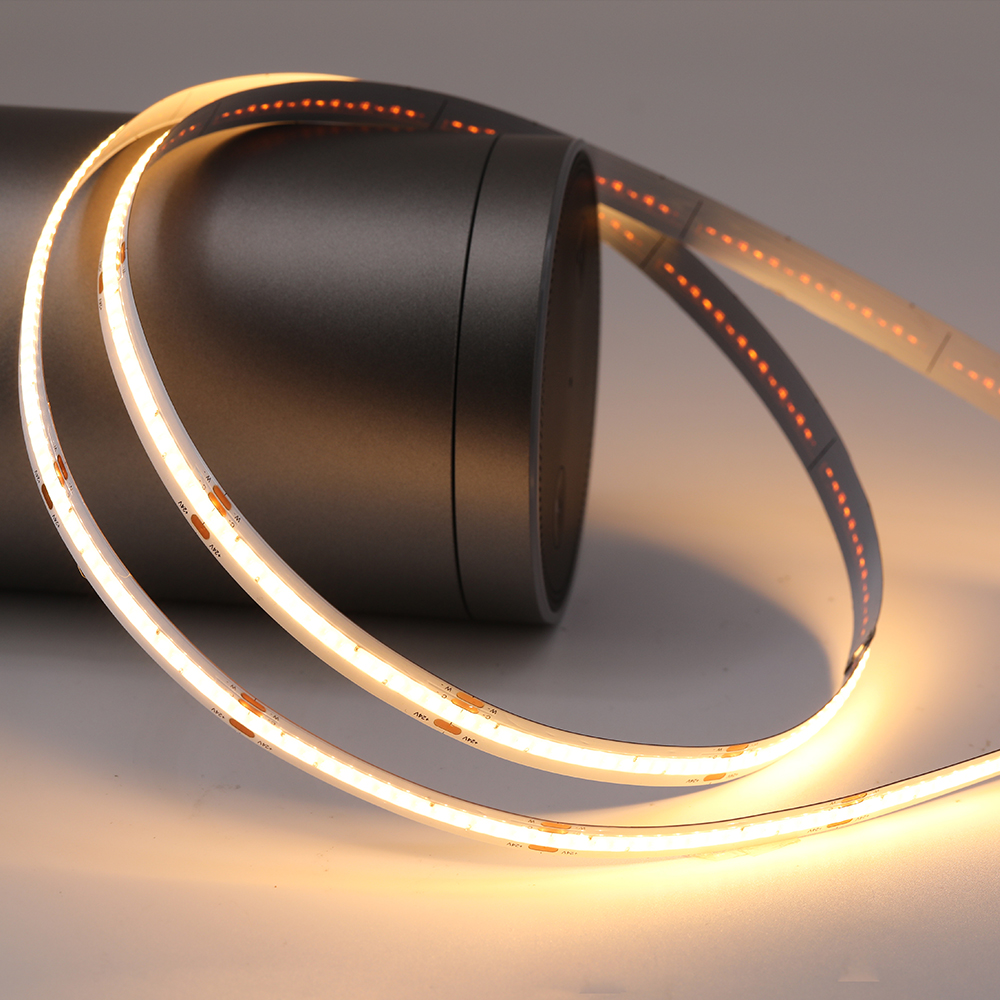

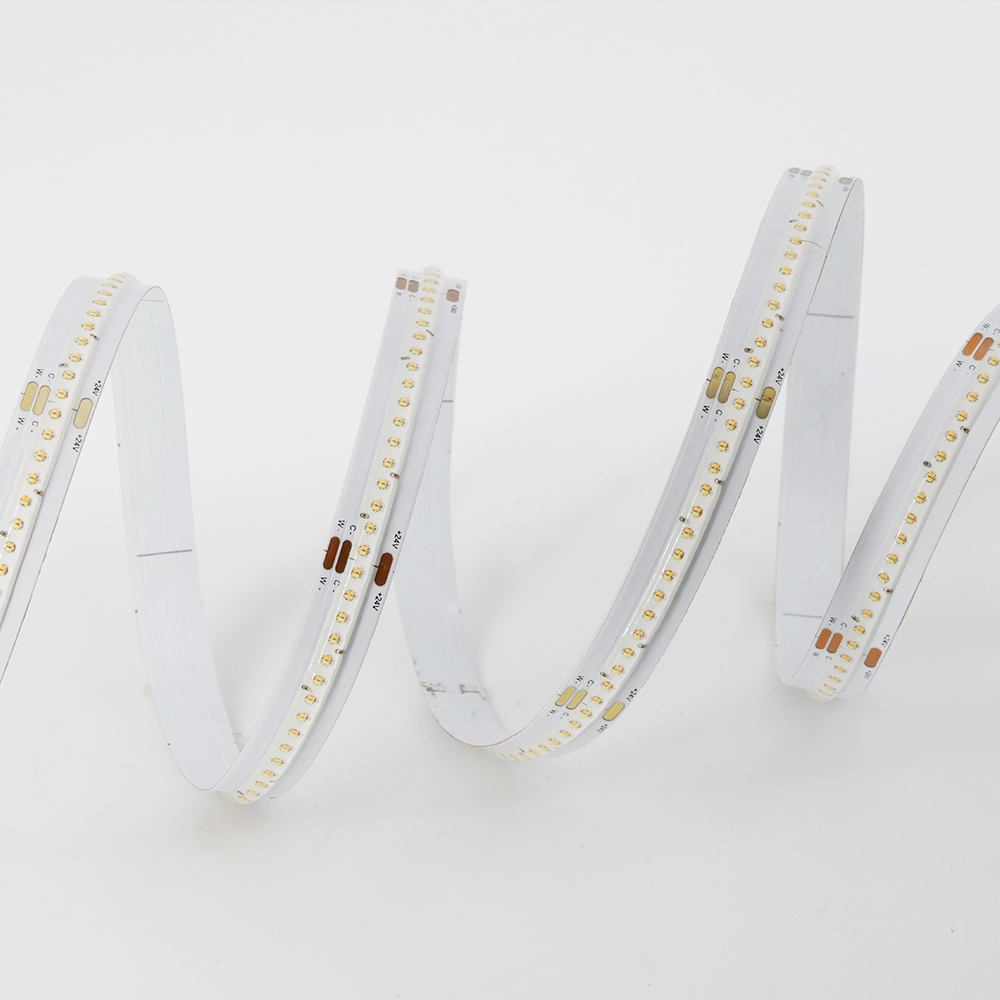

LED Flexible Strip Light HM-CSP 480LED
| ltem Code | LEDs/meter | Input voltage | Watt/m | CCT/K | Color Rendering Index | Lm/m | Lm/ft | LM/w | IP Rate | PCB width |
| HM-CSP-480-24V-80-27 | 480 | 24V | 10 | 2700k | 80 | 950 | 289 | 95 | IP20 | 8mm |
| HM-CSP-480-24V-80-30 | 480 | 24V | 10 | 3000k | 80 | 950 | 289 | 95 | IP20 | 8mm |
| HM-CSP-480-24V-80-40 | 480 | 24V | 10 | 4000k | 80 | 1000 | 304 | 100 | IP20 | 8mm |
| HM-CSP-480-24V-80-50 | 480 | 24V | 10 | 5000k | 80 | 1000 | 304 | 100 | IP20 | 8mm |
| HM-CSP-480-24V-80-60 | 480 | 24V | 10 | 6000k | 80 | 1000 | 304 | 100 | IP20 | 8mm |
Optical parameter
| LED Type: | COB 480LED |
| Color Rendering Index: | Ra > 80 |
| CCT Range: | 2700K/3000K/4000K/5000K/6000K |
| Irritation Angle: | 140° |
| Light Efficiency: | 95~100Lm/w |
| Lumen Output/meter: | 950 |
Electric parameter
| Input Current/m: | 0.41A/m (0.12A/ft) |
| Input Voltage: | DC24V |
| Power/M: | 10W/m (3W/ft) |
| Static Electricity： | 1000V (ESD) |
| LEDs/Meter: | 480LEDs/m |

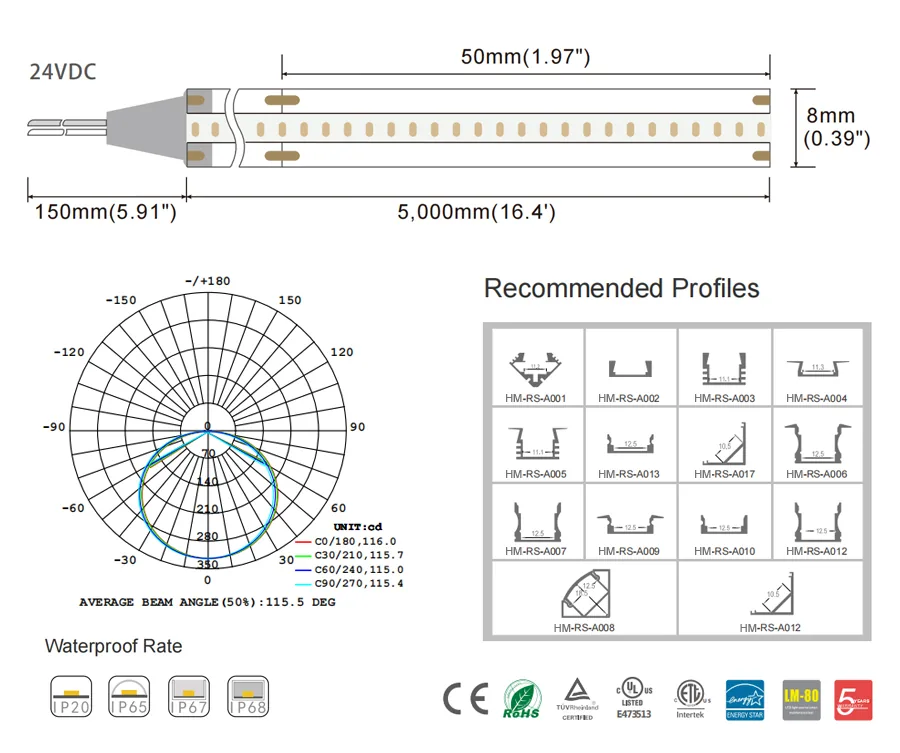

| Size of Section: | 50mm(1.97”) |
| LEDs of Section | 24 LEDs |
| Q1.ls it okay for OEM and ODM ? Armor lighting is professional for OEM and ODM order. We have rich experience toproceed the production and ensure the good quality. Q2.What’s the MOQ? Can l have some samples ? Low MOQ, 1 pcs for sample checking quality is available Samples order are acceptableand welcome the customized samples for your project. Q3.How long of the Lead time? Sample needs 3-5 days, quantity order needs 10-15days Q4.How do you ship the goods and how long does it take to arrive? We usually ship by DHL, UPS, FedEx or TNT. lt usually takes 3-5 days to arrive.Airlineand sea shipping also optional. Q5.How to proceed an order for customized light ? First, let us know your requirements or drawing.Second, we quote according to yourrequirements.Third, you confirm and arrange payment for formal order.Finally, we willstart the production and arrange shipment. Q6.How long for the warranty? All of Armor lighting products quality is 3 years, lf customized project products with 5years warranty. Q7.ls it okay to print my LoGo on the product ? Yes, please inform us formally before production and confirm the design firstly basedon our sample. Q8.How to deal with the Faulty? We offer 2, 3 and 5 year’s limited warranty for different kinds of products or differentrequirements of lighting projects. During this period, if customers have the proofshowing quality issues and that proof is approved by armor lighting engineers, we wouldlike to replace the defective ones with new qualified items. Please note that warranty is not equal to lifespan.Our products have more than 50000-hourlong lifespan. Q9.Can l visit your factory? Sure,welcome to visit our factory. Can lets us know your visit schedule before two daysand your interested products. Q10.Are you factory or trading company? We are factory directly export to over sea market. Q11.Do you supply led lighting to any famous brand store Lighting? Yes,our led store Lighting had supply to LANCOME , LEGO,NEXT,COACH, Burt’s Bee,Hasbro, Boots，BRAUN,M&S etc. |
