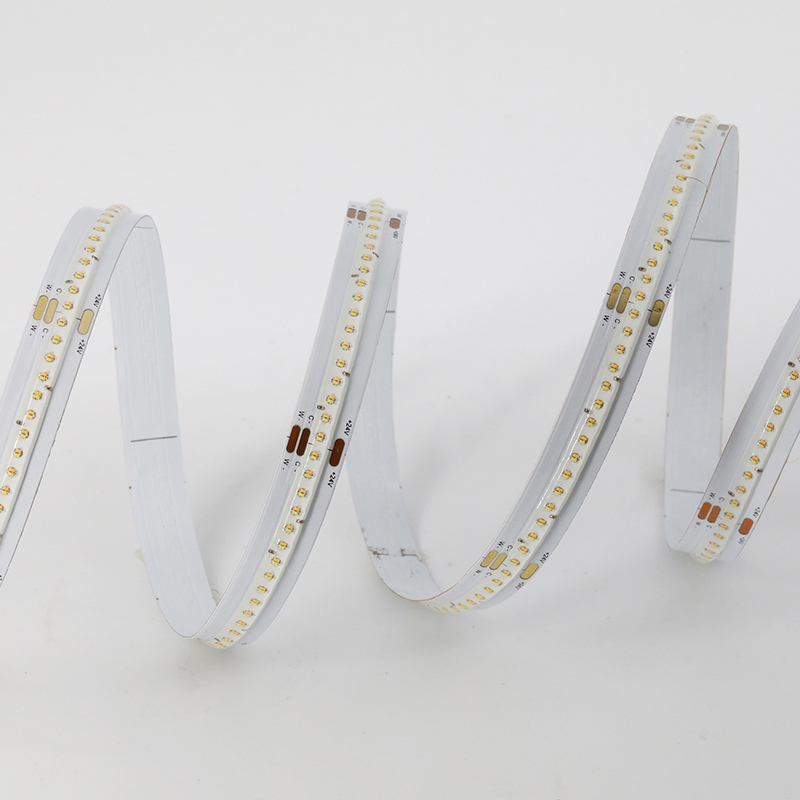

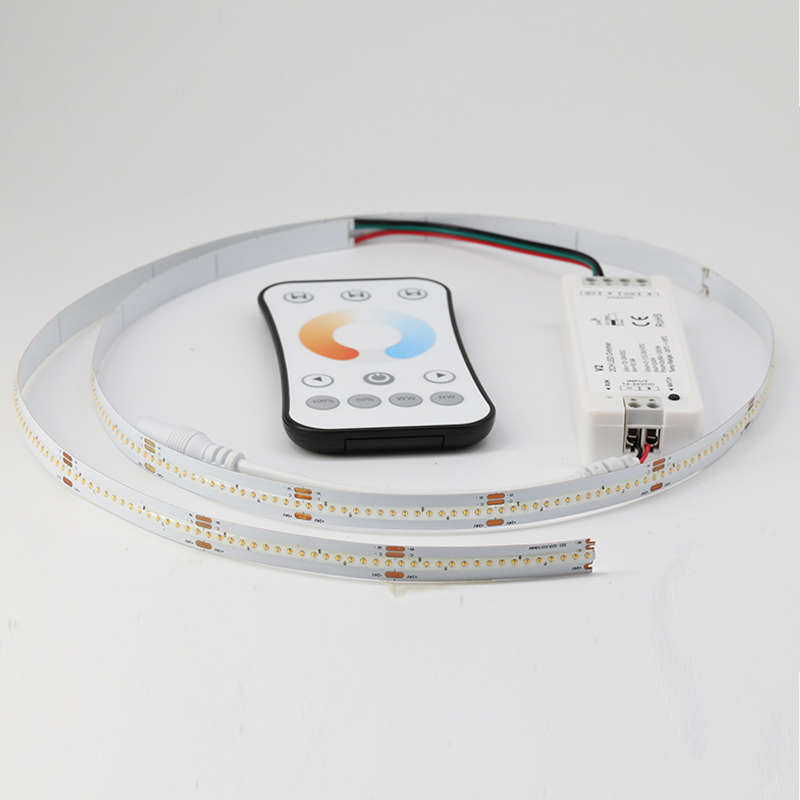

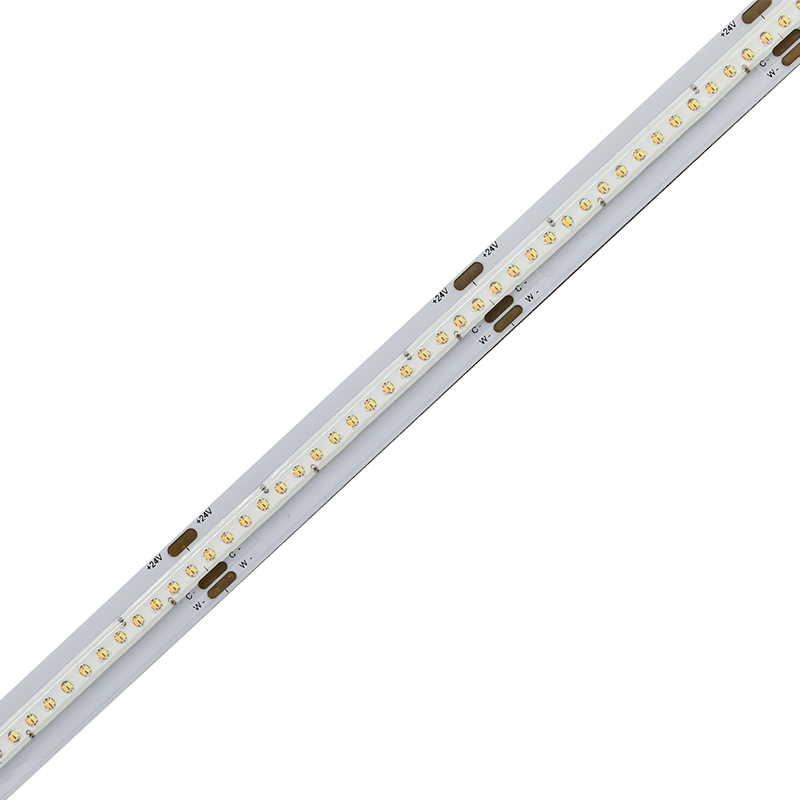

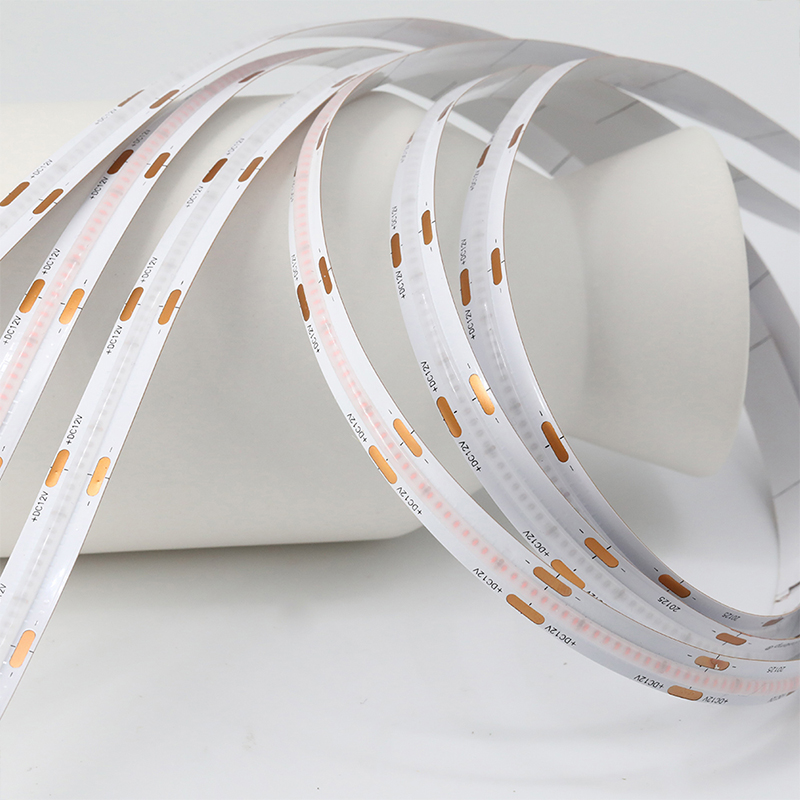

Dual Color CSP LED Flexible Strip Light — 640 LEDs/m
Dual Color COB LED Flexible Strip Light 1.Zero light spot, uniform light 2.Flip chips:CSP encapsulation technology without wire bonding 3.Flip chips has bigger pole for high current & work more stable 4.Ta:-25~40℃；Tc：75℃（max） 5. 3M adhesive backing simplifies
- System
- Retail Lighting
- Product Family
- LED Strip Lights
- Product Type
- CSP LED Strips

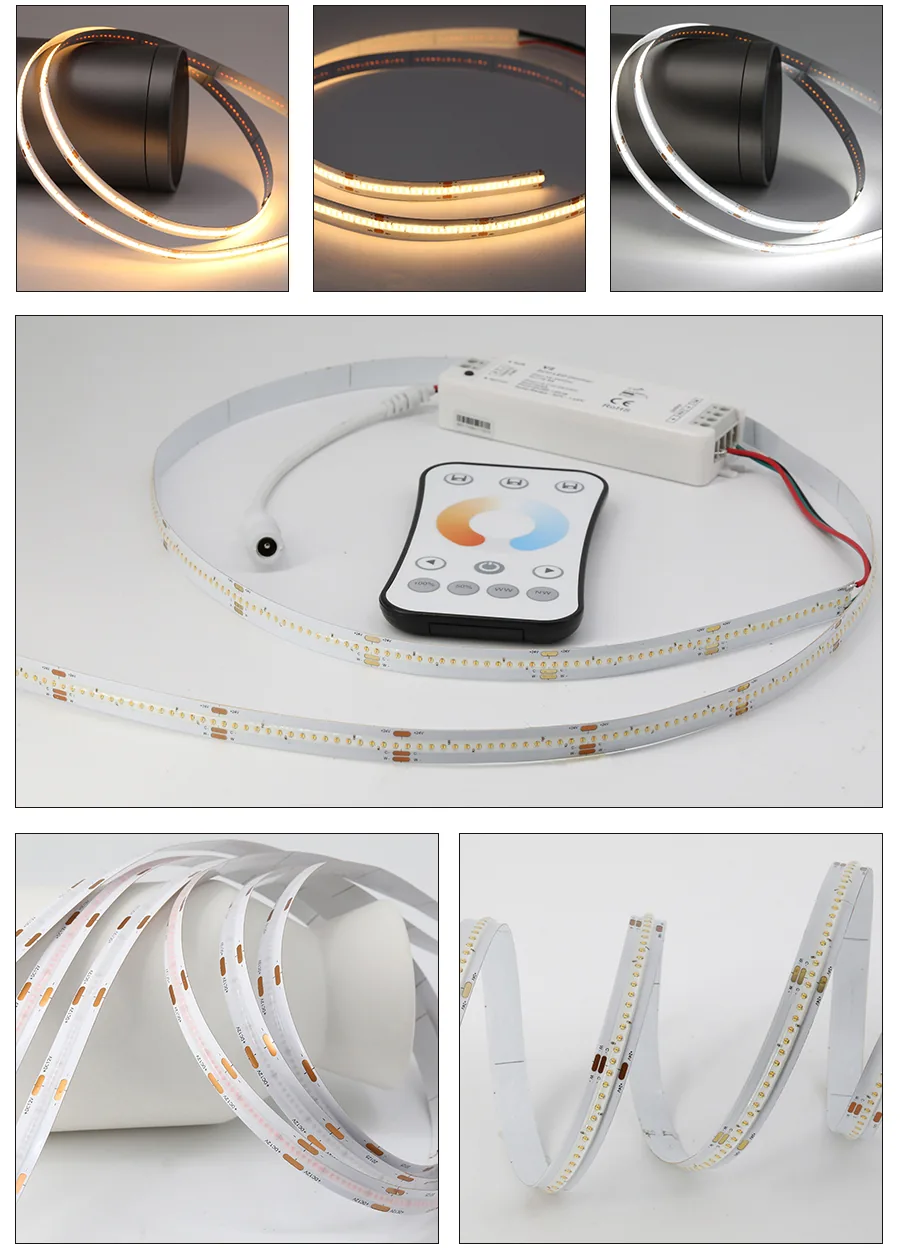

Product Gallery
Product Views
Product Video
See the product in action
Product Details
Technical Information
Dual Color COB LED Flexible Strip Light
1.Zero light spot, uniform light 2.Flip chips:CSP encapsulation technology without wire bonding 3.Flip chips has bigger pole for high current & work more stable 4.Ta:-25~40℃；Tc：75℃（max）5. 3M adhesive backing simplifies mounting 6. 24VDC available for longer max run and human safety. 7.Up to 640 chips per meter , Double color in 2700K+6500K 8. Less heat generation 9. 3 years warranty
| Item No. | HM-CSP-640-10W-WV-8MM | HM-CSP-640-10W-WW-8MM |
| LED Qty | 640LEDs/m | 640LEDs/m |
| Voltage | 24V | 24V |
| CRI | Ra80+ | Ra80+ |
| IP rating | IP20 | IP20 |
| Color | 2700~6500K(Turnable white) | 2700~6500K(Turnable white) |
| Watts | 10w | 10w |
| Lumen | 1000LM | 1000LM |
| Width | 8mm 2OZ | 8mm 2OZ |
| PCB Color | White | White |
| Cutting Length | 50mm | 50mm |
