Retail Lighting
CSP Flexible Strip Light
CSP Flexible Strip Light 1.Zero light spot, uniform light 2.Flip chips:CSP encapsulation technology without wire bonding 3.Flip chips has bigger pole for high current & work more stable 4.Ta:-25~40℃；Tc：75℃（max） 5. 3M adhesive backing simplifies mounting 6. 24V
- System
- Retail Lighting
- Product Family
- LED Strip Lights
- Product Type
- CSP LED Strips
Product Gallery
Product Views
Product Details
Technical Information

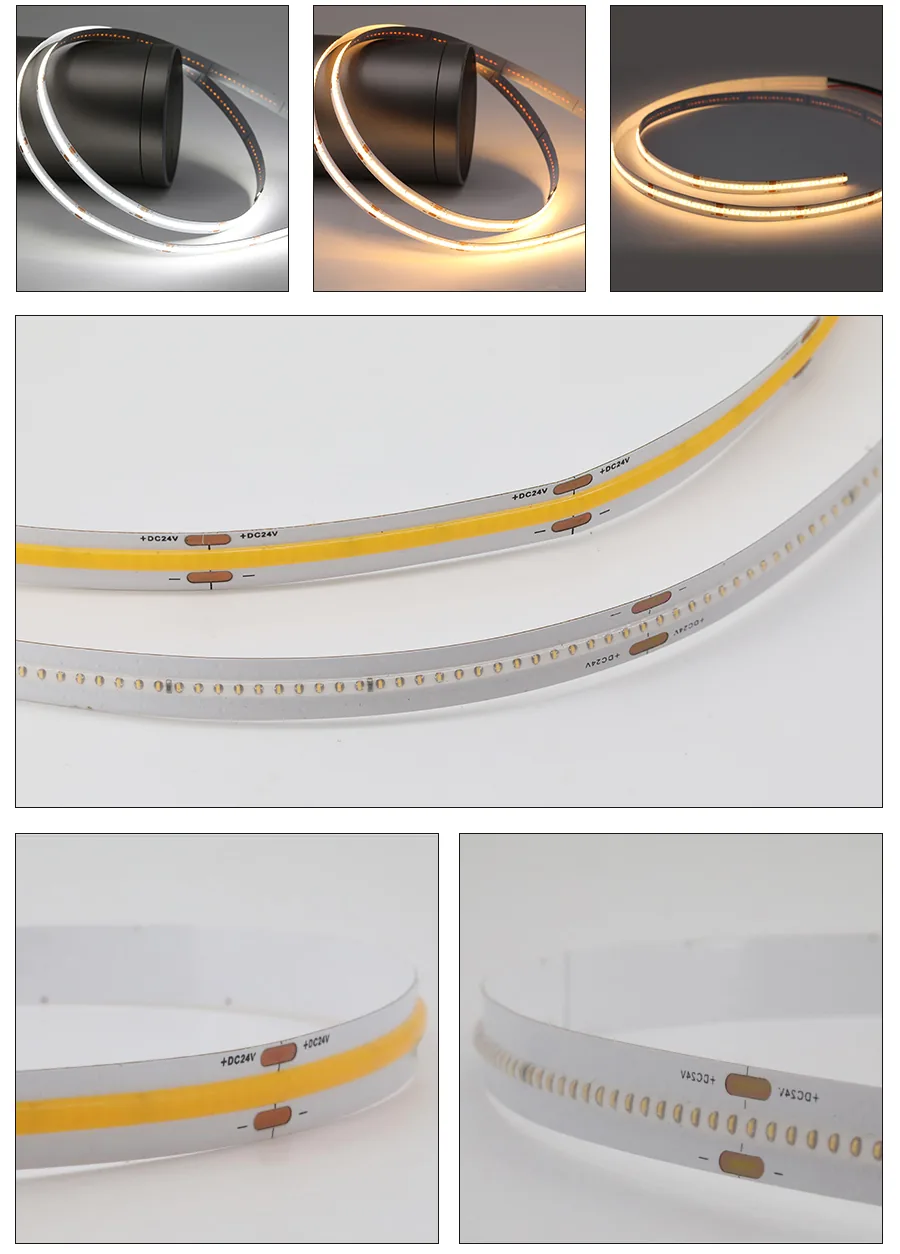

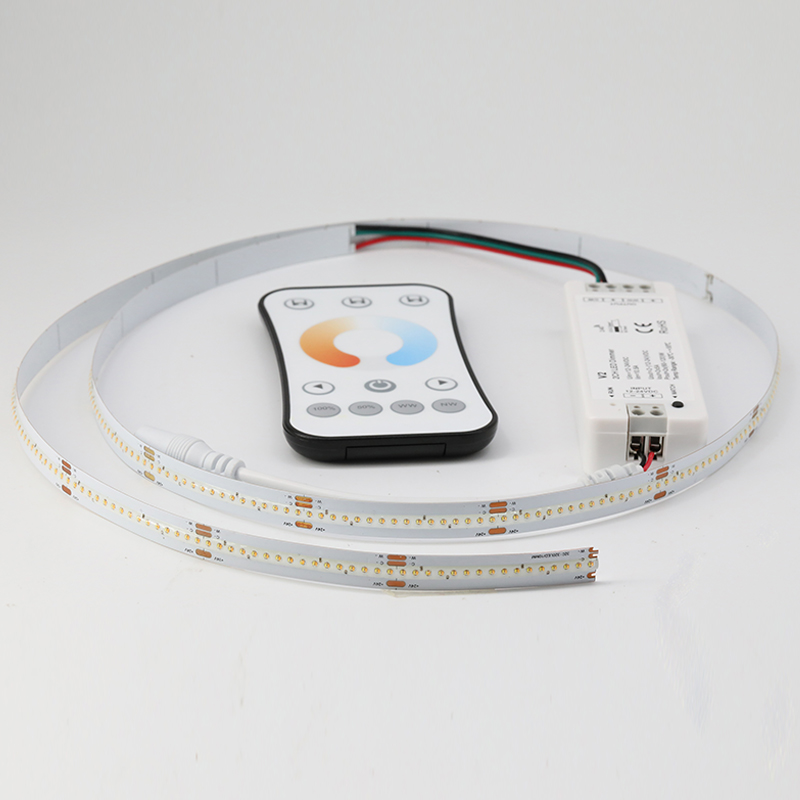

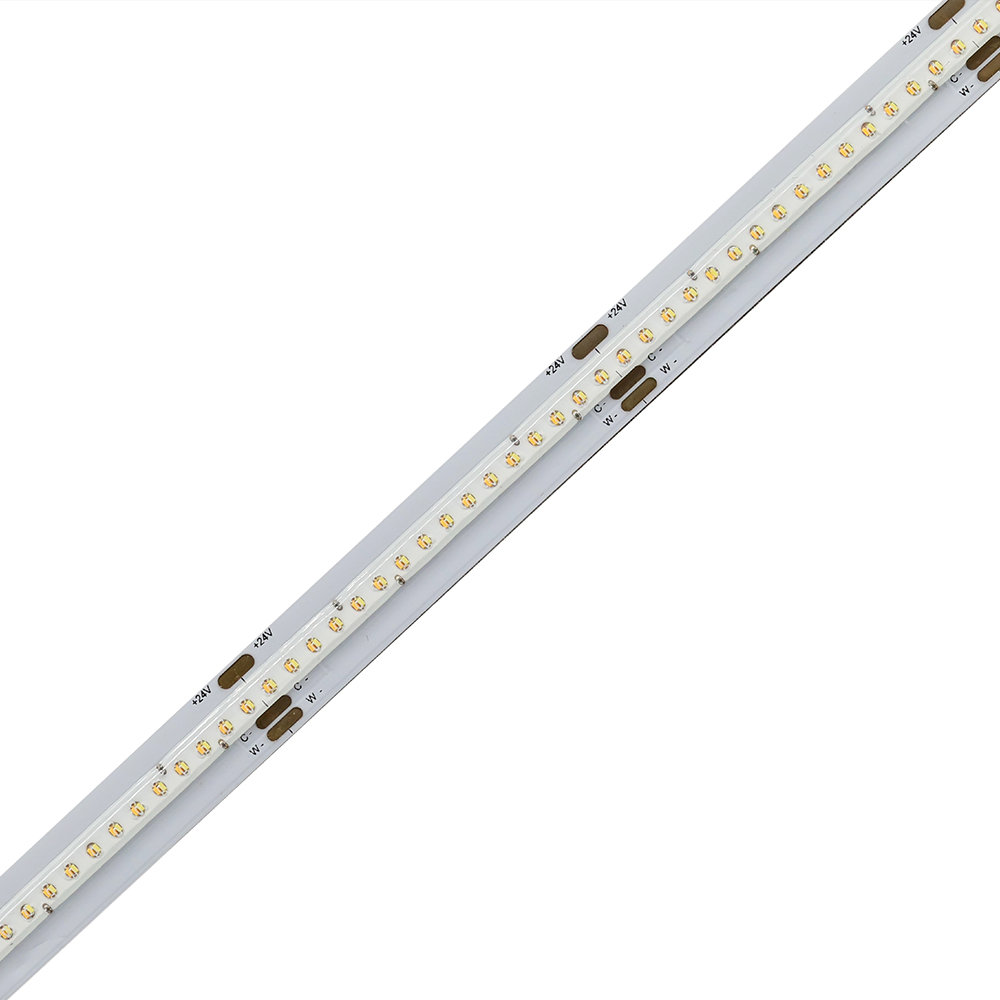

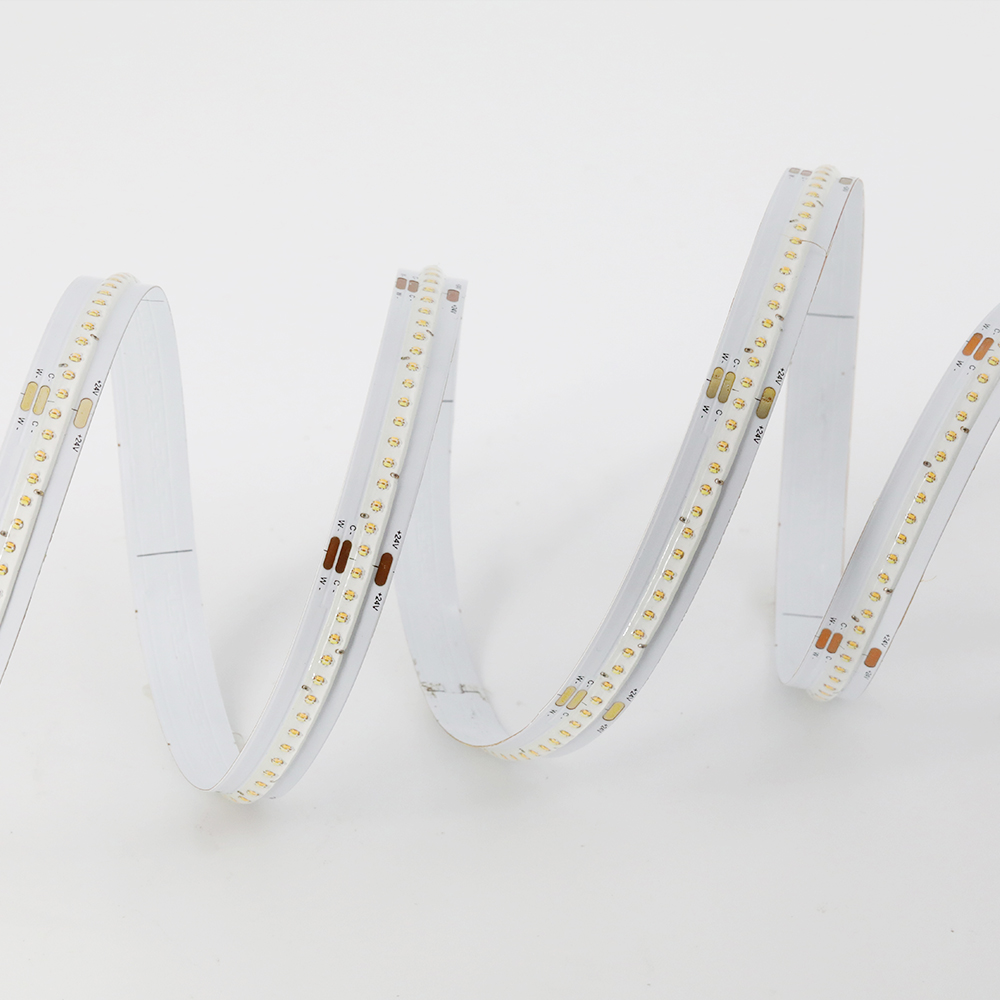

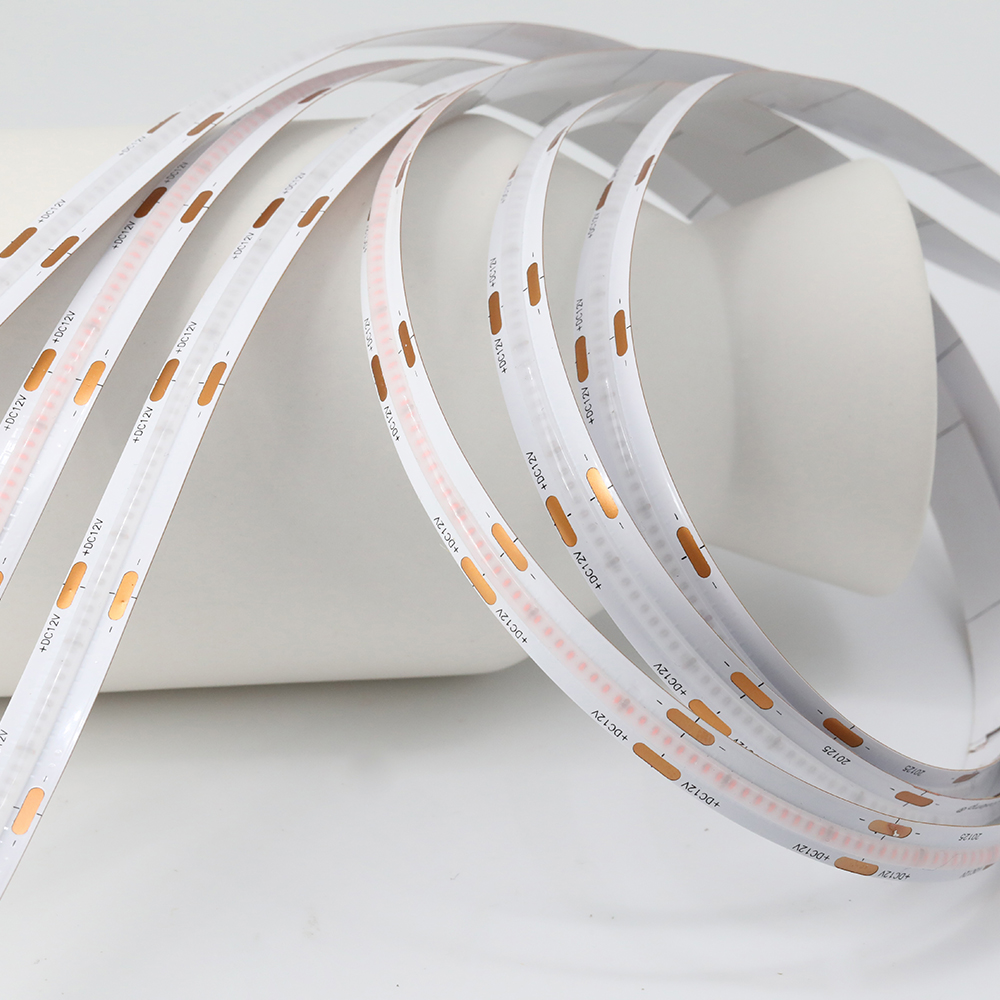

CSP Flexible Strip Light
1.Zero light spot, uniform light 2.Flip chips:CSP encapsulation technology without wire bonding 3.Flip chips has bigger pole for high current & work more stable 4.Ta:-25~40℃；Tc：75℃（max）5. 3M adhesive backing simplifies mounting 6. 24VDC available for longer max run and human safety. 7. 50000 hours life span 8. Less heat generation 9. 3 years warranty
| Item No. | HM-CSP-240-8W-W-8MM | HM-CSP-480-10W-W-8MM |
| LED Qty | 240LEDs/m | 480LEDs/m |
| Voltage | 24V | 24V |
| CRI | Ra80+ | Ra80+ |
| IP rating | IP20 | IP20 |
| Color | 2700k-6000k | 2700k-6000k |
| Watts | 8w | 10w |
| Lumen | 800LM | 1000LM |
| Width | 8mm 2OZ | 8mm 2OZ |
| PCB Color | White | White |
| Cutting Length | 50mm | 50mm |
Ask About This Product
Have a question about this product?
Tell us the quantity, dimensions, application, or customization requirements. Our team can help with pricing, samples, MOQ, and technical questions.
Your inquiry is about
CSP Flexible Strip Light
LED Strip Lights · Retail Lighting
