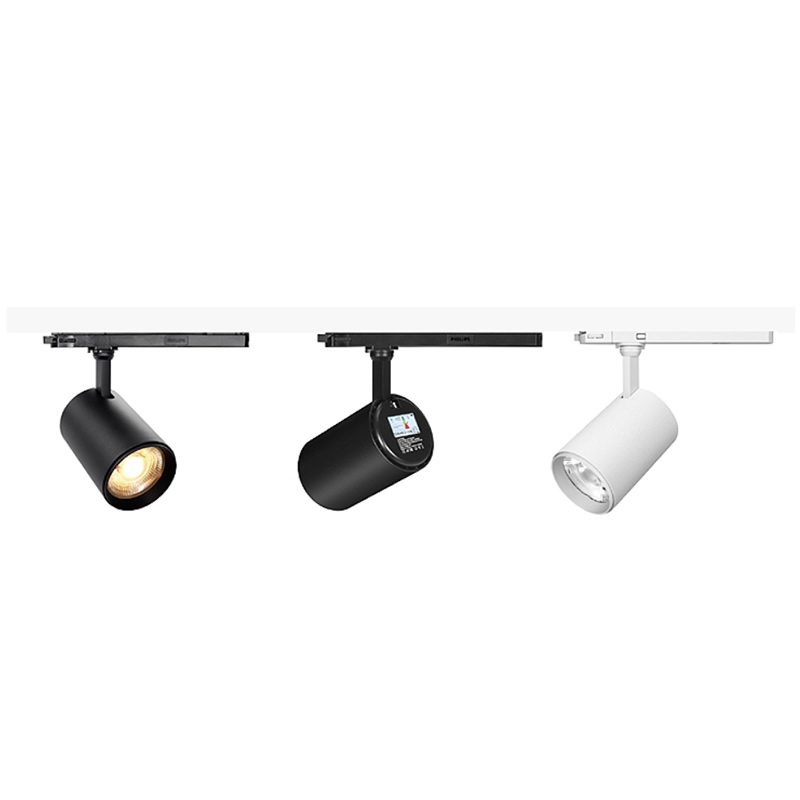

LED Track Light HM03 Series
LED track light fixtures are the standard for flexible retail illumination. ARMOR's adjustable track lighting combines 355° horizontal rotation with CRI 95+ color accuracy—delivering precise, vivid product presentation across retail stores, showrooms, and muse
- System
- Retail Lighting
- Product Family
- Track & Spot Lighting
- Product Type
- Track Lights
Product Gallery
Product Views
Product Video
See the product in action
Product Details
Technical Information
LED track light fixtures are the standard for flexible retail illumination. ARMOR’s adjustable track lighting combines 355° horizontal rotation with CRI 95+ color accuracy—delivering precise, vivid product presentation across retail stores, showrooms, and museum galleries.

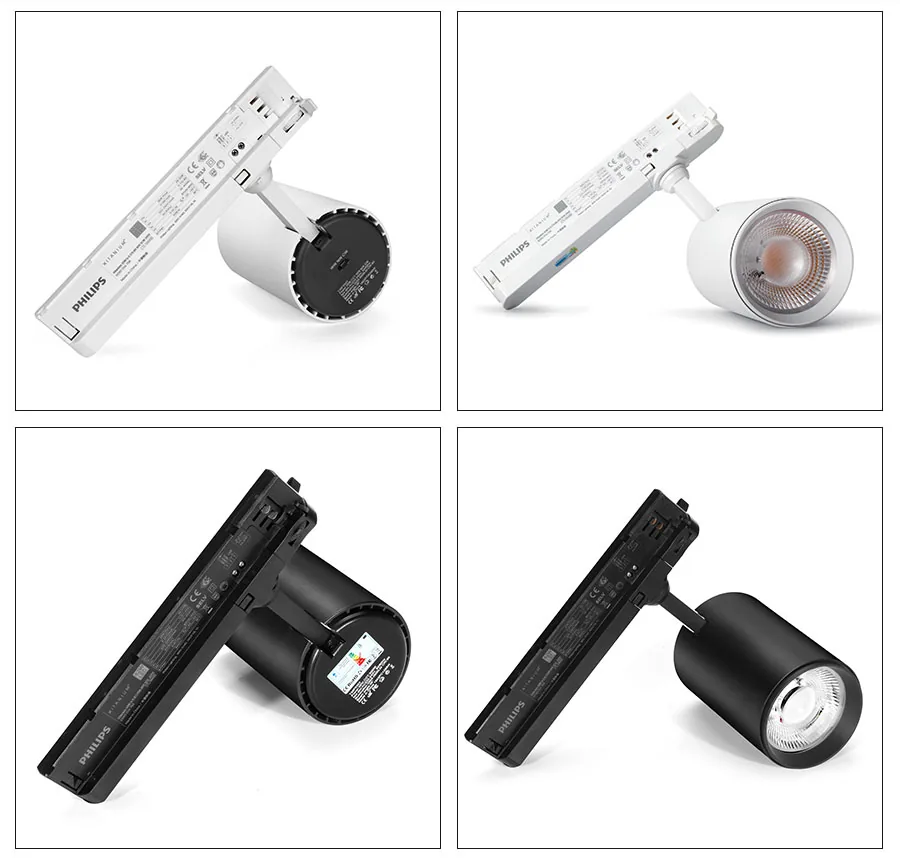

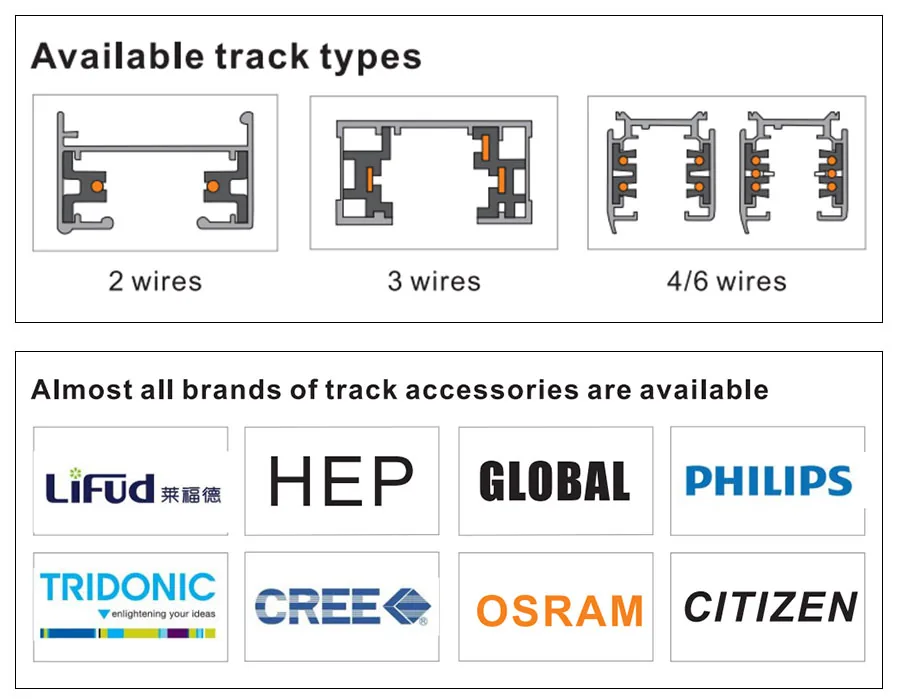

1.The led track lamp body cab be rotated 90°vertically and 355°horizontally 2.The heat of the driver is totally independent with the heat of the lamp 2.Almost all brands of track accessories are available for led track light fixture 3.No UV IR radiation, no mercury, no glare, Green and eco-friendly. Energy savings of up to 80%, Long life of 50,000hrs

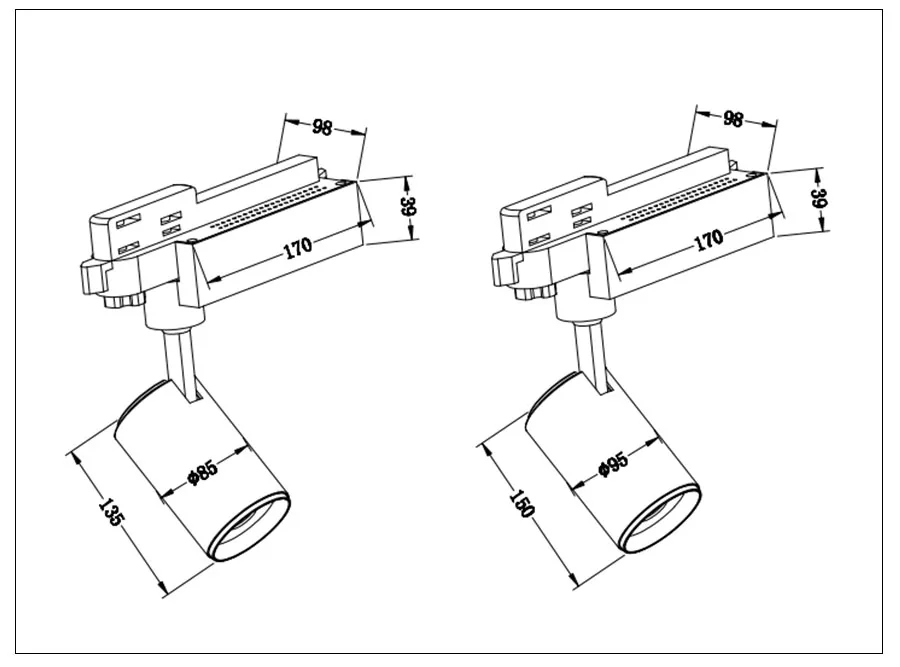

| Item No. | Power | Dimension | Lumen | LED brand | Driver | Track adapter | Beam angle | CCT | Input Voltage |
| HM03 | 45w | 95x150mm | 4050-4500lm | Citizen | Tridonic | Global | 24°38°50° | 3000K 4000K 6000K | AC200-240v AC100-277v |
| HM03 | 35w | 85x135mm | 3150-3500lm | Citizen | Tridonic | Global | 24°38°60° | ||
| HM03 | 25w | 75x135mm | 2250-2500lm | Citizen | Tridonic | Global | 24°38°55° | ||
| HM03 | 20w | 75x135mm | 1800-2000lm | Citizen | Tridonic | Global | 24°38°55° | ||
| HM03 | 15w | 65x115mm | 1350-1500lm | Citizen | Tridonic | Global | 24°38°60° |

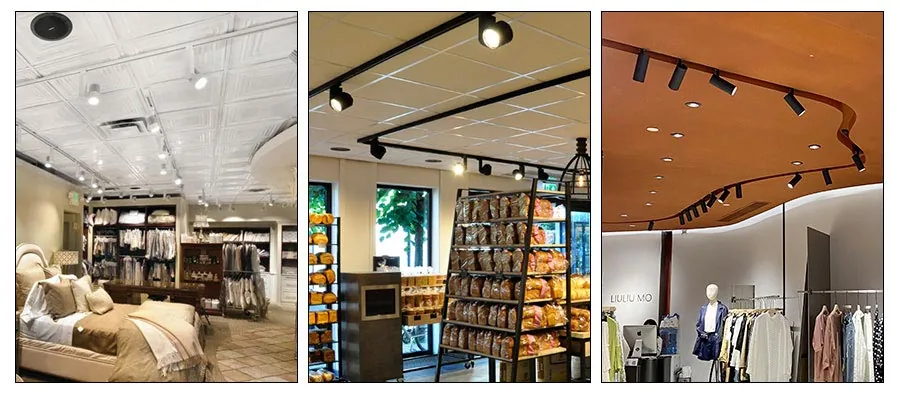

LED track light widely used for store, plaza, mall, supermarket, counter, display window, show room counter, museum lighting; School, hospital, office, meeting room, residential area lighting; bar, restaurant, hotel bedroom, dining room, hall and lobby lighting and other indoor occasions ect.
