MINI Flexible Magnetic Power Track System

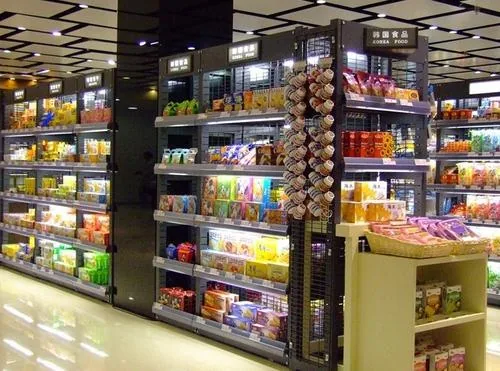

Because of its compact structure, small size and space saving, the product is widely used in various display cases, Windows and shelves. Good window and store lighting design, so that consumers remember the brand, see the details of the product, so that consumers have visual excitement,Thus lead to the goods, promote consumption, this is the significance of commercial lighting.

Features【MINI Flexible Magnetic Power Track System】

• Free crimp or cut

• It’s only 13.5mm wide

• Easy access to power

• Reasonable structure

• Beautiful after installation

• Stable and durable

• Uniform luminescence

PARAMETER【MINI Flexible Magnetic Power Track System】

[Product Model]   Track	[Section size]     13.5*3mm
[Carrying current is not more than]     12A	[Slot size]     None
[Voltage range]   12v-36v DC	[Material]     Rail material rubber magnetic strip and copper
[Installation method]    Suction type installation
[Normal color]    The Power Track color is black only

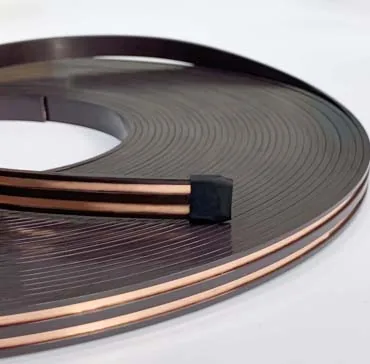

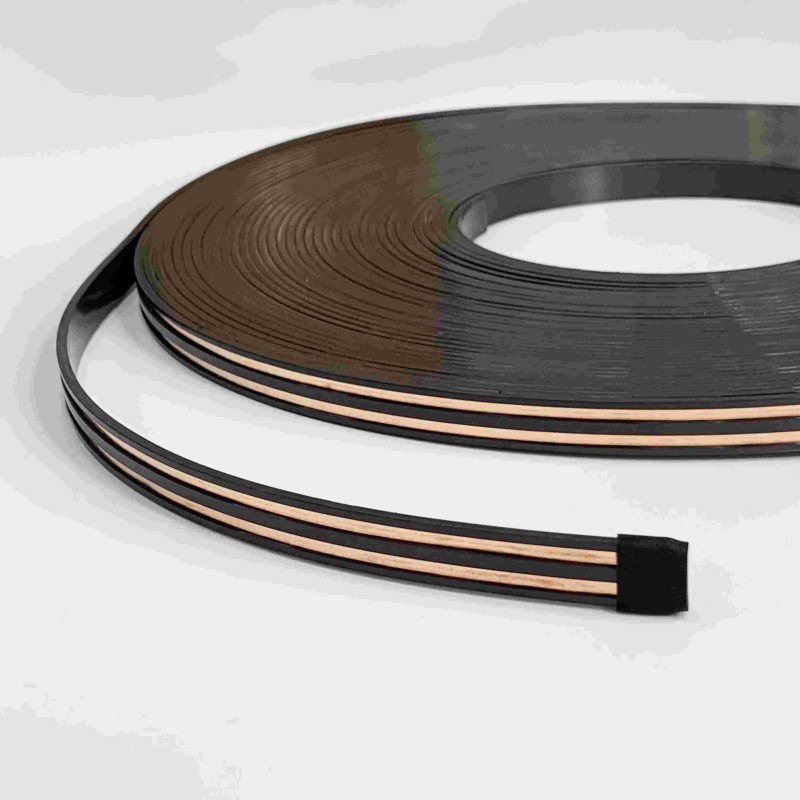

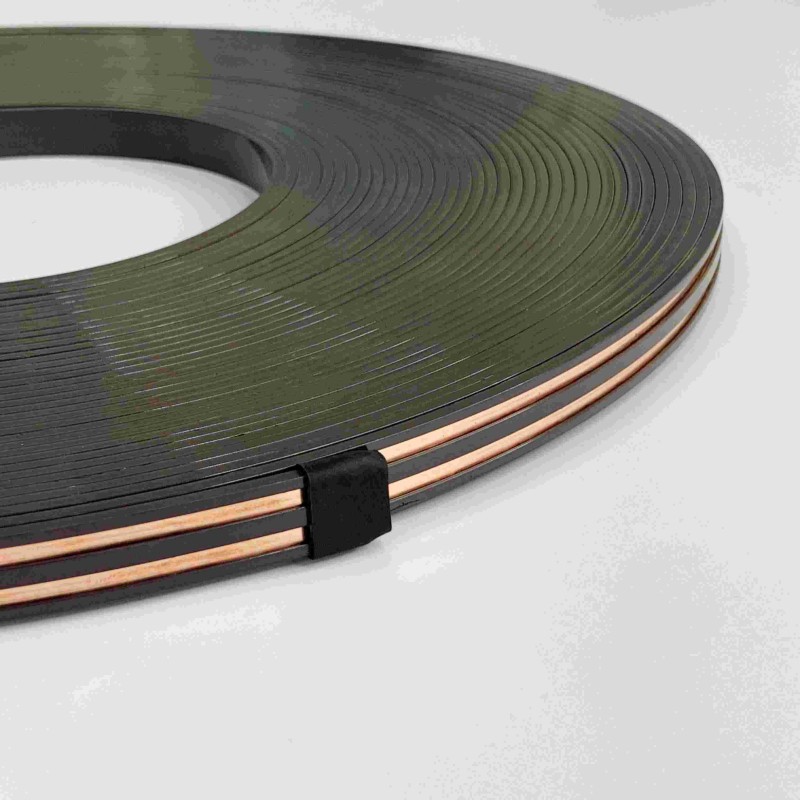

[Regular length]    25m/roll or customized length

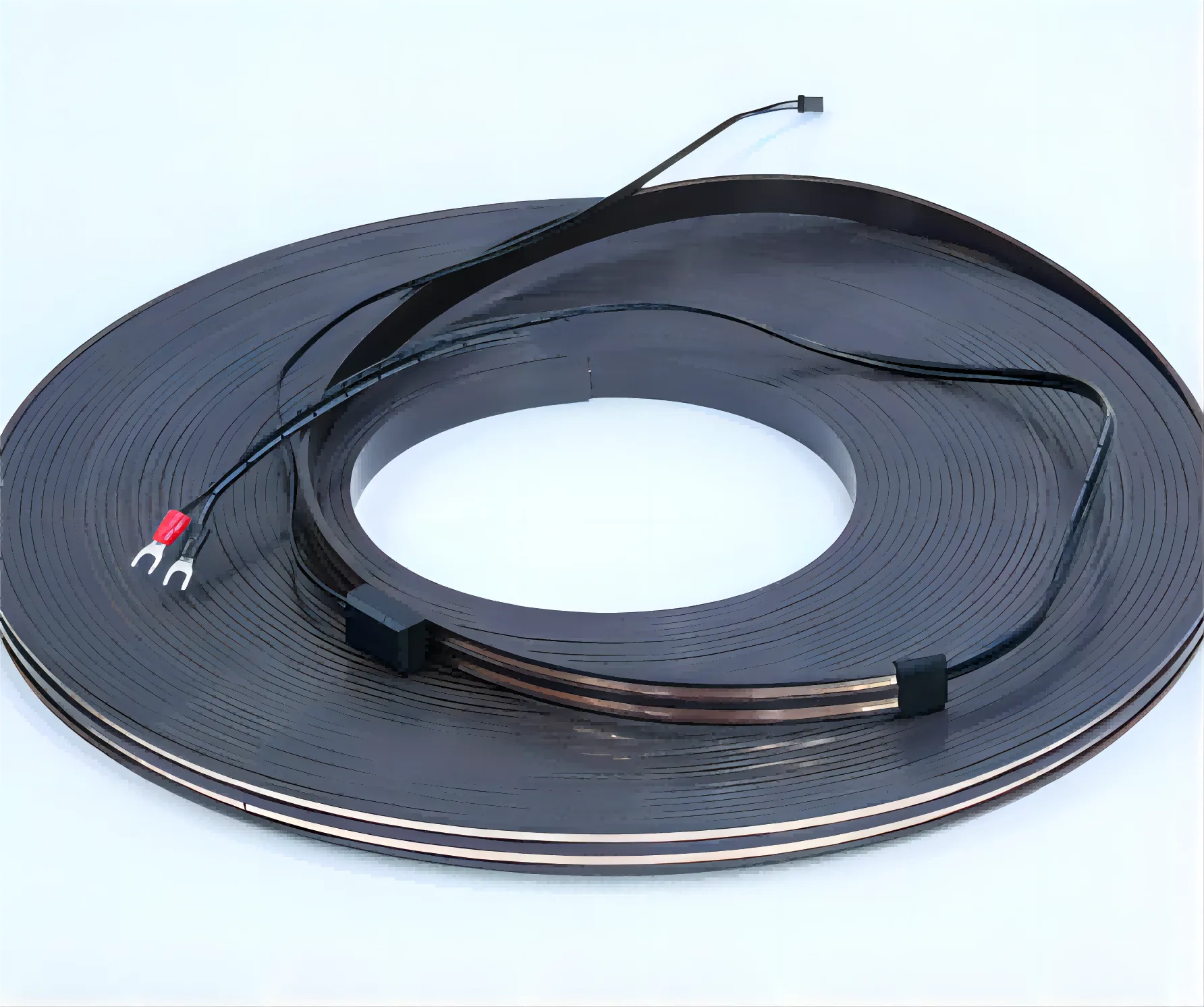

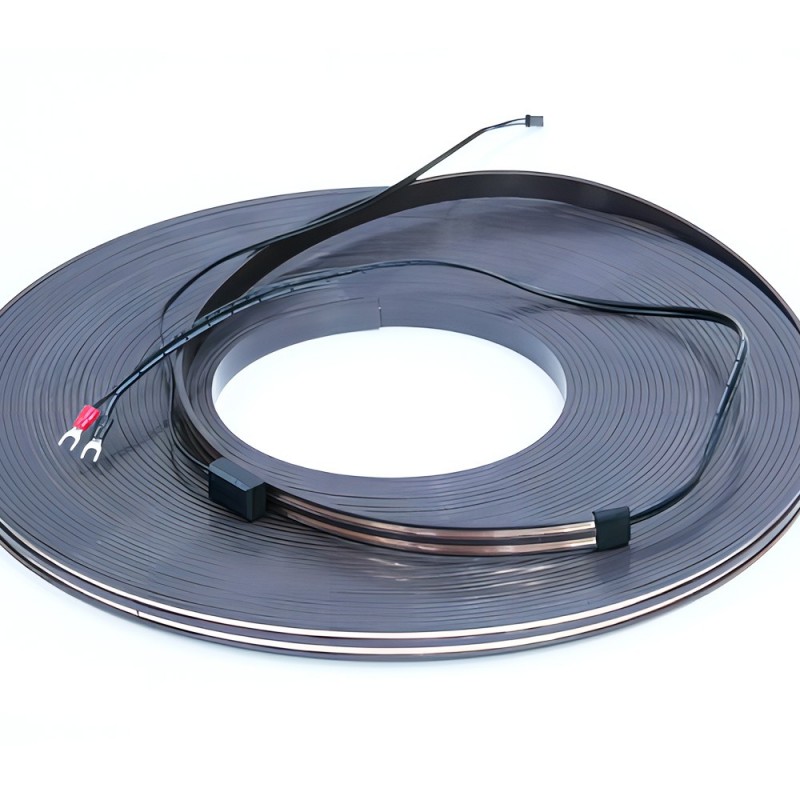

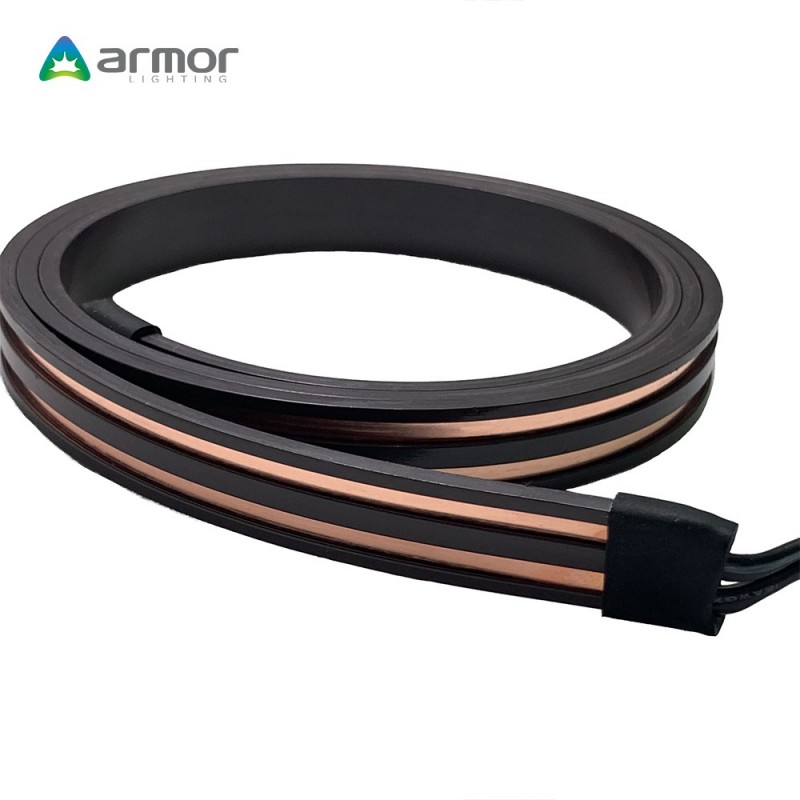

Input end with 500mm long UL black wire

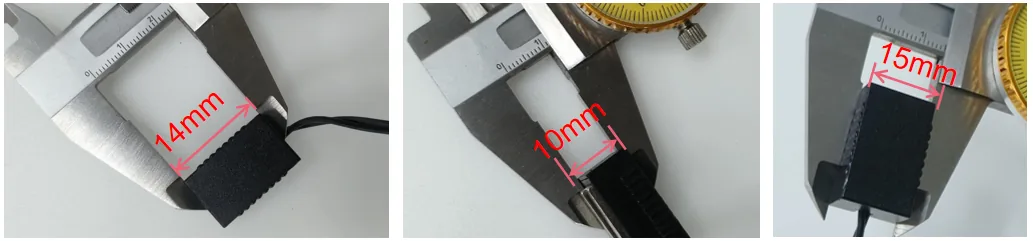

[Product Model]    Guide plug	[Section size]     14*15*10mm
[Carrying current is not more than]     3A	[Slot size]     None
[Voltage range]   12v-36v DC	[Material]   PC material + copper material + magnet
[Installation method]    Suction type installation
[Normal color]   Black / White
[Regular length]   1.0m/1.2m/1.5m/1.8m/2.0m Other lengths can be customized
Input end with black wire

Detail【MINI Flexible Magnetic Power Track System】

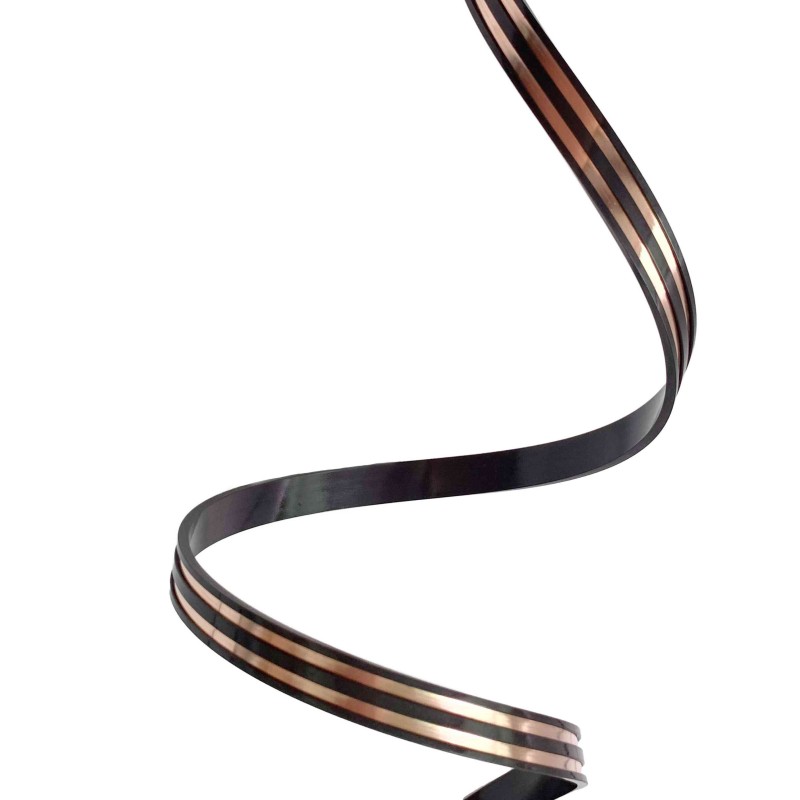

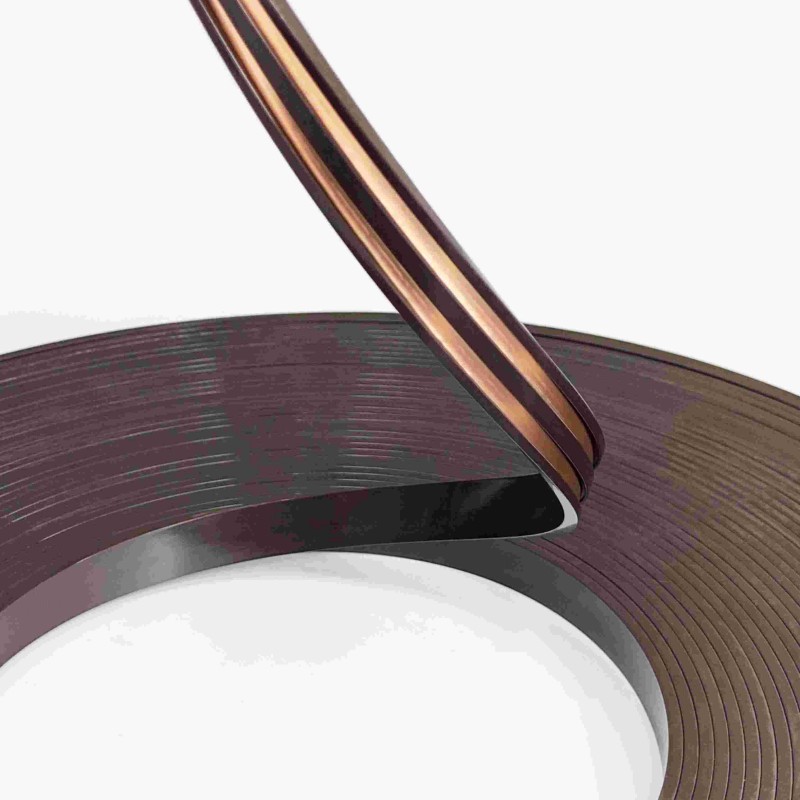

Free cut	Free crimp	Length can be customized	Back magnet
1.Can be directly adsorbed on the shelf，and double-sided tape can be added to the back of the non-magnetic surface

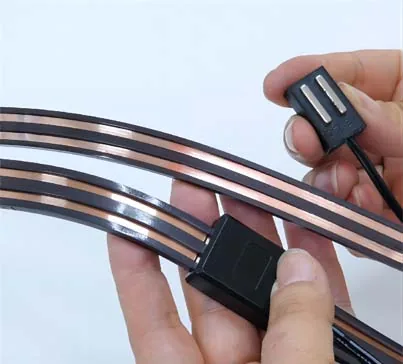

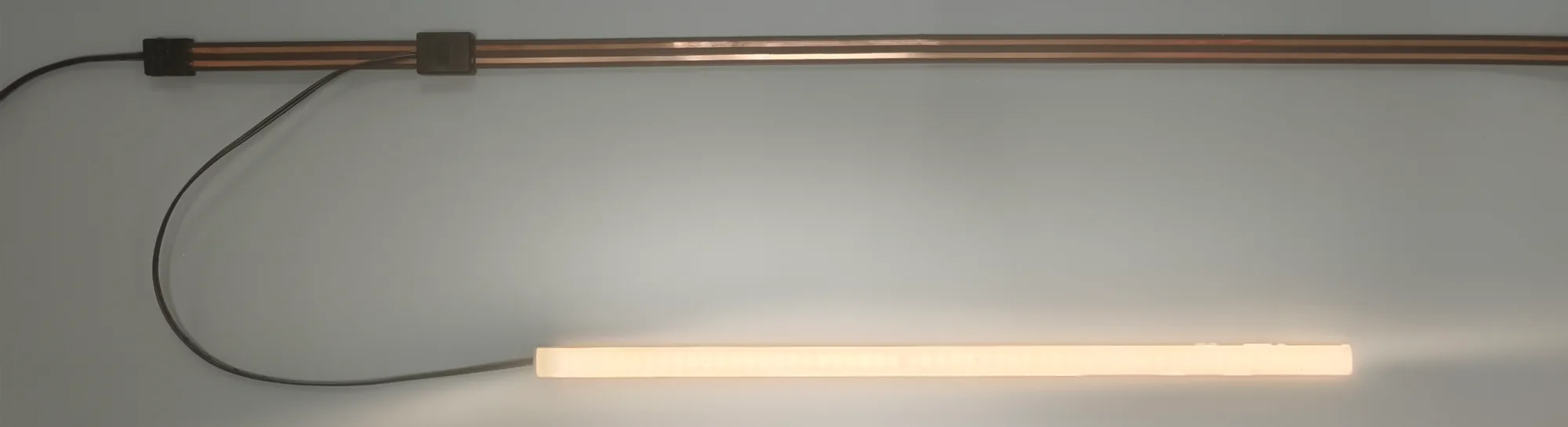

2.The Flexible Power Track is equipped with a magnetic plug, which can be connected to any position of the power track.

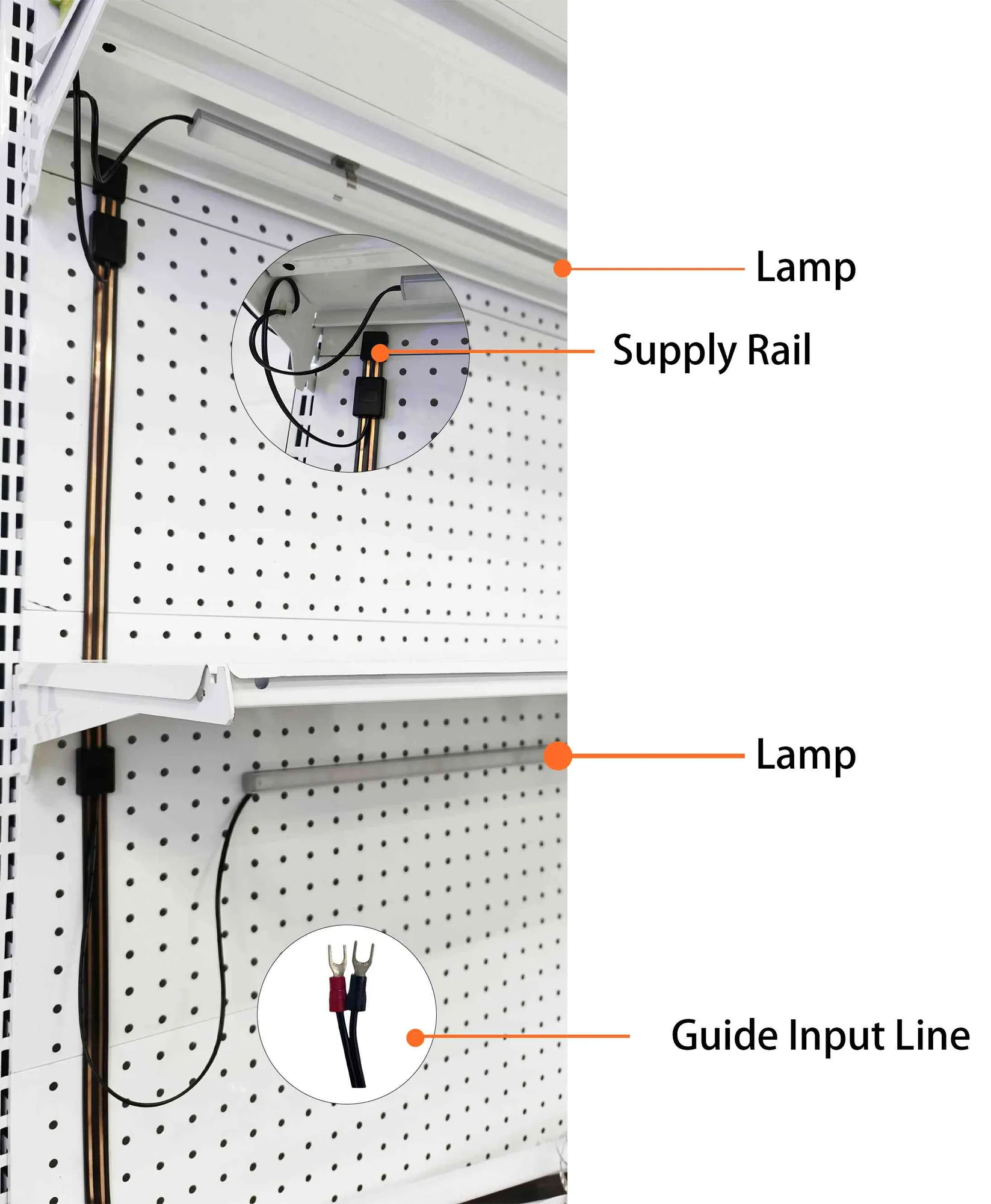

INSTALLATION【MINI Flexible Magnetic Power Track System】

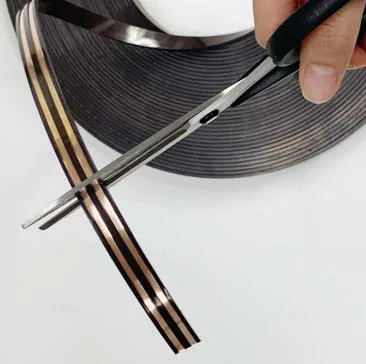

	* Cutting: cutting the length of guide rail according to demand;
* Install the input end and the tail end on the guide rail;
* Align the guide rail with the surface of the showcase to be installed, the installation surface must be iron (non-magnetic surface installation need to add double-sided tape), the guide rail through the above magnetic strip automatically sucked on the mounting surface;
* Connect the input power line: first connect the guide rail input line to the corresponding positive and negative terminals of the power supply according to the positive and negative terminals marked on the power guide rail;
* Insert the plug to access the power supply on the guide rail.

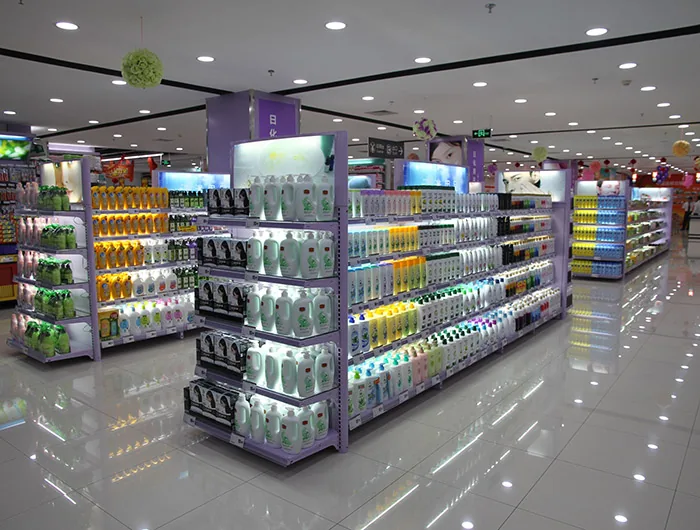

APPLICATION【MINI Flexible Magnetic Power Track System】

CERTIFICATION

OUR  COMPANY

FAQ【MINI Flexible Magnetic Power Track System】

Q1: What is the minimum order quantity for your MINI Flexible Magnetic Power Track System? A:**Usually MOQ is 50m, but we also accept small order for trail.**

Q2:Is a free sample order available for your MINI Flexible Magnetic Power Track System? A: Of course, you can check our quality before ordering.If you have any requirements, please contact us.

Q3:How long of the lead time? A: Usually,our lead time is 7-10 working days.It depends on the order quantity.But if the order is urgent, we can apply for urgent production.Bulk ordering takes 20-25 days.

Q4:Can LED strip be customized? A:Sure,we can produce as your requirement such as LEDs,power,length and waterproof level.We also offer OEM&ODM.

Q5:What’s your warranty? A:We have 3 years and 5 years warranty

Q6:Do you supply sea shipment? A: YES,We have our own shipping agency**FOB Guangzhou,supply FCL&LCL.**

Q7:Does your lighting equipment have CE or more certificates? A: Yes, we have CE certificate and UL, ROHS, CULUS,ETL,TUV,FCC,Energy star etc. We also have an IATF/ISO/TS 16949 certificate.

Q8:Is it possible to put our logo on your product or product packaging? A:Yes, we have 6floors factory, welcome to customize your brand, LOGO, color, product manual, packaging, etc.
