LTECH Power Supply-HM-75-1224-G1T2

Model LM-75-24-G1T2 LM-75-12-G1T2 OUTPUT Output voltage 24Vdc 12Vdc Output voltage range 24Vdc ± 0.5Vdc 12Vdc ± 0.5Vdc Output current Max. 3.125A Max. 6.25A Output power Max. 75W Output power range 0~75W Strobe level High frequency exemption level. Dimming ran

System
Power & Accessories
Product Type
Power Supplies
Request a QuoteView Power & Accessories Products
Download product specification

Product Gallery

Product Views

2 images
LTECH Power Supply-HM-75-1224-G1T2 product view 1LTECH Power Supply-HM-75-1224-G1T2 product view 2

Product Details

Technical Information

ModelLM-75-24-G1T2LM-75-12-G1T2
OUTPUTOutput voltage24Vdc12Vdc
Output voltage range24Vdc ± 0.5Vdc12Vdc ± 0.5Vdc
Output currentMax. 3.125AMax. 6.25A
Output powerMax. 75W
Output power range0~75W
Strobe levelHigh frequency exemption level.
Dimming range0~100%, dimming depth: Max. 0.1%
Overload power limitation≥102%
Ripple & Noise≤150mV

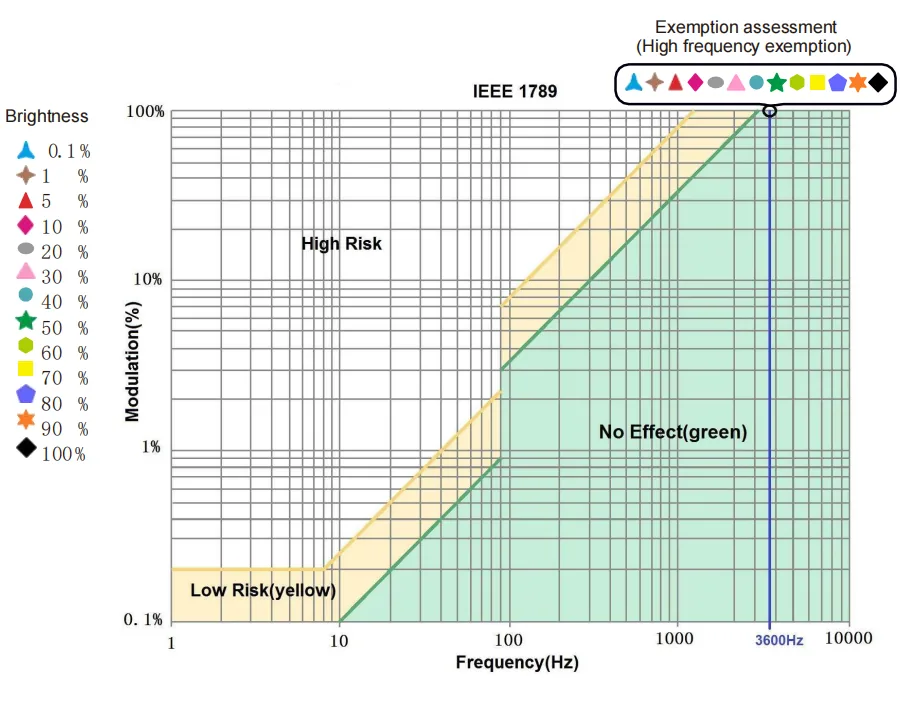

PWM frequency3600Hz

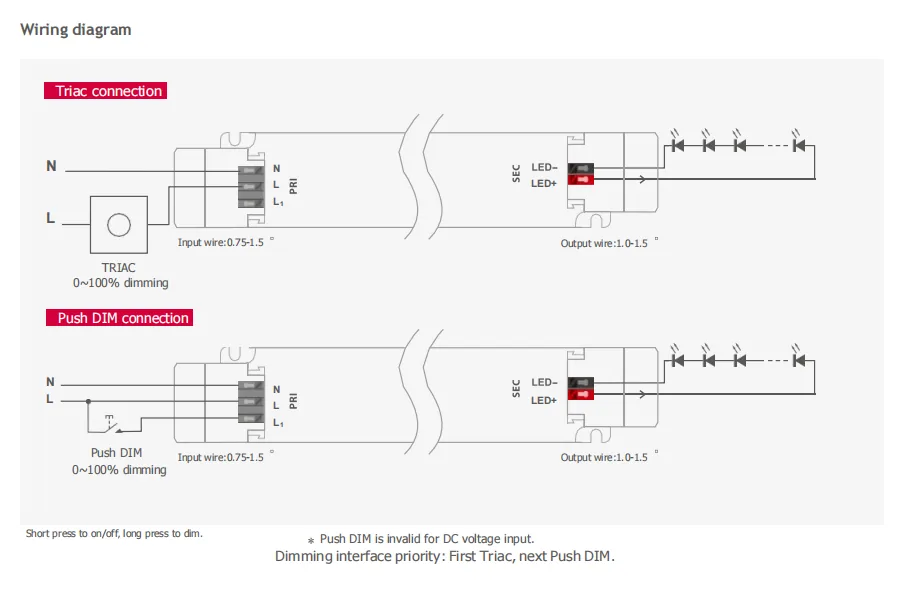

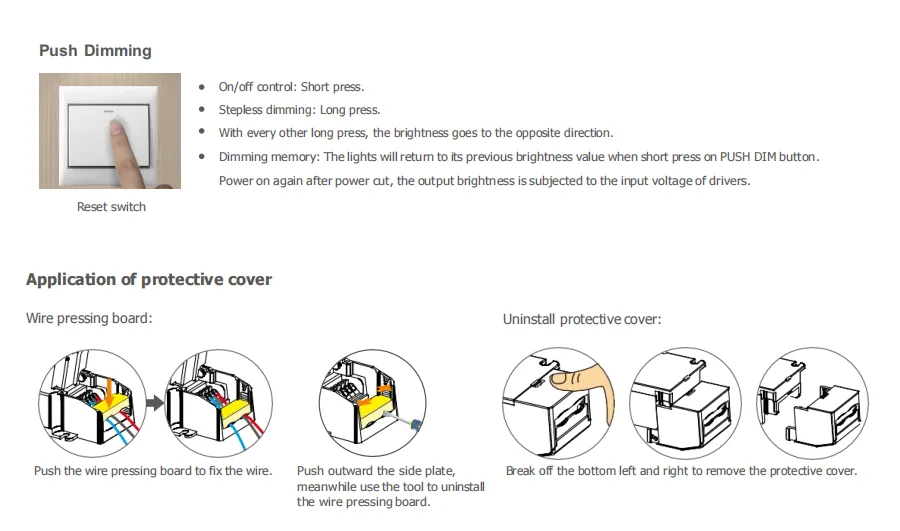

INPUTDimming interfaceLeading edge (Triac), Trailing edge (ELV) phase-cut and Push DIM.
Input voltage220-240Vac
Frequency50/60Hz
Input current230Vac≤0.4A
Power factorPF>0.98/230Vac , at full load
THD230Vac@THD＜6%, at full load

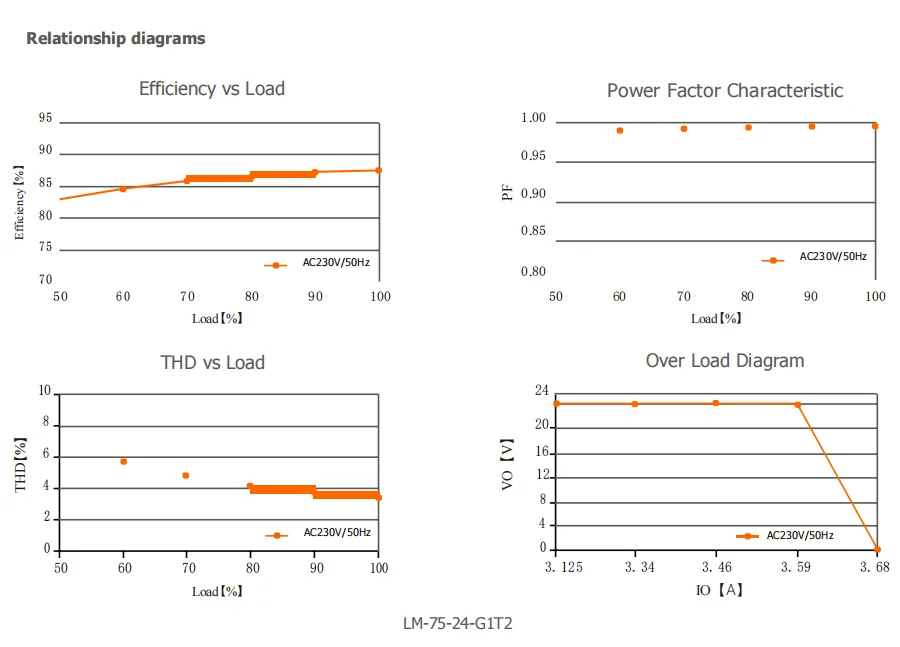

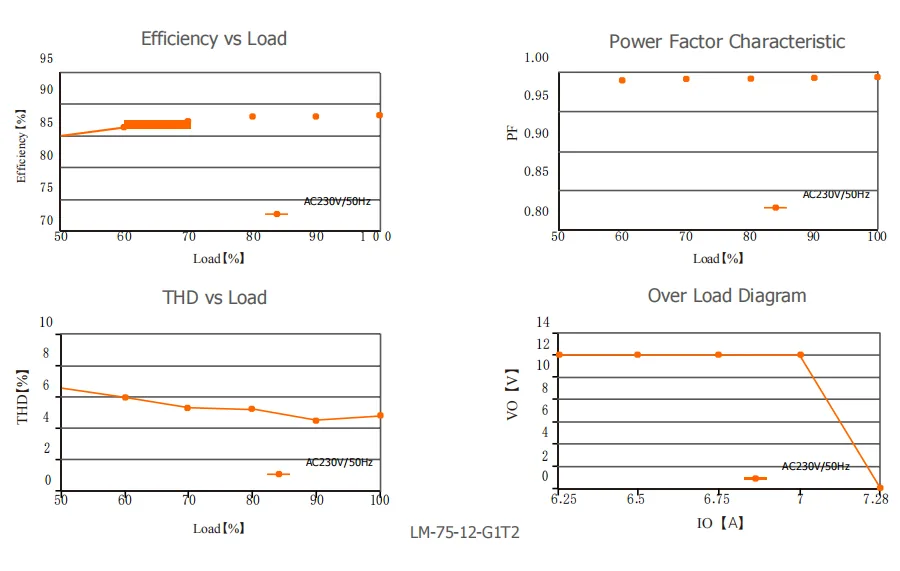

Efficiency (typ.)88%87%
Inrush current(typ.)Cold start 30A at 230Vac
Control surge capabilityL-N: 2kV
Leakage currentMax. 0.5mA
ENVIRONMENTWorking temperatureta: -20 ~ 50°C tc: 90°C
Working humidity20 ~ 95%RH, non-condensing
Storage temp., humidity-40°C80°C, 1095%RH
Temp. coefficient±0.03%/°C(0-50°C)
Vibration10~500Hz, 2G 12min./1cycle, period for 72min. each along X, Y, Z axes.
PROTECTIONOver-heat protectionIntelligently adjusting or turning off the output current if the PCB temperature ≥110°C, auto recovers.
Over load protectionShut down the output when current load≥102%, auto recovers.
Short circuit protectionShut down automatically if short circuit occurs, auto recovers.
Over voltage protectionShut down the output when non-load voltage≥26V, re-power on to recover after fault condition is removed.Shut down the output when non-load voltage ≥13V, re-power on to recover after fault condition is removed.
SAFETY & EMCWithstand voltageI/P-O/P: 3750Vac
Isolation resistanceI/P-O/P: 100MΩ/500VDC/25°C/70%RH
Safety standardsIEC/EN61347-1, IEC/EN61347-2-13
EMC emissionEN55015, EN61000-3-2 Class C, IEC61000-3-3
EMC immunityEN61000-4-2,3,4,5,6,8,11, EN61547

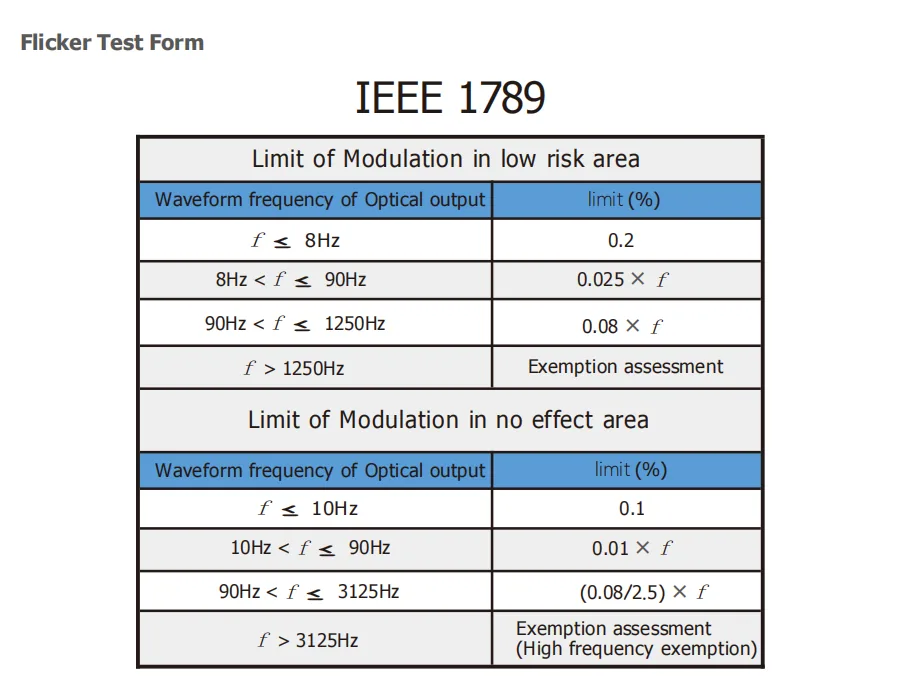

EMC immunityIEEE 1789
OTHERSDimension293×43×30mm(L×W×H)
Packing296×44×33mm(L×W×H)
Weight(G.W.)350g±10g
**∗**The driver is suitable for connecting resistor current-limiting LED fixture (e.g. LED strip). The inrush current will be dozens of times increased if connecting built-in constant current IC current-limiting LED fixtures, the driver will activate the overloaded protection (hiccups flickering). When you order, please remark controlling the constant current LED fixture (e.g. MR16 lamp, underground light, LED wall washer, constant current LED strip, etc.), then we can prepare the special programs.
