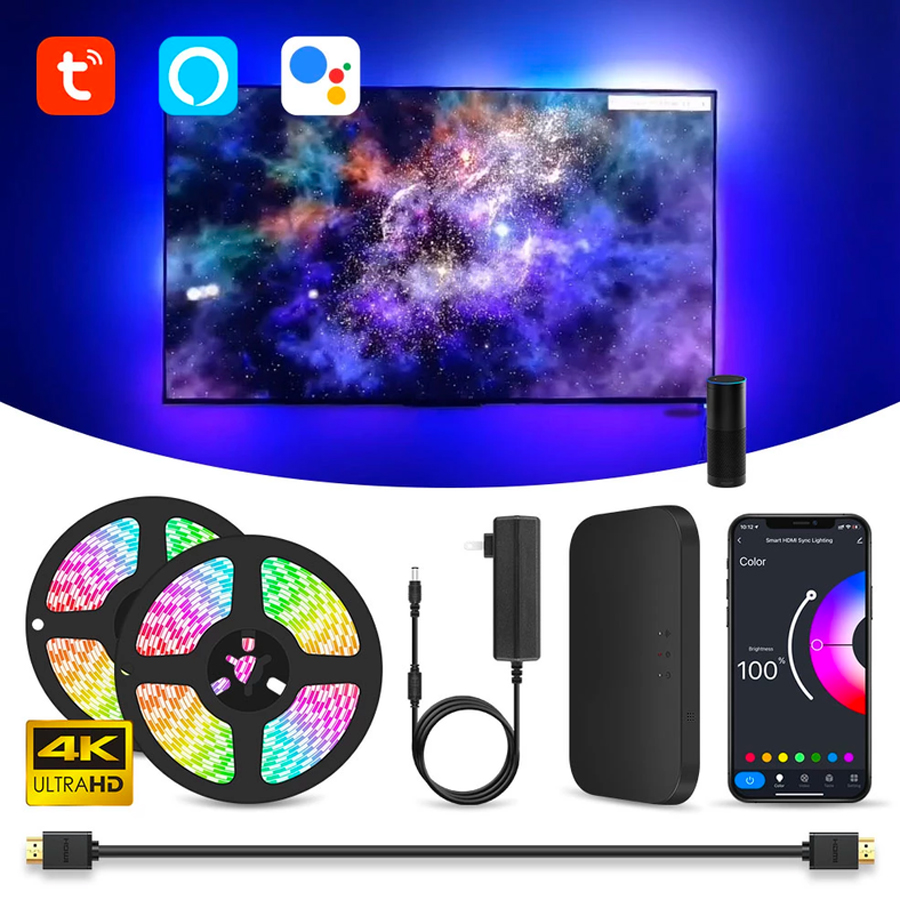

HM-HDMI Box with Lightstrips
ELECTRICAL PARAMETERS: INPUT OUTPUT DC Port: 5.5×2.5mm HDMI output: loop out, 2.0b and below, 4K 60Hz and below Operating voltage: 12V 0.2A USB SIDE/BOTTOM port output voltage: DC 12V (with adapter voltage) Input voltage: DC 12V Output current of USB SIDE/BOTT
- System
- Power & Accessories
- Product Family
- Controllers & Dimmers
- Product Type
- Controllers
Product Gallery
Product Views
Product Details
Technical Information
| ELECTRICAL PARAMETERS: | |||
| INPUT | OUTPUT | ||
| DC Port: | 5.5×2.5mm | HDMI output: | loop out, 2.0b and below, 4K 60Hz and below |
| Operating voltage: | 12V 0.2A | USB SIDE/BOTTOM port output voltage: | DC 12V (with adapter voltage) |
| Input voltage: | DC 12V | Output current of USB SIDE/BOTTOM port: | 2A (Max) |
| Input current: | 4A (Max) | USB SIDE/BOTTOM port output data: | magic light, RGB24bit, color sequence GRB, single channel maximum 100 pixel output |

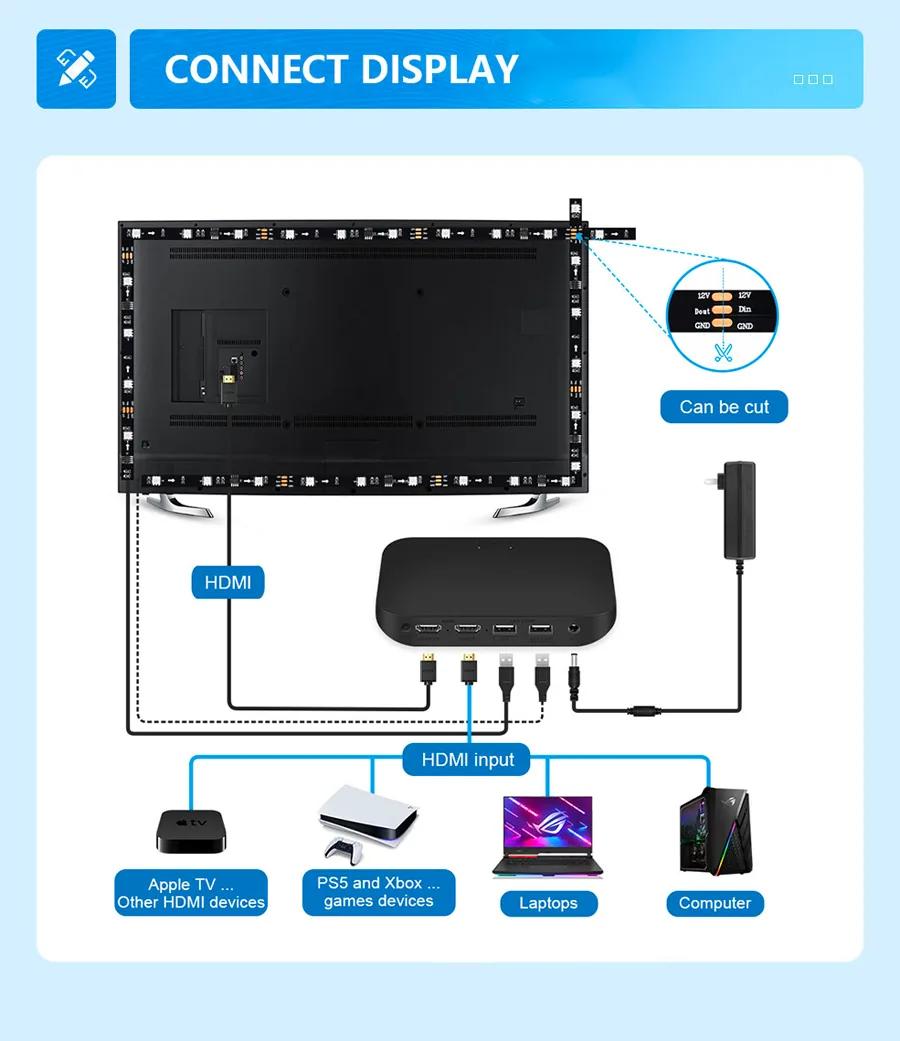

| HDMI input: | 2.0b and below, 4K60Hz and the following | USB port 4PIN line order definition: | 1, VCC 2, Data out 3, NC 4, GND |
| Standby power consumption: | 2W |

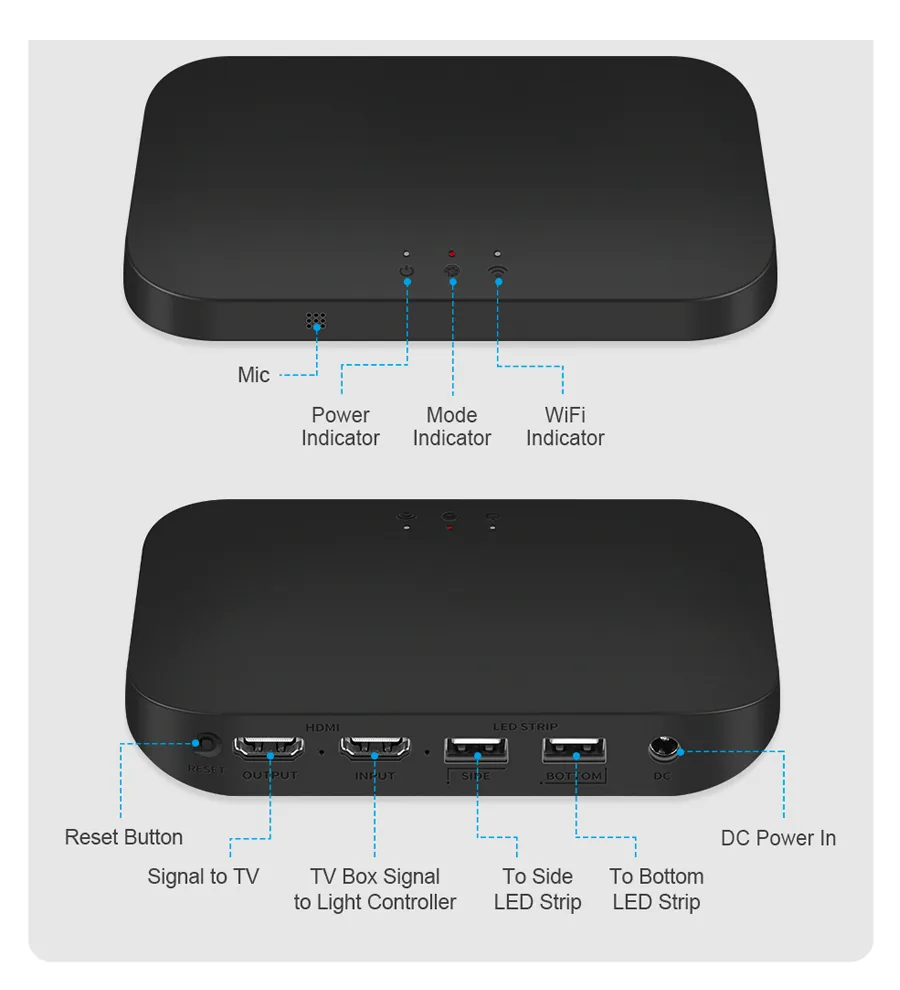

| INDICATOR LIGHTS, BUTTONS, PICKUP PARAMETERS: | |||
| Power indicator: | White, always on | ||
| Mode indicator: | tricolor, RGB | ||
| Mode indicator: | WiFi indicator: White, slow flash: waiting for networking; flash: networking; always bright: networking success button: light touch button, reset button, long press more than 5S, WiFi reset, enter the waiting distribution network | ||
| Pick-up: | built-in Mimi / microphone, sensitivity-32DB (frank1kHz 0dB=1V/ Pa 1Pa 0dB=1V/ Pa) |
| WIRELESS PARAMETERS: | |||
| Wi-Fi connectivity: | 802.11 b / g / n Channel 1-14@2.4GHz support WEP, WPA/WPA2, WPA/WPA2 PSK (AES) security mode Maximum + 16dBm output power in 802.11b mode support STA/AP/STA+AP mode of operation supports both SmartConfig and AP distribution modes (including Android and IOS devices) on-board PCB antenna, antenna peak gain 2.2dBi | ||
| BLE connectivity | Bluetooth mode supports 6 dBm transmit power complete Bluetooth coexistence interface on-board PCB antenna, antenna peak gain 2.2dBi | ||
| Mode indicator: | WiFi indicator: White, slow flash: waiting for networking; flash: networking; always bright: networking success button: light touch button, reset button, long press more than 5S, WiFi reset, enter the waiting distribution network | ||
| RF connectivity: (optional) | working in the 2.4GHz ISM band Private protocol reception sensitivity:-83dBm @ 2MHz maximum transmit power: 7dBm on-board PCB antenna, antenna peak gain 2.2dBi |
| ADAPT SCREEN PARAMETERS: | |||
| Synchronous mode | Optional | ||
| “movie” mode | The top, bottom, left and right are shown as fusion colors, and the colors on the four sides of the synchronous screen correspond to the center colors. | ||
| Video mode | The top and bottom are shown as independent colors, and the colors around the synchronous screen correspond to each other one by one, resulting in softening. | ||
| Game mode | The top and bottom are shown as independent colors, and the colors around the synchronous screen correspond one to one, without softening. | ||
| Brightness | Adjustable, 1-100% | ||
| Synchronous delay | ≤100ms | ||
| Light refresh frame rate | 20Hz |
| HDMI PARAMETER: | |||
| HDMI protocol version | Compatible with 2.0b | ||
| HDCP | 1.4/2.2 | ||
| Support resolution | 3840×2160p(4K)@60 Hz / 1920×1080p@60 Hz | ||
| Support high refresh rate | 120 Hz (1920 × 1080p) | ||
| CEC/Dolby Vision/ARC/HDR | Support, through | ||
| HDMI transmission bandwidth | 25-600 MHz | ||
| HDMI transmission rate | 0.75-18Gbps | ||
| HDMI input line length | 2160P ≤ 5m 1080P ≤ 10m/AWG 26 HDMI version 2.0 standard line | ||
| HDMI output line length | 2160P ≤ 5m 1080P ≤ 10m/AWG 26 HDMI version 2.0 standard line | ||

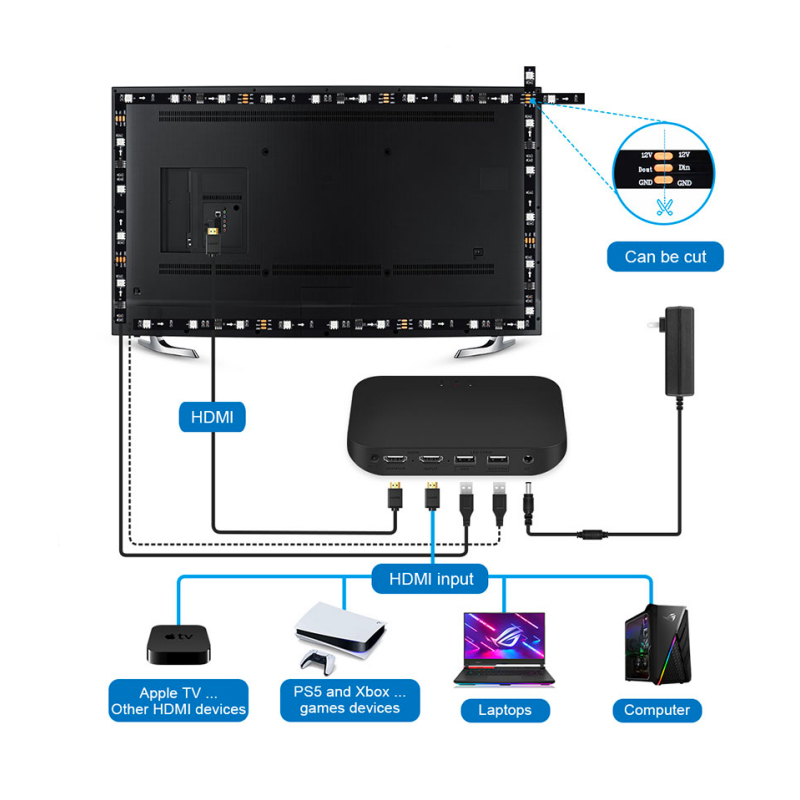

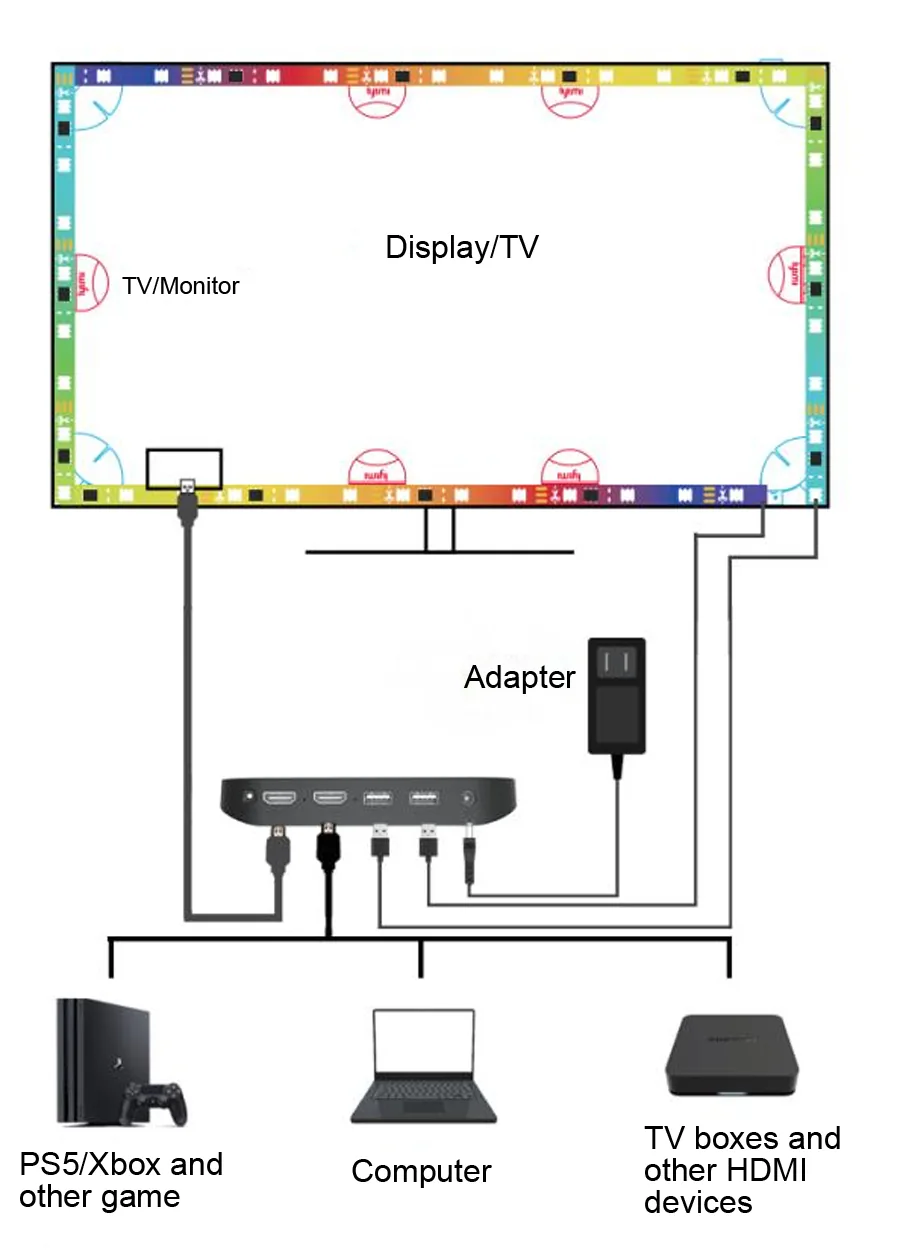

| Support mainstream Device | TV BOX: Apple TV, Fire TV Stick, Google TV Chromecast, NVIDIA Shield TV, Xiaomi Box, Tmall Box, Tencent Aurora Box, other HDMI TV boxes Game consoles: PS5, PS4, Xbox, Sw itch… Computers: desktops, notebooks |
| CONTROL MODE: | |||

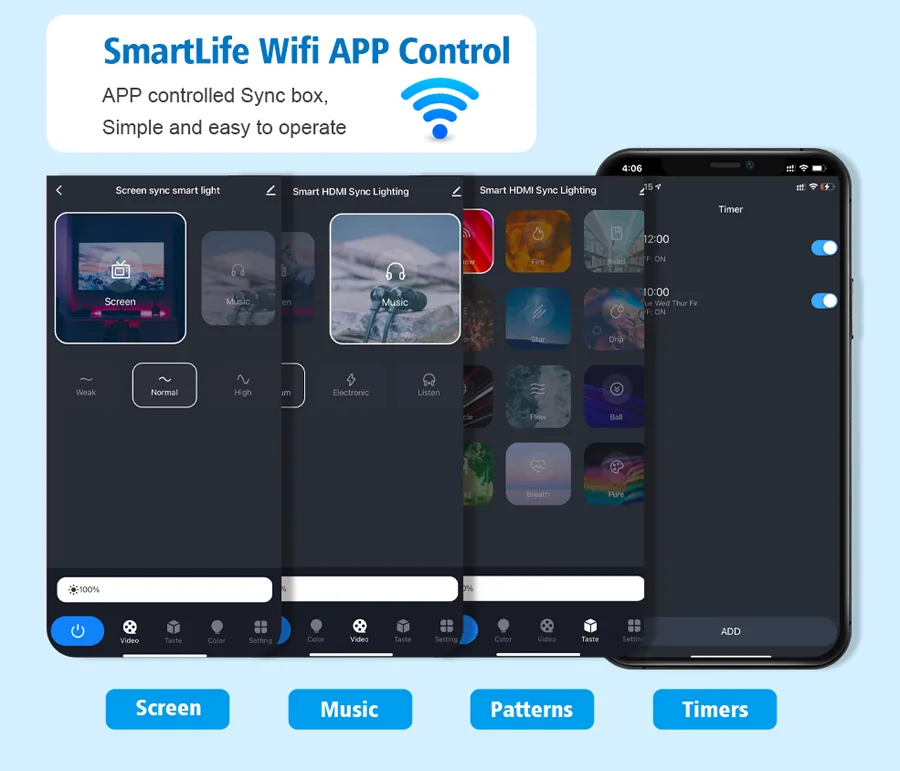

| APP control: | smart life (including Android and IOS devices) | ||
| APP mode: | 14 modes (movie mode, music mode, 12 fun modes) | ||

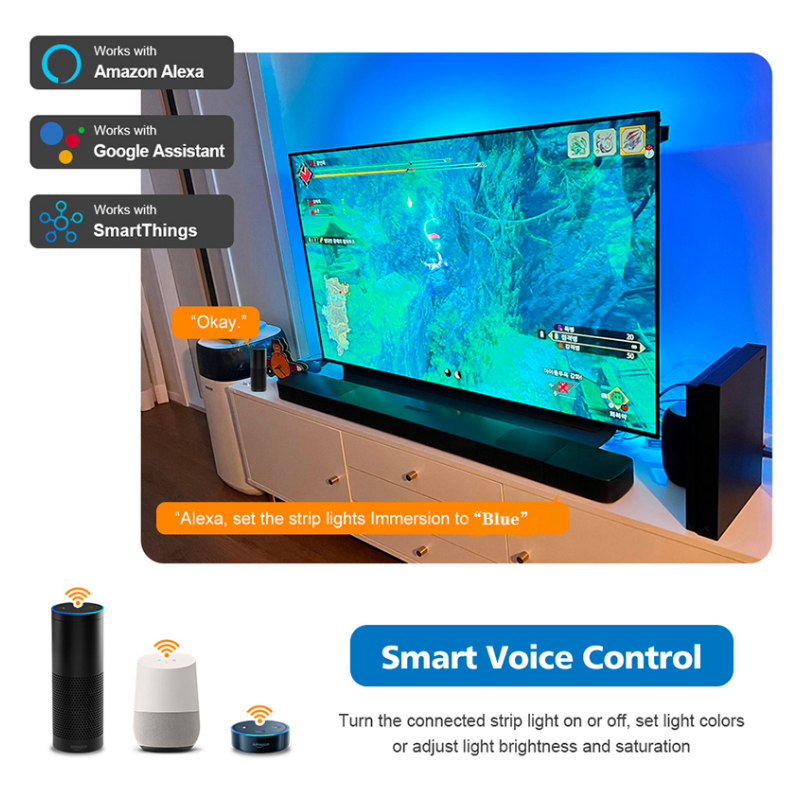

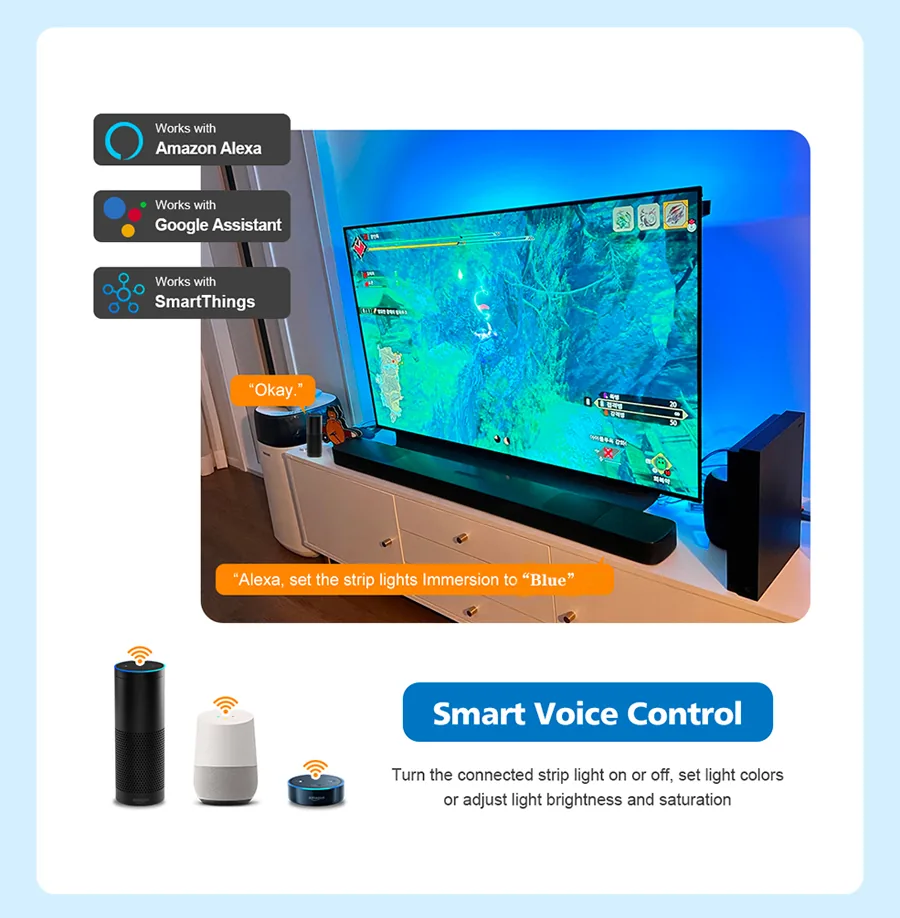

| Voice control: | Amazon Alexa,Google Assistant,Smartthing, small degree |
| CERTIFICATION: | CE, FCC, ROHS, UL (test report) | ||

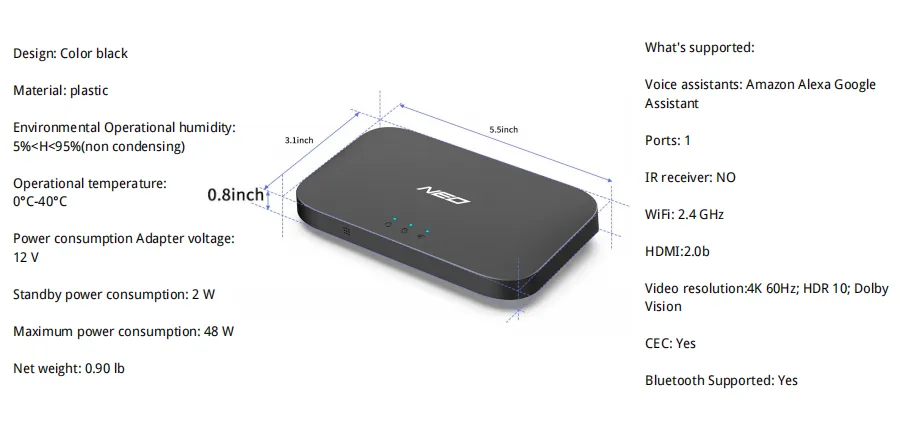

| SIZE, WEIGHT AND MATERIAL: | Material: ABS+PC fireproof Product size: 145 mm × 85 mm × 23mm (L × W × H) Product weight: 185g ±5g Surface treatment: black scrub | ||
| WORKING ENVIRONMENT: | Operating temperature: 0 °C-40 °C Humidity: 5% < H < 55% |
