Controller Supply-HM-V1-K
Inpuf and Oufput Input voliage 12-24VDC Input current 20A Output voliage 12-24VDC Ouput current ICH,20A Max. Output power 240W/480W Max. @(12v/24v)500Hz PWM Ouput ype Constant volage Dimming data Input signal Patary Knob + RF 2.4GHz Control distance 15m(Barrie
- System
- Power & Accessories
- Product Family
- Controllers & Dimmers
- Product Type
- Dimming & Remote Controls

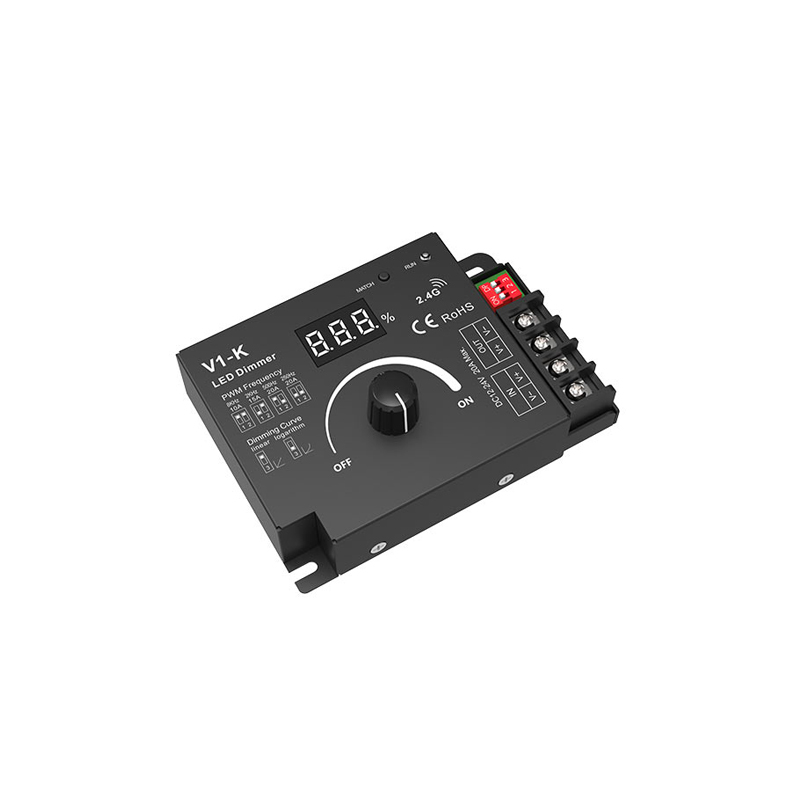

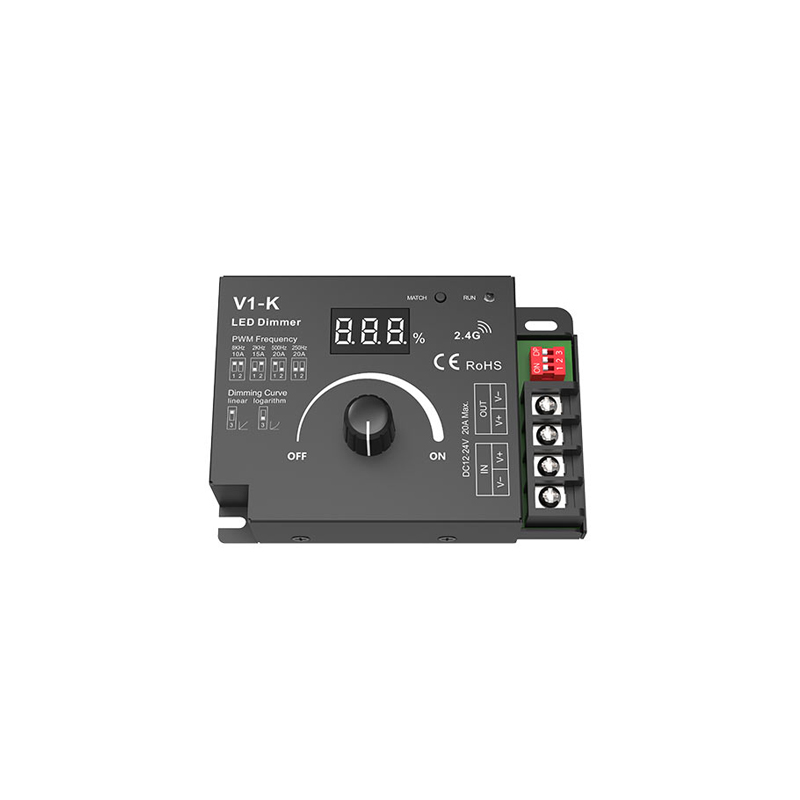

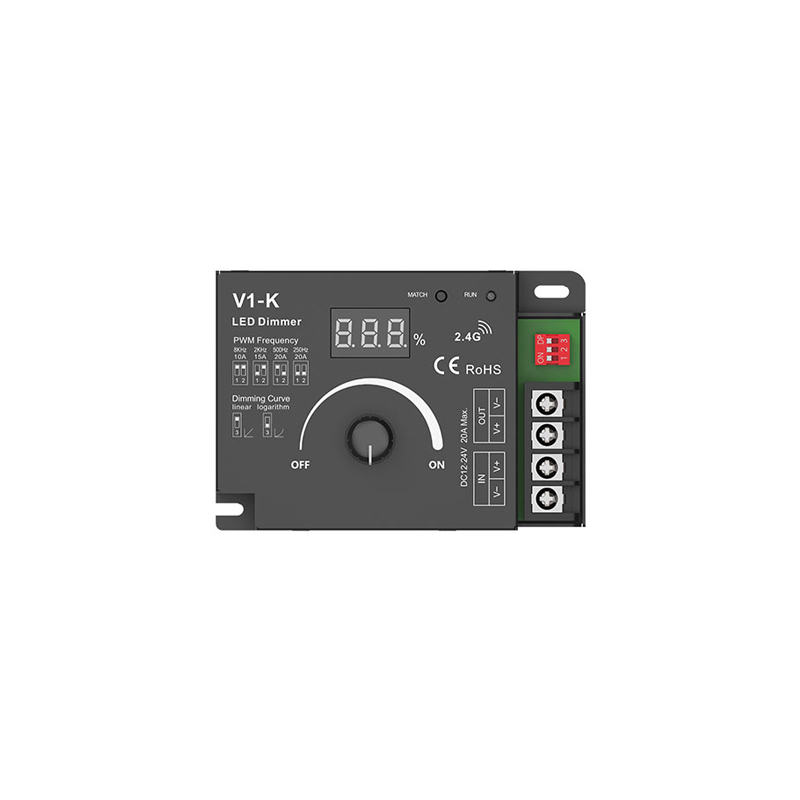

Product Gallery
Product Views
Product Details
Technical Information
| Inpuf and Oufput | |
| Input voliage | 12-24VDC |
| Input current | 20A |
| Output voliage | 12-24VDC |
| Ouput current | ICH,20A Max. |
| Output power | 240W/480W Max. @(12v/24v)500Hz PWM |
| Ouput ype | Constant volage |
| Dimming data | |
| Input signal | Patary Knob + RF 2.4GHz |
| Control distance | 15m(Barrier-free space) |
| Dimming gray scale | 100levels |
| Dimming range | 0 -100% |

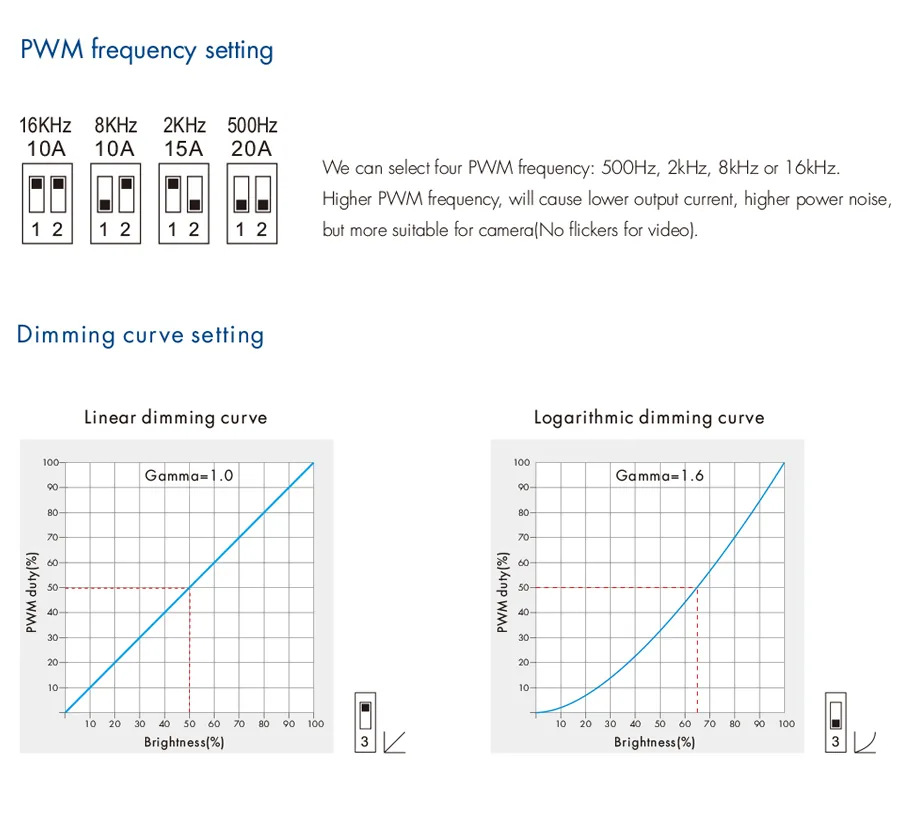

| Dimming curve | Logarithmic or linear |
| PWM frequency | 500Hz ,2kHz,8kHz,16kHz |
| Safety and EMC | |
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD | EN 62368-1:2020+A11:2020 |
| Radio Equipment(RED) | ETSI EN 300 328 V2.2.2 |
| Certification | CE,EMC,LVD,RED |
| Environment | |
| Operation temperature | Ta: -30°C ~ +55°C |
| Case temperature (Max.) | T c:+85°C |
| IP rating | IP20 |
| Warranty and Protection | |
| Warranty | 5 years |
| Protection | Reverse polarity Over-heat Over-load Short circuit |
| Light on/off fade time |
| Long press match key 5s, then short press match key 3 times, the light on/off time will be set to 3s, the indicator light blink 3 times. Light on/off fade time Long press match key 10s, restore factory default parameter, the light on/off time also restore to 0.5s. |
| Malfunctions Analysis & Troubleshooting |
| Malfunctions | Causes | Causes |
| No light | 1.No power. 2.Wrong connection or insecure. | 1.Check the power. 2.Check the connection. |
| 1.Check the power. 2.Check the connection. | 1.Output cable is too long. 2.Wire diameter is too small. 3.Overload beyond power supply capability. 4.Overload beyond controller capability | 1.Reduce cable or loop supply. 2.Change wider wire. 3.Replace higher power supply. 4.Add power repeater. |
| Q1.ls it okay for OEM and ODM ? Armor lighting is professional for OEM and ODM order. We have rich experience toproceed the production and ensure the good quality. Q2.What’s the MOQ? Can l have some samples ? Low MOQ, 1 pcs for sample checking quality is available Samples order are acceptableand welcome the customized samples for your project. Q3.How long of the Lead time? Sample needs 3-5 days, quantity order needs 10-15days Q4.How do you ship the goods and how long does it take to arrive? We usually ship by DHL, UPS, FedEx or TNT. lt usually takes 3-5 days to arrive.Airlineand sea shipping also optional. Q5.How to proceed an order for customized light ? First, let us know your requirements or drawing.Second, we quote according to yourrequirements.Third, you confirm and arrange payment for formal order.Finally, we willstart the production and arrange shipment. Q6.How long for the warranty? All of Armor lighting products quality is 3 years, lf customized project products with 5years warranty. Q7.ls it okay to print my LoGo on the product ? Yes, please inform us formally before production and confirm the design firstly basedon our sample. Q8.How to deal with the Faulty? We offer 2, 3 and 5 year’s limited warranty for different kinds of products or differentrequirements of lighting projects. During this period, if customers have the proofshowing quality issues and that proof is approved by armor lighting engineers, we wouldlike to replace the defective ones with new qualified items. Please note that warranty is not equal to lifespan.Our products have more than 50000-hourlong lifespan. Q9.Can l visit your factory? Sure,welcome to visit our factory. Can lets us know your visit schedule before two daysand your interested products. Q10.Are you factory or trading company? We are factory directly export to over sea market. Q11.Do you supply led lighting to any famous brand store Lighting? Yes,our led store Lighting had supply to LANCOME , LEGO,NEXT,COACH, Burt’s Bee,Hasbro, Boots，BRAUN,M&S etc. |
