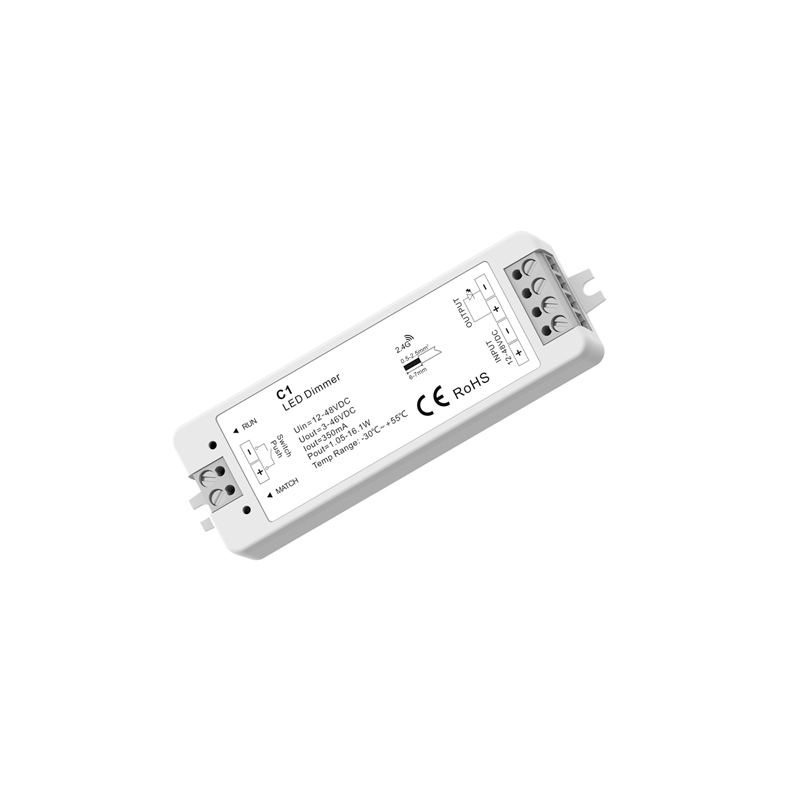

Name: Controller Supply-HM-C1
Brand: ARMOR
SKU: 4149


Inpuf and Oufput
Input voliage	12-48VDC
Output voliage	3-46VDC
Ouput current	1CH,350mA/700mA
Output power	1.05W-16.1W(350mA) 2.1W-32.2W(700mA)
Ouput ype	Constant volage


Dimming data
Input signal	RF 2.4GHz + Push Dim
Control distance	30m(Barrier-free space)
Dimming gray scale	4096(2^12)levels
Dimming range	0 -100%
Dimming curve	Logarithmic


Safety and EMC
EMC standard (EMC)	EN301 489,EN 62479
Safety standard(LVD	EN60950
Radio Equipment(RED)	EN 300 328
Certification	CE,EMC,LVD,RED
Dimming curve	Logarithmic


Environment
Operation temperature	Ta: -30°C ~ +55°C
Case temperature (Max.)	T c:+85°C
IP rating	IP20


Warranty and Protection
Warranty	5 years
Protection	Reverse polarity Short circuit


Weight
Net weight	0.042kg
Gross weight	0.058kg

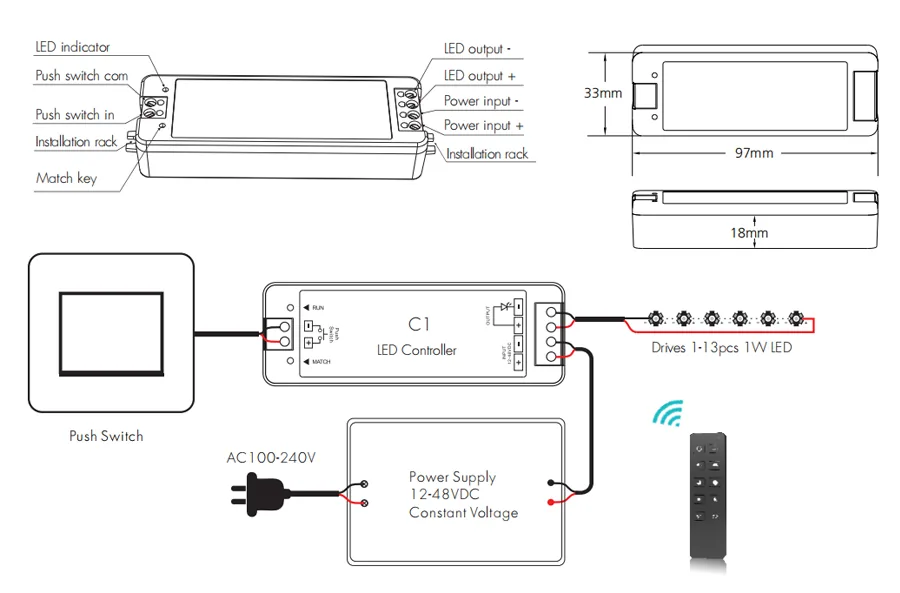

Mechanical Structures and Installations


1.The controller could auto check and output a proper voltage according to its LED quantities. 2.The controller works on buck mode, the voltage of power supply should be greater than the total voltage of the seried LEDs.


Match Remote Control (two match ways)
End user can choose the suitable match/delete ways. Two options are offered for selection:
Use the controller’s Match key Match: Short press match key, immediately press on/off key (single zone remote) or zone key (multiple zone remote) on the remote.The LED indicator fast flash a few times means match is successful. Delete: Press and hold match key for 5s to delete all match, The LED indicator fast flash a few times means all matched remotes were deleted.	Use Power Restart Match: Switch off the power, then switch on power again, immediately short press on/off key (single zone remote)or zone key (multiple zone remote) 3 times on the remote. The light blinks 3 times means match is successful. Delete: Switch off the power, then switch on power again, immediately short press on/off key (single zone remote) or zone key (multiple zone remote) 5 times on the remote. The light blinks 5 times means all matched remotes were deleted.


Application notes 1.All the receivers in the same zone.

Auto-transmitting: One receiver can transmit the signals from the remote to another receiver within 30m, as long as there is a receiver within 30m, the remote control distance can be limitless. Auto-synchronization: Multiple receivers within 30m distance can work synchronously when they are controlled by the same remote. Receiver placement may offer up to 30m communication distance. Metals and other metal materials will reduce the range. Strong signal sources such as WiFi routers and microwave ovens will affect the range. We recommend for indoor applications that receiver placements should be no further apart than15m. 2.Each receiver(one or more) in a different zone, like zone 1, 2, 3 or 4.

Push Dim Function The provided Push-Dim interface allows for a simple dimming method using commercially available non-latching (momentary) wall switchs. _ Short press: Turn on or off light. _ Long press (1-6s): Press and hold to step-less dimming, With every other long press, the light level goes to the opposite direction. _ Dimming memory: Light returns to the previous dimming level when switched off and on again, even at power failure. _ Synchronization: If more than one controller are connected to the same push switch, do a long press for more than 10s, then the system is synchronized and all lights in the group dim up to 100%. This means there is no need for any additional synchrony wire in larger installations. We recommend the number of controllers connected to a push switch does not exceed 25 pieces, The maximum length of the wires from push to controller should be no more than 20 meters. Dimming Curve


Malfunctions Analysis & Troubleshooting


Malfunctions	Causes	Troubleshooting
No light	1. No power. 2.Wrong connection or insecure.	1.Check the power. 2.Check the connection.
No response from the remote	1.The battery has no power. 2.Beyond controllable distance. 3.The controller did not match the remote.	1.Replace battery. 2.Reduce remote distance. 3.Re-match the remote.

Q1.ls it okay for OEM and ODM ? Armor lighting is professional for OEM and ODM order. We have rich experience toproceed the production and ensure the good quality. Q2.What’s the MOQ? Can l have some samples ? Low MOQ, 1 pcs for sample checking quality is available Samples order are acceptableand welcome the customized samples for your project. Q3.How long of the Lead time? Sample needs 3-5 days, quantity order needs 10-15days Q4.How do you ship the goods and how long does it take to arrive? We usually ship by DHL, UPS, FedEx or TNT. lt usually takes 3-5 days to arrive.Airlineand sea shipping also optional. Q5.How to proceed an order for customized light ? First, let us know your requirements or drawing.Second, we quote according to yourrequirements.Third, you confirm and arrange payment for formal order.Finally, we willstart the production and arrange shipment. Q6.How long for the warranty? All of Armor lighting products quality is 3 years, lf customized project products with 5years warranty. Q7.ls it okay to print my LoGo on the product ? Yes, please inform us formally before production and confirm the design firstly basedon our sample. Q8.How to deal with the Faulty? We offer 2, 3 and 5 year’s limited warranty for different kinds of products or differentrequirements of lighting projects. During this period, if customers have the proofshowing quality issues and that proof is approved by armor lighting engineers, we wouldlike to replace the defective ones with new qualified items. Please note that warranty is not equal to lifespan.Our products have more than 50000-hourlong lifespan. Q9.Can l visit your factory? Sure,welcome to visit our factory. Can lets us know your visit schedule before two daysand your interested products. Q10.Are you factory or trading company? We are factory directly export to over sea market. Q11.Do you supply led lighting to any famous brand store Lighting? Yes,our led store Lighting had supply to LANCOME , LEGO,NEXT,COACH, Burt’s Bee,Hasbro, Boots，BRAUN,M&S etc.
